ELECTRICAL CONNECTIONS

All required wirings are connected. The pigtail (Figure 4a or 4b) should be replaced with a 4-conductor cable
(by installers) straight run to the wall switch or other control devices.
Schematics are provided with this instruction at the end.
WARNING: THE INITIAL HOOK‐UP AND CALIBRATION PROCEDURES ARE INTENDED TO BE PERFORMED BY A QUALIFIED SERVICE MAN.
On each end of the service door; remove the screws (Figure 2b) to untie the door.
Remove the electrical cover to gain access to the electrical compartment. Simply push up or using a screwdriver
and make a light hit upward on the cover to pop open (Figure 5a).
Pull down the Eurostrip to replace the pigtail with 4-conductor cable. The cable should go to location where the
wall switch is to be located.
Make connections to the wall switch. Perform quick test by sending the screen down and then up.
Push the Eurostrip back up in the electrical compartment and reinstall the electrical cover. Refer to Figures 5a
and 5b, keep the cover in contact with the motor bracket while pulling down on the screw of the cover. Note the
cover is lightly force fit inside the housing.
Close the service door and reinstall the screw on each end.
NOTE: FOR 230VAC INSTALLATION, REFER TO FIGURE 4b.
VUTEC CORPORATION
www.vutec.com
TEL: (954)-545-9006
FAX: (954)-545-9011
EMAIL: info@vutec.com

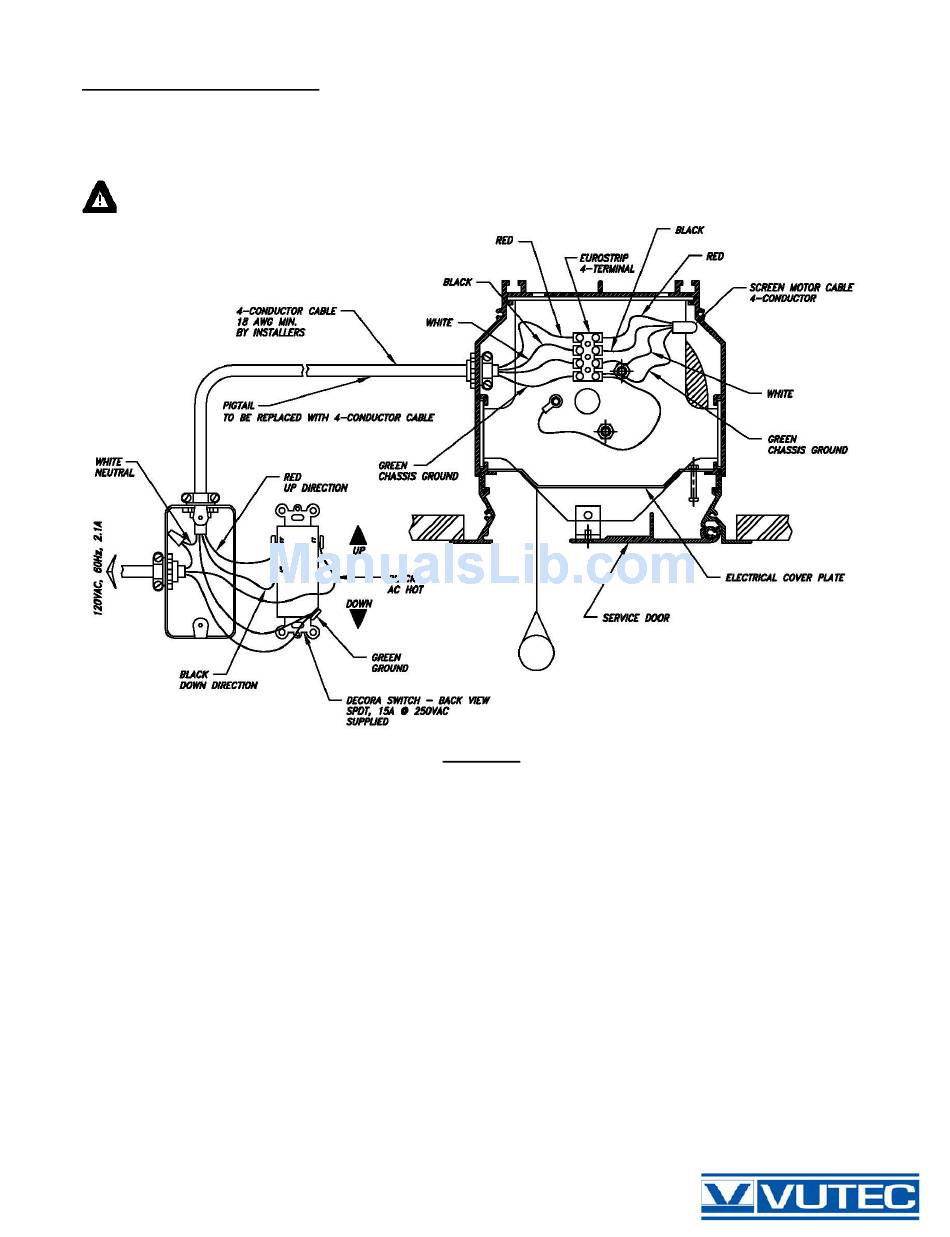

Figure 4a
Electrical Connections 120 VAC
5
06/26/2017 Rev. B
INSTL-L2-C_L4-C-B
