Refer to the SCREEN ROLLER ASSEMBLY REMOVAL Section for instructions.
CAUTION: BE SURE TO PLACE THE CONNECTING WIRES INSIDE BEFORE PROCEEDING WITH THE HOUSING INSTALLATION.
Install the housing once the screen roller assembly is removed. Be sure the housing is level and plumb.
VUTEC CORPORATION
www.vutec.com
TEL: (954)-545-9006
FAX: (954)-545-9011
EMAIL: info@vutec.com

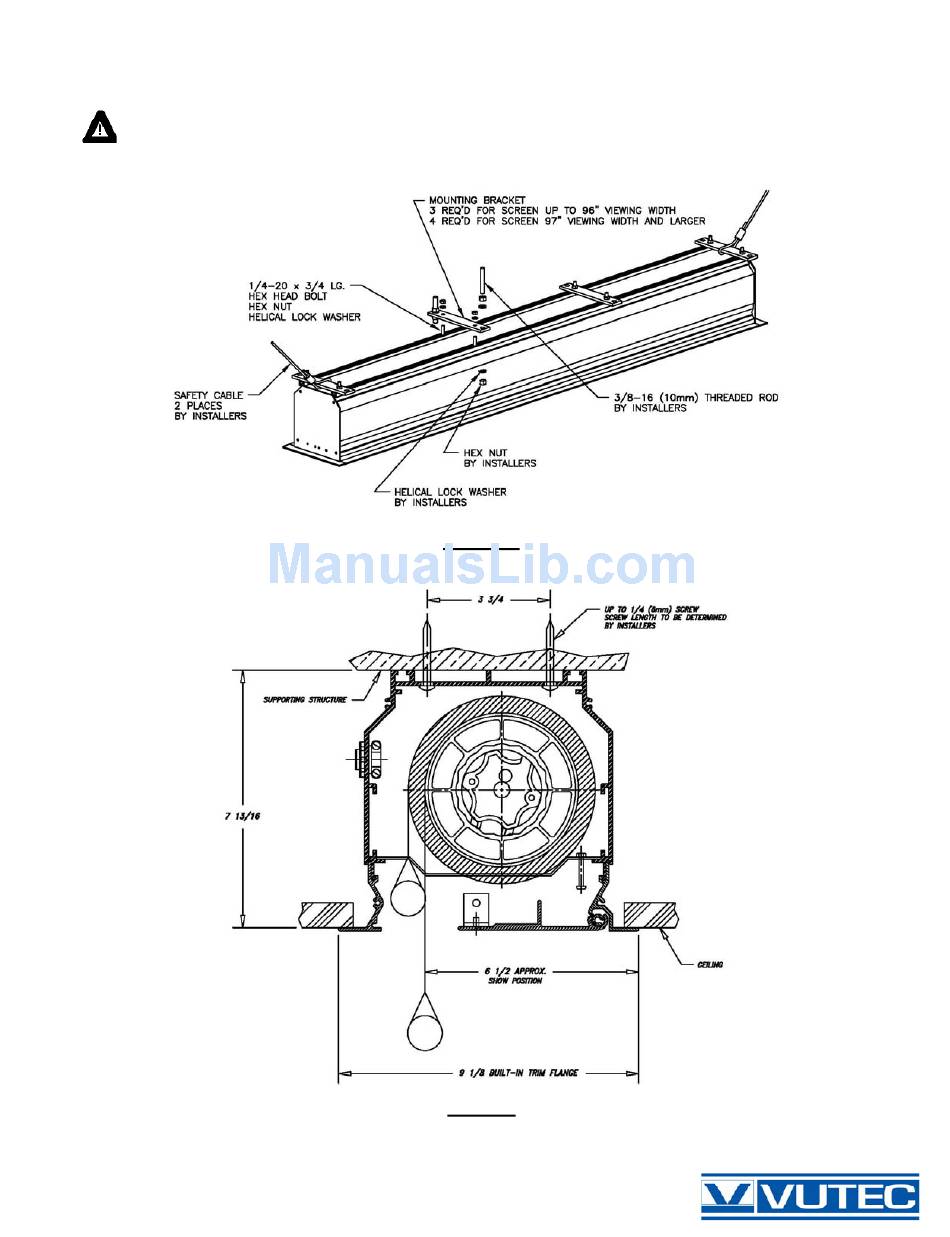

Figure 2c
Option 1 - Suspended Mounting
Figure 3
Option 2 – Blind Pocket Mounting
4
06/26/2017 Rev. B
INSTL-L2-C_L4-C-B
