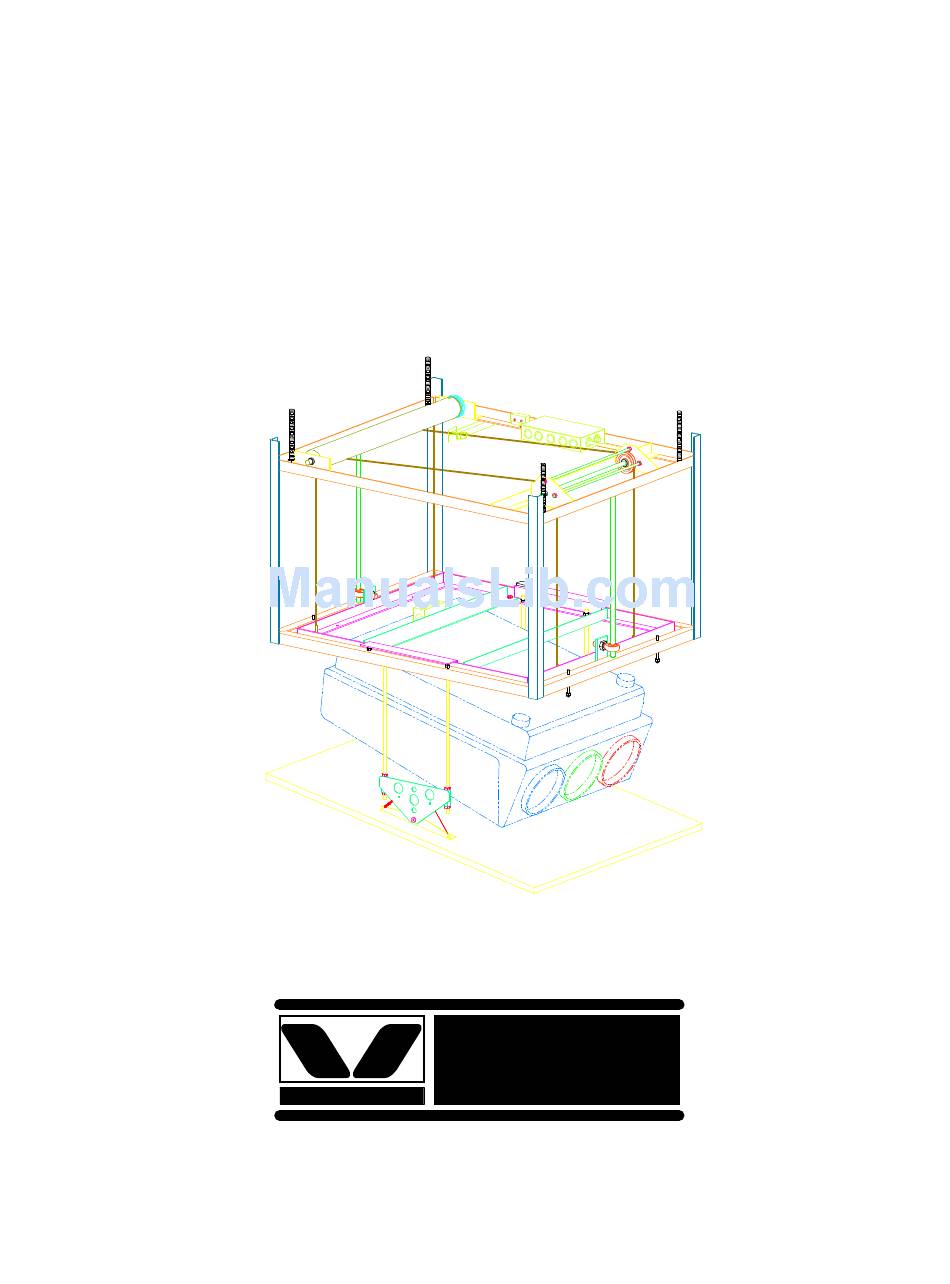

Installation Instructions VU-PRO Models VT14X, VT18X, VT22X VIDEO PROJECTOR LIFT VUTEC VIDEO PROJECTION SCREENS 03/04/99 PL-MAN_ORG... - Page 2 PROJECTOR LIFT LARGE LCD, DLP, D-ILA, CRT SERIES PROJECTORS MODELS VT14X, VT18X & VT22X VT14X VT18X VT22X MODEL VT14X MODEL VT18X MODEL VT22X Max. projector space (HWL) 14 1/2 x 22 1/2 x 27 18 1/2 x 25 1/2 x 35...
-
Page 3: Mechanical Installation
The overhead support can often be adapted from the existing building structure, or, if necessary, constructed specially for this purpose. However constructed, the support must be capable of sustaining the following loads: Model VT14X 80 lbs. Projector Weight Model VT18X 100 lbs. - Page 4 2. Once the exact location of the ceiling opening is established, refer to the data sheet at the end of this manual and ensure that there is sufficient headroom above the opening to receive the projector lift. Inspect the existing structure above this spot to see if any modifications are required for adequate support of the finished system.
- Page 5 C - HANGING THE PROJECTOR LIFT The VU-PRO projector lift is designed to mount recess into the ceiling, supported by four 1/2 inch threaded rods (not provided) - see the data sheet at the end of this manual for dimensions. Dimension “SP”...
- Page 7 6. Disengage both motor limit switches. unit downwards until the traveling platform is in contact with the four plastic nuts (Figure 5). Stop the unit such that there is still some light tension on the cables from the springs beneath the traveling platform.
- Page 8 INSTALLING THE CEILING CLOSURE PANEL The VU-PRO projector lift comes fitted with a blank ceiling closure panel. This panel is attached to the tilting brackets by four screws, on the underside, to allow easy removal and access to the unit from below. The screw heads are covered by plastic caps. Depending on installation requirements, the provided closure panel may be used directly as is;...
-
Page 9: Projector Alignment
6. Carefully, by trial and error, adjust the four hex bolts downwards, such that the they bring the ceiling closure panel into final location just as the lift stops it’s upward travel. 7. Tighten the hex nuts that secure the adjustment of the four hex bolts. 8. - Page 10 PROJECTOR LIFT WIRING DIAGRAM 120VAC MOTOR 09/20/99 PL-SCH120 Notes: 1 - Dashed wiring by installers. Wiring must comply with local and/or national electrical codes and regulations. 2 - The UP and DOWN limit switches are built-in motor limit switches. 3 - If replacing the toggle switch; the new switch must meet the following specifications: Contact rating 250VAC, 6A min.
