Summary of Contents for Vutec VU-PRO VT08X
-

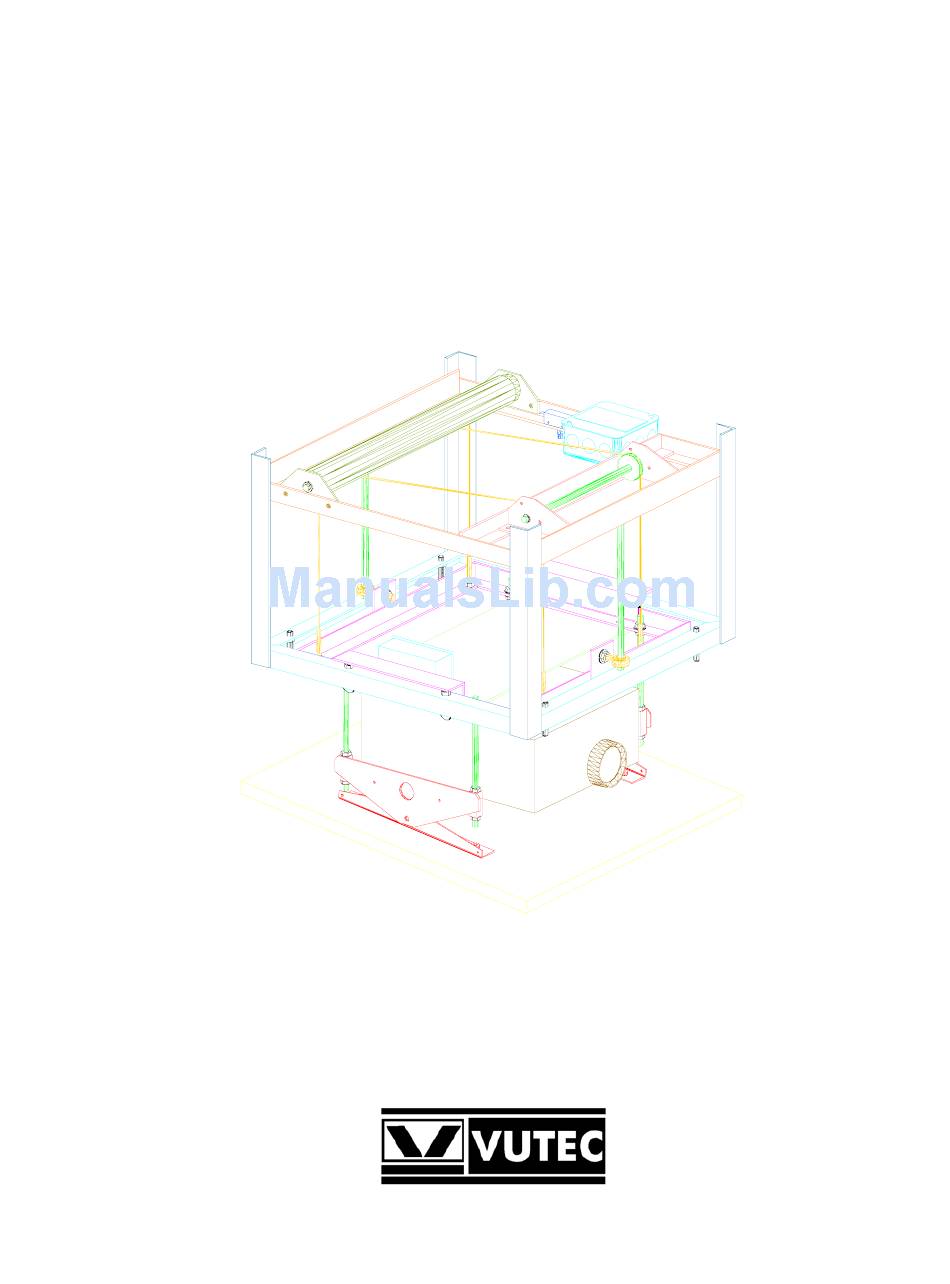

Page 1: Installation Instructions
Installation Instructions VU-PRO Models VT08X and VT11X LCD/DLP PROJECTOR LIFT VIDEO PROJECTION SCREENS 09/22/03 MANUAL-VT08X.doc... - Page 2 VT08X VT11X MODEL VT08X MODEL VT11X Max. projector space (HWL) 8 x 14 ½ x 16 11 x 17 ½ x 19 Overall dimensions (HWL) 14 x 20 x 20 17 x 23 x 23 Min. space above finished ceiling...
-
Page 3: Mechanical Installation
The overhead support can often be adapted from the existing building structure, or, if necessary, constructed specially for this purpose. However constructed, the support must be capable of sustaining at least four times the following loads: Model VT08X 35 lbs. Projector Weight Model VT11X 45 lbs. - Page 4 B - HANGING THE PROJECTOR LIFT The VU-PRO projector lift is designed to mount recess into the ceiling, supported by four 3/8 diameter threaded rods (not supplied) - see specification sheet. Dimension SP on the specification sheet is based upon the 3/4 inch thick ceiling closure panel shipped with the unit. NOTE: Optionally, installers may replace the ceiling closure panel with existing ceiling materials.
- Page 5 Reinstall the projector mounting plate to the lift. Attach the projector and reinstall the ceiling closure panel. CEILING CLOSURE PANEL ADJUSTMENTS Referring to Figures 2a and 2b, the ceiling closure panel maybe adjusted to flush with the ceiling bottom. The following steps describe the procedure. Warning: It is important that regardless of how the ceiling closure panel has been set, the traveling platform must trips the up direction shut-off switch when the lift retracted to the fully up position.
- Page 6 LCD/DLP PROJECTOR LIFT MODELS VT08X AND VT11X Figure 3a Figure 3b TEL: (954) 545 9000 - FAX: (954) 545 9011 E-MAIL: info@vutec.com...
