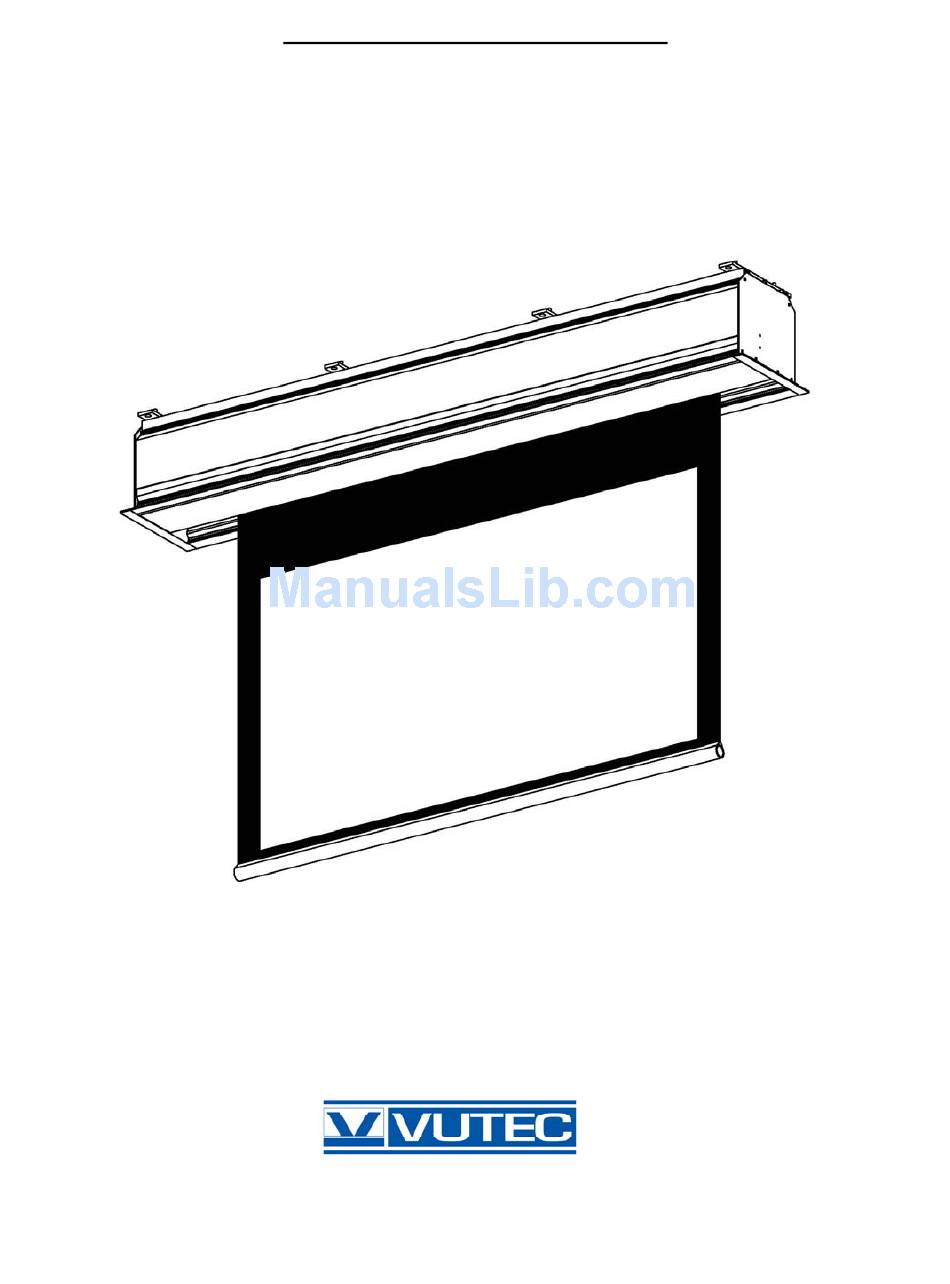

- Page 1 Installation Instructions Lectric 2-C & 4-C FLUSH CEILING MOUNT SCREEN LARGE SERIES VIDEO PROJECTION SCREENS...
-
Page 2: Important Safety Instructions
MAY CAUSE PREMATURE FAILURE, FIRE HAZARD, ELECTRICAL SHOCK, UNSAFE PRACTICE AND REVOCATION OF USE. DISCLAIMER Vutec Corporation intends to make this manual accurate and complete. However, Vutec makes no claim that the information contained herein covers all details, conditions or variations, nor does it provide for every possible contingency in connection with the installation for use of this product. The information contained in this document is subject to change without notice. -
Page 3: Screen Type
LECTRIC 2-C & 4-C FLUSH CEILING MOUNT WITH SERVICE DOOR SELF-SUPPORTED (shown) and TAB-TENSIONED screens Figure 1 SCREEN TYPE LENGTH DIM. A SELF-SUPPORTED VIEWING WIDTH + 15 1/2 7 3/4 TAB-TENSIONED VIEWING WIDTH + 22 1/2 11 1/4 VUTEC CORPORATION www.vutec.com TEL: (954)-545-9006 FAX: (954)-545-9011 06/26/2017 Rev. -
Page 4: Housing Installation
HOUSING INSTALLATION Lectric 2-C is designed for flush ceiling mount. As shown in Figure 2a, Option 1 is the preferred mounting method which requires access space above the ceiling. The mounting brackets may be placed anywhere along the housing length as desired. However, it is best to evenly space them for uniform weight distribution. It is recommended the end mounting brackets should not be more than 4 inches from each end of housing. - Page 5 Install the housing once the screen roller assembly is removed. Be sure the housing is level and plumb. Figure 2c Option 1 - Suspended Mounting Figure 3 Option 2 – Blind Pocket Mounting VUTEC CORPORATION www.vutec.com TEL: (954)-545-9006 FAX: (954)-545-9011 06/26/2017 Rev. B INSTL-L2-C_L4-C-B EMAIL: info@vutec.com...
-
Page 6: Electrical Connections
5b, keep the cover in contact with the motor bracket while pulling down on the screw of the cover. Note the cover is lightly force fit inside the housing. Close the service door and reinstall the screw on each end. NOTE: FOR 230VAC INSTALLATION, REFER TO FIGURE 4b. VUTEC CORPORATION www.vutec.com TEL: (954)-545-9006 FAX: (954)-545-9011 06/26/2017 Rev. -
Page 7: Electrical Connections 230 Vac
Electrical Connections 230 VAC The screen may also be operated by optional IR/RF remote control, optional 12VDC trigger relay, optional Low Voltage control or optional Home Automation control by AMX, Crestron, etc. Consult Vutec for further details. VUTEC CORPORATION www.vutec.com... - Page 8 Send the screen down to the lower limit and it should stop automatically. Leave the control switch on. Turn the White hex socket in the + direction (see label on electrical cover plate) to make the screen come down more. Stop turning when the screen reaches the desired lower limit. VUTEC CORPORATION www.vutec.com TEL: (954)-545-9006 FAX: (954)-545-9011 06/26/2017 Rev.
- Page 9 Send the screen to the desired limit then stop. Push in the button to engage the limit switch. The screen limit is set. Test run the screen and checks the desired limit. Repeat as often. VUTEC CORPORATION www.vutec.com TEL: (954)-545-9006 FAX: (954)-545-9011 06/26/2017 Rev.
- Page 10 SCHEMATIC 120 VAC Installations 230 VAC Installations VUTEC CORPORATION www.vutec.com TEL: (954)-545-9006 FAX: (954)-545-9011 06/26/2017 Rev. B INSTL-L2-C_L4-C-B EMAIL: info@vutec.com...
-
Page 11: Troubleshooting
Gear noise ACCESSORIES INCLUDED SPDT DECORA SWITCH SWITCH COVER PLATE MOUNTING BRACKET 1/4-20 X 1” LONG HEX HEAD BOLT HELICAL LOCK WASHER FOR 1/4 BOLT 1/4-20 HEX NUT VUTEC CORPORATION www.vutec.com TEL: (954)-545-9006 FAX: (954)-545-9011 06/26/2017 Rev. B INSTL-L2-C_L4-C-B EMAIL: info@vutec.com...
