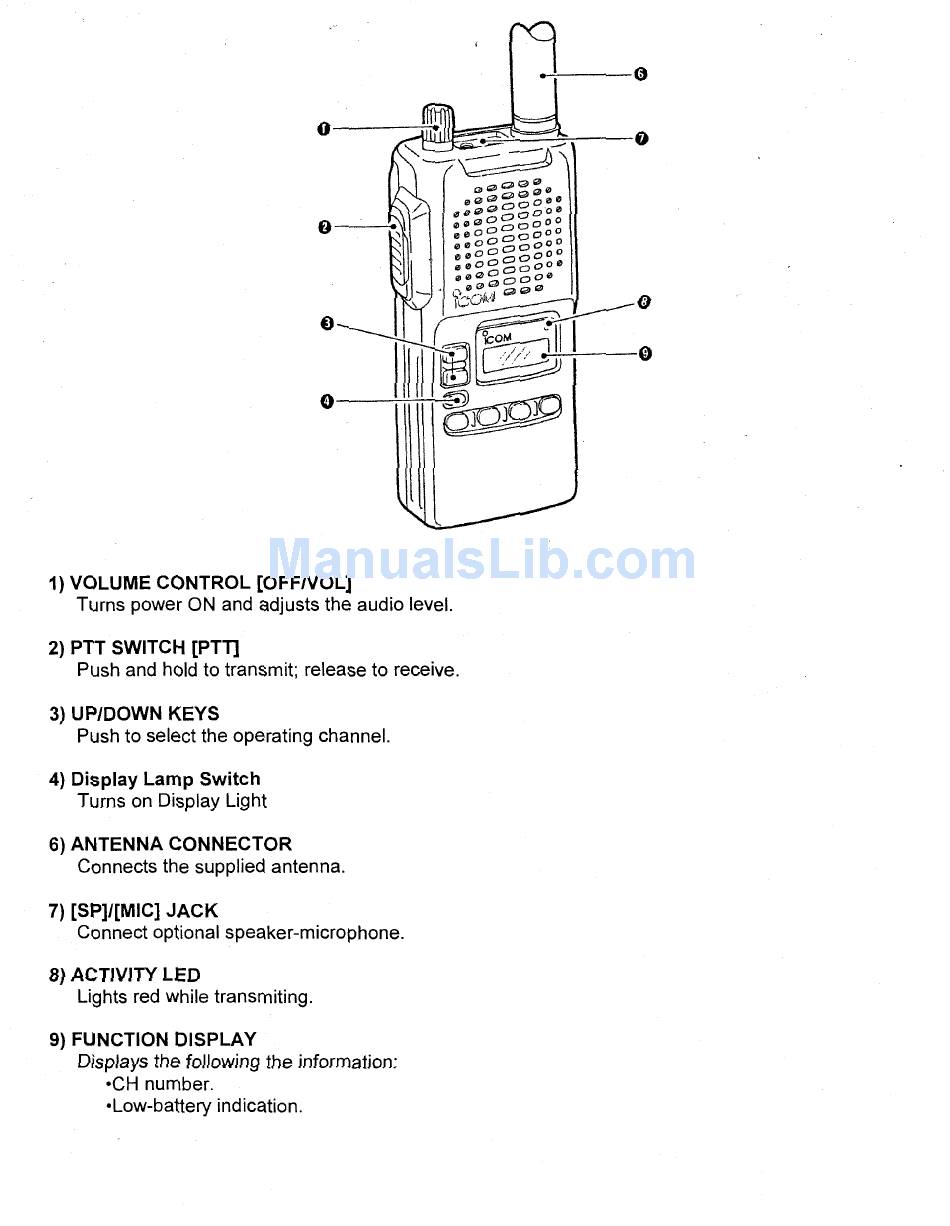

1) VOLUME CONTROL [OFFNOL]
Turns power ON and adjusts the audio level.
2) PTT SWITCH [PTT]
Push and hold to transmit; release to receive.
3) UP/DOWN KEYS
Push to select the operating channel.
4) Display Lamp Switch
Turns on Display Light
6) ANTENNA CONNECTOR
Connects the supplied antenna.
7) [SP]/[MIC] JACK
Connect optional speaker-microphone.
8) ACTIVITY LED
Lights red while transmiting.
9) FUNCTION DISPLAY
Displays the following the information:
•CH number.
•Low-battery indication.
