3 - Remote Hand Station Mounting

The Remote Hand Station (RHS) can be mounted either
directly on a wall or to a pole using suitable 'C' brackets.
Space should be left around the housing to allow for the
fitting of cable glands or conduit. Positioning of the RHS
display should be such that easy viewing and operation can
be carried out at eye level. Removal of the main display cover
is not necessary in order to mount the unit. The only cover
that needs to be removed is the terminal housing when
cabling to the actuator.
The back housing may be mounted in any position (90
increments) to accommodate different cable / conduit entry
requirements. In order to maintain the correct viewing angle
of the display, rotate the display cover to suit.
NOTE: Maximum Unit Weight = 9 kg
3.1 Locate a suitable place (flat vertical wall or structure)
to mount the RHS unit. The display and controls should
be accessible and easily viewable.

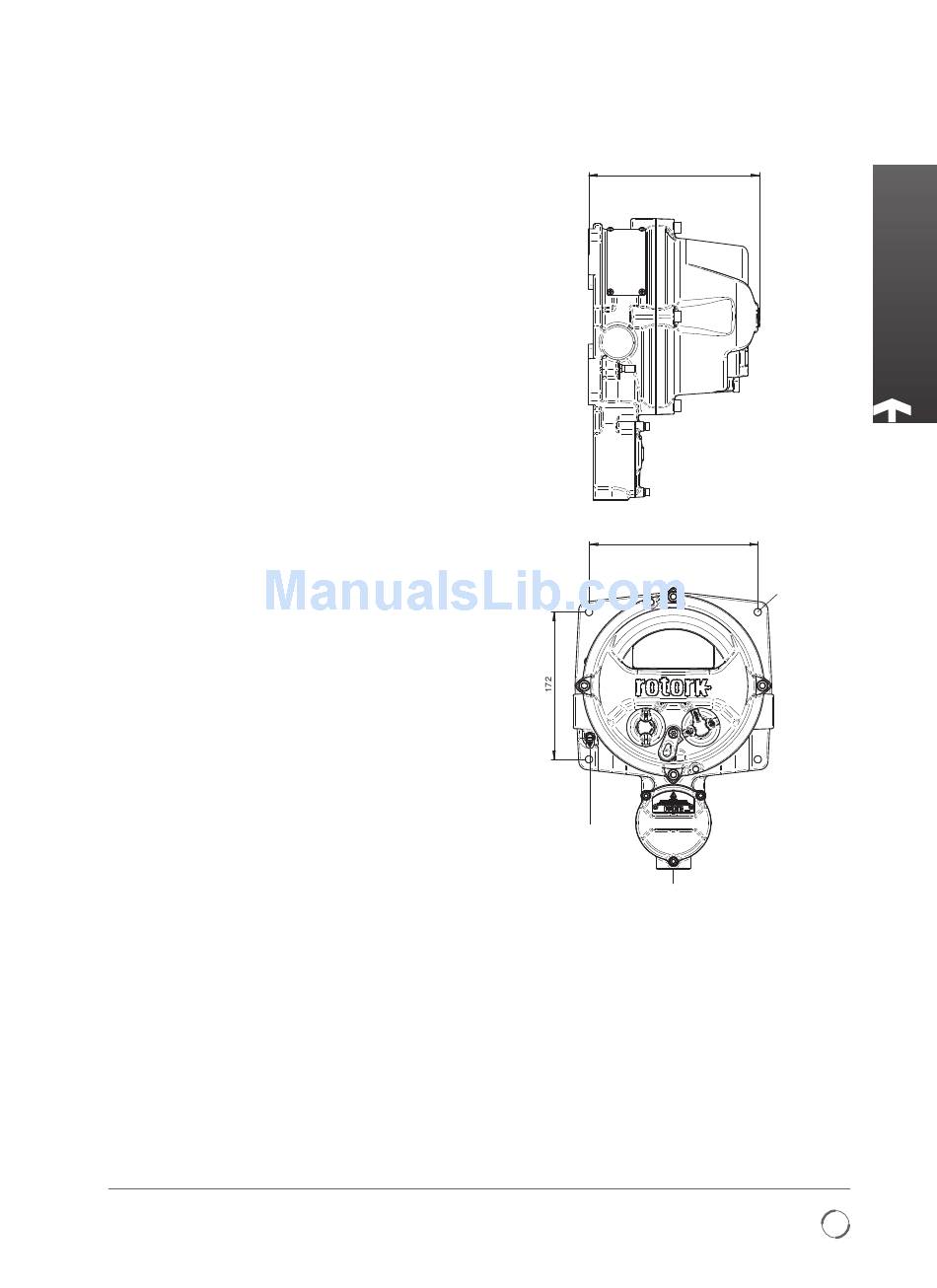

3.2 Mark up a template using the diagrams above.
Use a template to mark the wall or structure.
3.3 Ensure any work permits are obtained before starting
work. Prepare the mounting holes using suitable tools.
3.4 Select suitable fixings by referring to the weight above
for details of the RHS assembly.
3.5 Install the RHS unit to the structure. Tighten the fixings
to ensure a secure hold.
o
200
Redefining Flow Control
200
197
External
Earth Point
M25 x 1.5p Conduit Entry
230
Externa
Earth Poi
4 x 8.5 mm
5
