6.2.

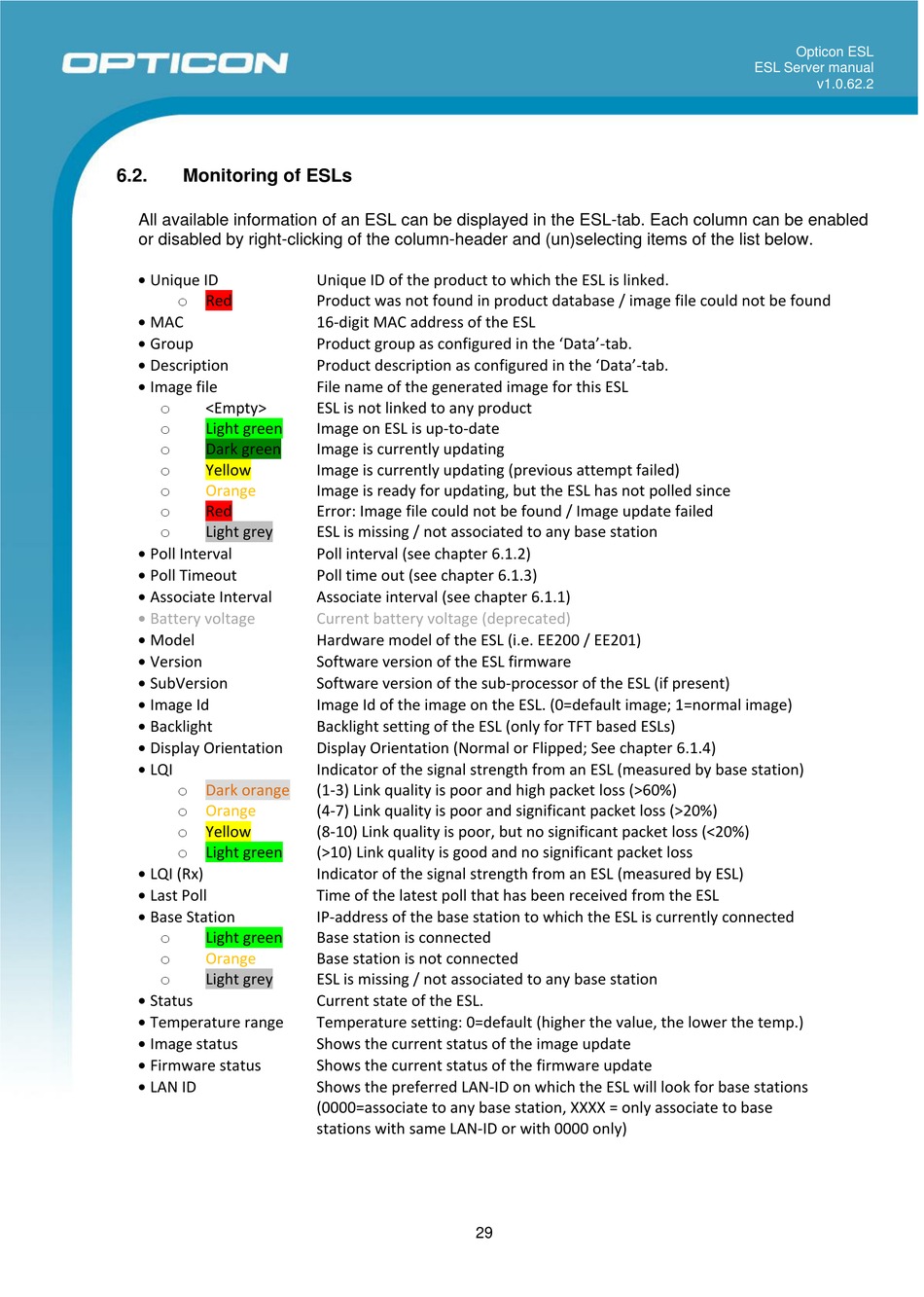

Monitoring of ESLs

All available information of an ESL can be displayed in the ESL-tab. Each column can be enabled
or disabled by right-clicking of the column-header and (un)selecting items of the list below.
 Unique ID
o Red
 MAC
 Group
 Description
 Image file
o
<Empty>
o
Light green
o
Dark green
o
Yellow
o
Orange
o
Red
o
Light grey
 Poll Interval
 Poll Timeout
 Associate Interval
 Battery voltage
 Model
 Version
 SubVersion
 Image Id
 Backlight
 Display Orientation
 LQI
o
Dark orange
o
Orange
o Yellow
o Light green
 LQI (Rx)
 Last Poll
 Base Station
o
Light green
o
Orange
o
Light grey
 Status
 Temperature range
 Image status
 Firmware status
 LAN ID
Unique ID of the product to which the ESL is linked.
Product was not found in product database / image file could not be found
16-digit MAC address of the ESL
Product group as configured in the 'Data'-tab.
Product description as configured in the 'Data'-tab.
File name of the generated image for this ESL
ESL is not linked to any product
Image on ESL is up-to-date
Image is currently updating
Image is currently updating (previous attempt failed)
Image is ready for updating, but the ESL has not polled since
Error: Image file could not be found / Image update failed
ESL is missing / not associated to any base station
Poll interval (see chapter 6.1.2)
Poll time out (see chapter 6.1.3)
Associate interval (see chapter 6.1.1)
Current battery voltage (deprecated)
Hardware model of the ESL (i.e. EE200 / EE201)
Software version of the ESL firmware
Software version of the sub-processor of the ESL (if present)
Image Id of the image on the ESL. (0=default image; 1=normal image)
Backlight setting of the ESL (only for TFT based ESLs)
Display Orientation (Normal or Flipped; See chapter 6.1.4)
Indicator of the signal strength from an ESL (measured by base station)
(1-3) Link quality is poor and high packet loss (>60%)
(4-7) Link quality is poor and significant packet loss (>20%)
(8-10) Link quality is poor, but no significant packet loss (<20%)
(>10) Link quality is good and no significant packet loss
Indicator of the signal strength from an ESL (measured by ESL)
Time of the latest poll that has been received from the ESL
IP-address of the base station to which the ESL is currently connected
Base station is connected
Base station is not connected
ESL is missing / not associated to any base station
Current state of the ESL.
Temperature setting: 0=default (higher the value, the lower the temp.)
Shows the current status of the image update
Shows the current status of the firmware update
Shows the preferred LAN-ID on which the ESL will look for base stations
(0000=associate to any base station, XXXX = only associate to base
stations with same LAN-ID or with 0000 only)
