Opticon EBS40 Manual
Esl base station
Hide thumbs
Also See for EBS40:
- Manual (104 pages) ,
- Quick start manual (2 pages) ,
- Quick start manual (2 pages)
Subscribe to Our Youtube Channel
Related Manuals for Opticon EBS40
Summary of Contents for Opticon EBS40

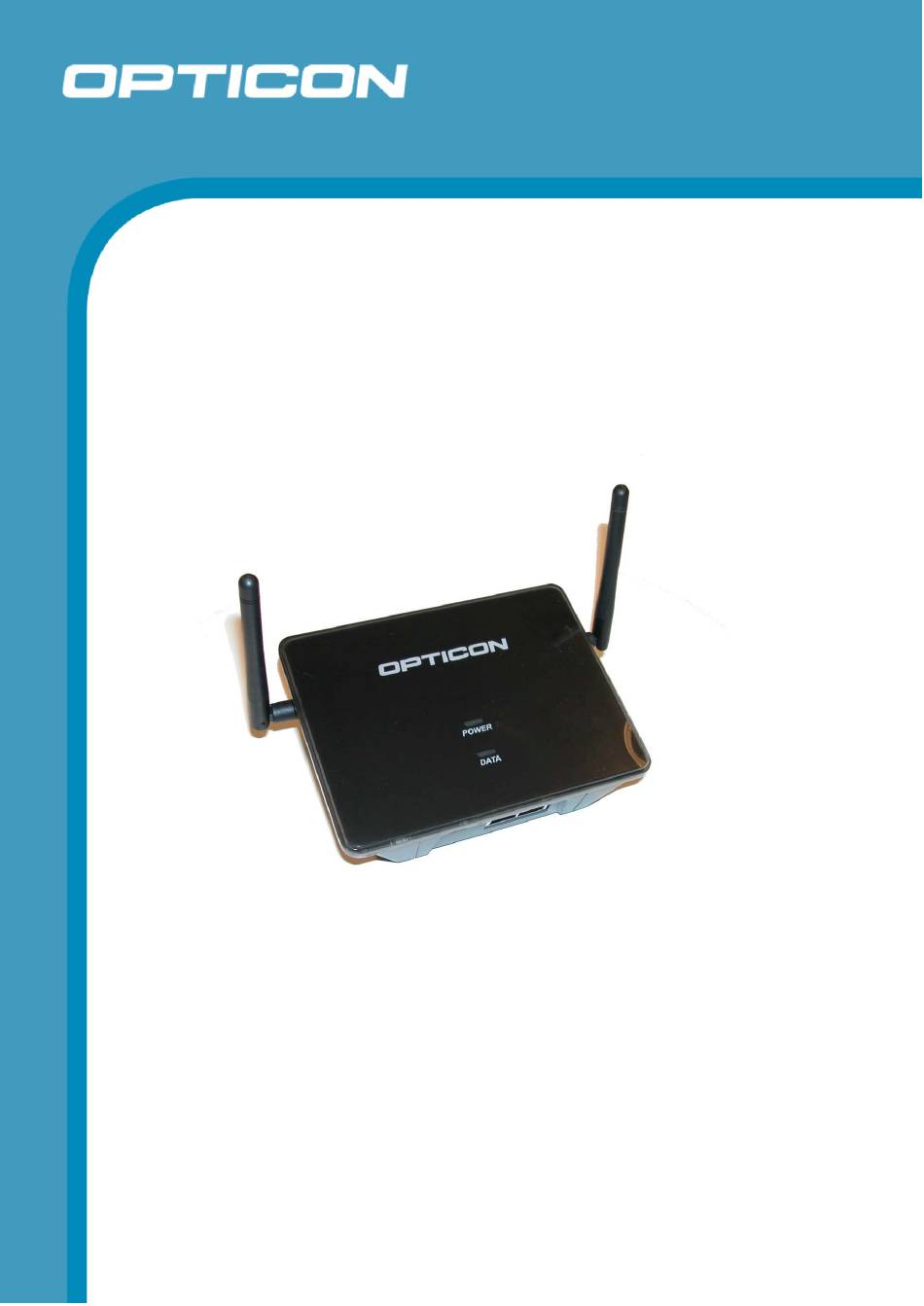

- Page 1 ESL Base Station EBS40 The EBS40 is a base station meant to serve Opticon’s electronic shelf labels via two built-in Specifications Manual 802.15.4 based radio’s.
- Page 2 Unless otherwise agreed in a written contract, all Opticon products are warranted against defects in materials and workmanship for two years after purchase. Opticon will repair or, at its option, replace products that are defective in materials or workmanship with proper use during the warranty period. Opticon is not liable for damages caused by modifications made by a customer.
-
Page 3: Table Of Contents
Opticon EBS40 Specifications Manual Contents 1. Abstract ............................5 2. Overview ............................. 5 3. Physical Features ........................6 3.1. Dimensions .......................... 6 3.2. Weight ..........................6 4. Environmental Specifications ....................6 4.1. Operating Temperature and Humidity .................. 6 4.2. Storage Temperature and Humidity ..................6 4.3. - Page 4 Figure 2: product label ......................10 Figure 3: shipment box label ..................... 11 Figure 4: Individual Packing ...................... 12 Figure 5: Collective packaging ....................13 Figure 6: DIN rail to mount the EBS40..................14 Figure 7: Mechanical drawing ....................18...
-
Page 5: Abstract
(hereafter referred to as “Base Station”). 2. Overview The EBS40 is a base station, equipped with two 2.4GHz radios for data communication with Opticon’s electronic shelf labels. This product uses Direct Sequence Spread Spectrum RF technology that allows for an ultra-low power consumption combined with a reduced sensitivity to background noise. -
Page 6: Physical Features
Opticon EBS40 Specifications Manual 3. Physical Features 3.1. Dimensions W 145.1 x H 110.1 x D 32.4 mm (without antennas) Figure 1: Dimensions 3.2. Weight 250 g (including antennas) 4. Environmental Specifications 4.1. Operating Temperature and Humidity Temperature: -10 to 50° C Humidity: 20% to 85% RH 4.2. -
Page 7: Static Electricity
4.4. Drop resistance. There will be no sign of decreased performance after the following drop test: Drop the EBS40 from 1.8 M above the concrete floor (6 sides, 3 times each). Scratches or discoloration of the casing do not decrease product performance. -
Page 8: Radio Specifications
Opticon EBS40 Specifications Manual 7. Radio Specifications Parameter Unit Remarks Receiver sensitivity Over the entire temp. and operating voltage range Nominal output power Frequency 2405 2480 Over the entire temp. and operating voltage range Transfer rate 250Kbit/s RSSI range Signal strength indication that... -
Page 9: Security
The label shows two barcodes; on top is the Ethernet MAC address and below is the serial number of the base station. The MAC address shown here matches the actual address programmed into the EBS40. The addresses for the two 802.15.4 radios are derived from this address. These addresses (both are the same) are essentially the same as the Ethernet address, but with two zero’s. -
Page 10: White Box Label
Opticon EBS40 Specifications Manual The dimensions of the product label are W 84 x H 35. 8.2. White box label The white box label is made from plain paper and is meant to show the product number and serial number. The label design is shown below. -
Page 11: Collective Packaging Specification
Opticon EBS40 Specifications Manual Figure 4: Individual Packing 9.2. Collective Packaging Specification Put 24 individual boxes with a base station inside a box. - Page 12 Opticon EBS40 Specifications Manual Note: The “RO” mark labeled on the package tray or package box guarantees that the applicable product has passed our test of RoHS restrictions compliance (the restriction of the use of certain hazardous substances in electrical and electronic equipment, 2002/95 EC).
-
Page 13: Accessories
This is a standard product and can be purchased through Opticon but is also commonly available in the market. The DIN rail that fits the EBS40 is 35mm wide and 7.5mm high and is available in many different lengths. The minimum length for the EBS40 is 100mm. -
Page 14: Regulatory Compliance
Opticon EBS40 Specifications Manual 11. Regulatory Compliance 11.1. Product Safety EN60950-1:2001 IEC60950-1:2001 11.2. EMC EN55022 EN55024 FCC Part 15 Subpart B Class B Federal Communications Commission (FCC) Statement 15.21 You are cautioned that changes or modifications not expressly approved by the part responsible for compliance could void the user’s authority to operate the equipment. -
Page 15: Rohs
Opticon EBS40 Specifications Manual 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. 2. This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with a minimum distance of 20 centimeters between the radiator and your body. -
Page 16: Safety
Do not subject the base station to chemicals. 12.4. Lost connection due to Interference If EBS40 losses wireless connection due to interference, please wait 10 min and restart ESL SW Program. EBS40 will automatically restart and reconnect within 10 minutes. -
Page 17: Figure 7: Mechanical Drawing
Opticon EBS40 Specifications Manual Figure 7: Mechanical drawing...
