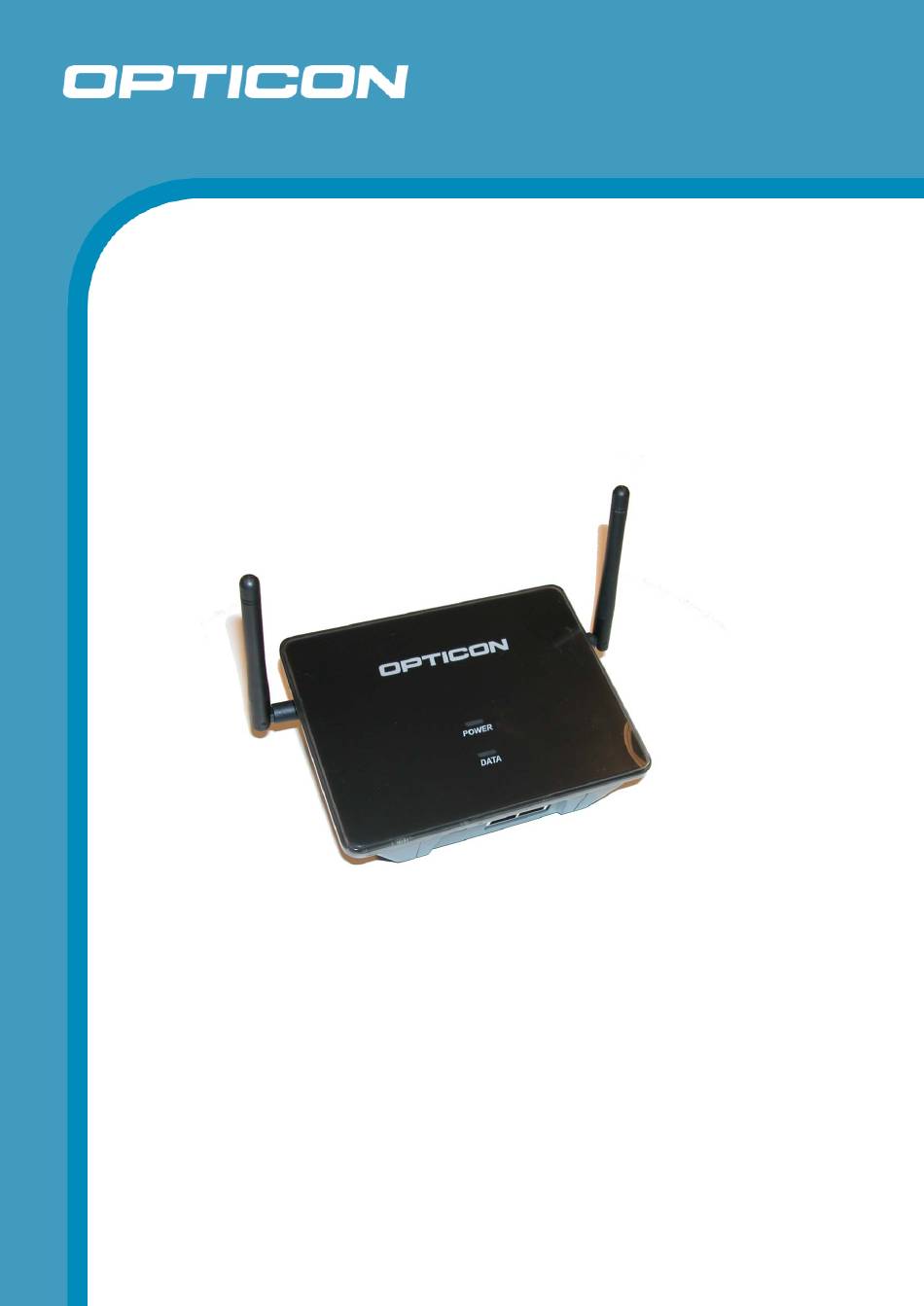

- Page 1 Electronic shelf label EBS30 The EBS30 is a base station meant to serve Opticon’s electronic shelf labels via two built-in Specifications Manual 802.15.4 based radios.
- Page 2 Unless otherwise agreed in a written contract, all Opticon products are warranted against defects in materials and workmanship for two years after purchase. Opticon will repair or, at its option, replace products that are defective in materials or workmanship with proper use during the warranty period. Opticon is not liable for damages caused by modifications made by a customer.
-
Page 3: Table Of Contents
Opticon EBS30 Specifications Manual Contents 1. Abstract ............................. 5 2. Overview ........................... 5 3. Physical Features ........................6 3.1. Dimensions ........................6 3.2. Weight ..........................6 4. Environmental Specifications ....................7 4.1. Operating Temperature and Humidity ................7 4.2. Storage Temperature and Humidity ................... 7 4.3. - Page 4 Figure 2: product label ......................10 Figure 3: shipment box label ..................... 11 Figure 4: Individual Packing ...................... 12 Figure 5: Collective packaging ....................13 Figure 6: DIN rail to mount the EBS30..................14 Figure 7: Mechanical drawing ....................18...
-
Page 5: Abstract
(hereafter referred to as “Base Station”). 2. Overview The EBS30 is a base station, equipped with two 2.4GHz radios for data communication with Opticon’s electronic shelf labels. This product uses Direct Sequence Spread Spectrum RF technology that allows for an ultra-low power consumption combined with a reduced sensitivity to background noise. -
Page 6: Physical Features
Opticon EBS30 Specifications Manual 3. Physical Features 3.1. Dimensions W 145.1 x H 110.1 x D 32.4 mm (without antennas) Figure 1: Dimensions 3.2. Weight 250 g (including antennas) -
Page 7: Environmental Specifications
4.4. Drop resistance. There will be no sign of decreased performance after the following drop test: Drop the EBS30 from 1.8 M above the concrete floor (6 sides, 3 times each). Scratches or discoloration of the casing do not decrease product performance. -
Page 8: Controls
Opticon EBS30 Specifications Manual 5. Controls Items Specifications Remarks Type Cortex M3 32-bit MCU Internal flash ROM 256 Kbyte Internal RAM 96 Kbyte External RAM 8 MByte Clock frequency 80 MHz Speed 10 Mbit/sec & 100 Mbit/s Ethernet Operation mode Half duplex &... -
Page 9: Radio Specifications
Opticon EBS30 Specifications Manual 7. Radio Specifications Parameter Unit Remarks Receiver sensitivity Over the entire temp. and operating voltage range Nominal output power Frequency 2394 2507 Over the entire temp. and operating voltage range Transfer rate 250Kbit/s RSSI range Signal strength indication... -
Page 10: Labeling
Ethernet MAC address and below is the serial number of the base station. The MAC address shown here matches the actual address programmed into the EBS30. The addresses for the two 802.15.4 radios are derived from this address. These addresses (both are the same) are essentially the same as the Ethernet address, but with two zero’s. -
Page 11: White Box Label
Opticon EBS30 Specifications Manual 8.2. White box label The white box label is made from plain paper and is meant to show the product number and serial number. The label design is shown below. Figure 3: shipment box label The Size is 70mm x 40mm with a tolerance of ± 2 mm Label material: Paper, white, with permanent adhesive backing. -
Page 12: Packaging Specifications
Opticon EBS30 Specifications Manual 9. Packaging Specifications 9.1. Individual Packaging Specification After putting a scanner in a foam bag, pack it in a separate box with the accessories: Two antennas One quick start guide Put a label on the side of the individual packing box. -
Page 13: Collective Packaging Specification
Opticon EBS30 Specifications Manual 9.2. Collective Packaging Specification Put 24 individual boxes with a base station inside a box. Figure 5: Collective packaging Note: The “RO” mark labeled on the package tray or package box guarantees that the applicable product has passed our test of RoHS restrictions compliance (the restriction of the use of certain hazardous substances in electrical and electronic equipment, 2002/95 EC). -
Page 14: Accessories
This is a standard product and can be purchased through Opticon but is also commonly available in the market. The DIN rail that fits the EBS30 is 35mm wide and 7.5mm high and is available in many different lengths. The minimum length for the EBS30 is 100mm. -
Page 15: Regulatory Compliance
Opticon EBS30 Specifications Manual 11. Regulatory Compliance 11.1. Product Safety EN60950-1:2001 IEC60950-1:2001 11.2. EMC EN55022 EN55024 FCC Part 15 Subpart B Class B This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions:... -
Page 16: Rohs
Opticon EBS30 Specifications Manual 2) this device must accept any interference, including interference that may cause undesired operation of the device. RF Radiation Exposure Statement: 1. This Transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. -
Page 17: Safety
Opticon EBS30 Specifications Manual 12. Safety Handle this product carefully. Do not deliberately subject it to any of the following. 12.1. Shock Do not throw or drop the base station. Do not place heavy objects on the base station. 12.2. Temperature Conditions Do not use the base station at temperatures outside the specified range. -
Page 18: Mechanical Drawing
Opticon EBS30 Specifications Manual 13. Mechanical Drawing Figure 7: Mechanical drawing...
