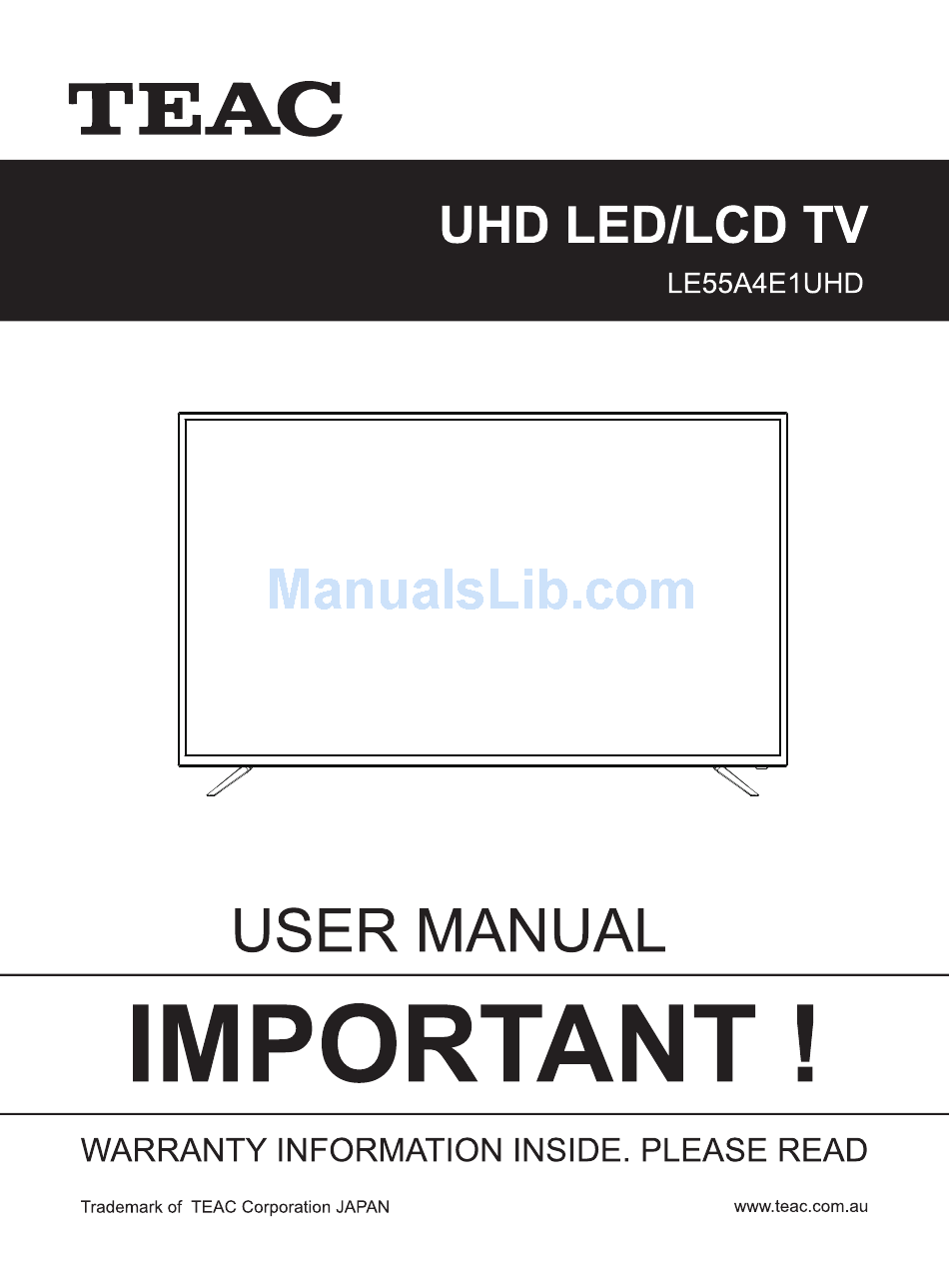

Teac LE55AE1UHD User Manual

Teac LE55AE1UHD User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading

Related Manuals for Teac LE55AE1UHD

Summary of Contents for Teac LE55AE1UHD

  • Page 2 Keep your purchase receipt to enable you to proceed quickly in the event of a Warranty Service. If you require Warranty Service, please contact the TEAC Warranty Service Hotline at 1300 553 315 for assistance. Please ensure that you have the model number, serial number and purchase receipt ready when you call.
  • Page 3 Warranty, the customer shall be charged for the cost of the repair. No one is authorised to assume any liability on behalf of TEAC or impose any obligation on it, in connection with the sale of any equipment other than as stated in this warranty and outlined above.

  • Page 4: Table Of Contents

    Thank you for purchasing this LED Television. The instructions in this manual are described mainly with the remote control. You can also use the buttons on the TV if they have the same names as those on the remote control. To obtain the best performance and safety, please read this manual carefully.

  • Page 5: Important Safety Instructions

    Important Safety Instructions Read Instructions - All the safety and operating power supply to your home, consult your appliance instructions should be read before the product is dealer or local power company. operated. Power Cord Protection-Power cords should be Retain Instructions - The safety and operating routed so that they are not likely to be walked on instructions should be retained for future reference.

  • Page 6: Supplied Accessories

    controls may result in damage and will often seriously damaged. require extensive work by a service technician to Hazards of Electrical Shock and Fire-Do not touch restore the product to its normal operation. the power cord with wet hands.Hold the plug when e.

  • Page 7: Preparation

    Preparation Stand Installation The TV base will be separated with the TV unit. You should install the base before you use the TV unit. 1.Place the TV with its front side facing down on a cushioned flat surface. 2.Place the base on the hinge of TV unit, with the base direction shown under the base.(See the picture) 3.Tighten the supplied 4X20 screws to fix the TV stand securely in place.(6 Screws: Provided with TV unit) WARNING personal injury.

  • Page 8: Wall Mounting Assembly Instruction

    Wall mounting assembly instruction Attaching the stand Follow the instructions below to remove the base of the TV: 1.Place the unit (face down) on a soft surface. 2.Loosen and remove the 6 screws securing the stand to the TV. 3.Gently remove the stand. 4.To reinstall the stand, place the unit (face down) on a soft surface and reverse the above instructions.

  • Page 9: Positioning The Tv Set

    Positioning the TV set 10cm 30cm 10cm Place the TV on a firm and flat surface, leaving a space of at least 10cm around the set and 30cm from the top of the set to the wall. WARNING: We recommend that you also fix the body of the TV in place with furniture straps, to avoid the TV getting tipped over by children and pets.

  • Page 10: Functional Overview

    Functional Overview Front and Side Panel 1.Power Light 2.Infrared Remote Sensor On Standby Mode , the light turns red. Receives the signals from the remote control. Do not obstruct the sensor. SOURCE MENU 1.POWER : Turn on/standby the TV set. 2.MENU : Display the input source menu.

  • Page 11: Rear Panel

    Functional Overview Rear Panel VIDEO/ Y COAX AV IN YPBPR HEADPHONE HDMI1/ARC HDMI2 HDMI3/HDMI4 COAX: Connection for Digital Coaxial input for Audio Amplifier. AV IN: Video and Audio (L/R) input Terminal, Audio (L/R) can be used as YPBPR Audio input. YPbPr input terminals: Connect to equipment with component video output.

  • Page 12: Connections

    Connections You can connect your DVD player, set-top box, computer, game console or other video equipment to the TV. To view external source images, press the INPUT button to select the input source. Connecting AV Equipment with HDMI Connector VIDEO/ Y （DVI）...

  • Page 13: Remote Control

    Remote Control Installing The Remote Control Batteries 1. Open the battery cover. 2. Insert batteries (two size-AAA batteries). Place batteries with their terminals observing the (+) and (-) indications. 3. Replace the cover and press down until the lock snaps closed.
  • Page 14 Remote Control Remote Control ：Press this button to turn the TV on or off. ：Press this button to mute or restore sound. INPUT: Press to change signal source (DTV, HDMI, USB etc) AUDIO: Press to select the DTV audio. PMODE: Select picture mode. SMODE: Select sound mode.

  • Page 15: Select Input Source

    Select Input Source Press the INPUT button to display the input source list. Press the ▼/▲ or OK button to select the input source you want. Press the OK button to enter the input source, then press the EXIT button to quit. (Options:DTV,ATV,AV,PC,Component,HDMI1,HDMI2,H DMI3,HDMI4,Media) First Time Installation...

  • Page 16: Basic Operation

    First Time Installation While Auto Tuning is in progress, the screen displays the progress bar. If you need to stop tuning, press the EXIT button. Basic Operation Power On/Off Volume Adjustment To turn on the TV To change the volume 1.Press VOL+ to increase the sound volume.

  • Page 17: Menu Operation

    Menu Operation Channel Menu ATV Manual Tuning Press MENU button to display the main menu. NOTE: Availability of ATV depends on your local Press ◄/► button to select CHANNEL in the main menu. broadcasting services. 1. Press ▼/▲ button to select the desired option in the CHANNEL menu.
  • Page 18 Menu Operation Program Edit Schedule List Press▼/▲ to select Program Edit, then press OK Press ▼/▲ to select Schedule List, then press OK to to enter the sub-menu. enter the sub-menu. Follow the on-screen hints to Add/Delete/Edit/Move items in this list. There are two types of scheduled items: 1.
  • Page 19 Menu Operation Picture Menu Color Temp Change the overall color cast of the picture. Press the MENU button to display the main menu. Press ▼/▲ to select Color Temperature, then press OK Press the ◄/► button to select PICTURE in the main menu. to enter the sub-menu.
  • Page 20 Menu Operation Sound Menu Auto Volume Level This feature reduces the volume rage, If you find yourself Press MENU to display the main menu. adjusting the volume frequently (eg. between programs Press ◄/► to select SOUND in the main menu. and commercials or during movies ), this function may be useful.
  • Page 21 Menu Operation Sleep Timer Lock Menu Press ▼/▲ to select Sleep Timer, then the OK button Press the MENU button to display the main menu. to enter the sub-menu. Press the ◄/► buttons to select Lock in the main menu. Press ▼/▲...
  • Page 22 Menu Operation Channel Lock Setup Menu Use this feature to lock specific channels. Press the MENU button to display the main menu. Press ▼/▲ OK to select Channel Lock, then Press OK Press the ◄/► buttons to select SETUP in the main menu. to enter the sub-menu.
  • Page 23 Menu Operation Audio Languages Aspect Ratio Press ▼/▲ to select Aspect Ratio, then press the OK Press ▼/▲ to select Audio Languages, then press the button to enter the sub-menu. OK button to enter the sub-menu. Press ▼/▲ to select aspect ratio.(Available options are: Press ◄/►...

  • Page 24: Watching Digital Tv

    Watching Digital TV Watching Digital TV Switching to DTV Mode the selected favourite channel to remove the "heart" symbol. Delete: To completely delete a channel off your list, select the If your TV is not already broadcasting TV channels, you may need channel to delete and press the RED button.

  • Page 25: Recording With Pvr

    ALL DATA will be ERASED. TEAC does SCHEDULE MANUALLY not take responsibility for lost data.

  • Page 26: Media

    Media USB Usage Precautions Photo Slideshow Never turn the unit off or disconnect a USB Storage Device Press ◄/► to select PHOTO in the main main menu, (Flash Drive) when it is being accessed. Doing so could then press OK to enter. You can press Exit to return to damage the TV and the connected USB storage device.
  • Page 27 Media Movie Playback Music Playback Press ◄/► to select MUSIC in the main menu, then Press to select MOVIE in the main menu, then press OK to enter. You can press Exit to return to the previous press OK to enter. You can press Exit to return to the menu.

  • Page 28: Troubleshooting

    Media Text Menu Press ◄/► to select TEXT in the main menu, then press the OK button to enter. You can press the Exit button to return to the previous menu. Press ◄/► button to select the desired text file, then press OK to enter.

  • Page 29: Specification

    Specification Specifications LED TV Screen Size 55Inch Display Type TFT LED Resolution (Pixel) 3840(H)X2160(V) Aspect Ratio 16:9 Power Supply 100-240V~50/60HZ Power Consumption 138W TV System DVB-T/T2/PAL/SECAM/NTSC Video Input Format PAL/SECAM/NTSC Audio Output Power L/R 2X8W ANTENNA AV-IN 480I60Hz 480P 60Hz 576I 50Hz 576P 50Hz 720P 50/60Hz...
