Summary of Contents for Teac LE42C9FHD

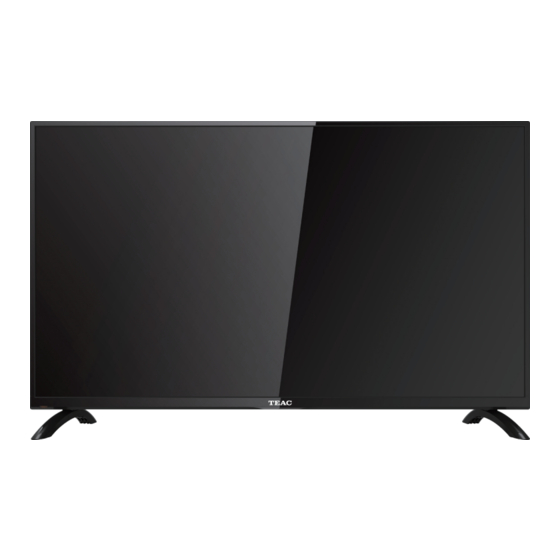

- Page 1 FHD LED/LCD TV LE42C9FHD USER MANUAL IMPORTANT ! WARRANTY INFORMATION INSIDE. PLEASE READ www.teac.com.au Trademark of TEAC Corporation JAPAN...
- Page 2 Keep your purchase receipt to enable you to proceed quickly in the event of a Warranty Service. If you require Warranty Service, please contact the TEAC Warranty Service Hotline at 1300 553 315 for assistance. Please ensure that you have the model number, serial number and purchase receipt ready when you call.
- Page 3 In-Home service call fee. No one is authorised to assume any liability on behalf of TEAC or impose any obligation on it, in connection with the sale of any equipment other than as stated in this warranty and outlined above.
-
Page 4: Table Of Contents
Contents Introduction................2 Warning..................3 Caution..................4 Stand Assembly.................6 Wall Mounting Installation Guidelines........7 Main Unit Description..............8 Remote Control................10 Basic Operation ...............11 OSD Menu................13 Multimedia Operation................21 Recording Operation..............27 Specifications................32 Trouble Shooting..............33... -
Page 5: Introduction
Introduction Read this manual carefully and keep Thank you very much for your purchase of our LED TV. it handy for ready reference. INSTALLATION Locate the room where direct light does not strike the screen. Total darkness or a TV in a reflection on the picture screen can cause eyestrain. -
Page 6: Warning
Warning CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN CAUTION: TO AVOID THE RISK OF ELECTRIC SHOCK. DO NOT REMOVE COVER (OR BACK). NO USER- SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL. This symbol is intended to alert the user to avoid the risk of electric shock, do not disassemble this equipment by anyone except a qualified service personnel. -
Page 7: Caution
Caution Caution High voltages are used in the operation of this product. Do not Refer servicing open the product's casing. to qualified service personnel . Caution To prevent fire or electrical shock hazard, do not expose the main unit to do not place objects rain or moisture filled with liquids, such as vases, on the apparatus. - Page 8 Caution Caution Never stand on, lean on, or push the unit or its stand. Ensure children are supervised when near the unit. Caution Do not place the main unit on an unstable cart stand, shelf or table. Serious injury to an individual, and damage to the television, may result if it should fall.
-
Page 9: Stand Assembly
Stand Assembly 1. Attach the stand base set to the bottom of the TV by firmly tightening the supplied 4pcs screws. 2. The TV stand is now assembled. -
Page 10: Wall Mounting Installation Guidelines
Wall Mounting Installation Guidelines Screw size for wall mounting: M6 ( The depth of the wall-mount hole is 19mm, please choose a screw of the appropriate length) Use the four screws to fix the TV onto a wall mounting bracket ( not included) via the four VESA standard holes on the back of the television. -
Page 11: Main Unit Description
Main Unit Description Control Panel Button Function VOL+ : Volume up. VOL- : Volume down. CH+: TV channel up. CH- : TV channel down. MENU : Press to select the main menu. SOURCE : Select the input signal. POWER : Turn the TV on or off. TV Terminal Connections 1. - Page 12 Optional Configuration as below: Connect the USB to the USB jack on the set. NOTE ting with USB jack (must more than 2 GB). The partitions of document. The max FAT document is 4GB and the max FAT32 document is 2TB.
-
Page 13: Remote Control
Remote control : Press this button to Turn the TV on or off. : Press this button to mute or restore sound. INPUT: Press to change signal source. AUDIO: Press to select the DTV audio. INPUT AUDIO PMODE SMODE (Used for models with DTV function only) PMODE: Select picture mode. -
Page 14: Basic Operation
Basic Operation First Time Installation 1.The "First Time Installation" menu will appear on your screen. 2. Select Type,OSD Language,Country,Auto Scan,Time Zone then press the OK button to start the tuning process,This process will find all available channels and store them. NOTE: Home Mode is a power setting that is designed to suit home usage and the Energy Star Rating of this TV is based on Home... - Page 15 Basic Operation Selecting an input source The unit incorporates multiple input sources which can be selected via the INPUT button on the television panel or remote control. The following steps explain the procedures involved. 1. Press the INPUT button to enter the Input menu. The screen will display the Input Source menu.
-
Page 16: Osd Menu
OSD Menu 1. PICTURE menu Picture display settings can be altered as desired. The following options are adjustable: Description Picture Mode: There are four preset settings to choose from: Standard, Dynamic, Personal and Mild. Note: Custom settings are saved into Personal Mode. Brightness: Adjust the overall brightness of the picture. - Page 17 OSD Menu 2. SOUND menu General sound settings can be adjusted according to personal preference with the following options: Description Sound Mode: There are five preset settings to choose from: Standard, Music, Movie, Sports and User. Note: Treble and Bass can only be adjusted in User mode. Treble: Adjust the relative intensity of higher pitched sounds.
- Page 18 OSD Menu 3. CHANNEL Menu This menu selection contains scanning preferences (either automatic or manual tuning), Channel, Auto Scan, Manual Scan, Channel Edit, Signal Information. Settings can be altered for individual channels. NOTE: Some menus are available only in DTV Mode while recording is not in progress.
- Page 19 OSD Menu Digital Manual Scan Press the OK button to enter the Digital Manual Scan menu. Select a DTV channel, and press OK to start searching. Frequency: Press buttons to select Frequency: Auto or enter digital numbers. Strength: Displays the signal strength. Note: DTV is able to receive DVB-T signal, not DVB-T2 signal.
- Page 20 OSD Menu Delete: Select the channel to delete and press the RED button. A confirmation message will pop up. Choose “Yes” to confirm the deletion, or “No” to cancel. Select the channel to be moved and press the BLUE button. Use the CH+/- buttons to Move: change the channel position.
- Page 21 OSD Menu 4. LOCK menu This option allows parents to block channels and programs using a password. NOTE: The default password is 0000. If you have forgotten your current password, the master password is 8899. Please take note of this. Description Enable: Turn on/off the Lock Channel function.
- Page 22 OSD Menu 5. Setup menu The option settings allows alterations to the language and regional settings. Description Time Settings: Clock: Use the buttons to select the position, and the buttons to set the time. NOTE : The time cannot be changed manually in DTV mode because the clock is synchronised with the broadcast signals received.
- Page 23 OSD Menu OSD Language: Select the language option for the OSD menu. Audio Languages: (can be selected in DTV mode): Allows you to select first and second audio language. Subtitle: (can be selected in DTV mode) : Allows you to select first and second subtitle language. Teletext: Adjust Teletext settings.
-
Page 24: Multimedia Operation
Multimedia Operation USB Usage Precautions Never turn the unit off or disconnect a USB Storage Device (Flash Drive) when it is being accessed. Doing so could damage the TV and the connected USB storage device. Do not use a device that has a maximum current consumption of 100 mA or more. Do not use a device that has security functions or other special functions. - Page 25 Multimedia Operation Basic Operation 1). Press the INPUT button on the remote control to display the input source menu and select USB buttons. Press the OK button to enter the Multimedia menu as shown below. with the 2). Press to select the type of media you want to play from the connected USB device, as follows: PHOTO, MUSIC, MOVIE and TEXT.
- Page 26 Multimedia Operation To access photo, audio, video, or text files from an external drive, first choose USB Input, then select the type of media to be played to enter the folder/file navigation screen. 1. Photo To display photos, select files from the folder and press PLAY to view in full screen. The image should appear on screen as illustrated below.
- Page 27 Multimedia Operation to select the option on the table, and press OK to change. Press to search for music, and press OK to select. Press Press the EXIT button and select Back to return to the previous menu. Quick Menu: Press D.MENU to enter Quick Menu. Repeat: Select the repeat mode from Repeat All, Repeat 1, Repeat None.
- Page 28 Multimedia Operation 4. Display Text To play text files (most files with the extension .txt), select a file from the folder and press PLAY. ZOOM IN ZOOM OUT Previous / Next D.MENU Press to select options on the toolbar, and press OK to change. Press 0~9 to select specific pages.
- Page 29 Multimedia Operation Supported Formats: MOVIE The max bitrate is 6Mbps. The max resolution is 720x576 pixels. (AVI) Mono colour, 16-colour, 256-colour, 16-bit, 24-bit, 32-bit. The max PHOTO resolution is 3000x3000 pixels; min resolution is 100x100 pixels. Sample rate: 8K – 48K, Bitrate: 32K-320K MUSIC Special note: 1.
-
Page 30: Recording Operation
Recording Operation Digital Video Recording (DVR) settings (In DTV Mode only) The DVR function allows this unit to record live digital TV (DTV) programs, allowing for viewing on demand at any time. This function supports DTV program recording, Time shift and playback as described below. -
Page 31: Recorded List
Recording Operation Recorded list Red button: Delete One program. Green button: Delete All programs. Yellow button: Replay the program. Blue button: Zoom In/Out between full screen view and preview mode. After the recording has been done, the stored programs can be viewed through a Recorded List by pressing the Green button on the remote control. - Page 32 Ensure that no valuable information is currently stored in the hard disk, as the formatting process means that ALL DATA will be ERASED from the memory drive connected to the USB/HDD port. TEAC does not take responsibility for lost data.
-
Page 33: Schedule List
Recording Operation Schedule List Red button: Delete One scheduled program. Green button: Delete All scheduled programs. Scheduled Recording is a function which allows the user to record future programs without physically being present to initiate the recording. A schedule setup is made to mark recording dates and times of the broadcasted programs stated on the Electronic Program Guide (EPG). - Page 34 Recording Operation Electronic Program Guide (EPG) Press the EPG button to display the OSD menu as below: Details information of selected program. Program list for the current channel. Press direction buttons to navigate the lists. Once the program of choice has been highlighted, press the REC button on the remote control. This will bring you to Record Mode, where you can set the start and end time of the recording.
-
Page 35: Specifications
Specifications HDMI INPUT Horizontal Vertical Mode Resolution Frequency Frequency (KHz) (HZ) 480i 720 x480i 15.73 59.94/60 576i 720 x 576i 15.63 480p 720 x480p 31.47 59.94/60 576p 720 x 576p 31.26 720p 1280 x 720p 37.50 44.96 59.94/60 1080i 1920 x 1080i 28.13 33.75 59.94/60... -
Page 36: Troubleshooting
Troubleshooting Before consulting service personnel, check the following chart for possible solutions. PROBLEM SOLUTION Make sure the power cord is plugged in. TV will not turn on The batteries in the remote control may be the batteries. Exhausted; replace Check the cable between TV and antenna/ external AV device. - Page 37 In the event of a product failure within the warranty period, please call the TEAC Warranty Service Hotline 1300 553 315 Between Monday to Friday - 8.30AM to 5PM AEST *Please have your purchase receipt and the product’s serial number ready For other enquiries and support please visit www.teac.com.au...
