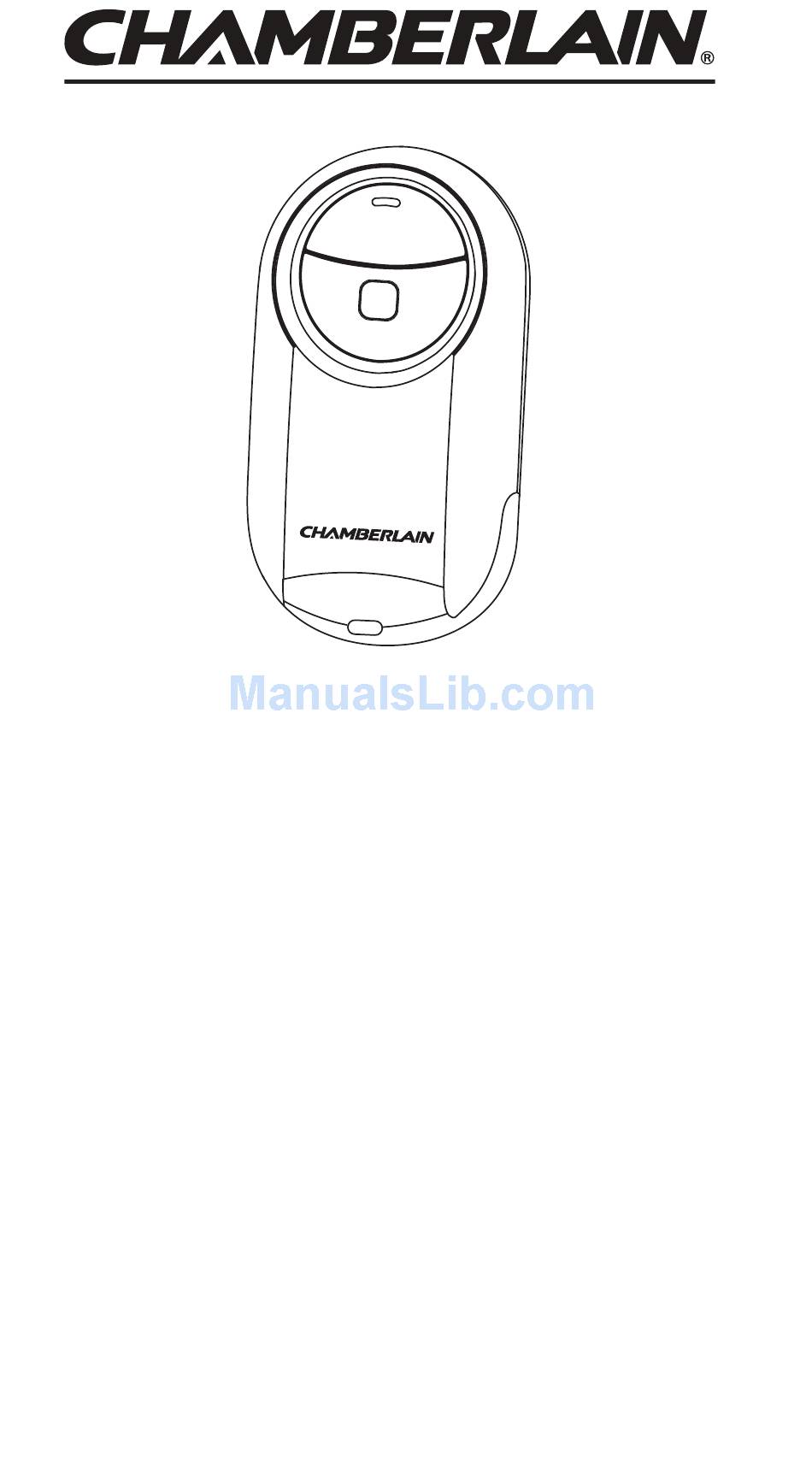

MC100AML
UNIVERSAL GARAGE DOOR OPENER
REMOTE CONTROL
The Universal Garage Door Opener Remote
Control can be programmed to operate up to two
motors. Each button on the remote control works
independently of the other and must be
programmed separately.
The images throughout this manual are for
reference only and your product may differ from
the images shown.
Advertisement
Table of Contents
Related Manuals for Chamberlain MC100AML
Summary of Contents for Chamberlain MC100AML
- Page 1 MC100AML UNIVERSAL GARAGE DOOR OPENER REMOTE CONTROL The Universal Garage Door Opener Remote Control can be programmed to operate up to two motors. Each button on the remote control works independently of the other and must be programmed separately. The images throughout this manual are for reference only and your product may differ from the images shown.
- Page 2 To prevent possible SERIOUS INJURY or DEATH from a moving door: • ALWAYS keep remote controls out of reach of children. NEVER permit children to operate or play with remote control transmitters. • Activate a door ONLY when it can be seen clearly, is properly adjusted and there are no obstructions.
- Page 3 COMPATIBILTY TABLE The Universal Garage Door Opener Remote Control is compatible with: Brand Code Type Frequency Chamberlain Security+2.0 433.30/433.92/434.54MHz Chamberlain Security+ 433.92MHz Chamberlain Billion 433.92MHz 433.30/433.92/434.54MHz Merlin Security+2.0 Merlin Security+ 433.92MHz Merlin Legacy 433.92MHz TrioCode128 433.47/433.92/434.37MHz TrioCode 433.47/433.92/434.37MHz SecuraCode 433.92MHz B&D...
- Page 4 PROGRAMMING THE REMOTE These are generic instructions for most garage door openers, however you may need to refer to the instructions for your opener if your remote does not program. Note: Please read through all steps before programming the remote. For ATA branded openers, please refer to the instructions on page 5.
- Page 5 LOCATING THE LEARN BUTTON Examples of where the LEARN button may be located on the opener: The LEARN button may also be labelled as PROGRAM, CODE SET, DOOR CODE, RADIO SET, ‘S’ or similar on your garage door opener. Sectional & Tilt Door Openers Indicator LED Learn Button Roller Door Openers...
- Page 6 ATA BRANDED OPENERS These programming instructions are for ATA branded garage door openers. Note: Please read through all steps before programming the remote. Start with your garage door closed. Ensure that the door is clear of all obstructions Press and hold the bottom button on the Bottom remote until the blue LED stays Button...
-
Page 7: Frequently Asked Questions
FREQUENTLY ASKED QUESTIONS How do I program the other button on the Universal Remote Control? After pressing the LEARN button on the motor, go through the same programming method using the other button. This process will not over write the first button. The initial 15 second press to put the remote into learn mode must be performed using the bottom button. - Page 8 1 year from the date of purchase. The benefits given to you under this Chamberlain Limited Warranty are in addition to any rights and remedies that you may have under Australian or New Zealand consumer protection laws.
Need help?
Do you have a question about the MC100AML and is the answer not in the manual?
Questions and answers
Yes, but the On the SD800 opener has no learning button. They have a button combination like P + and - and he has stopped the problem when I follow the instructions of the SD 800 it’s not coupling
If the Chamberlain MC100AML is not coupling with the SD800 opener and there is no visible LEARN button, follow these steps to troubleshoot:
1. Check LED Indicator: Press a button on the remote. If the LED does not illuminate, replace the battery with a CR2032.
2. Locate Receiver: If the opener has no visible LEARN button, check for an external receiver with an antenna. Some receivers may require removing a cover to access the LEARN button.
3. Identify LEARN Button: The LEARN button may be labeled as CODE, CODE SET, DOOR CODE, RADIO SET, “S”, or similar. It may also be a different color than other buttons.
4. Compatibility: Ensure the SD800 opener operates on 433.92 MHz, as the MC100AML remote only supports this frequency.
If the opener lacks a LEARN button and is not compatible with 433.92 MHz, the MC100AML may not work with it.
This answer is automatically generated
How to program the Chamberlain Universal Remote Control MC100AML to the Steel-Line SD800
To program the Chamberlain MC100AML Universal Remote Control to the Steel-Line SD800, follow these steps:
1. Make sure the garage door is closed and clear of obstructions.
2. On the MC100AML remote, press and hold the bottom button until the blue LED stays solid (about 15 seconds), then release it.
3. On the SD800 opener, press and hold the LEARN button for 2–3 seconds, then release it.
4. On the remote, press and release the button you want to program. The blue LED will blink for up to 60 seconds.
This completes the programming process.
This answer is automatically generated
Yes they have the same 433.93 and I checked no external receiver. But I can send a pic of the 800
