Summary of Contents for Vello LAE-MFT-CEFA

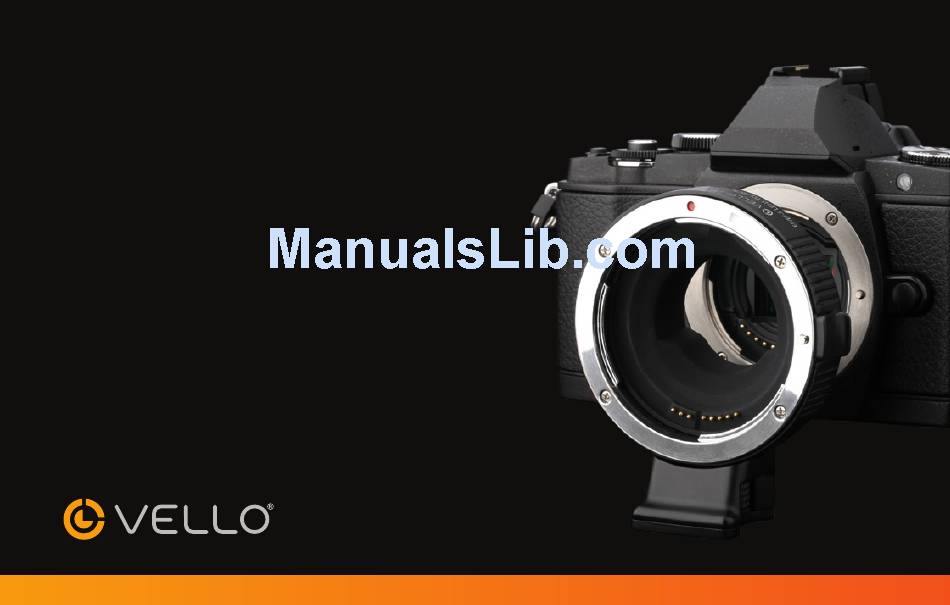

- Page 1 AUTO LENS ADAPTER User Manual LAE-MFT-CEFA Canon EF/EF-S Lens to Micro Four Thirds Mount...
- Page 2 THANK YOU FOR CHOOSING VELLO This Vello Lens Adapter is The inside of the adapter is for attaching Canon EF and coated to reduce any stray EF-S lenses to a Micro Four reflections and maximize Thirds mount. It supports picture quality. The tripod...
- Page 3 CONTENTS • Vello LAE-MFT-CEFA Lens Adapter for Canon EF/EF-S lens to Micro Four Thirds mount • Front and Rear Caps • Removable Tripod Foot • User Manual...
- Page 4 PRECAUTIONS • Please read and follow • Handle the adapter with • Do not use solvents such these instructions, and care—don’t drop it, and as benzene, alcohol, or keep this manual in a avoid bumps and shocks. detergents to clean the safe place.
- Page 5 • Keep this unit away from so will void the warranty, • All images are for water and flammable and Vello will not be illustrative purposes only. gases or liquids. responsible for any damage.

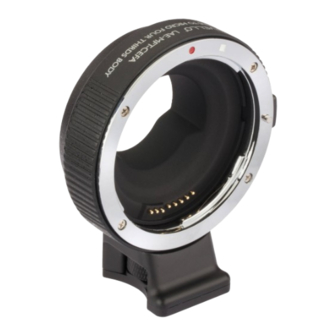

- Page 6 OVERVIEW Front Back EF-S Lens Alignment Dot (White) Lens Release Camera Mount Button EF Lens Alignment Alignment Dot Dot (Red) EF/EF-S Lens Mount Micro Four Thirds Mount Tripod Foot Tripod Foot Mounting Wheel 1/4"-20 Tripod Socket...
- Page 7 MOUNTING THE LENS ADAPTER 1. Turn the camera's power off and remove all caps before mounting. Line up the alignment dots and carefully insert the adapter. 2. Rotate the adapter clockwise until it locks into place.
- Page 8 3. Line up the alignment dots on the lens and the adapter. Then carefully insert the lens into the adapter. 4. Rotate the lens clockwise until it locks. 5. Turn your camera on.
- Page 9 REMOVING THE LENS ADAPTER 1. Turn the camera’s power off. 2. Press and hold the release pin on the lens adapter, and rotate the lens counterclockwise to detach.
- Page 10 3. Press and hold the lens 5. Reattach the lens release button on the adapter's front and rear camera. caps. 4. Rotate the lens adapter counterclockwise to release, and carefully detach the lens adapter from the camera.
- Page 11 MOUNTING THE TRIPOD COLLAR 1. Align the tripod foot’s mounting screw with the mounting hole on the bottom of the lens adapter. 2. Carefully rotate the tripod foot’s mounting wheel clockwise until the foot is securely attached.
- Page 12 REMOVING THE TRIPOD COLLAR Rotate the mounting Note: If your lens has a built-in wheel counterclockwise tripod collar, use the collar on until the collar is loose the lens to mount the assembly enough to remove from to the tripod. the lens adapter.
-
Page 13: Specifications
SPECIFICATIONS Compatible Lenses Canon EF and EF-S Compatible Cameras Micro Four Thirds System Front Mount Canon EF/EF-S Rear Mount Micro Four Thirds Tripod Foot 1/4-20 inch socket Dimensions with Tripod 3.25 × 2.75 × 1.4 inches (8.3 × 7 × 3.5 cm) Foot (H ×... -
Page 14: One-Year Limited Warranty
ONE-YEAR LIMITED WARRANTY This VELLO product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. - Page 15 To obtain warranty coverage, contact the Vello Customer Service Department to obtain a return merchandise authorization (“RMA”) number, and return the defective product to Vello along with the RMA number and proof of purchase. Shipment of the defective product is at the purchaser’s own risk and expense.
- Page 16 www.vellogear.com All other trademarks are the property of their respective owners. © Copyright 2017 Gradus Group...
