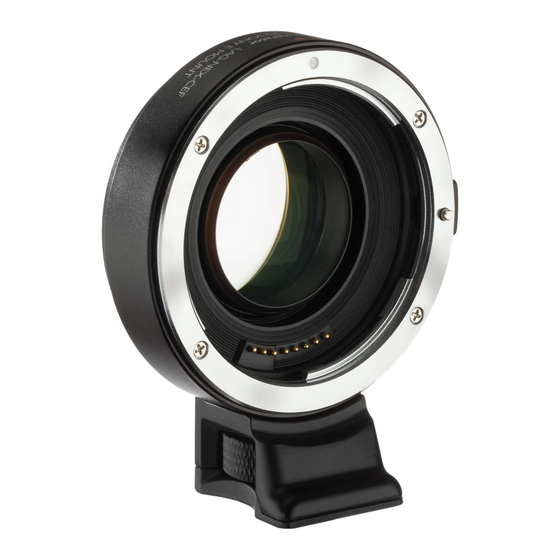

- Page 1 LENS ADAPTER MANUAL FOR T MOUNT & M42...
- Page 2 Automatic diaphragm (AE metering), and other functions dependent on communication between the camera body and lens, will be disrupted by a lens adapter. You must set exposures manually or meter in aperture priority (stop-down) mode. If the lens does not have a manual aperture collar, the aperture will be stopped to its smallest f/stop.
- Page 3 TO MOUNT THE LENS ADAPTER 1. You must have an SLR camera adapter. 2. Line up the alignment dots on the lens Screw the lens adapter onto the SLR adapter and camera. Rotate the assembly adapter. until it locks.
- Page 4 3. Remove the eyepiece from your telescope, 4. Mount the camera/adapter assemblies to spotting scope, or microscope. your optic device. Make certain the setup is stable.
- Page 5 TO REMOVE THE LENS ADAPTER 5. If desired, you can re-align the lens to a 1. If you prefer, you can leave the lens specific position. To re-align the lens, use a adapter attached to your SLR adapter. 2 mm flat-head screwdriver to loosen the Release the camera/adapter assemblies three screws on the lens mount.
- Page 6 2. Press the lens release on the camera, 3. Unscrew the SLR camera adapter from the rotate the adapter assembly to release and lens adapter. Replace all protective covers. remove.
-
Page 7: One-Year Limited Warranty
ONE-YEAR LIMITED WARRANTY This VELLO product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. - Page 8 © Copyright 2014 Gradus Group Vello and other names of Vello products are trademarks of Gradus Group. Other product and corporate names mentioned herein are trademarks of their respective holders.
