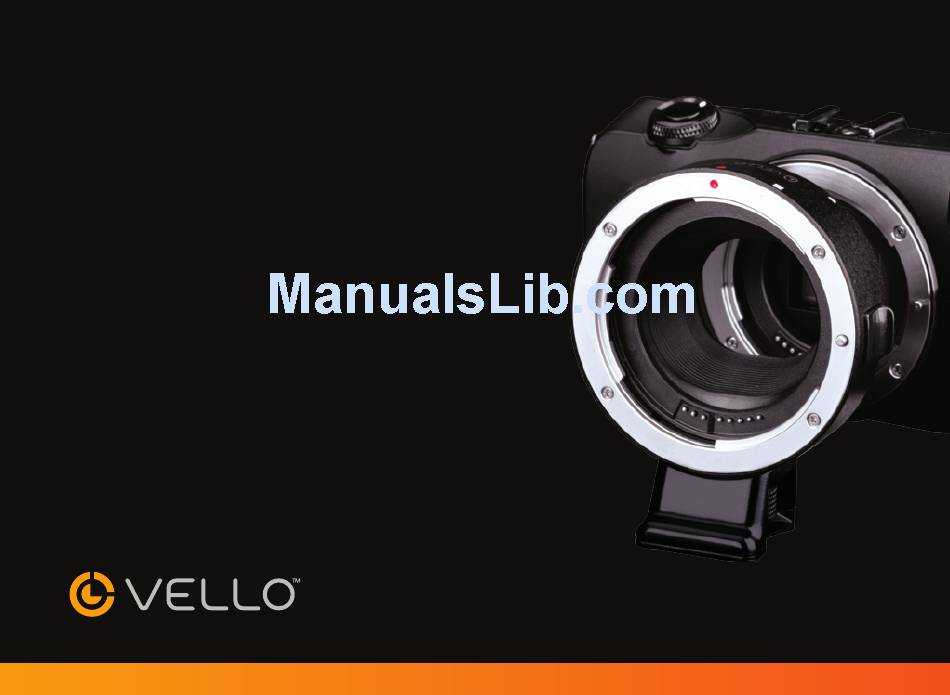

- Page 1 AUTO LENS ADAPTER USER MANUAL LAE-CM-CEF Canon EF/EF-S Lens to Canon EOS-M Camera...
- Page 2 INTRODUCTION Thank you for purchasing the Vello LAE-CM-CEF Auto Lens Adapter – Canon EF/EF-S Lens to Canon EOS-M Camera. This adapter allows you to mount any Canon EF or EF-S lens to a Canon EOS-M camera. With an EF or...
- Page 3 CONTENTS INCLUDE • Vello LAE-CM-CEF Auto Lens Adapter - Canon EF/EF-S Lens to Canon EOS-M Camera • Front and rear caps • Removable tripod mount collar • User manual...
- Page 4 INTRODUCTION The Vello Auto Lens Adapter – Canon EF/EF-S Lens to Canon EOS-M Camera can expand the arsenal of lenses for your Canon EOS-M camera using lenses you already own. With this adapter, you can mount any Canon EF or EF-S lens to a Canon EOS-M camera.
- Page 5 When using an EF lens, there will be a crop factor of 1.6x, so that the apparent focal length of the lens will be 1.6x of the actual focal length. With EF-S lenses, there is no apparent change in the focal length. All camera functions will operate normally, including auto focus, auto exposure, and touch-screen modes.
- Page 6 PRECAUTIONS • Mount the lens to the adapter • Do not use solvents such as in a dust-free environment. benzene, alcohol, detergents, etc. to clean the adapter. • Avoid sandy or dusty environments when using this • Be sure to read the operating adapter.
- Page 7 • All photos are for illustrative or repair the equipment—doing purposes only. so will void the warranty, and Vello will not be responsible for • Please read and follow these any damage. instructions, and keep this manual in a safe place.
- Page 8 OVERVIEW EF/EF-S lens mount EF lens red dot indicator EF-S lens white square indicator Camera mount dot indicator Lens release button EOS-M camera mount Tripod collar Tripod collar release wheel 1/4" tripod socket...
- Page 10 ATTACHING THE LENS ADAPTER 1. Turn the camera’s power off. 2. Remove the rear lens cap, camera body cap, and lens adapter caps. 3. With an EF lens, align the inner red dot on the lens adapter with the red dot on the lens. With an EF-S lens, align the white square on the lens adapter with the white square...
- Page 11 4. Slowly and carefully insert the lens into the adapter and carefully rotate it clockwise until it clicks into place.
- Page 12 5. Align the white mark on the lens adapter with the white lens attachment mark on the camera and slowly rotate the adapter and lens clockwise until it clicks into place on the camera. Note: In order to use auto focus with the camera, be sure that the lens is set to auto focus.
- Page 13 REMOVING THE LENS ADAPTER 1. Turn the camera’s power off. 2. Hold down the lens release button on the camera and rotate the lens and adapter counterclockwise until they come to a stop. Remove from the camera.
- Page 14 3. Hold down the release button on the adapter mount, and remove the lens by rotating it counterclockwise until it comes to a stop. 4. Separate the lens from the adapter mount. 5. Replace the rear lens cap, camera body cap, and lens adapter caps.
- Page 15 MOUNTING / REMOVING THE TRIPOD COLLAR 1. Align the tripod collar mounting screw with the mounting hole on the bottom of the lens adapter.
- Page 16 2. Carefully rotate the mounting wheel on the tripod collar clockwise until the tripod collar is securely attached to the lens adapter.
- Page 17 3. To remove the tripod collar, rotate the mounting wheel counterclockwise until the collar is loose enough to remove from the lens adapter. Note: When attaching a lens that’s equipped with a built-in tripod collar to the lens adapter, use the tripod collar on the lens to mount it to a tripod.
- Page 18 COMPATIBILITY Lenses that are compatible with the Vello Auto Lens Adapter – Canon EF/EF-S Lens to Canon EOS-M Camera. Canon EF Canon EF-S Canon CN-E Canon EF-M Lenses Lenses Lenses Lenses Compatible ✓ ✓ ✗ ✗...
-
Page 19: Specifications
SPECIFICATIONS • Dimensions – 2.6” diameter × 0.8” length (65 × 19.5 mm) • Weight – 2.9 oz. (83 g) - Page 20 One-Year Limited Warranty This VELLO product is warranted to the original purchaser to be free from defects in materials and workmanship under normal consumer use for a period of one (1) year from the original purchase date or thirty (30) days after replacement, whichever occurs later. The warranty provider’s responsibility with respect to this limited warranty shall be limited solely to repair or replacement, at the provider’s discretion,...
