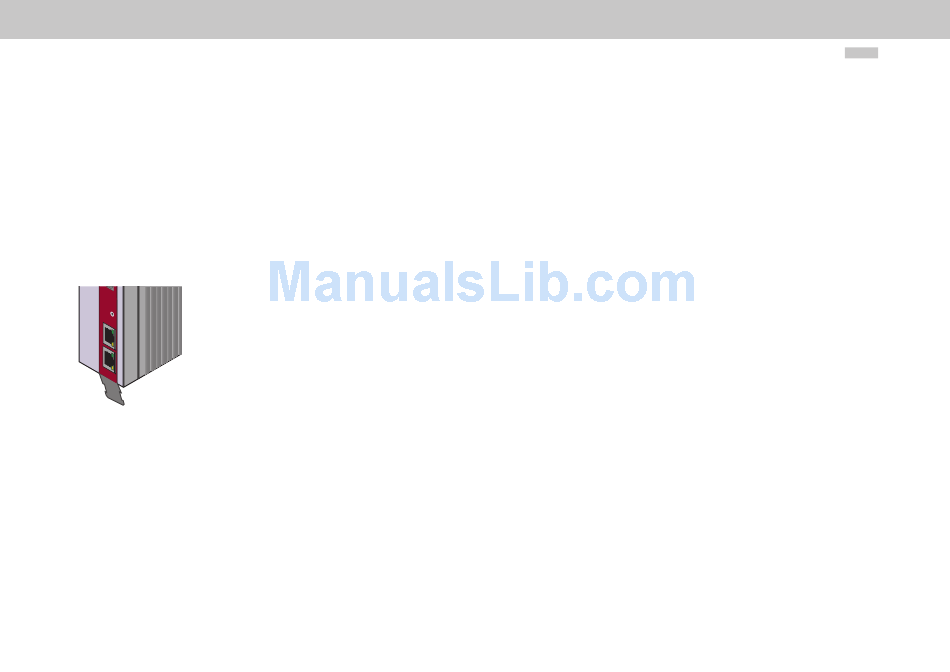

Figure 4.1 SERCOS III communication module for MSD Servo Drive
The power supply to the communication module is provided by the MSD Servo Drive.
Real-time capability permits highly dynamic drive engineering applications with NC cycle
times of 125µs to 65 ms (multiples of 125µs). The data to be transferred is defined in
the SERCOS driver in numerous preference telegrams and parameters. They are specially
tailored to the high demands of electric drive systems. A freely configurable telegram
permits optimum utilization of all the possibilities offered by the line based on additional
setpoint and actual value parameters such as increasing the transferred position resolu-
tion, use of the inputs and outputs in the drive in the NC cycle, and much more.
MSD Servo Drive User Manual SERCOS III
1.4

Key features

• Cyclic data exchange of references and actual values with exact time equidistance
• SERCOS cycle time of 125µs to 65 ms (multiples of 125µs programmable)
• Multi-axis synchronization between reference action times and actual value meas-
urement times of all drives in the loop
• Full synchronization of all connected drives with the master control system
• Free configuration of telegram content
• Maximum configurable data volume in MDT: 20 bytes
• Maximum configurable data volume in DT: 20 bytes
• Programmable parameter weighting and polarity for position, velocity, acceleration
and torque
• Additive velocity and torque references
• Fine-interpolation (linear or cubic) inside the drive
• Optionally master control-side (external) or in-drive generation of rotation speed
and acceleration pre-control
• Service channel for parameter setting and diagnosis
• Support for touch probes 1 and 2
• Support for spindle commands
• Support for configurable real-time status and control bits
• Support for configurable signal status and control word
