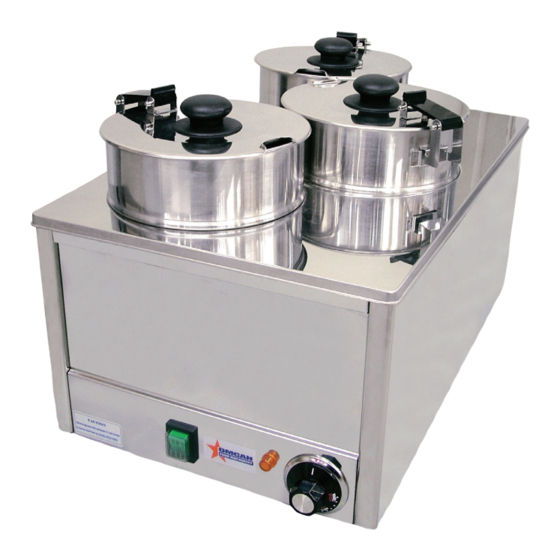

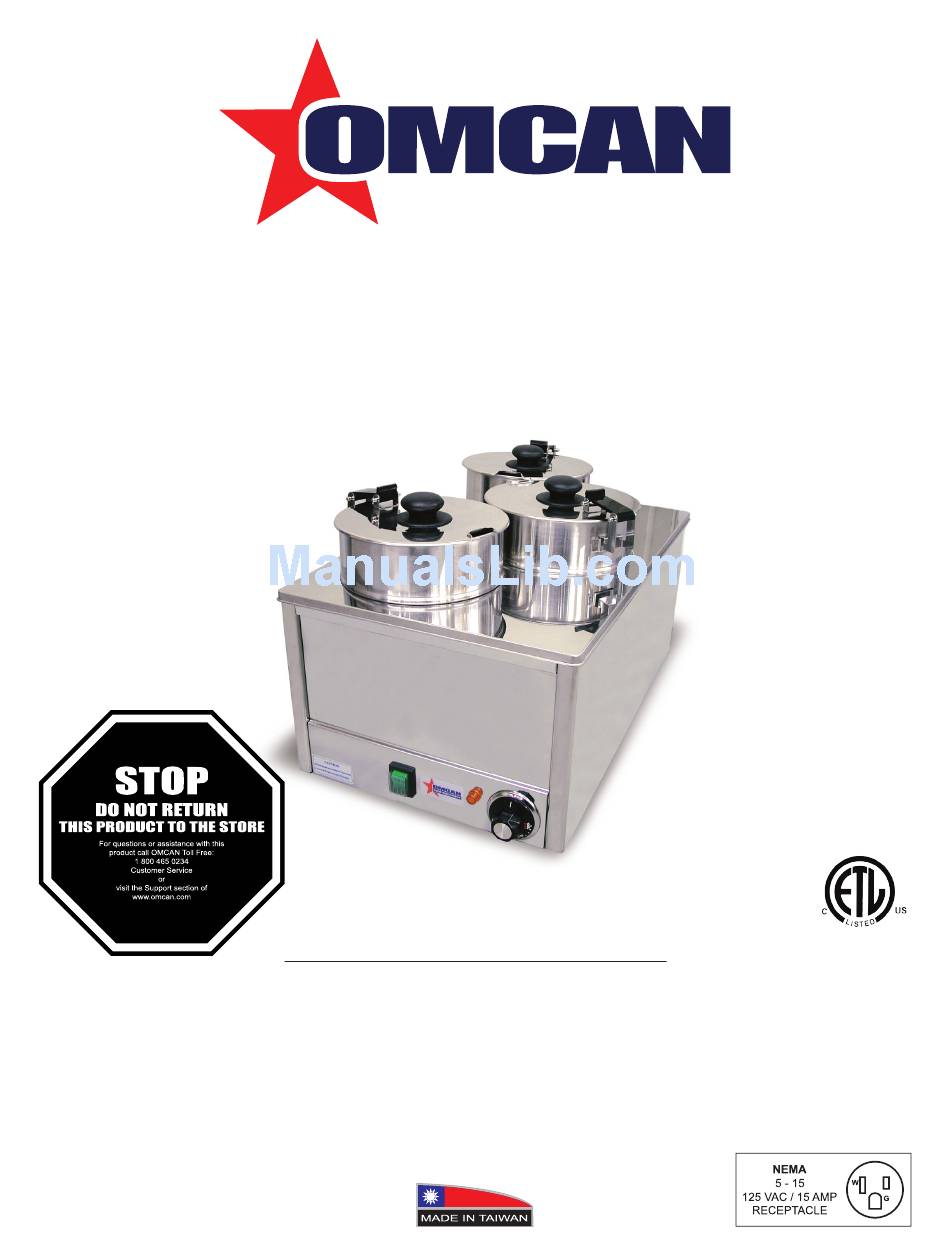

- Page 1 Food Warmer Model FW-TW-0012 Item 11390 Instruction Manual Revised - 07/21/2017 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model FW-TW-0012 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 6 Operation --------------------------------------------------------------------------------------------- 6 Maintenance ----------------------------------------------------------------------------------------- 6 Parts Breakdown ------------------------------------------------------------------------------- 7 - 9 Electrical Schematics ---------------------------------------------------------------------------- 10... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 1 YEAR PARTS AND BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
-
Page 6: Technical Specifications
Technical Specifications Model FW-TW-0012 Capacity 3.8 Liters/ 4 QT per Container Power 1.2 kW Electrical 120V/60Hz/1 Weight 24 lbs. / 10.8 kgs. Packaging Weight 25 lbs. / 11 kgs. Dimensions 21.7” x 13.75” x 12” / 550 x 349 x 305mm Packaging Dimensions 26”... -
Page 7: Parts Breakdown
Parts Breakdown Model FW-TW-0012 11390... -
Page 8: Parts Breakdown
Parts Breakdown Model FW-TW-0012 11390... - Page 9 Parts Breakdown Model FW-TW-0012 11390 Item No. Description Position Item No. Description Position Item No. Description Position 32301 Stainless Steel Food Well for TS-9099 76140 M/M Screw for TS9099 76156 Screw for Neon Light for TS9099 74106 Warmer Body for TS-9099...
-
Page 10: Electrical Schematics
Electrical Schematics Model FW-TW-0012 11390 ------------------------------------------------------- SOURCE POWER AC 120V 60Hz 1200W SWITCH PANEL CUT-OUT ------------------------------------------------------- SERIES 82 RESISTANCE NEON LAMP 100 K E.G.O. THERMOSTAT 55.13022.050 HEATER THERMOSTAT 1200W / 120V 21 ( L160-20C ) 30C-110C CH-15 (160C / 140C ) -
Page 11: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 12 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
