Summary of Contents for Omcan FW-CN-0533

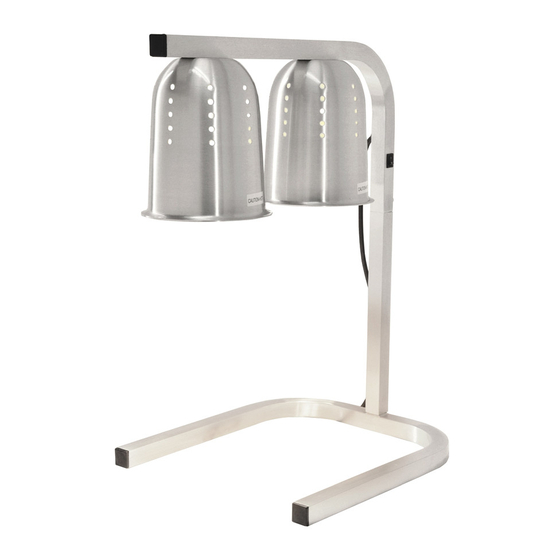

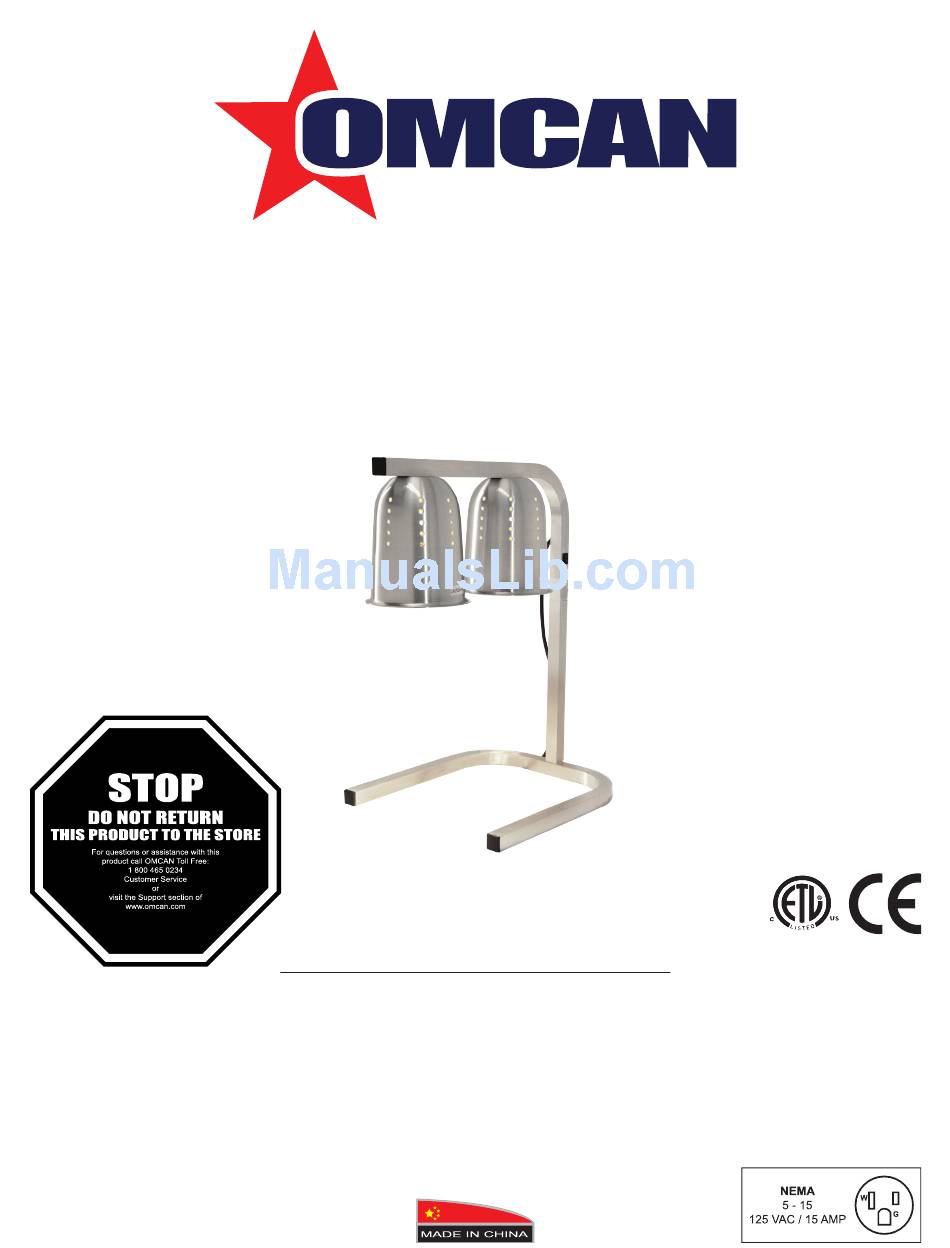

- Page 1 Food Warmer Model FW-CN-0533 Item 21637 Instruction Manual Revised - 05/20/2016 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model FW-CN-0533 Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 6 Installation -------------------------------------------------------------------------------------------- 6 Operation --------------------------------------------------------------------------------------------- 7 Maintenance ----------------------------------------------------------------------------------------- 7 Parts Breakdown ------------------------------------------------------------------------------- 8 - 9 Electrical Schematics... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. - Page 5 1 YEAR PART AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment.
-
Page 6: Technical Specifications
Technical Specifications Model FW-CN-0533 Electrical 110V / 60Hz Power 500W (2 x 250W) Length of Cord 65” / 1651mm Base to Bulb (Default Height) 15” / 381mm Base to Bulb (Max Height) 21” / 533mm Protector Safety Switch Weight 6 lbs. / 2.7 kgs. -
Page 7: Operation
Operation 1. Put the cooked food into the tray. 2. Plug in the power cord and turn on the machine. 3. Adjust the height of the frame for your desired temperature of the food. Maintenance If the bulb stops working: 1. -
Page 8: Parts Breakdown
Parts Breakdown Model FW-CN-0533 21637... -
Page 9: Electrical Schematics
Parts Breakdown Model FW-CN-0533 21637 Item No. Description Position Item No. Description Position Item No. Description Position 27147 Plastic Plug for WL500 37129 Lamp Socket for WL500 72750 Internal Wire for WL500 72739 Upper Frame for WL500 72745 M3 Screw for WL500... -
Page 10: Notes
Notes ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________ ________________________________________________________________________________________... -
Page 11: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 12 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
