Summary of Contents for Omcan FW-CN-0004

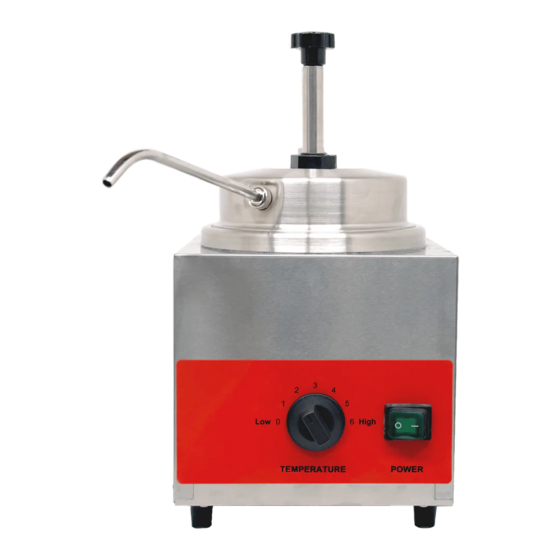

- Page 1 Food Warmers Models FW-CN-0004, 0004-S, 0004-P Items 44310, 44311, 44312 Instruction Manual Revised - 09/19/2018 Toll Free: 1-800-465-0234 Fax: 905-607-0234 Email: service@omcan.com www.omcan.com...
-
Page 2: Table Of Contents
Table of Contents Model FW-CN-0004 / Model FW-CN-0004-S / Model FW-CN-0004-P Section Page General Information --------------------------------------------------------------------------- 3 - 4 Safety and Warranty --------------------------------------------------------------------------- 4 - 5 Technical Specifications -------------------------------------------------------------------------- 5 Installation -------------------------------------------------------------------------------------------- 6 Operation --------------------------------------------------------------------------------------------- 6 Maintenance ----------------------------------------------------------------------------------------- 7 Parts Breakdown... -
Page 3: General Information
If the package has suffered rough handling, bumps or damage (visible or concealed), please note it on the bill of lading before accepting the delivery and contact Omcan within 24 hours, so we may initiate a claim with the carrier. A detailed report on the extent of the damage caused to the machine must be filled out within three days, from the delivery date shown in the shipping documents. -
Page 4: Safety And Warranty
Si el paquete ha sufrido un manejo de poco cuidado, golpes o daños (visible o oculto) por favor anote en la factura antes de aceptar la entrega y contacte Omcan dentro de las 24 horas, de modo que podamos iniciar una reclamación con la compañia. -
Page 5: Technical Specifications
1 YEAR PARTS AND LABOUR BENCH WARRANTY Within the warranty period, contact Omcan Inc. at 1-800-465-0234 to schedule a drop off to either an Omcan authorized service depot in the area, or to an Omcan Service warehouse to repair the equipment. -
Page 6: Installation
Installation ASSEMBLING THE PUMP 1. Insert the pump inside the plastic pipe, then tighten it with the screw. 2. Put the lid with pump asembly inside the warmer, assembly is complete. Operation The warmer is intended to be used with its 3.5 QT stainless steel insert. 1. -
Page 7: Maintenance
REFERENCE Manufacturer Model Item Number Model Number Description Number Food Warmer Countertop 3.5 QT 500W 44310 FW-CN-0004 FZ-04A Stainless Steel 120V/60Hz/1 CE Food Warmer with Spout and Pump 3.5 44311 FW-CN-0004-S FZ-04B QT 550W Stainless Steel 120V/60Hz/1 CE Food Warmer with Pump 3.5 QT 550W... -
Page 8: Parts Breakdown
Parts Breakdown Model FW-CN-0004 44310 Model FW-CN-0004-S 44311... - Page 9 Parts Breakdown Model FW-CN-0004 44310 Item Item Item Description Position Description Position Description Position 67205 Heating Spout for FZ-04A 67213 Insulation Plate for FZ-04A 67221 Lid for FZ-04A 67206 Rear Board for FZ-04A 67214 Terminal for FZ-04A 67222 Pump Assembly for FZ-04A...
- Page 10 Parts Breakdown Model FW-CN-0004-P 44312...
- Page 11 Parts Breakdown Model FW-CN-0004-P 44312 Item Item Item Description Position Description Position Description Position 67211 Power Cord for FZ-05A 67218 Thermostat for FZ-05A 67223 Drain Pipe for FZ-05A 67212 Wire Buckle for FZ-05A 67208 Heat Conduction Ring for FZ-05A 67230...
-
Page 12: Electrical Schematics
Electrical Schematics Model FW-CN-0004 44310... - Page 13 Electrical Schematics Model FW-CN-0004-S 44311...
- Page 14 Electrical Schematics Model FW-CN-0004-P 44312...
-
Page 15: Warranty Registration
Warranty Registration Thank you for purchasing an Omcan product. To register your warranty for this product, complete the information below, tear off the card at the perforation and then send to the address specified below. You can also register online by visiting: Merci d’avoir acheté... - Page 16 Since 1951 Omcan has grown to become a leading distributor of equipment and supplies to the North American food service industry. Our success over these many years can be attributed to our commitment to strengthen and develop new and existing relationships with our valued customers and manufacturers.
