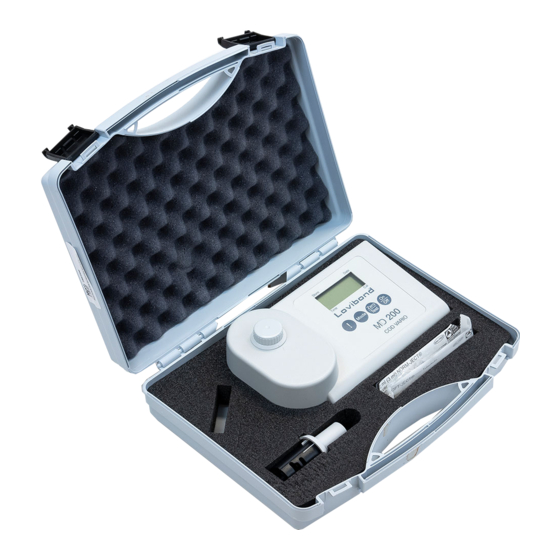

- Page 1 Lovibond Water Testing ® Tintometer Group ® Photometer-System MD200 Cl • pH • CyA • KS4.3 • CaH Instruction Manual Page 28–51 www.lovibond.com...
- Page 2 CE-Konformitätserklärung / Declaration of CE-Conformity Déclaration de conformité CE / Dichiarazione di conformità CE / CE-Declaración de conformidad ——————————————————————————————————————— Hersteller / manufacturer / fabricant / produttore / fabricante: Tintometer GmbH / Schleefstraße 8-12 / 44287 Dortmund / Deutschland ——————————————————————————————————————— Produktname / Product name / Nom du fabricant / Nome del prodotto / Nombre del MD 200 productor: ———————————————————————————————————————...
- Page 3 ——————————————————————————————————————— Declaração de conformidade CE / CE conformiteitsverklaring ——————————————————————————————————————— Fabricante / Producent: Tintometer GmbH / Schleefstraße 8-12 / 44287 Dortmund / Alemanha/ Duitsland ——————————————————————————————————————— Nome do produto / Productnaam: MD 200 ——————————————————————————————————————— Declaração de conformidade CE de acordo com a directiva 2004/108/CE DO PARLAMENTO E DO CONSELHO EUROPEU de 15 de Dezembro de 2004 e declaração de conformidade CE de acordo com a directiva 2011/65/EU DO PARLAMENTO E DO CONSELHO EUROPEU de 8 de Junho de 2011.
-
Page 4: Important Information
Important Information Important disposal instructions for batteries and accumulators EC Guideline 2006/66/EC requires users to return all used and worn-out batteries and accumulators. They must not be disposed of in normal domestic waste. Because our products include batteries and accumulators in the delivery package our advice is as follows : Used batteries and accumulators are not items of domestic waste. -
Page 5: Table Of Contents
Contents • General notes ........... . . 30 Guidelines for photometric measurements . -
Page 6: Guidelines For Photometric Measurements
Reagents are designed for use in chemical analysis only and should be kept well out of the reach of children. • Ensure proper disposal of reagent solutions. • Material Safety Data Sheets are available on request (Internet: www.lovibond.com) MD200_8 07/2016... -
Page 7: Replacement Of Batteries
General notes Correct position of the vial (Ø 24 mm): Correct filling of the vial: Replacement of batteries: (B) battery compart- ment cover (E) seal ring (A) screw (F) instrument back (D) batteries (C) notch for data transfer CAUTION: To ensure that the instrument is water proof: seal ring (E) must be in position •... -
Page 8: Functional Description
Functional description Operation Switch the unit on using the [ON/OFF] key. METHOD The display shows the following: Select the required test using the [MODE] key. Mode Scroll Memory (SM) To avoid unnecessary scrolling for the required test method, the instru- ment memorizes the last method used before being switched off. -
Page 9: Display Backlight
Functional description Display backlight Press the [ !] key to turn the display backlight on or off. The backlight is switched off automatically during the measurement. Recall of stored data If the instrument is switched on, press the [!] key for more than 4 sec- onds, then release the [!] key to access the recall menu. -
Page 10: Methods
Methods Chlorine with Tablet CL 6 0.01 – 6.0 mg/l a) free Chlorine Fill a clean vial (24 mm Ø) with 10 ml of the water sample and 0.0.0 perform zero calibration (see “Operation”). Remove the vial from the sample chamber and empty it, leaving a few drops remaining in the vial. - Page 11 Methods Notes: 1. Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances, the subsequent determination of Chlorine may show lower results. To avoid any meas- urement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glassware into Sodium hypochlorite solution (0.1 g/l) for one hour, then rinse all glassware thoroughly with deionised water.
-
Page 12: Chlorine With Liquid Reagent
Methods Chlorine with liquid reagent CL 6 0.02 – 4.0 mg/l a) free Chlorine Fill a clean vial (24 mm Ø) with 10 ml of the water sample and 0.0.0 perform zero calibration (see “Operation”). Remove the vial from the sample chamber and empty the vial. Fill the vial with drops of the same size by holding the bottle vertically and squeeze slowly: 6 drops of DPD 1 buffer solution... - Page 13 Methods Notes: 1. Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances, the subsequent determination of Chlorine may show lower results. To avoid any measurement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glassware into Sodium hypochlorite solution (0.1 g/l) for one hour, then rinse all glassware thoroughly with deionised water.
-
Page 14: Chlorine Hr With Dpd Tablet
Methods Chlorine HR with DPD Tablet CL 10 0.1 – 10 mg/l a) free Chlorine Fill a clean vial (24 mm Ø) with 10 ml of the water sample and 0.0.0 perform zero calibration (see “Operation”). Remove the vial from the sample chamber and empty it, leaving a few drops remaining in the vial. - Page 15 Methods Notes: 1. Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances, the subsequent determination of Chlorine may show lower results. To avoid any measurement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glassware into Sodium hypochlorite solution (0.1 g/l) for one hour, then rinse all glassware thoroughly with deionised water.
-
Page 16: Ph-Value With Tablet
Methods pH-value with Tablet 6.5 – 8.4 Fill a clean vial (24 mm Ø) with 10 ml of the water sample and 0.0.0 perform zero calibration (see “Operation”). Add one PHENOL RED PHOTOMETER tablet straight from the foil to the 10 ml water sample and crush the tablet using a clean stirring rod. Close the vial tightly with the cap and swirl gently several times until the tablet is dissolved. -
Page 17: Ph-Value With Liquid Reagent
Methods pH-value with liquid reagent 6.5 – 8.4 Fill a clean vial (24 mm Ø) with 10 ml of the water sample and 0.0.0 perform zero calibration (see “Operation"). Fill the vial with drops of the same size by holding the bottle vertically and squeeze slowly: 6 drops of PHENOL RED solution. -
Page 18: Cya-Test (Cyanuric Acid), With Tablet
Methods Cyanuric acid with Tablet 0 – 160 mg/l Fill a clean vial (24 mm Ø) with 5 ml of the water sample and 5 ml 0.0.0 deionised water (Note 1) and perform zero calibration (see “Opera- tion”). Add one CyA-TEST tablet straight from the foil to the prepared water sample and crush the tablet using a clean stirring rod. -
Page 19: Acid Demand To Ph 4.3 With Tablet
Methods Acid demand to pH 4.3 with Tablet S:4.3 0.1 – 4 mmol/l Fill a clean vial (24 mm Ø) with 10 ml of the water sample and 0.0.0 perform zero calibration (see “Operation"). Add one ALKA-M-PHOTOMETER tablet straight from the foil to the 10 ml water sample and crush the tablet using a clean stirring rod. -
Page 20: Hardness, Calcium With Tablet
Methods Hardness, Calcium with Tablet 0 – 500 mg/l Fill a clean vial (24 mm Ø) with 10 ml of the water sample and 0.0.0 perform zero calibration (see “Operation”). Add one CALCIO H No. 1 tablet straight from the foil to the water sample and crush the tablet using a clean stirring rod. - Page 21 Methods MD200_8 07/2016...
-
Page 22: Menu Options
Menu options Menu selections Press the [MODE] key and hold. Mode Switch the unit on using the [ON/OFF] key. Allow the 3 decimal points to be displayed before releasing the [MODE] key. The [!] key allows for selection of the following menu points: diS recall stored data Store Date... -
Page 23: Setting Date And Time
Menu options notch for data transfer The IRiM Module and the connected printer/PC must be ready. Press PrtG the [MODE] key to start the transmitting, the instrument displays “PrtG” (Printing) for approx. 1 second followed by the number of the first data set and its transmission. -
Page 24: Calibration Mode
Calibration Mode Store Date User calibration Time Note: user calibration (Display in calibration mode) factory calibration (Display in calibration mode) After confirming the selection with the [MODE] key the instrument will show CAL/“Method”. METHOD Scroll through methods using the [MODE] key. Fill a clean vial with the standard up to the 10 ml mark, screw the cap on and place the vial in the sample chamber making sure that marks are aligned. -
Page 25: Factory Calibration Reset
Calibration Mode Factory calibration reset Resetting the user calibration to the original factory calibration will reset all methods and ranges. Store Date A user calibrated method is indicated by an arrow while the test result RESULT is displayed. Time To reset the calibration press both the [MODE] and [ZERO/TEST] key Zero Mode and hold. -
Page 26: Technical Data
Technical Data Technical Data Instrument triple wavelength, automatic wavelength selection, direct reading colorimeter Light source: LEDs, interference filters (IF) and photosensor in transparent cell chamber. Wavelength specifications of the IF: 530 nm = 5 nm 560 nm = 5 nm 610 nm = 6 nm Wavelength accuracy... -
Page 27: Operating Messages
Operating messages – Error codes Operating messages Hı Measuring range exceeded or excessive turbidity. Result below the lowest limit of the measuring range. Replace batteries, no further tests possible. btLo Battery capacity is too low for the display backlight; measurement is still possible. Store Date A user calibrated method is indicated by an arrow while the test result... - Page 28 Tintometer GmbH The Tintometer Ltd Tintometer AG Tintometer Inc. Lovibond Water Testing Lovibond House Hauptstraße 2 6456 Parkland Drive ® ® Schleefstraße 8-12 Sun Rise Way 5212 Hausen AG Sarasota, FL 34243 44287 Dortmund Amesbury Tel.: +41 (0)56/4422829 Tel: 941.756.6410 Tel.: +49 (0)231/94510-0...
