Page 1 Lovibond Water Testing ® Tintometer Group ® Photometer Instruction manual www.lovibond.com...
Page 3 Important steps before using the photometer Please carry out the following steps as described in the Instruction manual. Become familiar with your new pho- tometer before starting with the first tests: • Unpacking and inspection of delivery contents, see page 344. •...
Page 5 Wichtige Information Um die Qualität unserer Umwelt zu erhalten, beschützen und zu verbessern Entsorgung von elektronischen Geräten in der Europäischen Union Aufgrund der Europäischen Verordnung 2012/19/EU darf Ihr elektronisches Gerät nicht mit dem normalen Hausmüll entsorgt werden! Tintometer GmbH entsorgt ihr elektrisches Gerät auf eine professionelle und für die Umwelt verantwortungsvolle Weise.
Page 6 Información Importante Para preservar, proteger y mejorar la calidad del medio ambiente Eliminación de equipos eléctricos en la Unión Europea Con motivo de la Directiva Europea 2012/19/UE, ¡ningún instrumento eléctrico deberá eliminarse junto con los residuos domésticos diarios! Tintometer GmbH se encargará de dichos instrumentos eléctricos de una manera profesional y sin dañar el medio ambiente.
Page 7 Wichtiger Entsorgungshinweis zu Batterien und Akkus Jeder Verbraucher ist aufgrund der Batterieverordnung (Richtlinie 2006/66/ EG) gesetzlich zur Rückgabe aller ge- und verbrauchten Batterien bzw. Akkus verpflichtet. Die Entsorgung über den Hausmüll ist verboten. Da auch bei Produkten aus unserem Sortiment Batterien und Akkus im Lieferumgang enthalten sind, weisen wir Sie auf folgendes hin: Verbrauchte Batterien und Akkus gehören nicht in den Hausmüll, sondern können unentgeltlich bei den öffentlichen Sammelstellen Ihrer Gemeinde und überall...
Page 8 Indicación importante acerca de la eliminación de pilas y acumuladores Basado en la norma relativa a pilas/ baterías (directiva 2006/66/CE), cada consumidor, está obligado por ley, a la devolución de todas las pilas/ baterías y acumuladores usados y consumidos. Está prohibida la eliminación en la basura doméstica. Ya que en productos de nuestra gama, también se incluyen en el suministro pilas y acumuladores, le sugerimos lo siguiente: Las pilas y acumuladores usados no pertenecen a la basura doméstica, sino que pueden...
Page 9: Safety Precautions
Be aware of the risks of using the required reagents by reading the MSDS (Material Safety Data Sheets). Failure could result in serious injury to the operator or damage to the instrument. MSDS: www.lovibond.com CAUTION The accuracy of the instrument is only valid if the instrument is used in an environment with controlled electromagnetic disturbances according to DIN 61326.
Page 10: Table Of Contents
Table of contents Part 1 Methods ....................9 1.1 Table of Methods ....................10 Acid demand to pH 4.3 ....................16 Alkalinity-total (Alkalinity-m, m-Value) ................18 Alkalinity-total HR (Alkalinity-m HR, m-Value HR) ............20 Alkalinity-p (p-Value) ....................... 22 Aluminium with tablets ....................24 Aluminium (powder pack) ....................
Page 11 free Chlorine ....................... 64 total Chlorine ......................65 differentiated determination (free, combined, total) ............ 66 Chlorine dioxide with tablet .................... 68 in presence of Chlorine ....................70 in absence of Chlorine ....................73 Chlorine dioxide (powder pack) ..................74 in absence of Chlorine ....................74 in presence of Chlorine ....................
Page 12 Hardness, Calcium with Calcio tablet ................128 Hardness, total ......................130 Hardness, total HR ......................132 Hydrazine ........................134 Hydrazine with liquid reagent ..................136 Hydrazine with Vacu-vials ....................138 Hydrogen peroxide see H ..................140 Iodine ........................... 140 Iron ..........................142 Iron with tablet ......................
Page 13 Phosphate ........................208 Phosphate, ortho LR with tablet ................210 Phosphate, ortho HR with tablet ................212 Phosphate, ortho (powder pack) ................214 Phosphate, ortho (tube test) ..................216 Phosphate 1, ortho C ....................218 Phosphate 2, ortho C ....................220 Phosphate, hydrolyzable (tube test) ................
Page 14 1.2.3 Guidelines for photometric measurements ........... 283 1.2.4 Sample dilution techniques ................285 1.2.5 Correcting for volume additions ..............285 Part 2 Instrument Manual ............... 287 Operation ....................288 2.1.1 Set up ......................288 2.1.2 Saving data – Important Notes ..............288 2.1.3 Replacement of batteries ................
Page 15 Fluoride Method 170 ..................321 User Calibration ................... 323 Store user calibration ..................325 Delete user calibration .................. 326 2.6.5 Lab function ....................327 Profi-Mode ....................327 One Time Zero ..................... 328 2.6.6 User operations .................... 329 User method list ................... 329 User Concentration Methods ................
Page 16 MD 610_1c 09/2015...
Page 17: Part 1 Methods
Part 1 Methods MD 610_1c 09/2015...
Page 18: Table Of Methods
1.1 Table of Methods No. Analysis Reagent Range Displayed Method OTZ Page [nm] 20 Acid demand to tablet 0.1-4 mmol/l Acid/Indicator 1,2,5 pH 4.3 T 30 Alkalinity, total T tablet 5-200 mg/l CaCO Acid/Indicator 1,2,5 31 Alkalinity HR, tablet 5-500 mg/l CaCO Acid/Indicator 1,2,5...
Page 19 No. Analysis Reagent Range Displayed Method OTZ Page [nm] 157 Cyanide Powder + 0.01-0.5 mg/l CN Pyridine- liquid barbituric acid 160 CyA-TEST T tablet 0-160 mg/l CyA Melamine 165 DEHA T tablet + 20-500 μg/l DEHA PPST liquid 167 DEHA PP PP + liquid 20-500 μg/l DEHA PPST...
Page 20 No. Analysis Reagent Range Displayed Method OTZ Page [nm] 243 Manganese HR PP PP + liquid 0,1-18 mg/l Mn Periodate oxidation 245 Manganese L liquid 0.05-5 mg/l Mn Formaldoxime 250 Molybdate T tablet 1-50 mg/l MoO Thioglycolate 251 Molybdate LR PP 0,05-5 mg/l MoO Mercaptoacetic...
Page 21 No. Analysis Reagent Range Displayed Method OTZ Page [nm] 335 Phosphate HR L liquid 5-80 mg/l PO Vanado- 208, molybdate 316 Phosphonate PP 0-125 mg/l Persulfate – UV-Oxidation 329 pH-Value LR T tablet 5.2-6.8 — Bromocresolpurple 330 pH-Value T tablet 6.5-8.4 —...
Page 22 1.1 Methods The precision of Lovibond Reagent Systems (tablets, powder packs and tube tests) is identical ® to the precision specified in standards literature such as American Standards (AWWA), ISO etc. Most of the data referred to in these standard methods relates to Standard Solutions. Therefore they are not readily applicable to drinking-, boiler- or waste-water, since various interferences can have a major influence on the accuracy of the method.
Page 23 MD 610_1c 09/2015...
Page 24 Acid demand to pH 4.3 with Tablet 0.1 – 4 mmol/l 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 25 Notes: 1. The terms total Alkalinity, Alkalinity-m, m-Value and Acid demand to pH 4.3 are identical. 2. For accurate results exactly 10 ml of water sample must be taken for the test. Reagent Form of reagent/Quantity Order-No. ALKA-M-PHOTOMETER Tablet / 100 513210BT MD 610_1c 09/2015...
Page 26: Alkalinity-Total (Alkalinity-M, M-Value)
Alkalinity, total = Alkalinity-m = m-Value with Tablet 5 – 200 mg/l CaCO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 27: Acid Demand To Ph 4.3
Notes: 1. The terms total Alkalinity, Alkalinity-m, m-Value and Alkalinity to pH 4.3 are identical. 2. For accurate results exactly 10 ml of water sample must be taken for the test. 3. Conversion table: Acid demand to pH 4.3 German English French DIN 38 409 (K...
Page 28: Alkalinity-Total Hr (Alkalinity-M Hr, M-Value Hr)
Alkalinity HR, total = Alkalinity-m HR = m-Value HR with Tablet 5 – 500 mg/l CaCO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 29 Notes: 1. For verification of the result look carefully at the bottom of the vial. If a thin yellow layer forms, then mix the vial again. This ensures that reaction is complete. Reread the result. 2. Conversion table: Acid demand to pH 4.3 German English French...
Page 30: Alkalinity-P (P-Value)
Alkalinity-p = p-value with Tablet 5 – 300 mg/l CaCO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 31 Notes 1. The terms Alkalinity-p, p-Value and Alkalinity to pH 8.2 are identical. 2. For accurate test results exactly 10 ml of water sample must be taken for the test. 3. This method was developed from a volumetric procedure for the determination of Alkalinity-p.
Page 32: Aluminium With Tablets
Aluminium with Tablet 0.01 – 0.3 mg/l Al 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
Page 33 Notes: 1. Before use, clean the vials and the accessories with Hydrochloric acid (approx. 20%). Rinse them thoroughly with deionised water. 2. To get accurate results the sample temperature must be between 20°C and 25°C. 3. A low test result may be given in the presence of Fluorides and Polyphosphates. The effect of this is generally insignificant unless the water has fluoride added artificially.
Page 34: Aluminium (Powder Pack)
Aluminium with Vario Powder Pack 0.01 – 0.25 mg/l Al Use two clean vials (24 mm Ø) and mark one as blank for zeroing. 1. Fill 20 ml of the water sample in a 100 ml beaker. 2. Add the contents of one Vario Aluminum ECR F20 Powder Pack straight from the foil to the water sample.
Page 35 prepare Zero 13. Press ZERO key. press ZERO 14. Remove the vial from the sample chamber. 15. Place the vial (the sample) in the sample chamber making sure that the marks are aligned. Zero accepted prepare Test 16. Press TEST key. press TEST The result is shown in the display in mg/l Aluminium.
Page 36: Ammonia With Tablet
Ammonia with Tablet 0.02 – 1 mg/l N 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
Page 37 Notes: 1. The tablets must be added in the correct sequence. 2. The AMMONIA No. 1 tablet will only dissolve completely after the AMMONIA No. 2 tablet has been added. 3. The temperature of the sample is important for full colour development. At a temperature below 20°C the reaction period is 15 minutes.
Page 38: Ammonia (Powder Pack)
Ammonia with Vario Powder Pack 0.01 – 0.8 mg/l N Use two clean vials (24 mm Ø) and mark one as blank for zeroing. 1. Fill a clean vial (24 mm Ø) with 10 ml of deionised water (this is the blank). 2.
Page 39 Notes: 1. Extremely basic or acidic water samples should be adjusted with 0.5 mol/l (1 N) Sulfuric acid solution or 1 mol/l (1 N) Sodium hydroxide solution to pH 7. 2. Interferences: Interfering substance Interference levels and treatments Calcium greater than 1000 mg/l CaCO Iron Interferes at all levels.
Page 40: Ammonia, Low Range (Lr)
Ammonia LR with Vario Tube Test 0.02 – 2.5 mg/l N Insert the adapter for 16 mm Ø vials. 1. Open one white capped reaction vial and add 2 ml deionised water (this is the blank). 2. Open another white capped reaction vial and add Ø...
Page 41 Notes: 1. Strong alkaline or acidic water samples must be adjusted to approx. pH 7 before analysis (use 1 mol/l Hydrochloric acid resp. 1 mol/l Sodium hydroxide). 2. Iron interferes with the test. The interferences will be eliminated as follows: Determine the amount of total iron present in the water sample.
Page 42: Ammonia, High Range (Hr)
Ammonia HR with Vario Tube Test 1 – 50 mg/l N Insert the adapter for 16 mm Ø vials. 1. Open one white capped reaction vial and add 0.1 ml deionised water (this is the blank). 2. Open another white capped reaction vial and add Ø...
Page 43 Notes: 1. Strong alkaline or acidic water samples must be adjusted to approx. pH 7 before analysis (use 1 mol/l Hydrochloric acid resp. 1 mol/l Sodium hydroxide). 2. If chlorine is known to be present, add one drop of 0.1 mol/l Sodium thiosulfate for each 0.3 mg/l Cl in a one litre water sample.
Page 44: Boron
Boron with Tablet 0.1 – 2 mg/l B 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
Page 45 Notes: 1. The tablets must added in the correct sequence. 2. The sample solution should have a pH value between 6 and 7. 3. Interferences are prevented by the presence of EDTA in the tablets. 4. The rate of colour development depends on the temperature. The temperature of the sample must be 20°C ±...
Page 46: Bromine With Tablet
Bromine with Tablet 0.05 – 13 mg/l Br 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
Page 47 Notes: 1. Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances,the subsequent determination of Bromine may show lower results. To avoid any measurement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glassware into Sodium hypochlorite solution (0.1 g/l) forone hour, then rinse all glassware thoroughly with deionised water.
Page 48: Bromine (Powder Pack)
Bromine with Vario Powder Pack 0.05 – 4,5 mg/l Br 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 49 Notes: 1. Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances,the subsequent determination of Bromine may show lower results. To avoid any measurement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glassware into Sodium hypochlorite solution (0.1 g/l) forone hour, then rinse all glassware thoroughly with deionised water.
Page 50: Chloride With Tablet
Chloride with Tablet 0.5 – 25 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
Page 51 Notes: 1. Ensure that all particles of the tablet are dissolved – Chloride causes an extremely fine distributed turbidity with a milky appearance. Heavy shaking leads to bigger sized particles which can cause false readings. 2. High concentrations of electrolytes and organic compounds have different effects on the precipitation reaction.
Page 52: Chloride With Liquid Reagent
Chloride with Liquid Reagent – 0.5 – 20 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 53 Notes: 1. Chloride causes an extremely fine distributed turbidity with a milky appearance. Heavy shaking leads to bigger sized particles which can cause false readings. 2. Conversion: mg/l NaCl = mg/l Cl - x 1,65 Cl - NaCl Reagent Form of reagent/Quantity Order-No.
Page 54: Chlorine
Chlorine with Tablet 0.01 – 6 mg/l Cl Chlorine HR with Tablet 0.1 – 10 mg/l Cl Chlorine with Liquid Reagent 0.02 - 4 mg/l Cl Chlorine with Vario Powder Pack 0.02 - 2 mg/l Cl Chlorine HR with Vario Powder Pack 0.1 - 8 mg/l Cl Chlorine The following selection is shown in the display:...
Page 55 Notes: 1. Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances, the subsequent determination of Chlorine may show lower results. To avoid any measurement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glassware into Sodium hypochlorite solution (0.1 g/l) for one hour, then rinse all glassware thoroughly with deionised water.
Page 56: Chlorine With Tablet
Chlorine, free with Tablet 0.01 – 6 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 57: Total Chlorine
Chlorine, total with Tablet 0.01 – 6 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 58: Differentiated Determination (Free, Combined, Total)
Chlorine, differentiated determination with Tablet 0.01 – 6 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 59 13. Place the vial in the sample chamber making sure that marks are aligned. T1 accepted 14. Press TEST key. prepare T2 Wait for a reaction period of 2 minutes. press TEST Countdown 2:00 After the reaction period is finished the measurement starts automatically.
Page 60: Chlorine Hr With Tablet
Chlorine HR, free with Tablet 0.1 – 10 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 61: Total Chlorine
Chlorine HR, total with Tablet 0.1 – 10 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 62: Differentiated Determination (Free, Combined, Total)
Chlorine HR, differentiated determination with Tablet 0.1 – 10 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 63 13. Place the vial in the sample chamber making sure that marks are aligned. T1 accepted prepare T2 14. Press TEST key. press TEST Wait for a reaction period of 2 minutes. Countdown 2:00 After the reaction period is finished the measurement starts automatically.
Page 64: Chlorine With Liquid Reagent
Chlorine, free with Liquid Reagent 0.02 – 4 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 65: Total Chlorine
Chlorine, total with Liquid Reagent 0.02 – 4 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 66: Differentiated Determination (Free, Combined, Total)
Chlorine, differentiated determination with Liquid Reagent 0.02 – 4 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 67 13. Place the vial in the sample chamber making sure that marks are aligned. T1 accepted 14. Press TEST key. prepare T2 Wait for a reaction period of 2 minutes. press TEST Countdown 2:00 After the reaction period is finished the measurement starts automatically.
Page 68: Chlorine (Powder Pack)
Chlorine, free with Vario Powder Pack 0.02 – 2 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 69: Total Chlorine
Chlorine, total with Vario Powder Pack 0.02 – 2 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 70: Differentiated Determination (Free, Combined, Total)
Chlorine, differentiated determination with Vario Powder Pack 0.02 – 2 mg/l Cl 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 71 12. Place the vial in the sample chamber making sure that marks are aligned. T1 accepted prepare T2 13. Press TEST key. press TEST Wait for a reaction period of 3 minutes. Countdown 3:00 After the reaction period is finished the measurement starts automatically.
Page 72: Chlorine Hr (Powder Pack)
Chlorine HR, free with Vario Powder Pack plastic vial (type 10 mm 0.1 – 8 mg/l Cl 1. Fill a clean vial (10 mm Ø) with 5 ml of the water 10 ml sample, close tightly with the cap. 5 ml 2.
Page 73: Total Chlorine
Chlorine HR, total with Vario Powder Pack plastic vial (type 10 mm 0.1 – 8 mg/l Cl 1. Fill a clean vial (10 mm Ø) with 5 ml of the water 10 ml sample, close tightly with the cap. 5 ml 2.
Page 74: Differentiated Determination (Free, Combined, Total)
Chlorine HR, differentiated determination with Vario Powder Pack plastic vial (type 10 mm 0.1 – 8 mg/l Cl 10 ml 1. Fill a clean vial (10 mm Ø) with 5 ml of the water 5 ml sample, close tightly with the cap. 2.
Page 75 12. Place the vial in the sample chamber making sure that marks are aligned. T1 accepted prepare T2 13. Press TEST key. press TEST Wait for a reaction period of 3 minutes. Countdown 3:00 After the reaction period is finished the measurement starts automatically.
Page 76: Chlorine Dioxide With Tablet
Chlorine dioxide with Tablet 0.02 – 11 mg/l ClO Chlorine dioxide >> with Cl The following selection is shown in the display: without Cl for the determination of Chlorine dioxide in the presence >> with Cl of Chlorine. for the determination of Chlorine dioxide in the absence >>...
Page 77 Notes: 1. Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances, the subsequent determination of Chlorine dioxide may show lower results. To avoid any measurement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glassware into Sodium hypochlorite solution (0.1 g/l) for one hour, then rinse all glassware thoroughly with deionised water.
Page 78: In Presence Of Chlorine
Chlorine dioxide in the presence of Chlorine with Tablet 0.02 – 11 mg/l ClO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample. 2. Add one GLYCINE tablet straight from the foil and crush the tablet using a clean stirring rod. 3.
Page 79 13. Remove the vial from the sample chamber, empty the vial, rinse vial and cap several times. Fill with a few drops of water sample. 14. Add one DPD No. 1 tablet straight from the foil and crush the tablet using a clean stirring rod. 15.
Page 80 Notes: (Chlorine dioxide in the presence of Chlorine) 1. The conversion factor to convert Chlorine dioxide (display) to Chlorine dioxide as Chlorine is 2.6315. mg/l ClO [Cl] = mg/l ClO · 2,6315 Chlorine dioxide displayed as Chlorine units ClO [Cl] has its origin in swimming poolwater treatment according to DIN 19643.
Page 81: In Absence Of Chlorine
Chlorine dioxide in absence of Chlorine with Tablet 0.02 – 11 mg/l ClO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 82: Chlorine Dioxide (Powder Pack)
Chlorine dioxide in absence of Chlorine with Vario Powder Pack 0.04 – 3.8 mg/l ClO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 83: In Presence Of Chlorine
Chlorine dioxide in the presence of Chlorine with Vario Powder Pack 0.04 – 3.8 mg/l ClO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 84 Notes: 1. Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances, the subsequent determination of Chlorine dioxide may show lower results. To avoid any measurement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glassware into Sodium hypochlorite solution (0.1 g/l) for one hour, then rinse all glassware thoroughly with deionised water.
Page 85 MD 610_1c 09/2015...
Page 86: Chlorine Hr (Ki)
Chlorine HR (Kl) with Tablet 5 – 200 mg/l Cl Insert the adapter for 16 mm Ø vials. 1. Fill a clean vial (16 mm Ø) with 8 ml of the water sample, close tightly with the cap. Ø 16 mm 2.
Page 87 Notes: 1. Oxidizing agents interfere as they react in the same way as Chlorine. Reagent Form of reagent/Quantity Order-No. Set ACIDIFYING GP/ Tablet / per 100 517721BT CHLORINE HR (KI) inclusive stirring rod CHLORINE HR (KI) Tablet / 100 513000BT ACIDIFYING GP Tablet / 100 515480BT...
Page 88: Chlorite In Presence Of Chlorine And Chlorine Dioxide
Chlorite in presence of Chlorine and Chlorine dioxide 0,01 – 6 mg/l Cl Firstly, the glycine method is used to measure the concen- tration of Chlorine Dioxide. This is then followed by the determination of the free and total chlorine, from which the Combined Chlorine can be calculated.
Page 89 10. Close the vial tightly with the cap and swirl several times until the tablets are dissolved. 11. Place the vial in the sample chamber making sure that marks are aligned. Zero accepted prepare Test 12. Press TEST key. press TEST Record the displayed test result (G).
Page 90 23. Wait for a reaction period of 2 minutes. Zero accepted prepare Test 24. Press TEST key. press TEST Record the displayed test result (C). 25. Remove the vial from the sample chamber. 26. Add one DPD ACIDIFYING tablet straight from the foil to the same water sample and crush the tablet using a clean stirring rod.
Page 91 Tolerances: 1. By calculation of non direct analysable parameters it is necessary to consider the error propagation besed on the possible tolerances of the single test tesults. 2. see Notes Chlorine, page 47. Reagent Form of reagent/Quantity Order-No. Tablet / per 100 517711BT DPD No.
Page 92: Chromium With Powder Pack
Chromium with Powder Pack 0.02 – 2 mg/l Cr Chrom >> diff The following selection is shown in the display: Cr (VI) Cr (III + VI) for the differentiated determination of Chromium (VI), >> diff Chromium (III) and total Chromium >>...
Page 93 MD 610_1c 09/2015...
Page 94: Differentiated Determination
Chromium, differentiated determination with Powder Pack 0.02 – 2 mg/l Cr Digestion: 1. Fill a clean vial (16 mm Ø) with 10 ml of water sample. 2. Add the contents of one PERSULF.RGT FOR CR Pow- der Pack straight from the foil into the vial. 3.
Page 95 13. Fill a second clean vial (16 mm Ø) with 10 ml of the water sample. 14. Add the contents of one CHROMIUM HEXAVALENT Powder Pack straight from the foil to the water sample. 15. Close the vial tightly with the cap and swirl several times Ø...
Page 96 Chromium (Vl) with Powder Pack 0.02 – 2 mg/l Cr Insert the adapter for 16 mm Ø vials. 1. Fill a clean vial (16 mm Ø) with 10 ml of the water sample. 2. Place the vial in the sample chamber making sure that Ø...
Page 97: Chromium (Vi)
Chromium, total (Cr(lll) + Cr(Vl)) with Powder Pack 0.2 – 2 mg/l Cr Digestion: 1. Fill a clean vial (16 mm Ø) with 10 ml of water sample. 2. Add the contents of one PERSULF.RGT FOR CR Pow- der Pack straight from the foil into the vial. Ø...
Page 98: Cod, Low Range (Lr)
COD LR with Vario Tube Test 0 – 150 mg/l O Insert the adapter for 16 mm Ø vials. 1. Open one white capped reaction vial and add 2 ml deionised water (this is the blank (Note 1)). 2. Open another white capped reaction vial and add Ø...
Page 99 Notes: 1. Run samples and blanks with the same batch of vials. The blank is stable when stored in the dark and can be used for further measurements with vials of the same batch. 2. Do not place the hot vials in the sample chamber. Cool the vials to room temperature for final measurements.
Page 100: Cod, Middle Range (Mr)
COD MR with Vario Tube Test 0 – 1500 mg/l O Insert the adapter for 16 mm Ø vials. 1. Open one white capped reaction vial and add 2 ml deionised water (this is the blank (Note 1)). 2. Open another white capped reaction vial and add Ø...
Page 101 Notes: 1. Run samples and blanks with the same batch of vials. The blank is stable when stored in the dark and can be used for further measurements with vials of the same batch. 2. Do not place the hot vials in the sample chamber. Cool the vials to room temperature for final measurements.
Page 102: Cod, High Range (Hr)
COD HR with Vario Tube Test 0 – 15 g/l O 0 – 15 000 mg/l O Insert the adapter for 16 mm Ø vials. 1. Open one white capped reaction vial and add 0.2 ml deionised water (this is the blank (Note 1)). 2.
Page 103 Notes: 1. Run samples and blanks with the same batch of vials. The blank is stable when stored in the dark and can be used for further measurements with vials of the same batch. 2. Do not place the hot vials in the sample chamber. Cool the vials to room temperature for final measurements.
Page 104: Colour, True And Apparent
Colour, true and apparent (APHA Platinum-Cobalt Standard Method) 0 – 500 Pt-Co units Sample preparation (Note 4): Step A Filter approx. 50 ml deionised water through a membrane filter with a pore width of 0.45 μm. Discard the filtrate. Filter another 50 ml deionised water and keep it for zeroing.
Page 105 Notes: 1. This colour scale was originally developed by A. Hazen as a visual comparison scale. It is therefore necessary to ascertain whether the extinction maximum of the water sample is in the range from 420 to 470 nm, as this method is only suitable for water samples with yellowish to yellowish-brown coloration.
Page 106: Copper With Tablet
Copper with Tablet 0.05 – 5 mg/l Cu Copper The following selection is shown in the display: >> diff free total for the differentiated determination of free, combined and >> diff total Copper. for the determination of free Copper. >> free for the determination of total Copper.
Page 107: Differentiated Determination (Free, Combined, Total)
Copper, differentiated determination with Tablet 0.05 – 5 mg/l Cu 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 108: Free Copper
Copper, free with Tablet 0.05 – 5 mg/l Cu 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 109: Total Copper
Copper, total with Tablet 0.05 – 5 mg/l Cu 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 110: Copper With Liquid Reagent And Powder
Copper with Liquid reagent and powder 0.05 – 4 mg/l Cu Copper The following selection is shown in the display: >> diff free total for the differentiated determination of free, combined and >> diff total Copper. >> free for the determination of free Copper. for the determination of total Copper.
Page 111: Differentiated Determination (Free, Combined, Total)
Copper, differentiated determination with Liquid reagent and powder 0.05 – 4 mg/l Cu 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 112 14. Add one COPPER No. 2 tablet straight from the foil to the same water sample and crush the tablet using a clean stirring rod. 15. Close the vial tightly with the cap and swirl several times until the tablet is dissolved. 16.
Page 113: Free Copper
Copper, free with Liquid reagent and powder 0.05 – 4 mg/l Cu 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 114: Total Copper
Copper, total with Liquid reagent and powder 0.05 – 4 mg/l Cu 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 115 12. Close the vial tightly with the cap and swirl several times until the tablet is dissolved. 13. Place the vial in the sample chamber making sure that marks are aligned. Zero accepted prepare Test 14. Press TEST key. press TEST The result is shown in the display in mg/l total Copper.
Page 116: Copper (Powder Pack)
Copper, free (Note 1) with Vario Powder Pack 0.05 – 5 mg/l Cu 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 117 Notes: 1. For determination of total Copper digestion is required. 2. Extremely acid water samples (pH 2 or less) must be adjusted between pH 4 and pH 6 before the reagent is added (with 8 mol/l Potassium hydroxide solution KOH). Caution: pH values above 6 can lead to Copper precipitation.
Page 118: Cyanide
Cyanide with Reagent Test 0.01 – 0.5 mg/l CN 1. Fill a clean vial (24 mm Ø) with 2 ml of the water sample and 8 ml of deionised water, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 119 Notes: 1. Only free Cyanide and Cyanides that can be destroyed by Chlorine are determined by this test. 2. In the presence of Thiocyanate, heavy metal complexes, colorants or aromatic amines, the cyanide must be separated out by distillation before analysis is performed. 3.
Page 120: Cya-Test (Cyanuric Acid)
CyA-TEST (Cyanuric acid) with Tablet 0 – 160 mg/l CyA 1. Fill a clean vial (24 mm Ø) with 5 ml of the water sample and 5 ml deionised water (Note 1), close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 121 Notes: 1. Use deionised water or tap water free of Cyanuric acid. 2. If Cyanuric acid is present a cloudy solution will occur. Small single particles are not necessarily caused by Cyanuric acid. 3. Dissolve the tablet completely (therefore swirl the vial approx. 1 minute). Un-dissolved particles of the tablet can cause results that are too high.
Page 122: Deha T
DEHA (N,N-Diethylhydroxylamine) with Tablet and Liquid Reagent 20 – 500 μg/l DEHA / 0.02 – 0.5 mg/l DEHA 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap (Note 2). 2.
Page 123 Notes: 1. Application: Testing of residual corrosion inhibitors (Oxygen scavengers) in boiler feed water or condensate. 2. Before using clean the vials with Hydrochloric acid (approx. 20%). Rinse thoroughly with deionised water. 3. Keep the sample dark during colour development time. UV-light (sunlight) causes high measurement results.
Page 124: Deha Pp
DEHA (N,N-Diethylhydroxylamin) with Vario Powder Pack and Liquid Reagent 20 – 500 μg/l DEHA / 0.02 – 0.5 mg/l DEHA Use two clean vials (24 mm Ø) and mark one as blank for zeroing (Note 2). 1. Fill a clean vial with 10 ml deionised water (this is the blank).
Page 125 Notes: 1. Application: Testing of residual corrosion inhibitors (Oxygen scavengers) in boiler feed water or condensate. 2. Before using clean the vials with Hydrochloric acid (approx. 20%). Rinse thoroughly with deionised water. 3. Ideally temperature for full colour development is 25°C ± 3 °C. 4.
Page 126: Fluoride
Fluoride with Liquid Reagent 0.05 – 2 mg/l F Caution: See notes! 1. Fill a clean vial (24 mm Ø) with exactly 10 ml of water sample (Note 4), close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 127 Notes: 1. The same batch of SPADNS reagent solution must be used for adjustment and test. The adjustment process needs to be performed for each new batch of SPADNS reagent solution (see Standard Methods 20th, 1998, APHA, AWWA, WEF 4500 F D., S. 4-82). The procedure is described in chapter 2.4.5 “Calibration –...
Page 128: H O With Tablet Reagent
(Hydrogen peroxide) with tablet reagent 0.03 – 3 mg/l H 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 129 Notes: 1. Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances, the subsequent determination of Hydrogen peroxide may show lower results. To avoid any measurement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glassware into Sodium hypochlorite solution (0.1 g/l) for one hour, then rinse all glassware thoroughly with deionised water.
Page 130: Lr With Liquid Reagent
(Hydrogen peroxide) LR with Liquid Reagent 1 – 50 mg/l H Insert the adapter for 16 mm Ø vials. 1. Fill a clean vial (16 mm Ø) with 10 ml of the water sample, close tightly with the cap. (Note 1, 2) Ø...
Page 131 Notes: 1. The hydrogen peroxide is determined in the form of yellow/orange coloured peroxotitanic acids in strongly acidic media. In connection with neutral to weakly alkaline (~pH 10) samples, the acid in the reagent is sufficient in order to produce a medium suitable for measurement.
Page 132: Hr With Liquid Reagent
(Hydrogen peroxide) HR with Liquid Reagent 40 – 500 mg/l H Insert the adapter for 16 mm Ø vials. 1. Fill a clean vial (16 mm Ø) with 10 ml of the water sample, close tightly with the cap. (Note 1, 2) Ø...
Page 133 Notes: 1. The hydrogen peroxide is determined in the form of yellow/orange coloured peroxotitanic acids in strongly acidic media. In connection with neutral to weakly alkaline (~pH 10) samples, the acid in the reagent is sufficient in order to produce a medium suitable for measurement.
Page 134: Hardness, Calcium With Calcheck Tablet
Hardness, Calcium with Tablet 50 – 900 mg/l CaCO 1. Fill a clean vial (24 mm Ø) with 10 ml deionised water. 2. Add one CALCHECK tablet straight from the foil to the deionised water and crush the tablet using a clean stirring rod.
Page 135 Notes: 1. Strong alkaline or acidic water samples must be adjusted between pH 4 and pH 10 before the tablet is added (use 1 mol/l Hydrochloric acid resp. 1mol/l Sodium hydroxide). 2. The tolerance of the method is increasing with higher concentrations. When diluting samples, this should be take into account, always measuring in the first third of the range.
Page 136: Hardness, Calcium With Calcio Tablet
Hardness, Calcium 2T with Tablet 0 – 500 mg/l CaCO 1. Fill a clean vial (24 mm Ø) with 10 ml of water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 137 Notes: 1. To optimise the readings an optional batch related calibration can be performed using Mode 40, see page 320. 2. Strong alkaline or acidic water samples must be adjusted to a pH-value between pH 4 and 10 before the tablets are added (use 1 mol/l Hydrochloride acid resp. 1 mol/l Sodium hydroxide).
Page 138: Hardness, Total
Hardness, total with Tablet 2 – 50 mg/l CaCO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 139 Notes: 1. Strong alkaline or acidic water samples must be adjusted between pH 4 and pH 10 before the tablet is added (use 1 mol/l Hydrochloric acid resp. 1mol/l Sodium hydroxide). 2. Conversion table: mg/l CaCO °dH °fH °eH 1 mg/l CaCO ---- 0.056 0.10...
Page 140: Hardness, Total Hr
Hardness, total HR with Tablet 20 – 500 mg/l CaCO 1. Fill a clean vial (24 mm Ø) with 1 ml of the water sample and 9 ml of deionised water, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 141 Notes: 1. Strong alkaline or acidic water samples must be adjusted between pH 4 and pH 10 before the tablet is added (use 1 mol/l Hydrochloric acid resp. 1mol/l Sodium hydroxide). 2. Conversion table: mg/l CaCO °dH °fH °eH 1 mg/l CaCO ---- 0.056 0.10...
Page 142: Hydrazine
Hydrazine with Powder Reagent 0.05 – 0.5 mg/l N / 50 – 500 μg/l N 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample (Note 1, 2), close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 143 Notes: 1. If the water sample is cloudy, you must filter it before performing the zero calibration. 2. The temperature of the water sample should not exceed 21°C. 3. Using the Hydrazine spoon: 1 g is equivalent to one level spoon. 4.
Page 144: Hydrazine With Liquid Reagent
Hydrazine with Vario Liquid Reagent 0.005 – 0.6 mg/l N / 5 – 600 μg/l N Use two clean vials (24 mm Ø) and mark one as blank for zeroing. 1. Fill a clean vial with 10 ml deionised water (this is the blank).
Page 145 Notes: 1. Samples cannot be preserved and must be analysed immediately. 2. Sample temperature should be 21°C ± 4 °C. 3. The blank may develop a faint yellow colour due to the reagent. 4. Interferences: • Ammonia causes no interferences up to 10 mg/l. At a concentration of 20 mg/l it is possible that the test result increases by 20 %.
Page 146: Hydrazine With Vacu-Vials
Hydrazine with Vacu-vials K-5003 (see Notes) ® 0.01 – 0.7 mg/l N / 10 – 700 μg/l N Insert the adapter for 13 mm Ø vials. 1. Place the blank in the sample chamber. The blank is part of the test kit. prepare Zero 2.
Page 147 Notes: 1. This method is adapted from CHEMetrics. The measuring range and wavelength used for this photometer may differ from the data specified by CHEMetrics. 2. Read the original test instruction and the MSDS (delivered with the test) before performing the test. MSDS also available at www.chemetrics.com. 3.
Page 148: Hydrogen Peroxide See H O
Iodine with Tablet 0.05 – 3.6 mg/l I 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
Page 149 Notes: 1. Oxidizing reagents, such as Chlorine, Bromine, etc. interfere as they react in the same way as Iodine. Reagent Form of reagent/Quantity Order-No. DPD No. 1 Tablet / 100 511050BT MD 610_1c 09/2015...
Page 150: Iron
Iron with Tablet 0.02 – 1 mg/l Fe Determination of total dissolved Iron Fe and Fe Iron with Vario Powder Pack 0.02 – 3 mg/l Fe Determination of all dissolved iron and most undissolved forms of iron. * Iron, total with Vario Powder Pack 0.02 –...
Page 151 Iron HR with Liquid reagent 0.1 – 10 mg/l Fe Determination of total soluble Iron Fe in presence of 2+/3+ complexing agent (e.g. Molybdate) * *This information refers to analysis of the water sample without digestion. Further information can be found in the method notes. Notes (Methods 220, 222, 223): Iron Determination dissolved and...
Page 152: Iron With Tablet
Iron (Note 1) with Tablet 0.02 – 1 mg/l Fe 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 153 Notes: 1. This method determines the total dissolved Iron as Fe and Fe 2. The IRON (II) LR tablet is used for differentiation – as described above – instead of the IRON LR tablet. = Fe – Fe 2+/3+ 3. For the determination of total dissolved and undissolved iron digestion is required. An example is described on page 143.
Page 154: Iron (Powder Pack)
Iron (Note 1) with Vario Powder Pack 0.02 – 3 mg/l Fe 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that the marks are aligned.
Page 155 Notes: 1. The reagent reacts with all dissolved iron and most undissolved forms of iron in the water sample. 2. Iron oxide requires prior digestion: use mild, vigorous or Digesdahl digestion (e.g. for digestion with acid see page 143). 3. Very strong alkaline or acidic water samples must be adjusted to a pH value between 3 and 5 before analysis.
Page 156: Iron Tptz (Powder Pack)
Iron, total (TPTZ, Note 1) with Vario Powder Pack 0.02 – 1.8 mg/l Fe Use two clean vials (24 mm Ø) and mark one as blank for zeroing. 1. Fill a clean vial with 10 ml deionised water (this is the blank).
Page 157 Notes: 1. For determination of total Iron digestion is required. TPTZ reagent recovers most insoluble iron oxides without digestion. 2. Rinse all glassware with 1:1 Hydrochloric acid solution first and then rinse with deionised water to remove iron deposits that can cause slightly high results. 3.
Page 158: Iron (Fe In Mo, Powder Pack)
Iron, total (Fe in Mo) in the presence of Molybdate with Vario Powder Pack 0.01 – 1.80 mg/l Fe 1. Fill a clean Mixing Cylinder (50 ml) with 50 ml of the water sample. 2. Add the contents of one Vario (Fe in Mo) Rgt 1 Pow- der Pack straight from the foil into the water sample (50 ml).
Page 159 14. Remove the vial from the sample chamber. 15. Place the sample in the sample chamber making sure that the marks are aligned. Zero accepted prepare Test 15. Press TEST key. press TEST The result is shown in the display in mg/l Fe. Notes: 1.
Page 160: Iron Lr With Liquid Reagent
Iron LR with Liquid reagent 2+/3+ 0.03 – 2 mg/l Fe This test is suitable for determining total soluble iron. The sample should be pre-filtered using a 0.45 μm membrane if total dissolved iron is required. Particulate or suspended iron will otherwise add to the result. 1.
Page 161 Notes: 1. Complexed iron may be measured by increasing the development period until no further colour development is seen. Very strongly complexed iron may not be included in the measured iron. In this case the complexing agent must be destroyed by oxidation with acid/persulphate followed by neutralisation to pH 6–...
Page 162 Iron, total LR with Liquid reagent 2+/3+ 0.03 – 2 mg/l Fe Digestion procedure for the determination of total iron. Total iron consists of soluble, complexed and suspended iron. Do not filter the sample but ensure the sample is homogeneous by vigorously shaking immediately prior to sampling.
Page 163 prepare Zero 10. Press ZERO key. press ZERO 11. Remove the vial from the sample chamber and empty the vial. 12. Add 10 ml prepared water sample to the same vial. 13. Fill the vial with drops of the same size by holding the bottle vertically and squeeze slowly: 10 drops KS61 (Ferrozine/Thioglycolate) 14.
Page 164: Iron Lr 2 With Liquid Reagent
Iron LR 2 with Liquid reagent 0.03 – 2 mg/l Fe and Fe This test is suitable for determining total soluble iron and differentiating between the ferrous and ferric state. The sample should be pre-filtered using a 0.45 μm membrane if total dissolved iron is required.
Page 165 12. Press TEST key. Zero accepted prepare Test Wait for a reaction period of 5 minutes (note 2). press TEST After the reaction period is finished the measurement starts automatically. Countdown 5:00 2+/3+ The result is shown in the display in mg/l Fe or, if step 7 is omitted, Fe 2+/3+...
Page 166 Iron, total LR 2 with Liquid reagent 2+/3+ 0.03 – 2 mg/l Fe Digestion procedure for the determination of total iron. Total iron consists of soluble, complexed and suspended iron. Do not filter the sample but ensure the sample is homogeneous by vigorously shaking immediately prior to sampling.
Page 167 10. Press ZERO key. prepare Zero press ZERO 11. Remove the vial from the sample chamber and empty the vial. 12. Add 10 ml prepared water sample to the same vial. 13. Fill the vial with drops of the same size by holding the bottle vertically and squeeze slowly: 10 drops KS60 (Acetate Buffer) 14.
Page 168: Iron Hr With Liquid Reagent
Iron HR with Liquid reagent 2+/3+ 0.1 – 10 mg/l Fe This test is suitable for determining total soluble iron. The sample should be pre-filtered using a 0.45 μm membrane if total dissolved iron is required. Particulate or suspended iron will otherwise add to the result. 1.
Page 169 10. Press TEST key. Zero accepted prepare Test Wait for a reaction period of 15 minutes (note 1). press TEST After the reaction period is finished the measurement Countdown starts automatically. 15:00 The result is shown in the display in mg/l Iron. Notes: 1.
Page 170 Iron, total HR with Liquid reagent 2+/3+ 0.1 – 10 mg/l Fe Digestion procedure for the determination of total iron. Total iron consists of soluble, complexed and suspended iron. Do not filter the sample but ensure the sample is homogeneous by vigorously shaking immediately prior to sampling.
Page 171 10. Remove the vial from the sample chamber and empty the vial. 11. Add 10 ml prepared water sample to the same vial. 12. Fill the vial with drops of the same size by holding the bottle vertically and squeeze slowly: 10 drops KS63 (Thioglycolate) 13.
Page 172: Manganese With Tablet
Manganese with Tablet 0.2 – 4 mg/l Mn 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
Page 173 Note: KMnO Reagent Form of reagent/Quantity Order-No. Tablet / per 100 517621BT MANGANESE LR No. 1 / No. 2 inclusive stirring rod MANGANESE LR No. 1 Tablet / 100 516080BT MANGANESE LR No. 2 Tablet / 100 516090BT MD 610_1c 09/2015...
Page 174: Manganese Lr (Powder Pack)
Manganese LR with Vario Powder Pack 0.01 – 0.7 mg/l Mn Use two clean vials (24 mm Ø) and mark one as blank for zeroing (Note 1). 1. Fill a clean vial with 10 ml of deionised water (this is the blank). 2.
Page 175 Notes: 1. Rinse all glassware with 1:1 Nitric acid solution first and then rinse with deionised water. 2. Water samples that contain more than 300 mg/l CaCO hardness: after adding the Vario Ascorbic Acid powder pack add additionally 10 drops of Rochelle Salt Solution. 3.
Page 176: Manganese Hr (Powder Pack)
Manganese HR with Vario Powder Pack 0.1 – 18 mg/l Mn 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 177 Notes: 1. This test is applicable for the determination of soluble Manganese in water and wastewater. 2. Highly buffered water samples or extreme pH values may exceed the buffering capacity of the reagents and requires sample pre-treatment. If samples were acidified for storing, adjust the pH between 4 and 5 with 5 mol/l (5 N) Sodium hydroxide before test.
Page 178: Manganese With Liquid Reagent
Manganese with Liquid reagent 0.05 – 5 mg/l Mn 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 179 Zero accepted prepare Test 12. Press TEST key. press TEST Wait for a reaction period of 3 minutes. Countdown 3:00 After the reaction period is finished the measurement starts automatically. The result is shown in the display in mg/l Manganese. Notes: 1.
Page 180: Molybdate With Tablet
Molybdate with Tablet 1 – 50 mg/l MoO / 0.6 – 30 mg/l Mo 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 181 Notes: 1. The tablets must be added in the correct sequence. 2. Under test conditions (pH 3.8 – 3.9) iron does not interfere nor do other metals at levels likely to be found in industrial water systems. 3. Conversions: mg/l Mo = mg/l MoO x 0.6 mg/l Na = mg/l MoO...
Page 182: Molybdate Lr (Powder Pack)
Molybdate / Molybdenum LR mit Vario Powder Pack 0.05 – 5.0 mg/l MoO / 0.03 – 3 mg/l Mo 1. Fill a clean Mixing Cylinder (25 ml) with 20 ml of the water sample. 2. Add the contents of one Vario Molybdenum 1 LR F20 Powder Pack straight from the foil into the water sample (20 ml).
Page 183 13. Remove the vial from the sample chamber. 14. Place the sample in the sample chamber making sure that the marks are aligned. Zero accepted prepare Test 15. Press TEST key. press TEST The result is shown in the display in mg/l Molybdate / Molybdenum.
Page 184: Molybdate Hr (Powder Pack)
Molybdate / Molybdenum HR with Vario Powder Pack 0.5 – 66 mg/l MoO / 0.3 – 40 mg/l Mo 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 185 12. Press TEST key. Zero accepted prepare Test Wait for a reaction period of 5 minutes. press TEST Countdown After the reaction period is finished the measurement 5:00 starts automatically. The result is shown in the display in mg/l Molybdate / Molybdenum.
Page 186: Molybdate Hr With Liquid Reagent
Molybdate / Molybdenum HR with Liquid reagent 1 – 100 mg/l MoO / 0.6 – 60 mg/l Mo 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 187 Notes: 1. Perform tests on sample water taken directly from the system. Molybdate will be absorbed onto the walls of sample containers and give low results. Reagent Form of reagent/Quantity Order-No. KS63 – Thoiglycolate Reagent Liquid reagent / 65 ml 56L006365 MD 610_1c 09/2015...
Page 188: Nickel With Tablet
Nickel with Tablet 0.1 – 10 mg/l Ni 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that the marks are aligned.
Page 189 Notes: 1. If Iron is present in the sample, add one level spoonful of Nickel PT powder to the sample (after adding Nickel No. 1) and mix. 2. The presence of cobalt at 0.5 mg/l gives a positive response in the test. 3.
Page 190: Nitrate With Tablet And Powder
Nitrate with Tablet and Powder 0.08 – 1 mg/l N 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that the marks are aligned.
Page 191 13. Close the vial tightly with the cap and swirl several times until the tablet is dissolved. 14. Place the vial in the sample chamber making sure that marks are aligned. Zero accepted prepare Test 15. Press TEST key. press TEST Wait for a reaction period of 10 minutes.
Page 192: Nitrate (Tube Test)
Nitrate with Tube Test 1 – 30 mg/l N Insert the adapter for 16 mm Ø vials. 1. Open one white capped vial (Reagent A), add 1 ml of the water sample and close tightly with the cap. Ø 16 mm 2.
Page 193 Notes: 1. Some solids may not dissolve. 2. To optimise the readings an optional batch related calibration can be performed. Follow the procedure using 1 ml deionised water in place of the sample and subtract the reagent blank value from the final result. 3.
Page 194: Nitrite With Tablet
Nitrite with Tablet 0.01 – 0.5 mg/l N 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that the marks are aligned.
Page 195 Notes: 1. The following ions can produce interferences since under the reaction conditions they cause precipitation: Antimony (III), Iron (III), Lead, Mercury (I), Silver, Chloroplatinate, Metavanadate and Bismuth. Copper (II)-ions may cause lower test results as they accelerate the decomposition of the Diazonium salt.
Page 196: Nitrite Lr (Powder Pack)
Nitrite LR with Vario Powder Pack 0.01 – 0.3 mg/l N 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 197 Notes: 1. Interferences: • Strong oxidizing and reducing substances interfere. • Cupric and ferrous ions cause low results. • Antimonous, Auric, Bismuth, Chloroplatinate, Ferric, Lead, Mercurous, Metavanadate, Silver ions interfere by causing precipitation. • In samples with very high concentrations of Nitrate (> 100 mg/L N) a small amount of Nitrite will be found.
Page 198: Nitrogen, Total Lr
Nitrogen, total LR with Vario Tube Test 0.5 – 25 mg/l N Insert the adapter for 16 mm Ø vials. 1. Open two TN Hydroxide LR digestion vials and add the contents of one Vario TN Persulfate Rgt. Powder Pack (Note 2, 3). Ø...
Page 199 Countdown 12. Press [ ] key. 2:00 start: Wait for a reaction period of 2 minutes. After the reaction period is finished proceed as follows: 13. Open two TN Acid LR/HR (Reagent C) vials and add 2 ml of the digested, treated blank to one vial (this is the blank).
Page 200: Nitrogen, Total Hr
Nitrogen, total HR with Vario Tube Test 5 – 150 mg/l N Insert the adapter for 16 mm Ø vials. 1. Open two TN Hydroxide HR digestion vials and add the contents of one Vario TN Persulfate Rgt. Powder Pack (Note 2, 3). Ø...
Page 201 11. Close the vials with the caps and shake to mix the contents (at least 15 seconds, Note 8). Countdown 12. Press [ ] key. 2:00 Wait for a reaction period of 2 minutes. start: After the reaction period is finished proceed as follows: 13.
Page 202 Notes: 1. Appropriate safety precautions and a good lab technique should be used during the whole procedure. 2. Use a funnel to add the reagent. 3. Wipe off any Persulfate reagent that may get on the lid or the tube threads. 4.
Page 203 Nitrogen, total LR with Vario Tube Test Reagent Form of reagent/Quantity Order-No. Tube test contains: 535550 VARIO TN HYDROX LR Tube Digestion tube / 50 VARIO PERSULFATE Reagent Powder Pack / 50 VARIO TN Reagent A Powder Pack / 50 VARIO TN Reagent B Powder Pack / 50 VARIO TN ACID LR/HR Tube...
Page 204: Oxygen, Active
Oxygen, active* with Tablet 0.1 – 10 mg/l O 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 205 Notes: * Active Oxygen is a synonym for a common disinfectant (based on “Oxygen“) in Swimming Pool Treatment. 1. When preparing the sample, the lost of Oxygen, e.g. by pipetting or shaking, must be avoided. 2. The analysis must take place immediately after taking the sample. Reagent Form of reagent/Quantity Order-No.
Page 206: Oxygen, Dissolved
Oxygen, dissolved with Vacu-vials K-7553 (see Notes) ® 10 – 800 μg/l O Insert the adapter for 13 mm Ø round vials. 1. Place the blank in the sample chamber. The blank is part of the test kit. prepare Zero 2.
Page 207 Notes: 1. This method is adapted from CHEMetrics. The measuring range and wavelength used for this photometer may differ from the data specified by CHEMetrics. 2. Read the original test instruction and the MSDS (delivered with the test) before performing the test. MSDS also available at www.chemetrics.com. 3.
Page 208: Ozone
Ozone with Tablet 0.02 – 2 mg/l O Ozon The following selection is shown in the display: >> with Cl without Cl for the determination of Ozone in the presence of Chlorine. >> with Cl for the determination of Ozone in the absence of Chlorine. >>...
Page 209 Notes: 1. Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances, the subsequent determination of Ozone may show lower results. To avoid any measurement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glassware into Sodium hypochlorite solution (0.1 g/l) for one hour, then rinse all glassware thoroughly with deionised water.
Page 210: In Presence Of Chlorine
Ozone, in the presence of Chlorine with Tablet 0.02 – 2 mg/l O 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 211 13. Close the vial tightly with the cap and swirl several times until the tablet is dissolved. 14. Add one DPD No. 1 tablet and one DPD No. 3 tablet straight from the foil into the first cleaned vial and crush the tablets using a clean stirring rod.
Page 212: In Absence Of Chlorine
Ozone, in absence of Chlorine with Tablet 0.02 – 2 mg/l O 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 213 Notes: See page 201 Reagent Form of reagent/Quantity Order-No. Tablet / per 100 517711BT DPD No. 1 / No. 3 inclusive stirring rod DPD No. 1 Tablet / 100 511050BT DPD No. 3 Tablet / 100 511080BT MD 610_1c 09/2015...
Page 214: Phmb (Biguanide)
PHMB (Biguanide) with Tablet 2 – 60 mg/l PHMB 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 215 Notes: 1. Clean vials with the brush immediately after analysis. 2. Vials and stirring rods may turn blue after prolonged use. In this case clean vials and stirring rods with a laboratory detergent (see chapter 1.2.2 Cleaning of vials and accessories for analysis).
Page 216: Phosphate
Phosphate, ortho LR with Tablet 0.05 – 4 mg/l PO Determination of ortho-Phosphate ions Phosphate, ortho HR with Tablet 1 – 80 mg/l PO Determination of ortho-Phosphate ions Phosphate, ortho with Vario Powder Pack 0.06 – 2.5 mg/l PO Determination of ortho-Phosphate ions Phosphate, ortho with Vario Tube Test 0.06 –...
Page 217 Phosphate, HR with Liquid reagent 5 – 80 mg/l PO Determination of ortho-Phosphate-Ions + condensed, inor- ganic Phosphate + organic combined Phosphates Additional information can be found in the notes for each method. General: Ortho-Phosphate ions react with the reagent to form an intense blue colour (methods 320, 323, 324, 325 and 326).
Page 218: Phosphate, Ortho Lr With Tablet
Phosphate, ortho LR with Tablet 0.05 – 4 mg/l PO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close the cap tightly. 2. Place the vial in the sample chamber making sure that the marks are aligned.
Page 219 Notes: 1. Only ortho-Phosphate ions react. 2. The tablets must be added in the correct sequence. 3. The test sample should have a pH-Value between 6 and 7. 4. Interferences: Higher concentrations of Cu, Ni, Cr (III), V (V) and W (VI) interfere due to their colour. Silicates do not interfere (masked by Citric acid in the tablets).
Page 220: Phosphate, Ortho Hr With Tablet
Phosphate HR, ortho with Tablet 1 – 80 mg/l PO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 221 Notes: 1. For samples under 5 mg/l PO it is reccommended to analyse the water sample with method 320 ”Posphate LR, ortho with Tablet“. 2. Only ortho-Phosphate ions react. 3. see also page 209 4. Conversions: mg/l P = mg/l PO x 0.33 mg/l P = mg/l PO...
Page 222: Phosphate, Ortho (Powder Pack)
Phosphate, ortho with Vario Powder Pack 0.06 – 2.5 mg/l PO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 223 Notes: 1. The reagent does not dissolve completely. 2. see also page 209 3. Conversions: mg/l P = mg/l PO x 0.33 mg/l P = mg/l PO x 0.75 Reagent Form of reagent/Quantity Order-No. Powder Pack / 531550 VARIO PHOS3 F10 2 x 50 VARIO PHOSPHATE RGT.
Page 224: Phosphate, Ortho (Tube Test)
Phosphate, ortho with Vario Tube Test 0.06 – 5 mg/l PO Insert the adapter for 16 mm Ø vials. 1. Open the white cap of one tube PO -P Dilution and add 5 ml of the water sample. Ø 16 mm 2.
Page 225 Notes: 1. Use a funnel to add the reagent. 2. The reagent does not dissolve completely. 3. see also page 209 4. Conversions: mg/l P = mg/l PO x 0.33 mg/l P = mg/l PO x 0.75 Reagent Form of reagent/Quantity Order-No.
Page 226: Phosphate 1, Ortho C
Phosphate 1, ortho with Vacu-vials K-8503 (see Notes) ® 5 – 40 mg/l PO Insert the adapter for 13 mm Ø vials. 1. Place the blank in the sample chamber. The blank is part of the test kit. prepare Zero 2.
Page 227 Notes: 1. This method is adapted from CHEMetrics. The measuring range and wavelength used for this photometer may differ from the data specified by CHEMetrics. 2. Read the original test instruction and the MSDS (delivered with the test) before performing the test. MSDS also available at www.chemetrics.com. 3.
Page 228: Phosphate 2, Ortho C
Phosphate 2, ortho with Vacu-vials K-8513 (see Notes) ® 0.05 – 5 mg/l PO Insert the adapter for 13 mm Ø vials. 1. Place the blank in the sample chamber. The blank is part of the test kit. prepare Zero 2.
Page 229 Notes: 1. This method is adapted from CHEMetrics. The measuring range and wavelength used for this photometer may differ from the data specified by CHEMetrics. 2. Read the original test instruction and the MSDS (delivered with the test) before performing the test. MSDS also available at www.chemetrics.com. 3.
Page 230: Phosphate, Hydrolyzable (Tube Test)
Phosphate, acid hydrolyzable with Vario Tube Test 0.02 – 1.6 mg/l P (= ^ 0.06 – 5 mg/l PO Insert the adapter for 16 mm Ø vials. 1. Open the white cap of one digestion tube PO4-P Acid reagent and add 5 ml of the water sample. 2.
Page 231 Notes: 1. Appropriate safety precautions and a good lab technique should be used during the whole procedure. 2. Use a funnel to add the reagent. 3. The reagent does not dissolve completely. 4. see also page 209 5. Conversions: mg/l PO = mg/l P x 3.07 mg/l P = mg/l P x 2.29...
Page 232: Phosphate, Total (Tube Test)
Phosphate, total with Vario Tube Test 0.02 – 1.1 mg/l P (= ^ 0.06 – 3.5 mg/l PO Insert the adapter for 16 mm Ø vials. 1. Open the white cap of one digestion tube PO4-P Acid reagent and add 5 ml of the water sample. 2.
Page 233 Notes: 1. Appropriate safety precautions and a good lab technique should be used during the whole procedure. 2. Use a funnel to add the reagent. 3. The reagent does not dissolve completely. 4. see also page 209 5. Conversions: mg/l PO = mg/l P x 3.07 mg/l P = mg/l P x 2.29...
Page 234: Phosphate Lr With Liquid Reagent
Phosphate LR with Liquid reagent 0.1 – 10 mg/l PO This test is suitable for determining ortho-Phosphate in boiler waters and potable water supplies. Samples should be filtered prior to analysis to remove any suspended insoluble phosphate. A GF/C filter is suitable. Unscrew the two halves of the filter holder and place one GF/C filter circle onto the base section.
Page 235 10. Close the vial tightly with the cap and swirl several times to dissolve the powder. 11. Place the vial in the sample chamber making sure that marks are aligned. Zero accepted 12. Press TEST key. prepare Test Wait for a reaction period of 10 minutes. press TEST Countdown 10:00...
Page 236 Polyphosphate LR with Liquid reagent 0.1 – 10 mg/l PO This test will give total inorganic phosphate. Polyphosphate being determined by the difference of total inorganic phosphate and ortho-Phosphate. 1. Fill a clean 100-ml-Erlenmeyer flask with 50 ml homo- genized sample. 2.
Page 237 Total Phosphate LR with Liquid reagent 0.1 – 10 mg/l PO This test will measure all phosphorous containing com- pounds present in the sample, including ortho-Phosphate, Polyphosphate and organic phosphorous compounds. 1. Fill a clean 100-ml-Erlenmeyer flask with 50 ml homo- genized sample.
Page 238: Phosphate Hr With Liquid Reagent
Phosphate HR with Liquid reagent 5 – 80 mg/l PO This test is suitable for determining ortho-Phosphate in boiler waters and potable water supplies. Samples should be filtered prior to analysis to remove any suspended insoluble phosphate. A GF/C filter is suitable. Unscrew the two halves of the filter holder and place one GF/C filter circle onto the base section.
Page 239 10. Close the vial tightly with the cap and invert several times to mix the contents. 11. Place the vial in the sample chamber making sure that marks are aligned. Zero accepted prepare Test 12. Press TEST key. Wait for a reaction period of 10 minutes. press TEST Countdown 10:00...
Page 240 Polyphosphate HR with Liquid reagent 5 – 80 mg/l PO This test will give total inorganic phosphate. Polyphosphate being determined by the difference of total inorganic phosphate and ortho-Phosphate. 1. Fill a clean 100-ml-Erlenmeyer flask with 50 ml homo- genized sample. 2.
Page 241 Total Phosphate HR with Liquid reagent 5 – 80 mg/l PO This test will measure all phosphorous containing com- pounds present in the sample, including ortho-Phosphate, Polyphosphate and organic phosphorous compounds. 1. Fill a clean 100-ml-Erlenmeyer flask with 50 ml homo- genized sample.
Page 242: Phosphonates
Phosphonates Persulfate UV oxidation method with Vario Powder Pack 0 – 125 mg/l (see Table 1) 1. Choose the appropriate sample volume from table 1 (see following pages). 2. Pipette the chosen sample volume into a clean 50 ml graduated cylinder. If necessary fill up with deionised water to the 50 ml mark and mix well.
Page 243 13. Place the vial (the blank) in the sample chamber making sure that the marks are aligned. prepare Zero 14. Press ZERO key. press ZERO Wait for a reaction period of 2 minutes (Note 7). Countdown After the reaction period is finished the measurement 2:00 starts automatically.
Page 244 Table 1: Expected range Sample volume Factor (mg/L Phosphonate) in ml 0 – 2.5 0 – 5.0 0 – 12.5 0 – 25 0 – 125 Table 2: Phosphonate type Conversion factor for active phosphonate PBTC 2.840 1.050 HEDPA 1.085 EDTMPA 1.148 HMDTMPA...
Page 245 Interference levels decrease with increasing sample volume. Example: Iron interferes above 200 mg/L if a sample volume of 5 ml is used. At a sample volume of 10 ml the interference level decreases to 100 mg/L. Table 3: Interfering substances Interference level using 5 ml of sample Aluminium 100 mg/l...
Page 246: Ph Value Lr With Tablet
pH value LR 5.2 – 6.8 with Tablet 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
Page 247 Notes: 1. For photometric determination of pH values only use BROMOCRESOLPURPLE tablets in black printed foil pack and marked with PHOTOMETER. 2. pH values below 5.2 and above 6.8 can produce results inside the measuring range. A plausibility test (pH-meter) is recommended. 3.
Page 248: Ph Value With Tablet
pH value 6.5 – 8.4 with Tablet 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
Page 249 Notes: 1. For photometric determination of pH values only use PHENOL RED tablets in black printed foil pack and marked with PHOTOMETER. 2. Water samples with low values of Alkalinity-m (below 35 mg/l CaCO ) may give wrong pH readings. 3.
Page 250: Ph Value With Liquid Reagent
pH value 6.5 – 8.4 with Liquid Reagent 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
Page 251 Notes: 1. When testing chlorinated water the residual chlorine contents can influence the colour reaction of the liquid reagent. This can be avoided (without interfering with the pH measurement) by adding a small crystal of Sodiumthiosulfate (Na · 5 H O) to the sample before adding the PHENOL RED solution.
Page 252: Ph Value Hr With Tablet
pH value HR 8.0 – 9.6 with Tablet 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
Page 253 Notes: 1. For photometric determination of pH values only use THYMOLBLUE tablets in black printed foil pack and marked with PHOTOMETER. 2. pH values below 8.0 and above 9.6 can produce results inside the measuring range. A plausibility test (pH-meter) is recommended. 3.
Page 254: Polyacrylate With Liquid Reagent
Polyacrylate with Liquid reagent 1 – 30 mg/l 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
Page 255 Notes: 1. Fill the vial with drops of the same size by holding the bottle vertically and squeeze slowly. 2. If little or no turbidity is present at correct dose concentrations, the sample will need a pre-concentration step in order to detect this level of polyacrylate/polymer. Carry out this procedure as directed then test the pre-concentrated sample as above (see next page).
Page 256 Pre-Concentration Pre-concentration uses exactly the same procedure as interference removal, except a greater volume of sample is used in step 1, instead of deionised/tap water. For calculation of the original sample concentration a concentration factor should be considered: If a 50 ml sample is used the concentration factor is 20/50 = 0.4 If a 100 ml sample is used the concentration factor is 20/100 = 0.2 This can be extended as required in order to concentrate the polyacrylate/polymer sufficiently for analysis.
Page 257 Interference removal 1. Transfer exactly 20 ml of sample water to a 100 ml sample bottle and dilute to approximately 50-60 ml with deionised water or tap water. 2. Add drops of KS173 (2,4 Dinitrophenol) until a pale yellow colour is observed in the sample.
Page 258: Potassium
Potassium with Tablet 0.7 – 12 mg/l K 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
Page 259 Notes: 1. If Potassium is present a cloudy solution will appear. Single particles are not necessarily caused by Potassium. Reagent Form of reagent/Quantity Order-No. Potassium T Tablet / 100 515670 MD 610_1c 09/2015...
Page 260: Silica
Silica/Silicon dioxide with Tablet 0.05 – 4 mg/l SiO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 261 Zero accepted prepare Test 12. Press TEST key. press TEST Wait for a reaction period of 2 minutes. Countdown 2:00 After the reaction period is finished the measurement starts automatically. The result is shown in the display in mg/l Silica. Notes: 1.
Page 262: Silica Lr Pp
Silica LR / Silicon dioxide LR with Vario Powder Pack and Liquid Reagent 0.1 – 1.6 mg/l SiO Use two clean vials (24 mm Ø) and mark one as blank for zeroing. 1. Fill each vial with 10 ml of the water sample. 2.
Page 263 After the reaction period is finished the zero-reading starts automatically. 12. Remove the vial from the sample chamber. 13. Place the vial (the sample) in the sample chamber mak- ing sure that the marks are aligned. Zero accepted 14. Press TEST key. prepare Test press TEST The result is shown in the display in mg/l Silica.
Page 264: Silica Hr Pp
Silica HR / Silicon dioxide HR with Vario Powder Pack 1 – 90 mg/l SiO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample (Note 1), close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 265 Notes: 1. Temperature of the sample should be 15°C – 25°C. 2. If Silica or Phosphate is present a yellow colour is developed 3. In this step any yellow colour due to Phosphate is removed. 4. Interferences: Substance Interference Iron large amounts interfere Phosphate does not interfere at concentrations less than 50 mg/l PO...
Page 266: Silica With Liquid Reagent And Powder
Silica / Silicon dioxide with Liquid reagent and powder 0.1 – 8 mg/l SiO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 267 12. Place the vial in the sample chamber making sure that marks are aligned. Zero accepted 13. Press TEST key. press ZERO press TEST Wait for a reaction period of 10 minutes. Countdown 10:00 After the reaction period is finished the measurement starts automatically.
Page 268: Sodium Hypochlorite
Sodium hypochlorite (Soda bleaching lye) with Tablet 0.2 – 16 % w/w NaOCl Preparation: 1. Fill a 5 ml plastic syringe with the test solution, ensuring that all air bubbles are expelled. Transfer the 5 ml test solution slowly into a 100 ml beaker and dilute to the 100 ml mark with chlorine-free water.
Page 269 8. Place the vial in the sample chamber making sure that marks are aligned. Zero accepted prepare Test 9. Press TEST key. press TEST The result is shown in the display in % w/w as avail- able chlorine present in the original sample of Sodium hypochlorite.
Page 270: Sulfate With Tablet
Sulfate with Tablet 5 – 100 mg/l SO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
Page 271 Notes: 1. If Sulfate is present a cloudy solution will appear. Reagent Form of reagent/Quantity Order-No. SULFATE T Tablet / 100 515450BT MD 610_1c 09/2015...
Page 272: Sulfate (Powder Pack)
Sulfate with Vario Powder Pack 5 – 100 mg/l SO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 273 Note: 1. If Sulfate ions are present a cloudy solution will appear. Reagent Form of reagent/Quantity Order-No. VARIO Sulpha 4 / F10 Powder Pack / 100 532160 MD 610_1c 09/2015...
Page 274: Sulfide
Sulfide with Tablet 0.04 – 0.5 mg/l S 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
Page 275 Notes: 1. The tablets must be added in the correct sequence. 2. Chlorine and other oxidizing agents which react with DPD do not interfere with the test. 3. To avoid loss of Sulfide collect the sample carefully with a minimum of aeration. It is essential to test the sample immediately after collection.
Page 276: Sulfite
Sulfite with Tablet 0.1 – 5 mg/l SO 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
Page 277 Notes: Reagent Form of reagent/Quantity Order-No. SULFITE LR Tablet / 100 518020 MD 610_1c 09/2015...
Page 278: Suspended Solids
Suspended Solids 0 – 750 mg/l TSS Sample preparation: Blend approx. 500 ml of the water sample in a blender at high speed for 2 minutes. 1. Fill a clean vial (24 mm Ø) with 10 ml of deionised water, close tightly with the cap. 2.
Page 279 Note: 1. The photometric determination of Suspended Solids is based on a gravimetric method. In a lab this is usually done by evaporation of the filter residue of a filtrated water sample in an oven at 103°C – 105°C and weighing of the dried residue. 2.
Page 280: Turbidity
Turbidity 0 – 1000 FAU 1. Fill a clean vial (24 mm Ø) with 10 ml of deionised water, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned. prepare Zero 3.
Page 281 Note: 1. This test uses an attenuated radiation method for the reading of FAU (Formazin Attenuation Units). The results can not be used for USEPA reporting purposes, but may be used for routine measurements. The attenuated radiation method is different from the Nephelometric method.
Page 282: Triazole / Benzotriazole (Powder Pack)
Triazole Benzotriazole / Tolyltriazole with Powder Pack 1 – 16 mg/l / 1.1 – 17.8 Transfer 25 ml of the water sample into the digestion vial. 2. Add the contents of one Triazole Reagent Powder Pack straight from the foil into the water sample (note Close the digestion vial tightly with the cap and swirl until the reagent is dissolved completely.
Page 283 12. Remove the vial from the sample chamber and empty vial. 13. Add the digested water sample to the 10 ml mark. Place the vial in the sample chamber making sure that marks are aligned. Zero accepted 15. Press TEST key. prepare Test press TEST The result is shown in the display in...
Page 284: Urea
Urea with Tablet and Liquid Reagent 0.1 – 2.5 mg/l (NH CO / mg/l Urea 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 285 13. Add one AMMONIA No. 2 tablet straight from the foil to the same water sample and mix to dissolve with a clean stirring rod. 14. Close the vial tightly with the cap and swirl several times until the tablets are dissolved. 15.
Page 286: Zinc With Tablet
Zinc with Tablet 0.02 – 1 mg/l Zn 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample. 2. Add one COPPER / ZINC LR tablet straight from the foil to the water sample, crush the tablet using a clean stirring rod.
Page 287 Notes: 1. The tablets must be added in the correct sequence. 2. In the case of high levels of residual chlorine, perform the analysis with a dechlorinated water sample. To dechlorinate add one DECHLOR tablet to the water sample (point 1). Crush and mix to dissolve the tablet.
Page 288: Zinc With Liquid Reagent And Powder
Zinc with Liquid reagent and powder 0.1 – 2.5 mg/l Zn 1. Fill a clean vial (24 mm Ø) with 10 ml of the water sample, close tightly with the cap. 2. Place the vial in the sample chamber making sure that marks are aligned.
Page 289 Notes: 1. For correct dosage the spoon supplied with the reagents must be used. 2. This test is suitable for determining free soluble Zinc. Zinc bound with strong complexing agents will not be measured. 3. Cationics such as quaternary ammonium compounds will cause the colour to change from rose red to purple, depending upon the level of copper present.
Page 290: Important Notes
Important notes 1.2.1 Correct use of reagents The reagents must be added in the correct sequence. Tablet reagents: The tablet reagents should be added to the water sample straight from the foil without touching them with the fingers. Liquid reagents: Add drops of the same size to the water sample by holding the bottle vertically and squeezing slowly.
Page 291: Cleaning Of Vials And Accessories For Analysis
1.2.2 Cleaning of vials and accessories for analysis Vials, caps and stirring rods should be cleaned thoroughly after each analysis to prevent interferences. Procedure: Clean vials and accessories after each analysis as soon as possible. a. Clean vials and accessories with laboratory detergent (e.g.
Page 292 5. Always perform zeroing and test with closed vial cap. Only use cap with sealing ring. 6. Bubbles on the inside wall of the vial lead to incorrect measurements. To prevent this, remove the bubbles by swirling the vial before performing the test. 7.
Page 293: Sample Dilution Techniques
1.2.4 Sample dilution techniques Proceed as follows for accurate dilutions: Pipette the water sample (see table) into a 100 ml volumetric flask and fill up to 100 ml mark with deionised water. Swirl to mix the contents. Water sample Multiplication [ml] factor Pipette the required volume of the diluted sample into the vial and proceed as described in...
Page 294 MD 610_1c 09/2015...
Page 295: Part 2 Instrument Manual
Part 2 Instrument Manual MD 610_1c 09/2015...
Page 296: Operation
2.1.2 Saving data – Important Notes The batteries save data (stored results and photometer setting). During battery change the data in the MD 610 is saved for 2 minutes. If the change time exceeds 2 minutes all stored data and settings lost.
Page 297: Instrument (Explosion Drawing)
2.1.4 Instrument (explosion drawing): (A) screws (B) battery compartment cover (C) notch (D) batteries: 4 batteries (AA/LR6) (E) seal ring (F) instrument back (B) battery compartment cover (E) seal ring (F) instrument back (A) screws (C) notch (D) batteries CAUTION: To ensure that the instrument is water proof: seal ring (E) must be in position •...
Page 298 MD 610_1c 09/2015...
Page 299: Overview Of Function Keys
Overview of function keys 2.2.1 Overview Switching the photometer on or off Press shift key to achieve figures key 0-9. Keep the shift key depressed and press desired figures key. Shift e.g.: [Shift] + [1][1] Returning to selection of methods or previous menu Function key: description in the text if key available Function key: description in the text if key available Function key: description in the text if key available...
Page 300: Displaying Time And Date
2.2.2 Displaying time and date: Press [“clock”] key. The display shows: 19:30:22 2012-06-15 After 15 seconds the photometer reverts to the previous display automatically or press [ ] key or [ESC]. 2.2.3 User countdown With this function the operator is able to define his own countdown. Press [“clock”] key.
Page 301: Operation Mode
Operation mode Switch the photometer on by pressing the [ON/OFF] key. selftest ... The photometer performs an electronic self-test. Bluetooth ® The display shows the status of the Bluetooth connec- ® tion. switched on 2.3.1 Automatic switch off The instrument switches off automatically after 20 minutes. This is indicated 30 seconds before by a beeper.
Page 302: Chemical Species Information
2.3.2.2 Chemical Species Information Pressing the [F2] key the display shows a list with available chemical species and corresponding ranges. Changing chemical species see chapter 2.3.7 page 296. 320 Phosphate LR T Line 1: Method number, Method name 0.05-4 mg/l PO Line 2: Range with chemical species 1 0.02-1.3 mg/l P Line 3: Range with chemical species 2...
Page 303: Performing Tests
2.3.5 Performing Tests When zero calibration is complete, remove the vial from the sample chamber and perform the tests as described under “Method“. When the results have been displayed: • with some methods you can change between different chemical species •...
Page 304: Changing Chemical Species
2.3.7 Changing chemical species For some methods there is a possibility to change the chemical species of the test result. If the test result is displayed press arrow key [ ] or [ ]. Example: 320 Phosphate LR T -----[ ]----> 320 Phosphate LR T <---- [ ] ----- 320 Phosphate LR T 0.05-4 mg/l PO 0.02-1.3 mg/l P...
Page 305: Perform Additional Measurements
Note: The display shows the number of free data sets. Storage: 900 free records left If there are less than 30 data sets free the display shows: Storage: only 29 free records left Clear the memory as soon as possible (see “Deleting stored results”).
Page 306: Measure Absorbance
2.3.11 Measure absorbance Range: –2600 mAbs to +2600 mAbs Method-No. Title mAbs 430 nm mAbs 530 nm mAbs 560 nm mAbs 580 nm mAbs 610 nm mAbs 660 nm Select the desired wavelength from the method list or by entering the corresponding method number directly.
Page 307: Bluetooth
® (Low Energy). Data is transmitted from the photometer as a .csv file. Details on how information is transmitted from the photometer can be found on www.lovibond.com. To receive the data, there are several options on offer from the Tintometer Group.
Page 308: Internet Updates
Internet Updates To connect the instrument to the serial interface of a computer the optional connection cable with integrated electronic system is required. It is possible to update new software applications and additional languages via the internet. Please find detailed information at our homepage in the download-area (as soon as available).
Page 309: Mode Functions
Mode Functions Schema MODE-Function No. Description Page Autotransfer Automatic data transfer after measurement Bluetooth Switching the Bluetooth Modul on/off ® ® Calibration Special method calibration Clear calibration Deleting user calibration Clock Setting date and time Countdown Switching the countdown on/off to ensure reaction times Delete data Deleting all stored results...
Page 310: Instrument Basic Settings
MODE-Function No. Description Page System info Information about the instrument e.g. current software version Temperature Selection of °C or °F for Langelier Mode 70 User calibration Storage of user calibration User concentration Entering the data necessary to run a user concentration method User polynoms Entering the data necessary to run a user polynomial User methods clear...
Page 311: Setting Date And Time
Key beep Press [MODE], [Shift] + [1][1] keys. Mode Confirm with [ ] key. <Key-Beep> The display shows: Shift + 1 OFF: Shift +0 • Press [Shift] + [0] keys to switch the key beep off. Shift • Press [Shift] + [1] keys to switch the key beep on. Shift Confirm with [ ] key.
Page 312 Countdown (Ensuring reaction periods) Some methods require a reaction period. This reaction period is incorporated in the method as standard with the countdown function. It is possible to switch the countdown off for all methods: Press [MODE], [Shift] + [1][3] keys. Mode Confirm with [ ] key.
Page 313 Signal beep Performing a zero or a measurement takes 8 seconds. The photometer indicates the end of zeroing or measuring by a short beep. Press [MODE], [Shift] + [1][4] keys. Mode Confirm with [ ] key. <Signal-Beep> The display shows: Shift + 1 OFF: Shift +0...
Page 314 Adjusting display contrast Press [MODE], [Shift] + [8][0] keys. Mode Confirm with [ ] key. <LCD contrast> The display shows: • Press arrow key [ ] to increase contrast of the LCD display about one unit. • Press arrow key [ ] to decrease contrast of the LCD display about one unit.
Page 315 Adjusting display brightness Press [MODE] [8] [1] keys. Mode Confirm with [ ] key. <LCD brightness> The display shows: Press [ ] key to increase brightness of the display about one unit. Press [ ] key to decrease brightness of the display about one unit.
Page 316 Bluetooth ® Press [MODE], [Shift] + [1][8] keys. Mode Confirm with [ ] key. <Bluetooth > ® The display shows: switched on Shift + 1 OFF: Shift + 0 connected The current status of the Bluetooth connection (connected / ® disconnected) is displayed.
Page 317 Autotransfer The auto transfer enables the user to transfer measured results automatically to the App or PC without storing. A connection to the receiving program is necessary. If this is not given a message will be displayed on the instruments screen. Press [MODE], [Shift] + [1][9] keys.
Page 318: Data Transfer Of Stored Results
2.6.2 Data transfer of stored results Data transfer of all results Press [MODE], [Shift] + [2][0] keys. Mode Confirm with [ ] key. <Data Transfer> The display shows: all Data Start: cancel: Press [ ] key to transfer all stored test results. The display shows e.g.: Data Transfer Test No.:...
Page 319 Data transfer of results of a selected time period Press [MODE], [Shift] + [2][1] keys. Mode Confirm with [ ] key. The display shows: <Data Transfer> sorted: date from yy-mm-dd Enter year, month and day for the first day of the required __-__-__ period, e.g.: 14 May 2009 = [Shift] + [0][9][0][5][1][4] Confirm with [ ] key.
Page 320 Data transfer of results of a selected Code No. range Press [MODE], [Shift] + [2][2] keys. Mode Confirm with [ ] key. <Data Transfer> The display shows: sorted: Code-No. Enter numeric code number (up to 6 places) for the first from _ _ _ _ _ _ required Code No., e.g.: [Shift] + [1].
Page 321 Data transfer of results of one selected method Press [MODE], [Shift] + [2][3] keys. Mode Confirm with [ ] key. The display shows: <Data Transfer> >>20 Acid demand T 35 Alkalinity-p T Select the required method from the displayed list or enter 30 Alkalinity-tot T the method-number directly.
Page 322: Recall / Delete Stored Results
2.6.3 Recall / delete stored results Recall all stored results Press [MODE], [Shift] + [3][0] keys. Mode Confirm with [ ] key. The display shows: <Storage> display all data The stored data sets are displayed in chronological order, Start: cancel: ESC starting with the latest stored test result.
Page 323 Recall results of a selected time period Press [MODE], [Shift] + [3][1] keys. Mode Confirm with [ ] key. The display shows: <Storage> sorted: date from yy-mm-dd Enter year, month and day for the first day of the required __-__-__ period, e.g.: 14 May 2015 = [Shift] + [1][5][0][5][1][4] Confirm with [ ] key.
Page 324 Recall results of a selected Code No. range Press [MODE], [Shift] + [3][2] keys. Mode Confirm with [ ] key. <Storage> The display shows: sorted: Code-No. from _ _ _ _ _ _ Enter numeric code number (up to 6 places) for the first required Code No., e.g.: [Shift] + [1].
Page 325 Recall results of one selected method Press [MODE], [Shift] + [3][3] keys. Mode Confirm with [ ] key. <Storage> The display shows: >>20 Acid demand T 30 Alkalinity-tot T Select the required method from the displayed list or enter 40 Aluminium T the method number directly.
Page 326 Delete stored results Press [MODE], [Shift] + [3][4] keys. Mode Confirm with [ ] key. <Delete data> The display shows: Delete all data? YES : Shift + 1 NO : Shift + 0 • Press [Shift] + [0] keys to retain the data sets in Shift memory.
Page 327: Calibration
2.6.4 Calibration Calcium Hardness Method 191 – Calibration of a method blank Press [MODE], [Shift] + [4] [0] keys. Mode Confirm with [ ] key. <Calibration> 1: M 191 Ca-Hardness 2 The display shows: 2: M 191 0 Jus. Reset 3: M 170 Fluoride L Press [Shift] + [1] keys.
Page 328 After the reaction period is finished proceed as follows: 9. Rinse the vial (24 mm Ø) with the coloured sample from the beaker and fill with 10 ml of the sample. prepare TEST 10. Press TEST key. press TEST stored The batch related method blank is saved.
Page 329: Fluoride Method 170
Press [Shift] + [0] keys to keep the method blank. Shift Press [Shift] + [1] keys to erase the method blank and set Shift the value back to factory calibration. The instrument goes back to mode menu automatically. Fluoride Method 170 Press [MODE], [Shift] + [4] [0] keys.
Page 330 7. Place the vial in the sample chamber making sure that marks are aligned. Zero accepted 8. Press TEST key. T1: 0 mg/l F press TEST 9. Remove the vial from the sample chamber, empty the vial, rinse vial and cap several times and then fill the vial with exactly 10 ml Fluoride standard (Concentration 1 mg/l F).
Page 331: User Calibration
User Calibration If a test method is user calibrated the method name is displayed inverse. Procedure: • Prepare a standard of known concentration and use this standard instead of the sample according to the test procedure. • It is recommend to use well known standards which are formulated according to DIN EN, ASTM or other international norms or to use certified standards which are commercially available.
Page 332 Method Recommended range for user calibration Chromium 1 mg/l Cr COD LR 100 mg/l O COD MR 500 mg/l O COD HR 5 g/l O = 5000 mg/lO Colour operating range Copper T 0.5 – 1.5 mg/l Cu Copper L 2 –...
Page 333: Store User Calibration
Method Recommended range for user calibration Oxygen, active Calibration with basic test 100 Chlorine free Oxygen, dissolved possible against meter for dissolved oxygen pH-Value LR 6.0 – 6.6 pH-Value T 7.6 – 8.0 pH-Value L 7.6 – 8.0 pH-Value HR 8.6 –...
Page 334: Delete User Calibration
The display shows: <user calibration> 100 Chlorine T 0.02-6 mg/l Cl2 Pressing the arrow key [ ] once increases the displayed 0.90 mg/l free Cl2 result. up: , down: save: Pressing the arrow key [ ] once decreases the displayed result.
Page 335: Lab Function
2.6.5 Lab function Reduced operator guidance => “Profi-Mode“ This function may be used for routine analyses with many samples of one method. The following information is always stored in the methods: a) Method b) Range c) Date and time d) Differentiation of results e) Detailed operator instruction Compliance with reaction periods If the Profi-Mode is active, the photometer provides only a minimum of operator instructions.
Page 336: Onetimezero
One Time Zero (OTZ) OneTimeZero is available for all methods where Zero is performed in a 24 mm Ø round vial with sample water (see chapter 1.1 Table of Methods). OneTimeZero can be used for different tests providing the tests are performed with the same sample water and under the same test conditions.
Page 337: User Operations
2.6.6 User operations User method list After switching on the instrument a scroll list of all available methods is automatically shown in the display. To shorten this list according to the requirements of the user it is possible to create a user defined scroll list. The program structure requires that this list must have at least one active (switched on) method.
Page 338 User method list, switch all methods on This mode function activates all methods. After switching on the instrument a scroll list of all available methods is automatically shown in the display. Press [MODE], [Shift] + [6][1] keys. Mode Confirm with [ ] key. <Mlist all on>...
Page 339: User Concentration Methods
User Concentration Methods It is possible to enter and store up to 10 User Concentration Methods. Therefor you need 2 to 14 standards of known concentration and one blank (deionised water or reagent blank value). The Standards should be measured with increasing concentrations and from the brightest to the darkest colouration.
Page 340 Press the appropriate numerical key to select the required choose resolution resolution, e.g.: [Shift] + [3] for 0.01. 1: 1 2: 0.1 Note: 3: 0.01 Please enter the required resolution according to the instru- 4: 0.001 ment pre-sets: range max. resolutions 0.000 ...9.999 0.001 10.00 ...99.99...
Page 341: User Polynomials
Prepare the second standard and press [Test] key. S2: 0.10 mg/l prepare The display shows the input value and the measured absorp- press TEST tion value. Confirm with [ ] key. S2: 0.10 mg/l Note: mAbs: • Perform as described above to measure further stan- dards.
Page 342 Confirm with [ ] key. Note: Overwrite polynom? if the entered number has already been used to save a YES: 1, NO: 0 polynomial the display shows the query: • Press [Shift] + [0] or [ESC] keys to go back to method no. query.
Page 343 Press [ ] or [ ] keys to select the required unit. choose unit: >> mg/l mmol/l mAbs µg/l Confirm with [ ] key. choose resolution Press the appropriate numerical key to select the required 1: 1 resolution, e.g.: [Shift] + [3] for 0.01. 2: 0.1 3: 0.01 Note:...
Page 344: Delete User Methods
Delete User Methods (Polynomial or Concentration) In principle a valid user method can be overwritten. An existing user method (Polynomial or Concentration) can be totally deleted as well and is removed out of the method selection list: Press [MODE], [Shift] + [6][6] keys. Mode Confirm with [ ] key.
Page 345: Print Data Of User Methods
PC. To receive the data, it is recommended that the computer software provided by Lovibond should be used. The software can be downloaded from www.lovibond.com/support. To transmit the data, a connection to a Bluetooth Dongle is required (P/N 2444480).
Page 346: Initialise User Method System
Initialise User Method System (Polynomials & Concentration) Power loss will cause incoherent data. The user method system must be initialised with this mode function to set it to a predefined state. ATTENTION: All stored user methods (polynomial & concentration) are deleted with initialisation. Press [MODE], [Shift] + [6][9] keys.
Page 347: Langelier Saturation Index
2.6.7 Langelier Saturation Index (Water Balance) For calculation the following tests are required: • pH-value • Temperature • Calcium hardness • Total Alkalinity • TDS (Total Dissolved Solids) Run each test separately and note the results. Calculate the Langelier Saturation Index as described: Calculation of Langelier Saturation Index With Mode 71 (see below) it is possible to select between degree Celsius or degree Fahrenheit.
Page 348: Selection Of Temperature Unit
pH value The display shows: 0<=pH<=12 +_ _ _ _ Enter the pH-value in the range between 0 and 12 and confirm with [ ] key. <Langelier> Langelier The display shows the Langelier Saturation Index. saturation index 0.00 Press [ ] key to start new calculation. Return to mode menu by pressing [ESC] key.
Page 349: Photometer-Information
2.6.8 Photometer-Information Press [MODE], [Shift] + [9][1] keys. Mode Confirm with [ ] key. <System-Info> This method informs you about the current software version, Software: serial number, about the number of performed tests and V201.001.1.001.002 free memory capacity. Serial number: 151234 more: , cancel: Esc Press arrow key [ ] to display the number of performed...
Page 350 MD 610_1c 09/2015...
Page 351: Part 3 Enclosure
Part 3 Enclosure MD 610_1c 09/2015...
Page 352: Unpacking
If there is any damage or something is missing, please contact your local distributor immediately. 3.2 Delivery contents Standard contents for MD 610: 1 Photometer in plastic case 4 batteries (Type AA/LR 6) 1 Instruction manual...
Page 353: Technical Data
3.3 Technical data Display Graphic Display with backlight Serial Interface Bluetooth 4.0 for data transfer ® RJ45 connector for internet updates (see chapter 2.5) Light source light-emitting diode – photosensor – pair arrangement in a transparent measurement chamber Wavelength ranges: 1 = 530 nm IF = 5 nm 2 = 560 nm IF...
Page 354: Abbreviations
3.4 Abbreviations Abbreviation Definition °C degree Celsius (Centigrade) °F degree Fahrenheit °F = (°C x 1.8) + 32 °dH degree German Hardness °fH degree French hardness °eH degree English Hardness °aH degree American Hardness Absorption unit ( = Extinction E) 1000 mAbs = 1 Abs = 1 A = μg/l...
Page 355: Troubleshooting
3.5 Troubleshooting 3.5.1 Operating messages in the display / error display Display Possible Causes Elimination Overrange reading is exceeding the range if possible dilute sample or use other measuring range water sample is too cloudy filtrate water sample too much light on the photo cell seal on the cap? Repeat measurement with seal on the cap of the vial.
Page 356 Display Possible Causes Elimination The calculation of a value Test procedure correct? (e.g. combined Chlorine) is If not – repeat test not possible Example 1: Example 1 The readings for free and total 0,60 mg/l free Cl Chlorine are different, but comb Cl considering the tolerances of 0,59 mg/l total Cl...
Page 357: General
3.5.2 General Finding Possible Causes Elimination Test result deviates from Chemical species not as Press arrow keys to select the the expected. required. required chemical species. No differentiation: Profi-Mode is switched on. Switch Profi-Mode off with e.g. for the Chlorine test Mode 50.
Page 358: Declaration Of Ce-Conformity
Name of manufacturer: Schleefstraße 8-12 44287 Dortmund Germany declares that this product MD 610 Product name: meets the requirements of the following guidelines: Declaration of EC-Conformity according to DIRECTIVE 2004/108/EC OF THE EUROPEAN PARLIAMENT AND OF THE COUNCIL of 2004,...
Page 359: Copyright And Trademark Notice
3.7 Copyright and Trademark Notice The Bluetooth word mark is a registered trademark owned by Bluetooth SIG, Inc. and any ® use by The Tintometer Group is under license. ® is a registered trademark of Cisco, Inc. and licensed to Apple, Inc. ®...
Page 360 Tintometer GmbH The Tintometer Limited Tintometer AG Tintometer Inc. Lovibond ® Water Testing Lovibond House / Solar Way Hauptstraße 2 Schleefstraße 8-12 Solstice Park / Amesbury, SP4 7SZ 5212 Hausen AG 6456 Parkland Drive 44287 Dortmund Tel.: +44 (0)1980 664800 Tel.: +41 (0)56/4422829...

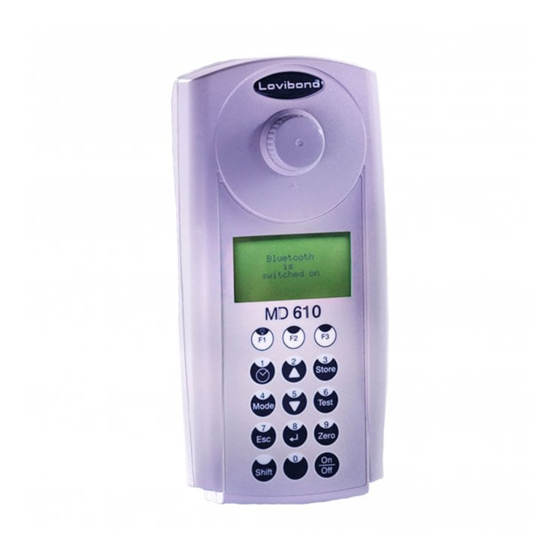

Lovibond MD 610 Instruction Manual

Table of Contents

Part 1 Methods

Part 2 Instrument Manual

Part 3 Enclosure

Quick Links

Related Manuals for Lovibond MD 610

Summary of Contents for Lovibond MD 610
