Lovibond MD100 Instruction Manual

Water testing photometer system cooling water
Hide thumbs Also See for MD100:
Table of Contents

Advertisement

Quick Links

See also: Instruction Manual
Lovibond
Tintometer
®

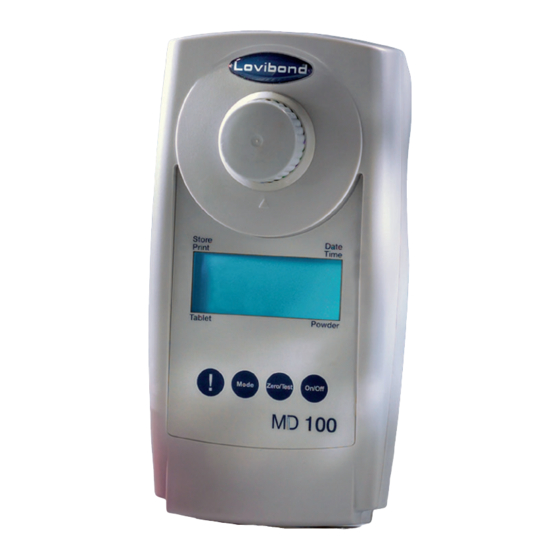

Photometer-System MD100
Cooling Water
GB
Instruction Manual
Page 52–99
www.lovibond.com
Water Testing
®
Group

Advertisement

Table of Contents
loading

Related Manuals for Lovibond MD100

Summary of Contents for Lovibond MD100

  • Page 1 Lovibond Water Testing ® Tintometer Group ® Photometer-System MD100 Cooling Water Instruction Manual Page 52–99 www.lovibond.com...
  • Page 2 CE-Konformitätserklärung / Declaration of CE-Conformity Déclaration de conformité CE / Dichiarazione di conformità CE / CE-Declaración de conformidad ——————————————————————————————————————— Hersteller / manufacturer / fabricant / produttore / fabricante: Tintometer GmbH / Schleefstraße 8-12 / 44287 Dortmund / Deutschland ——————————————————————————————————————— Produktname / Product name / Nom du fabricant / Nome del prodotto / Nombre del productor: MD 100 ———————————————————————————————————————...

  • Page 3: Important Information

    Important Information CAUTION The accuracy of the instrument is only valid if the instrument is used in an environment with controlled electromagnetic disturbances according to DIN 61326. Wireless devices, e.g. wireless phones, must not be used near the instrument. Important disposal instructions for batteries and accumulators EC Guideline 2006/66/EC requires users to return all used and worn-out batteries and accumulators.

  • Page 4: Table Of Contents

    Contents • General notes ........... . . 54 Guidelines for photometric measurements .

  • Page 5: Guidelines For Photometric Measurements

    Prior to measurement ensure that the sample is suitable for analysis (no major interferences) and does not require any preparation i.e. pH adjustment, filtration etc. • Method specific validation data are available on the Internet (www.lovibond.com) or on request. •...

  • Page 6: Replacement Of Batteries

    General notes Correct position of the vial (Ø 24 mm): Correct filling of the vial: (B) battery compart- Replacement of batteries: ment cover (E) seal ring (F) instrument back (A) screws (C) notch (D) batteries CAUTION: To ensure that the instrument is water proof: seal ring (E) must be in position •...

  • Page 7: Functional Description

    Functional description Operation Switch the unit on using the [ON/OFF] key. METHOD The display shows the following: Select the required test using the [MODE] key. Mode Scroll Memory (SM) To avoid unnecessary scrolling for the required test method, the instru- ment memorizes the last method used before being switched off.

  • Page 8: Display Backlight

    Functional description Display backlight Press the [ !] key to turn the display backlight on or off. The backlight is switched off automatically during the measurement. Recall of stored data If the instrument is switched on, press the [!] key for more than 4 sec- onds, then release the [!] key to access the recall menu.

  • Page 9: Methods

    Methods Bromine with Tablet 0.05 – 13 mg/l Br a) in absence of Chlorine Fill a clean vial (24 mm Ø) with 10 ml of the water sample and 0.0.0 perform zero calibration (see “Operation”). Remove the vial from the sample chamber and empty it, leaving a few drops remaining in the vial.
  • Page 10 Methods Remove the vial from the sample chamber and rinse vial and cap several times. Fill the vial with a few drops of water sample. Add one DPD No. 1 tablet straight from the foil and crush the tablet using a clean stirring rod. Add the water sample to the 10 ml mark.
  • Page 11 Methods Notes: 1. Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances, the subsequent determination of Bromine may show lower results. To avoid any meas- urement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glassware into Sodium hypochlorite solution (0.1 g/l) for one hour, then rinse all glassware thoroughly with deionised water.
  • Page 12 Methods MD100_6 07/2016...

  • Page 13: Chlorine With Tablet

    Methods Chlorine with Tablet CL 6 0.01 – 6.0 mg/l Cl a) free Chlorine Fill a clean vial (24 mm Ø) with 10 ml of the water sample and 0.0.0 perform zero calibration (see “Operation”). Remove the vial from the sample chamber and empty it, leaving a few drops remaining in the vial.
  • Page 14 Methods Notes: 1. Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances, the subsequent determination of Chlorine may show lower results. To avoid any meas- urement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glassware into Sodium hypochlorite solution (0.1 g/l) for one hour, then rinse all glassware thoroughly with deionised water.

  • Page 15: Chlorine Hr (Ki) With Tablet

    Methods Chlorine HR with Tablet CLHr 5 – 200 mg/l Cl Insert the adapter for 16 mm vials. Fill a clean vial (16 mm Ø) with 8 ml of the water sample and perform 0.0.0 zero calibration (see “Operation”). Add one CHLORINE HR (KI) tablet straight from the foil to the water sample and crush the tablet using a clean stirring rod.
  • Page 16 Methods Notes: 1. Oxidising agents interfere as they react in the same way as Chlorine. Reagent Form of reagent/Quantity Order-No. Set ACIDIFYING GP/ Tablet / per 100 517721BT CHLORINE HR (KI) inclusive stirring rod CHLORINE HR (KI) Tablet / 100 513000BT ACIDIFYING GP Tablet / 100...

  • Page 17: Chlorine Dioxide With Tablet

    Methods Chlorine dioxide with Tablet 0.02 – 11 mg/l ClO Select the method Chlorine CL 6 for determining the concentra- tion of chlorine dioxide. a) in absence of Chlorine Fill a clean vial (24 mm Ø) with 10 ml of the water sample and 0.0.0 perform zero calibration (see “Operation”).
  • Page 18 Methods Place the vial in the sample chamber making sure that the marks are aligned. Zero Press the [ZERO/TEST] key. Test The method symbol flashes for approx. 3 seconds. RESULT The result 1 is shown in the display. Remove the vial from the sample chamber and rinse vial and cap several times.
  • Page 19 Methods Notes: 1. Vial cleaning: As many household cleaners (e.g. dishwasher detergent) contain reducing substances, the subsequent determination of Chlorine dioxide may show lower results. To avoid any measurement errors, only use glassware free of Chlorine demand. Preparation: Put all applicable glassware into Sodium hypochlorite solution (0.1 g/l) for one hour, then rinse all glassware thoroughly with deionised water.
  • Page 20 Methods MD100_6 07/2016...

  • Page 21: Ozone With Tablet

    Methods Ozone with Tablet 0.02 – 2 mg/l O a) in absence of Chlorine Fill a clean vial (24 mm Ø) with 10 ml of the water sample and 0.0.0 perform zero calibration (see “Operation"). Remove the vial from the sample chamber and empty it, leaving a few drops remaining in the vial.
  • Page 22 Methods Close the vial tightly with the cap and swirl gently several times until the tablet is dissolved. Add one DPD No. 1 tablet and one DPD No. 3 tablet straight from the foil into the first cleaned vial and crush the tablets using a clean stirring rod.

  • Page 23: Aluminium With Vario Powder Pack

    Methods Aluminium with VARIO Powder Pack 0.01 – 0.25 mg/l Al Use two clean vials (24 mm Ø) and mark one as blank for zeroing. Fill 20 ml of the water sample in a 100 ml beaker. Add the contents of one VARIO Aluminum ECR F20 Powder Pack straight from the foil to the water sample.
  • Page 24 Methods Notes: 1. Before use, clean the vials and the accessories with Hydrochloric acid (approx. 20%). Rinse them thoroughly with deionised water. 2. To get accurate results the sample temperature must be between 20°C and 25°C. 3. A low test result may be given in the presence of Fluorides and Polyphosphates. The ef- fect of this is generally insignificant unless the water has fluoride added artificially.

  • Page 25: Iron Lr With Liquid Reagent

    Methods Iron LR with Liquid reagent 0.03 – 2 mg/l Fe and Fe This test is suitable for determining total soluble iron. The sample should be pre-filtered using a 0.45 µm membrane if total dissolved iron is required. Particulate or suspended iron will otherwise add to the result.
  • Page 26 Methods Notes: 1. Complexed iron may be measured by increasing the development period until no further colour development is seen. Very strongly complexed iron may not be included in the measured iron. In this case the complexing agent must be destroyed by oxidation with acid/persulphate followed by neutralisation to pH 6–9.

  • Page 27: Iron (Fe In Mo) With Vario Powder Pack

    Methods Iron, total (Fe in Mo) FE M in the presence of Molybdate with VARIO Powder Pack 0.01 – 1.80 mg/l Fe Fill a clean Mixing Cylinder (50 ml) with 50 ml of the water sample. Add the contents of one VARIO (Fe in Mo) Rgt 1 Powder Pack straight from the foil into the water sample (50 ml).
  • Page 28 Methods Remove the vial from the sample chamber. Place the sample in the sample chamber making sure that the marks are aligned. Zero Press the [ZERO/TEST] key. Test The method symbol flashes for approx. 8 seconds. FE M RESULT The result is shown in the display in mg/l Fe. Notes: 1.

  • Page 29: Copper With Tablet

    Methods Copper with Tablet 0.3 – 5.0 mg/l Cu a) free Copper Fill a clean vial (24 mm Ø) with 10 ml of the water sample and 0.0.0 perform zero calibration (see “Operation”). Add one COPPER No. 1 tablet straight from the foil to the water sample and crush the tablet using a clean stirring rod.
  • Page 30 Methods Reagent Form of reagent/Quantity Order-No. Tablet / per 100 517691BT COPPER No. 1 / No. 2 inclusive stirring rod COPPER No. 1 Tablet / 100 513550BT COPPER No. 2 Tablet / 100 513560BT MD100_6 07/2016...

  • Page 31: Zinc With Liquid Reagent And Powder

    Methods Zinc with Liquid reagent and powder 0.1 – 2.5 mg/l Zn Fill a clean vial (24 mm Ø) with 10 ml of the water sample and 0.0.0 perform zero calibration (see “Operation”). Fill the vial with drops of the same size by holding the bottle vertically and squeeze slowly: 20 drops KS243 (Zinc Reagent 1) Die Küvette mit dem Küvettendeckel fest verschließen und den Inhalt...
  • Page 32 Methods Notes: 1. For correct dosage the spoon supplied with the reagents must be used. 2. This test is suitable for determining free soluble Zinc. Zinc bound with strong complexing agents will not be measured. 3. Cationics such as quaternary ammonium compounds will cause the colour to change from rose red to purple, depending upon the level of copper present.

  • Page 33: Sulfate With Vario Powder Pack

    Methods Sulfate with VARIO Powder Pack 5 – 100 mg/l SO Fill a clean vial (24 mm Ø) with 10 ml of the water sample and 0.0.0 perform zero calibration (see “Operation”). Add the contents of one VARIO Sulpha 4 / F10 VARIO Powder Pack straight from the foil into the water sample.
  • Page 34 Methods Notes: 1. If Sulfate ions are present a cloudy solution will appear. Reagent Form of reagent/Quantity Order-No. VARIO Sulpha 4 / F10 Powder Pack / 100 532160 MD100_6 07/2016...

  • Page 35: Molybdenum Lr With Vario Powder Pack

    Methods Molybdenum LR with VARIO Powder Pack Mo 1 0.03 – 3.0 mg/l Mo Fill a clean Mixing Cylinder (25-ml) with 20 ml of the water sample. Add the contents of one VARIO Molybdenum 1 LR F20 Powder Pack straight from the foil into the water sample (20 ml). Close the Mixing Cylinder tightly with a stopper and swirl several times to dissolve the powder.
  • Page 36 Methods Notes: 1. Strong alkaline or acidic water samples must be adjusted between pH 3 and pH 5 before the reagent is added (use 0.5 mol/l Sulfuric acid resp. 1 mol/l Sodium hydroxide). 2. Before using clean the vials with Hydrochloric acid (approx. 20%). Rinse thoroughly with deionised water.

  • Page 37: Molybdenum Hr With Liquid Reagent

    Methods Molybdenum HR with Liquid reagent Mo 2 0.6 - 60 mg/l Mo Fill a clean vial (24 mm Ø) with 10 ml of the water sample and 0.0.0 perform zero calibration (see “Operation"). Fill the vial with drops of the same size by holding the bottle vertically and squeeze slowly: 10 drops KS63 (Thioglycolate) Close the vial tightly with the cap and swirl several times to mix the...
  • Page 38 Methods Notes: 1. Perform tests on sample water taken directly from the system. Molybdate will be ab- sorbed onto the walls of sample containers and give low results. Conversion: mg/l MoO = mg/l Mo x 1.67 mg/l Na = mg/l Mo x 2.15 Reagent Form of reagent/Quantity Order-No.

  • Page 39: Triazole With Powder Pack

    Methods Triazole with VARIO Powder Pack 1 – 16 mg/l Benzotriazole Transfer 25 ml of the water sample into the digestion vial. Add the contents of one VARIO Triazole Rgt F25 Powder Pack straight from the foil into the water sample (note Close the digestion vial tightly with the cap and swirl until the reagent is dissolved completely.
  • Page 40 Methods Notes: 1. While the UV lamp is on UV safety goggles must be worn. 2. For handling of the UV lamp see manufacturer's manual. Do not touch the surface of the UV lamp. Fingerprints will etch the glass. Wipe the UV lamp with a soft and clean tissue between measurements. 3.

  • Page 41: Polyacrylate With Liquid Reagent

    Methods Polyacrylate with Liquid reagent POLY 1 – 30 mg/l Polyacrylate Fill a clean vial (24 mm Ø) with 10 ml of the water sample and 0.0.0 perform zero calibration (see “Operation”). Fill the vial with drops of the same size by holding the bottle vertically and squeeze slowly: 1 ml (25 drops) KS255 (Polyacrylate reagent 1) (note 1).
  • Page 42 Methods Notes: 1. If little or no turbidity is present at correct dose concentrations, the sample will need a pre-concentration step in order to detect this level of polyacrylate/polymer. Carry out this procedure as directed then test the pre-concentrated sample as above (see next page). 2.
  • Page 43 Methods Interference removal and Pre-Concentration Cartridge Preparation 1. Remove the plunger of the 20 ml syringe from the barrel and attach the C18 cartridge. 2. Add 5 ml of KS336 (Propan-2-ol) to the syringe barrel, attach the plunger and pass drop- wise through the cartridge.
  • Page 44 Methods Pre-Concentration Pre-concentration uses exactly the same procedure as interference removal, except a greater volume of sample is used in step 1, instead of deionised/tap water. For calculation of the original sample concentration a concentration factor should be considered: If a 50 ml sample is used the concentration factor is 20/50 = 0.4 If a 100 ml sample is used the concentration factor is 20/100 = 0.2 This can be extended as required in order to concentrate the polyacrylate/polymer suf- ficiently for analysis.

  • Page 45: Menu Options

    Menu options Menu selections Press the [MODE] key and hold. Mode Switch the unit on using the [ON/OFF] key. Allow the 3 decimal points to be displayed before releasing the [MODE] key. The [!] key allows for selection of the following menu points: diS recall stored data Store Date...

  • Page 46: Setting Date And Time

    Menu options – Calibration Mode If the instrument is not able to communicate with the IRiM, a timeout E 132 occurs after approx. 2 minutes. The error E 132 is displayed for approx. 4 seconds. Subsequently, the instrument switches to test mode (see also IRiM manual).
  • Page 47 Calibration Mode The result is shown in the display, alternating with CAL. RESULT If the reading corresponds with the value of the calibration standard (within the specified tolerance), exit calibration mode by pressing the [ON/OFF] key. Changing the displayed value: Pressing the [MODE] key once increases the displayed value by 1 digit.

  • Page 48: Factory Calibration Reset

    Calibration Mode Factory calibration reset Resetting the user calibration to the original factory calibration will reset all methods and ranges. Store Date A user calibrated method is indicated by an arrow while the test result RESULT is displayed. Time To reset the calibration press both the [MODE] and [ZERO/TEST] key Zero Mode and hold.

  • Page 49: Technical Data

    Waterproof floating; as defined in IP 68 (1 hour at 0.1 meter) Certificate for Declaration of CE-Conformity at www.lovibond.com *measured with standard solutions To ensure maximum accuracy of test results, always use the reagent systems supplied by the instrument manufacturer.

  • Page 50: Operating Messages

    Operating messages – Error codes Operating messages Hı Measuring range exceeded or excessive turbidity. Result below the lowest limit of the measuring range. Replace batteries, no further tests possible. Battery capacity is too low for the display backlight; btLo measurement is still possible. Store Date A user calibrated method is indicated by an arrow while the test result...
  • Page 51 Tintometer GmbH The Tintometer Ltd Tintometer AG Tintometer Inc. Lovibond Water Testing Lovibond House Hauptstraße 2 6456 Parkland Drive ® ® Schleefstraße 8-12 Sun Rise Way 5212 Hausen AG Sarasota, FL 34243 44287 Dortmund Amesbury Tel.: +41 (0)56/4422829 Tel: 941.756.6410 Tel.: +49 (0)231/94510-0...
