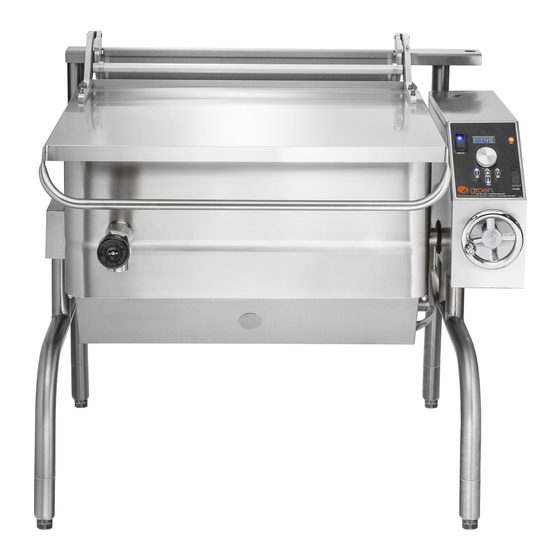

Eclipse ergonomic tilting braising pans
Hide thumbs Also See for BPM-30E:
Table of Contents

Advertisement

Quick Links

IMPORTANT INFORMATION
IMPORTANT INFORMATION
IMPORTANT INFORMATION
IMPORTANT INFORMATION
OPERATOR MANUAL
Part Number 148727 Rev. C
MODELS:
BPM-30E, BPM-40E
BPP-30E, BPP-40E
Braising Pans
Eclipse™Ergonomic
Tilting Braising Pans
Stainless Steel
Manual or Power Tilt
Electrically Heated
THIS MANUAL MUST BE RETAINED FOR FUTURE REFERENCE. READ,
UNDERSTAND AND FOLLOW THE INSTRUCTIONS AND WARNINGS
CONTAINED IN THIS MANUAL.
DO NOT STORE OR USE GASOLINE OR OTHER FLAMMABLE VAPORS AND
LIQUIDS IN THE VICINITY OF THIS OR ANY OTHER APPLIANCE.
IMPROPER INSTALLATION, ADJUSTMENT, ALTERATION, SERVICE OR
MAINTENANCE CAN CAUSE PROPERTY DAMAGE, INJURY OR DEATH. READ
THE INSTALLATION, OPERATING AND MAINTENANCE INSTRUCTIONS
THOROUGHLY BEFORE INSTALLING OR SERVICING THIS EQUIPMENT
KEEP FOR OPERATOR
KEEP FOR OPERATOR
KEEP FOR OPERATOR
KEEP FOR OPERATOR
Model BPP-30E Shown
WARNING
WARNING
Information contained in this document
is known to be current and accurate at
the time of printing/creation. Unified
Brands recommends referencing our
product line websites, unifiedbrands.net,
for the most updated product informa-
tion and specifications.
IMPORTANT INFORMATION
IMPORTANT INFORMATION
IMPORTANT INFORMATION
IMPORTANT INFORMATION
OM-BPM-E
