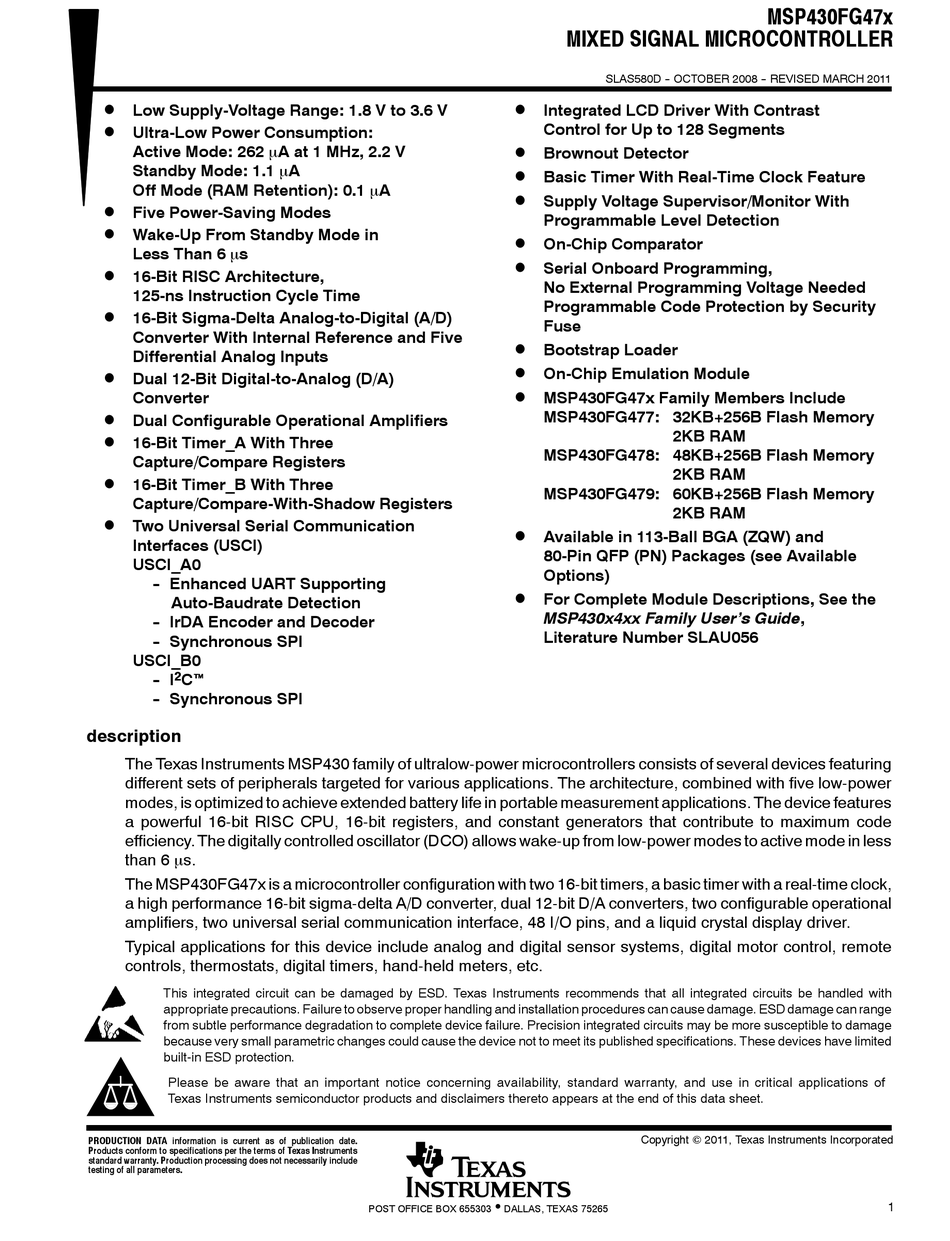

Texas Instruments MSP430FG47x Manual

Low Supply-Voltage Range: 1.8 V to 3.6 V
D
Ultra-Low Power Consumption:
D
Active Mode: 262 A at 1 MHz, 2.2 V
Standby Mode: 1.1 A
Off Mode (RAM Retention): 0.1 A
Five Power-Saving Modes
D
Wake-Up From Standby Mode in
D
Less Than 6 s
16-Bit RISC Architecture,
D
125-ns Instruction Cycle Time
16-Bit Sigma-Delta Analog-to-Digital (A/D)
D
Converter With Internal Reference and Five
Differential Analog Inputs
Dual 12-Bit Digital-to-Analog (D/A)
D
Converter
Dual Configurable Operational Amplifiers
D
16-Bit Timer_A With Three
D
Capture/Compare Registers
16-Bit Timer_B With Three
D
Capture/Compare-With-Shadow Registers
Two Universal Serial Communication
D
Interfaces (USCI)
USCI_A0
- - Enhanced UART Supporting
Auto-Baudrate Detection
- - IrDA Encoder and Decoder
- - Synchronous SPI
USCI_B0
2
- - I C
- - Synchronous SPI
description
The Texas Instruments MSP430 family of ultralow-power microcontrollers consists of several devices featuring
different sets of peripherals targeted for various applications. The architecture, combined with five low-power
modes, is optimized to achieve extended battery life in portable measurement applications. The device features
a powerful 16-bit RISC CPU, 16-bit registers, and constant generators that contribute to maximum code
efficiency. The digitally controlled oscillator (DCO) allows wake-up from low-power modes to active mode in less
than 6 s.
The MSP430FG47x is a microcontroller configuration with two 16-bit timers, a basic timer with a real-time clock,
a high performance 16-bit sigma-delta A/D converter, dual 12-bit D/A converters, two configurable operational
amplifiers, two universal serial communication interface, 48 I/O pins, and a liquid crystal display driver.
Typical applications for this device include analog and digital sensor systems, digital motor control, remote
controls, thermostats, digital timers, hand-held meters, etc.
This integrated circuit can be damaged by ESD. Texas Instruments recommends that all integrated circuits be handled with
appropriate precautions. Failure to observe proper handling and installation procedures can cause damage. ESD damage can range
from subtle performance degradation to complete device failure. Precision integrated circuits may be more susceptible to damage
because very small parametric changes could cause the device not to meet its published specifications. These devices have limited
built-in ESD protection.
Please be aware that an important notice concerning availability, standard warranty, and use in critical applications of
Texas Instruments semiconductor products and disclaimers thereto appears at the end of this data sheet.
PRODUCTION DATA information is current as of publication date.
Products conform to specifications per the terms of Texas Instruments
standard warranty. Production processing does not necessarily include
testing of all parameters.
Integrated LCD Driver With Contrast
D
Control for Up to 128 Segments
Brownout Detector
D
Basic Timer With Real-Time Clock Feature
D
Supply Voltage Supervisor/Monitor With
D
Programmable Level Detection
On-Chip Comparator
D
Serial Onboard Programming,
D
No External Programming Voltage Needed
Programmable Code Protection by Security
Fuse
Bootstrap Loader
D
On-Chip Emulation Module
D
MSP430FG47x Family Members Include
D
MSP430FG477: 32KB+256B Flash Memory
MSP430FG478: 48KB+256B Flash Memory
MSP430FG479: 60KB+256B Flash Memory
Available in 113-Ball BGA (ZQW) and
D
80-Pin QFP (PN) Packages (see Available
Options)
For Complete Module Descriptions, See the
D
MSP430x4xx Family User's Guide,
Literature Number SLAU056

POST OFFICE BOX 655303 DALLAS, TEXAS 75265
MIXED SIGNAL MICROCONTROLLER
SLAS580D -- OCTOBER 2008 -- REVISED MARCH 2011
2KB RAM
2KB RAM
2KB RAM
Copyright  2011, Texas Instruments Incorporated
MSP430FG47x
1
