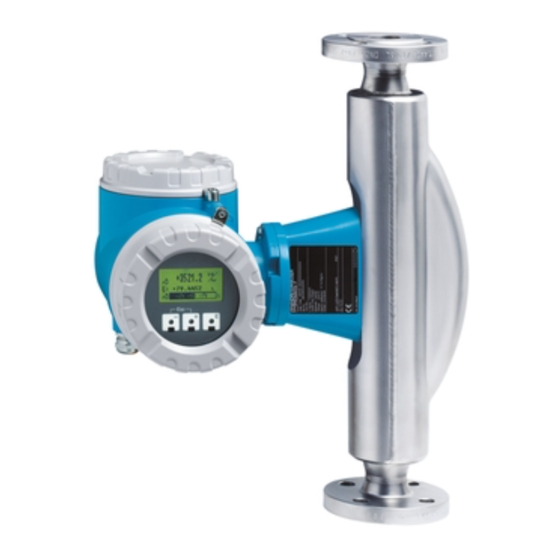

Endress+Hauser Proline Promass 84 Operating Instructions Manual

Coriolis mass flow measuring system for custody transfer
Hide thumbs Also See for Proline Promass 84:
Table of Contents

Advertisement

Quick Links

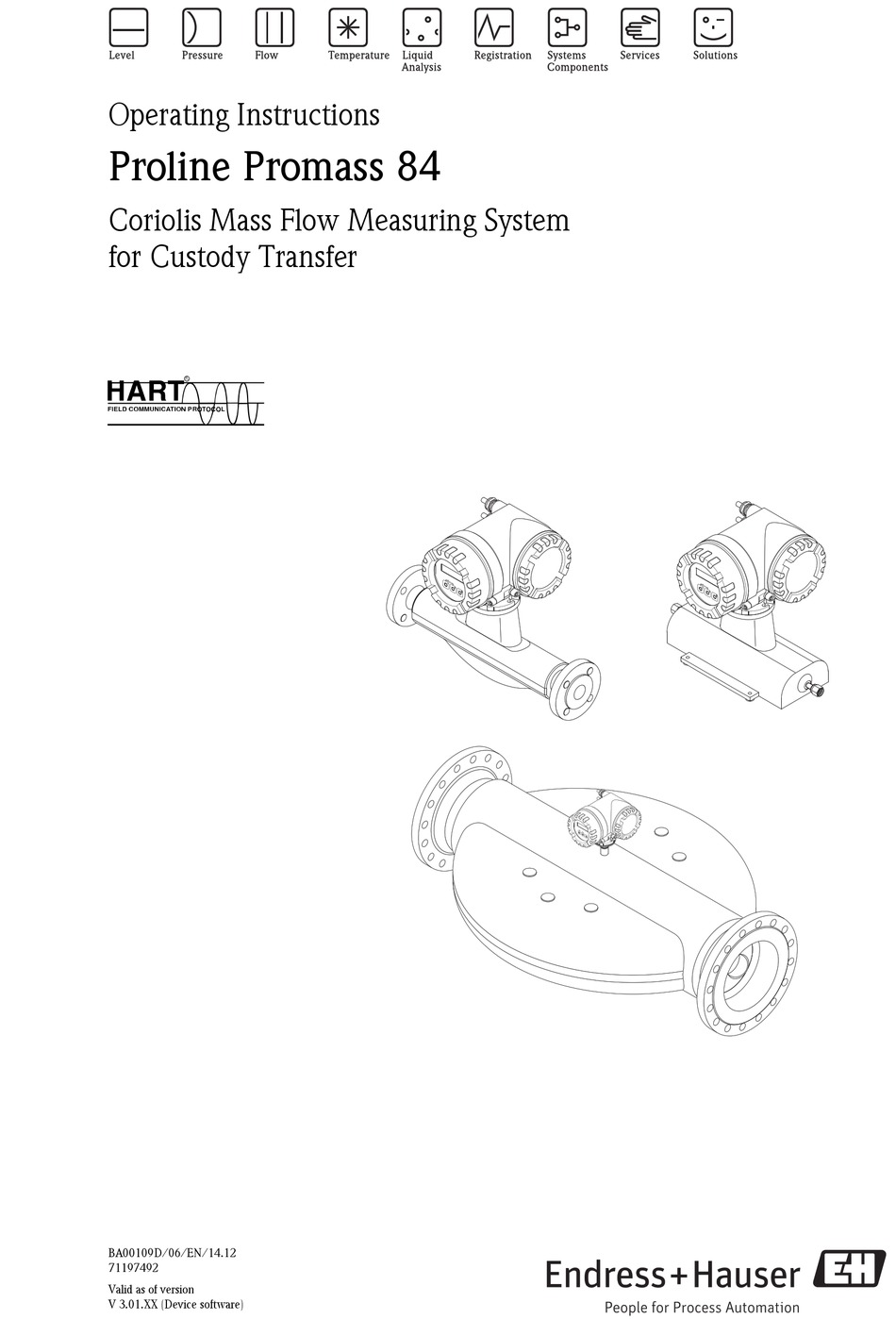

Operating Instructions

Proline Promass 84
Coriolis Mass Flow Measuring System
for Custody Transfer
6
BA00109D/06/EN/14.12
71197492
Valid as of version
V 3.01.XX (Device software)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Proline Promass 84 and is the answer not in the manual?

Questions and answers

Related Manuals for Endress+Hauser Proline Promass 84

Summary of Contents for Endress+Hauser Proline Promass 84

  • Page 1: Operating Instructions

    Operating Instructions Proline Promass 84 Coriolis Mass Flow Measuring System for Custody Transfer BA00109D/06/EN/14.12 71197492 Valid as of version V 3.01.XX (Device software)

  • Page 3: Table Of Contents

    Proline Promass 84 Table of contents Table of contents Safety instructions ....4 Accessories ..... 72 Designated use .

  • Page 4: Safety Instructions

    • The device must be operated by persons authorized and trained by the facility's owner-operator. Strict compliance with the instructions in the Operating Instruction is mandatory. • Endress+Hauser will be happy to assist in clarifying the corrosion resistance properties of materials wetted by special fluids, including fluids used for cleaning. However, small changes of temperature, concentration or degree of contamination in the process can result in differences in corrosion resistance.

  • Page 5: Operational Safety

    Category II, III or IV installations in accordance with the Pressure Equipment Directive. • The manufacturer reserves the right to modify technical data without prior notice. Your Endress+Hauser representative will supply you with current information and updates to these Operating Instructions.

  • Page 6: Identification

    Identification Proline Promass 84 Identification The following options are available for identification of the measuring device: • Nameplate specifications • Order code with breakdown of the device features on the delivery note • Enter serial numbers from nameplates in W@M Device Viewer (www.endress.com/deviceviewer): All information about the measuring device is displayed.
  • Page 7 Proline Promass 84 Identification 2.1.1 Nameplate of the transmitter 2 3 4 Order Code: Ser. no.: Ext. ord. cd.: A0015928 Fig. 1: Example of a transmitter nameplate Name of the transmitter Order code Serial number (Ser. no.) Extended order code (Ext. ord. cd.)
  • Page 8 Identification Proline Promass 84 2.1.2 Nameplate of the sensor Order Code: Ser.No.: Ext. ord. cd.: K-factor: Size: Materials: Density cal.: A0015930 Fig. 2: Example of a sensor nameplate Name of the sensor Order code Serial number (Ser. no.) Extended order code (Ext. ord. cd.)
  • Page 9 Proline Promass 84 Identification 2.1.3 Additional nameplate for suitability for custody transfer measurement a0002168 Fig. 3: Nameplate specifications for the suitability of "Promass 84" for custody transfer measurement (example) Name of the device Environmental class Accuracy class Minimum/Maximum measured quantity for liquids...
  • Page 10 Identification Proline Promass 84 2.1.4 Nameplate for connections active See operating manual passive Betriebsanleitung beachten normally open contact Observer manuel d'instruction normally closed contact Ser.No.: L1/L+ Supply / Versorgung / N/L- Tension d'alimentation Update 1 Update 2 ex works / ab Werk / réglages usine...

  • Page 11: Certificates And Approvals

    Regulation and Laboratory Procedures" and with the EMC requirements of IEC/EN 61326. The measuring system described in these Operating Instructions thus complies with the statutory requirements of the EC Directives. Endress+Hauser confirms successful testing of the device by affixing to it the CE mark.

  • Page 12: Installation

    Installation Proline Promass 84 Installation Incoming acceptance, transport and storage 3.1.1 Incoming acceptance On receipt of the goods, check the following points: • Check the packaging and the contents for damage. • Check the shipment, make sure nothing is missing and that the scope of supply matches your order.
  • Page 13 Proline Promass 84 Installation Special instructions for transporting Promass X and O Warning! • For transporting use only the lifting eyes on the flanges to lift the assembly. • The assembly must always be attached to at least two lifting eyes.

  • Page 14: Installation Conditions

    Installation Proline Promass 84 Installation conditions Note the following points: • No special measures such as supports are necessary. External forces are absorbed by the construction of the instrument, for example the secondary containment. • The high oscillation frequency of the measuring tubes ensures that the correct operation of the measuring system is not influenced by pipe vibrations.
  • Page 15 Proline Promass 84 Installation Installation in a vertical pipe The proposed configuration in the following diagram, however, permits installation in a vertical pipeline. Pipe restrictors or the use of an orifice plate with a smaller cross-section than the nominal diameter prevent the sensor from running empty during measurement.
  • Page 16 Installation Proline Promass 84 3.2.3 Orientation Make sure that the direction of the arrow on the nameplate of the sensor matches the direction of flow direction in which the fluid flows through the pipe. Orientation Promass A Vertical Recommended orientation with direction of flow upwards. When fluid is not flowing, entrained solids will sink down and gases will rise away from the measuring tube.
  • Page 17 Proline Promass 84 Installation Orientation Promass F, O, X Make sure that the direction of the arrow on the nameplate of the sensor matches the direction of flow (direction in which the fluid flows through the pipe). Vertical: Recommended orientation with upward direction of flow (Fig. V). When fluid is not flowing, entrained solids will sink down and gases will rise away from the measuring tube.
  • Page 18 100 K. Suitable measures, such as heating or thermal insulation, are to be taken. Special heating jackets which can be ordered as accessories from Endress+Hauser are available for the sensors. Endress+Hauser...
  • Page 19 Proline Promass 84 Installation 3.2.6 Thermal insulation Some fluids require suitable measures to avoid loss of heat at the sensor. A wide range of materials can be used to provide the required thermal insulation. a0004614 Fig. 11: In the case of the Promass F high-temperature version, a maximum insulation thickness of 60 mm (2.4") must be observed in the area of the electronics/neck.

  • Page 20: Installation

    Installation Proline Promass 84 Installation 3.3.1 Turning the transmitter housing Turning the aluminum field housing Warning! The turning mechanism in devices with Ex d/de or FM/CSA Cl. I Div. 1 classification is not the same as that described here. The procedure for turning these housings is described in the Ex-specific documentation.
  • Page 21 Proline Promass 84 Installation Turning the stainless steel field housing Loosen the two securing screws. Carefully lift the transmitter housing as far as it will go. Turn the transmitter housing to the desired position (max. 2 × 90° in either direction).
  • Page 22 Installation Proline Promass 84 3.3.2 Installing the wall-mount housing There are various ways of installing the wall-mount housing: • Mounted directly on the wall • Installation in control panel (separate mounting set, accessories) ä 23 • Pipe mounting (separate mounting set, accessories) ä 23 "...
  • Page 23 Proline Promass 84 Installation Installation in control panel Prepare the opening in the panel as illustrated in the diagram. Slide the housing into the opening in the panel from the front. Screw the fasteners onto the wall-mount housing. Screw threaded rods into holders and tighten until the housing is solidly seated on the panel wall.

  • Page 24: Post-Installation Check

    Installation Proline Promass 84 3.3.3 Turning the local display Unscrew cover of the electronics compartment from the transmitter housing. Press the side latches on the display module and remove the module from the electronics compartment cover plate. Rotate the display to the desired position (max. 4 × 45 ° in both directions), and reset it onto the electronics compartment cover plate.

  • Page 25: Wiring

    Wiring Warning! When connecting Ex-certified devices, see the notes and diagrams in the Ex-specific supplement to these Operating Instructions. Please do not hesitate to contact your Endress+Hauser sales office if you have any questions. Note! The measuring instrument does not have an internal disconnecting device. Therefore, assign a switch or circuit breaker to the measuring instrument with which the voltage supply line can be disconnected from the power system.

  • Page 26: Connecting The Measuring Unit

    Wiring Proline Promass 84 4.1.2 Cable specification, connecting cable The specifications of the cable connecting the transmitter and the sensor of the remote version are as follows:  • 6 × 0.38 mm PVC cable with common shield and individually shielded cores •...
  • Page 27 Proline Promass 84 Wiring – 27 + 26 – 25 + 24 – 23 + 22 – 21 + 20 N (L-) L1 (L+) a0004584  Fig. 21: Connecting the transmitter (stainless steel field housing); cable cross-section: max. 2.5 mm Cable for power supply: 85 to 260 V AC, 20 to 55 V AC, 16 to 62 V DC Terminal No.
  • Page 28 Wiring Proline Promass 84 4.2.2 Terminal assignment Electrical values for: • Inputs ä 93 • Outputs ä 94 Order characteristic Terminal No. (inputs/outputs) for "inputs/outputs" 20 (+) / 21 (-) 22 (+) / 23 (-) 24 (+) / 25 (-)

  • Page 29: Degree Of Protection

    • Remove all unused cable entries and insert plugs instead. • Do not remove the grommet from the cable entry. " Caution! Do not loosen the screws of the sensor housing, as otherwise the degree of protection guaranteed by Endress+Hauser no longer applies. Endress+Hauser...

  • Page 30: Post-Connection Check

    Wiring Proline Promass 84 Post-connection check Perform the following checks after completing electrical installation of the measuring device: Device condition and specifications Notes Are cables or the device damaged (visual inspection)? Electrical connection Notes Does the supply voltage match the specifications on the nameplate?

  • Page 31: Operation

    Proline Promass 84 Operation Operation Display and operating elements The local display enables you to read all important parameters directly at the measuring point and configure the measuring instrument using the "Quick Setup" or the function matrix. The display consists of four lines; this is where measured values and/or status variables (direction of flow, empty pipe, bar graph, etc.) are displayed.
  • Page 32 Operation Proline Promass 84 5.1.1 Readings displayed (operation mode) The display area consists of three lines in all; this is where measured values are displayed, and/or status variables (direction of flow, bar graph, etc.). You can change the assignment of display lines to different variables to suit your needs and preferences (...
  • Page 33 Proline Promass 84 Operation 5.1.3 Icons The icons which appear in the field on the left make it easier to read and recognize measured variables, device status, and error messages. Icon Meaning Icon Meaning System error Process error Fault message...

  • Page 34: Brief Operating Instructions To The Function Matrix

    Operation Proline Promass 84 Brief operating instructions to the function matrix Note! • See the general notes ä 35 • Function descriptions  see the "Description of Device Functions" manual HOME position  F  Entry into the function matrix Select a block (e.g.

  • Page 35: General Notes

    • If programming is disabled and the P operating elements are pressed in any function, a prompt for the code automatically appears on the display. • If "0" is entered as the customer's code, programming is always enabled! • Your Endress+Hauser representative can be of assistance if you mislay your personal code. " Caution! Changing certain parameters such as all sensor characteristics, for example, influences numerous functions of the entire measuring system, particularly measuring accuracy.

  • Page 36: Error Messages

    Operation Proline Promass 84 Error messages 5.3.1 Type of error Errors that occur during commissioning or measuring are displayed immediately. If two or more system or process errors occur, the error with the highest priority is the one shown on the display.

  • Page 37: Communication

    Proline Promass 84 Operation 5.3.3 Confirming error messages For the sake of plant and process safety, the measuring device can be configured in such a way that fault messages displayed ( $ ) always have to be rectified and acknowledged locally by pressing F .
  • Page 38 Operating program "FieldCare" FieldCare is Endress+Hauser’s FDT-based plant asset management tool and allows the configuration and diagnosis of intelligent field devices. By using status information, you also have a simple but effective tool for monitoring devices. The Proline flowmeters are accessed via a HART interface FXA195 or via the service interface FXA193.
  • Page 39 Field Xpert handheld terminal • Use update function of handheld terminal • www.endress.com  Download-Area FieldCare / DTM • CD–ROM (Endress+Hauser order number 56004088) • DVD (Endress+Hauser order number 70100690) • www.endress.com  Download-Area • www.endress.com  Download-Area SIMATIC PDM...

  • Page 40: Device Id

    It cannot be changed. The response consists of a 12-byte device ID: – Byte 0: Fixed value 254 – Byte 1: Manufacturer ID, 17 = Endress+Hauser – Byte 2: Device type ID, e.g. 82 = Promass 84 – Byte 3: Number of preambles –...

  • Page 41: Endress+Hauser

    Access type = read agrees with the one saved in the measuring instrument: – Byte 0: Fixed value 254 – Byte 1: Manufacturer ID, 17 = Endress+Hauser – Byte 2: Device type ID, 82 = Promass 84 – Byte 3: Number of preambles –...
  • Page 42 – Bytes 7-10: Start of measuring range, value for 4 mA – Bytes 11-14: Attenuation constant in [s] – Byte 15: Write protection ID – Byte 16: OEM manufacturer ID, 17 = Endress+Hauser Factory setting: Primary process variable = Mass flow Note! •...
  • Page 43 Proline Promass 84 Operation The following table contains all the common practice commands supported by the device. Command No. Command data Response data HART command / Access type (numeric data in decimal form) (numeric data in decimal form) Common Practice Commands...

  • Page 44: Device Variable

    Operation Proline Promass 84 Command No. Command data Response data HART command / Access type (numeric data in decimal form) (numeric data in decimal form) Read additional device status none The device status is displayed in extended form as the response: Coding: see table ä...
  • Page 45 Proline Promass 84 Operation 5.4.5 Device status / Error messages You can read the extended device status, in this case, current error messages, via Command "48". The command delivers information which are partly coded in bits (see table below). Note! Detailed explanation of the measuring instrument status and error messages and their elimination ä...
  • Page 46 Operation Proline Promass 84 Short error description ä 74 Byte-bit Error No. Current output: The actual value for the flow lies outside the set limits. Frequency output: The actual value for the flow lies outside the set limits. Pulse output: Pulse output frequency is out of range.
  • Page 47 Proline Promass 84 Operation Short error description ä 74 Byte-bit Error No. 14-7 15-0 Simulation current output active 15-1 15-2 15-3 15-4 Simulation frequency output active 15-5 15-6 15-7 16-0 Simulation pulse output active 16-1 16-2 16-3 16-4 Simulation status output active...

  • Page 48: Off (Unassigned)

    Operation Proline Promass 84 5.4.6 Switching HART write protection on and off A jumper on the I/O board provides the means of switching HART write protection on or off. Warning! Risk of electric shock. Exposed components carry dangerous voltages. Make sure that the power supply is switched off before you remove the cover of the electronics compartment.

  • Page 49: Commissioning

    Proline Promass 84 Commissioning Commissioning Function check Make sure that the following function checks have been performed successfully before switching on the supply voltage for the measuring device: • Checklist for "Post-installation check" ä 24 • Checklist for "Post-connection check" ä 30...

  • Page 50: Mass Flow

    Commissioning Proline Promass 84 6.3.1 Quick Setup "Commissioning" Quick 1002 XXX.XXX.XX Setup Commission 2000 Language HOME POSITION Pre-setting Selection pre-settings Deliver Settings Actual Settings Selection system units Density Temperature Mass flow Volume flow Corr. Vol. flow Quit 0400 0402 0404...
  • Page 51 Proline Promass 84 Commissioning Note! • The display returns to the cell SETUP COMMISSIONING (1002) if you press the key combination during parameter interrogation The stored parameters remain valid. • The "Commissioning" Quick Setup must be carried out before one of the Quick Setups explained below is run.
  • Page 52 Commissioning Proline Promass 84 6.3.2 Quick Setup "Pulsating Flow" Certain types of pump such as reciprocating, peristaltic and cam-type pumps, for example, create a flow characterized by severe periodic fluctuations . Negative flows can occur with pumps of these types on account of the closing volume of the valves or valve leaks.
  • Page 53 Proline Promass 84 Commissioning Performing the "Pulsating flow" Quick Setup This Quick Setup menu guides you systematically through the setup procedure for all the device functions that have to be parameterized and configured for measuring pulsating flows. Note that this has no effect on values configured beforehand, such as measuring range, current range or full scale value.
  • Page 54 Commissioning Proline Promass 84 Recommended settings Quick Setup "Pulsating flow" HOME position   MEASURED VARIABLE (A) MEASURED VARIABLE   QUICK SETUP (B) QUICK SETUP   QS PULS. FLOW (1003) Function No. Function name Selection with ( 1003 QS PULS.
  • Page 55 Proline Promass 84 Commissioning 6.3.3 Quick Setup "Gas measurement" The measuring device is not only suitable for measuring liquid flow. Direct mass measurement based on the Coriolis principle is also possible for measuring the flow rate of gases. Note! • Before carrying out the Quick Setup "Gas measurement", the Quick Setup "Commissioning" has to be executed ä...
  • Page 56 Commissioning Proline Promass 84 Quick Setup "Gas measurement" HOME position   MEASURED VARIABLE (A) MEASURED VARIABLE   QUICK SETUP (B) QUICK SETUP   QS-GAS MEASUREMENT (1004) Function No. Function name Setting to be selected ( (to next function with...
  • Page 57 Proline Promass 84 Commissioning 6.3.4 Data back-up/transfer You can use the T-DAT SAVE/LOAD function to transfer data (device parameters and settings) between the T-DAT (removable memory) and the EEPROM (device memory). This is required for the following applications: • Creating a backup: current data are transmitted from an EEPROM to the T-DAT.

  • Page 58: Configuration

    Commissioning Proline Promass 84 Configuration Warning! In the case of explosion-protected equipment, observe a cooling or discharge time of 10 minutes before opening the device. 6.4.1 Current output: active/passive The current outputs are configured as "active" or "passive" by means of various jumpers on the I/O board or the current submodule.
  • Page 59 Proline Promass 84 Commissioning 6.4.2 Pulse/frequency outputs 1 and 2 The configuration of the pulse/frequency output with line monitoring "On" or "Off" takes place by means of various jumpers on the pulse/frequency output submodule. Warning! Risk of electric shock. Exposed components carry dangerous voltages. Make sure that the power supply is switched off before you remove the cover of the electronics compartment.
  • Page 60 Commissioning Proline Promass 84 6.4.3 Relay contacts: Normally closed/Normally open The relay contact can be configured as normally open (NO or make) or normally closed (NC or break) contacts by means of two jumpers on the I/O board or on the pluggable submodule. This configuration can be called up at any time with the ACTUAL STATUS RELAY function.

  • Page 61: Adjustment

    • If the fluid is very difficult to measure (e.g. containing entrained solids or gas) it may prove impossible to obtain a stable zero point despite repeated zero point adjustments. In instances of this nature, please contact your Endress+Hauser representative. • You can view the currently valid zero point value using the "ZEROPOINT" function (see the "Description of Device Functions"...
  • Page 62 Commissioning Proline Promass 84 Performing a zero point adjustment Let the system run until operating conditions have been reached. Stop the flow (v = 0 m/s). Check the shutoff valves for leaks. Check that operating pressure is correct. Perform a zero point adjustment as follows:...
  • Page 63 Proline Promass 84 Commissioning 6.5.2 Density adjustment It is advisable to perform a density adjustment when optimum measuring accuracy is required for calculating density dependent values. The application may require a 1-point or 2-point density adjustment. 1-point density adjustment (with one fluid): This type of density adjustment is necessary under the following circumstances: •...

  • Page 64: Rupture Disk

    Commissioning Proline Promass 84 Function Function name Setting to be selected ( (to next function with 6484 MEASURE FLUID 1 to select START and press The message "DENSITY MEASUREMENT RUNNING" appears on the display for approximately 10 seconds. During this time Promass measures the current density of the first fluid (measured density value).

  • Page 65: Purge And Pressure Monitoring Connections

    • Use only low gauge pressure to purge. Maximum pressure 5 bar (72.51 psi). Memory (HistoROM) At Endress+Hauser, the term HistoROM refers to various types of data storage modules on which process and measuring device data are stored. By unplugging and plugging such modules, device configurations can be duplicated onto other measuring devices, to cite just one example.

  • Page 66: Custody Transfer Measurement

    Custody transfer measurement Proline Promass 84 Custody transfer measurement Promass 84 is a flowmeter suitable for custody transfer measurement for liquids (other than water) and for gases. Suitability for custody transfer, metrological control, obligation to subsequent verification All Promass 84 flowmeters are verified on site using reference measurements.

  • Page 67: Definition Of Terms

    (repairers) the authority to mark repaired devices (repairer mark) if they have the equipment necessary for repair and adjustment and have properly trained specialist staff. Endress+Hauser is authorized to carry out repair work on verified measuring devices. Adjust Adjustment on site (zero point, density) under operating conditions.

  • Page 68: Verification Process

    For installation and commioning of the metrological gas meter read the document "Commissioning Instructions for PTB gas approval" (SD00128). The document can be obtained from your Endress+Hauser representative. Please do not hesitate to contact your Endress+Hauser representative if you have any questions. 7.3.1 Setting up custody transfer mode The measuring instrument has to be operational and not set to custody transfer mode.
  • Page 69 Proline Promass 84 Custody transfer measurement a0001778 Fig. 40: Examples of how to seal the various device versions. Endress+Hauser...
  • Page 70 Custody transfer measurement Proline Promass 84 7.3.2 Disabling custody transfer mode The measuring instrument has to be operational and already set to custody transfer mode. Disconnect the device from the operating voltage. Remove the custody transfer seals. Warning! In the case of explosion-protected equipment, observe a cooling or discharge time of 10 minutes before opening the device.

  • Page 71: Maintenance

    Proline Promass 84 Maintenance Maintenance No special maintenance work is required. External cleaning When cleaning the exterior of measuring devices, always use cleaning agents that do not attack the surface of the housing and the seals. Replacing seals Under normal circumstances, fluid wetted seals of the Promass A sensors do not require replacement.

  • Page 72: Accessories

    Accessories Proline Promass 84 Accessories Various accessories, which can be ordered separately from Endress+Hauser, are available for the transmitter and the sensor. Detailed information on the order code in question can be obtained from your Endress+Hauser representative. Measuring principle-specific accessories...

  • Page 73: Service-Specific Accessories

    Power is supplied to the Commubox via the USB port. Service-specific accessories Accessory Description Order code Applicator Software for selecting and sizing Endress+Hauser measuring DXA80 – * devices: • Calculation of all the necessary data for identifying the optimum flowmeter: e.g. nominal diameter, pressure loss, accuracy or process connections •...

  • Page 74: Troubleshooting

    Troubleshooting Proline Promass 84 Troubleshooting 10.1 Troubleshooting instructions Always start troubleshooting with the following checklist if faults occur after commissioning or during operation. The routine takes you directly to the cause of the problem and the appropriate remedial measures. Check the display 1.

  • Page 75: System Error Messages

    Caution! In the event of a serious fault, a flowmeter might have to be returned to the manufacturer for repair. Important procedures must be carried out before you return a flowmeter to Endress+Hauser ä 5. Always enclose a duly completed "Declaration of contamination" form. You will find a preprinted blank of this form at the back of this manual.
  • Page 76 Troubleshooting Proline Promass 84 Error message / Type Cause Remedy / spare part 042 S: TRANSM. SW DAT Sensor DAT: 1. Check whether the T-DAT is correctly plugged into the amplifier board ä 83 bzw. ä 85 : # 042 Error accessing the calibration values stored in the S- DAT.
  • Page 77 Proline Promass 84 Troubleshooting Error message / Type Cause Remedy / spare part S: CURRENT RANGE n Current output: 1. Change the upper or lower limit setting, as applicable. : # 351 to 354 The actual value for the flow lies outside the set limits.
  • Page 78 Troubleshooting Proline Promass 84 Error message / Type Cause Remedy / spare part No. # 5xx  Application error S: SW.-UPDATE ACT. New amplifier or communication (I/O module) software Wait until process is finished. !: # 501 version is loaded. Currently no other functions are The device will restart automatically.

  • Page 79: Process Error Messages

    Proline Promass 84 Troubleshooting 10.3 Process error messages Process errors can be defined as either "Fault" or "Notice" messages and can thereby be weighted differently. This is specified via the function matrix ( "Description of Device Functions" manual). Note! • The listed error message types below correspond to the factory setting.

  • Page 80: Process Errors Without Messages

    Return the devices to Endress+Hauser Procedures must be carried out before you return a flowmeter to Endress+Hauser for repair or calibration ä 5. Always enclose a duly completed "Declaration of contamination" form with the flowmeter. You will find a master copy of the Dangerous Goods Sheet at the back of these Operating Instructions.

  • Page 81: Response Of Outputs To Errors

    Proline Promass 84 Troubleshooting 10.5 Response of outputs to errors Note! The failsafe mode of totalizers, current, pulse and frequency outputs can be customized by means of various functions in the function matrix. You will find detailed information on these procedures in the "Description of Device Functions"...

  • Page 82: Spare Parts

    Note! You can order spare parts directly from your Endress+Hauser representative by providing the serial number printed on the transmitter's nameplate ä 6. Spare parts are shipped as sets comprising the following parts: •...
  • Page 83 Adapter Cableg steps, then an appropriate inspection must be carried out in accordance with the manufacturer’s specifications. " Caution! Use only original Endress+Hauser parts. å 42, installation and removal: Unscrew cover of the electronics compartment from the transmitter housing. Remove the local display (1) as follows: –...
  • Page 84 Troubleshooting Proline Promass 84 a0006364 Fig. 42: Field housing: removing and installing printed circuit boards Local display Latch Ribbon cable (display module) Screws of electronics compartment cover Aperture for installing/removing boards Power unit board Amplifier board Signal cable (sensor) Excitation current cable (sensor)
  • Page 85 " Caution! Use only original Endress+Hauser parts. å 43, installation and removal: Loosen the screws and open the hinged cover (1) of the housing. Remove the screws securing the electronics module (2). Then push up electronics module and pull it as far as possible out of the wall-mount housing.
  • Page 86 Troubleshooting Proline Promass 84 a0006365 Fig. 43: Wall-mount housing: removing and installing printed circuit boards Housing cover Electronics module Ribbon cable (display module) Screws of electronics compartment cover Aperture for installing/removing boards Power unit board Amplifier board Signal cable (sensor)
  • Page 87 – Power supply 85 to 260 V AC  0.8 A slow-blow / 250 V; 5.2 × 20 mm – Ex-rated devices  see the Ex documentation Installation is the reverse of the removal procedure. " Caution! Use only original Endress+Hauser parts. a0001148 Fig. 44: Replacing the device fuse on the power unit board Protective cap...

  • Page 88: Return

    Costs incurred for waste disposal and injury (burns, etc.) due to inadequate cleaning will be charged to the owner-operator. The following steps must be taken before returning a flow measuring device to Endress+Hauser, e.g. for repair or calibration: • Always enclose a duly completed "Declaration of contamination" form. Only then can Endress+Hauser transport, examine and repair a returned device.

  • Page 89: Technical Data

    Proline Promass 84 Technical data Technical data 11.1 Technical data at a glance 11.1.1 Applications ä 4 11.1.2 Function and system design Measuring principle Mass flow measurement by the Coriolis principle ä 6 Measuring system 11.1.3 Input Measured variable • Mass flow (proportional to the phase difference between two sensors mounted on the measuring tube to register a phase shift in the oscillation) •...
  • Page 90 Technical data Proline Promass 84 Measuring ranges for gases, general The full scale values depend on the density of the gas. Use the formula below to calculate the full scale values:     : x [kg/m (lb/ft max(G) max(F) = Max.
  • Page 91 Proline Promass 84 Technical data Measuring range in custody The following are example data for German PTB approval (liquids other than water) transfer mode PTP approval Measuring ranges for liquids in mass flow (Promass F) Mass flow (liquids) Q to Q...
  • Page 92 Technical data Proline Promass 84 Measuring range in custody The following are example data for MI-005 Evaluation Certificate (liquids other than water) transfer mode  MI-005 Evaluation Certificate Measuring ranges for liquids in mass flow (Promass F) Mass flow (liquids) Q...
  • Page 93 Proline Promass 84 Technical data Measuring ranges for liquids in volume flow (Promass F): Volume flow (liquids) Q to Q Smallest measured quantity [mm] [inch] [l/min] [gal/hr] [gal] 1.5 to 30 23.76 to 475.20 0.528 5 to 100 79.20 to 1584.0 0.528...
  • Page 94 Technical data Proline Promass 84 11.1.4 Output Output signal Current output Active/passive selectable, galvanically isolated, time constant selectable (0.05 to 100 s),  full scale value selectable, temperature coefficient: typically 0.005% o.f.s. / °C, resolution: 0.5 A < 700  (for HART: R ...

  • Page 95: Power Supply

    Proline Promass 84 Technical data Galvanic isolation All circuits for inputs, outputs, and power supply are galvanically isolated from each other. 11.1.5 Power supply ä 25 Electrical connections Supply voltage 85 to 260 V AC, 45 to 65 Hz 20 to 55 V AC, 45 to 65 Hz...
  • Page 96 Technical data Proline Promass 84 11.1.6 Performance characteristics Reference operating • Error limits following ISO/DIN 11631 conditions • Water, typically +15 to +45 °C (+59 to +113 °F); 2 to 6 bar (29 to 87 psi) • Data according to calibration protocol ±5 °C (±9 °F) and ±2 bar (±29 psi) •...
  • Page 97 Proline Promass 84 Technical data Flow values (example) Turn down Flow Max. measured error [kg/h] [lb/min.] [% o.r.] 250:1 0.0147 1.250 100:1 0.0368 0.500 25:1 0.1470 0.125 10:1 0.3675 0.100 1.8375 0.100 Design fundamentals ä 97 Repeatability Design fundamentals ä 97 •...

  • Page 98: Design Fundamentals Ä 100

    Technical data Proline Promass 84 Performance characteristic o.r. = of reading; 1 g/cm = 1 kg/l; T = medium temperature Promass F Maximum measured error The following values refer to the pulse/frequency output. The additional measured error at the current output is typically ±5 μA.

  • Page 99: Design Fundamentals Ä 100

    Proline Promass 84 Technical data Example for max. measured error ±1.0 ±0.5 ±0.2 18 t/h a0004604 Fig. 46: Max. measured error in % o.r. (example: Promass F, DN 25) Flow values (example) Turn down Flow Maximum measured error [kg/h] [lb/min] [% o.r.]...

  • Page 100: Influence Of Medium Pressure

    Technical data Proline Promass 84 Influence of medium pressure The table below shows the effect on accuracy of mass flow due to a difference between calibration pressure and process pressure. Promass F (standard) Promass F (high-temperature version) [mm] [inch] [% o.r./bar] [% o.r./bar]...
  • Page 101 Proline Promass 84 Technical data Performance characteristic o.r. = of reading; 1 g/cm = 1 kg/l; T = medium temperature Promass O Maximum measured error The following values refer to the pulse/frequency output. The additional measured error at the current output is typically ±5 μA.
  • Page 102 Technical data Proline Promass 84 Flow values (example DN 80) Turn down Flow Maximum measured error [kg/h] [lb/min] [% o.r.] 500 : 1 13.23 100 : 1 1800 66.15 25 : 1 7200 264.6 10 : 1 18000 661.5 2 : 1 90000 3307.5...

  • Page 103: Mass Flow Gases

    Proline Promass 84 Technical data Performance characteristic o.r. = of reading; 1 g/cm = 1 kg/l; T = medium temperature Promass X Maximum measured error The following values refer to the pulse/frequency output. The additional measured error at the current output is typically ±5 μA.
  • Page 104 Technical data Proline Promass 84 Flow values (example) Turn down Flow Maximum measured error [kg/h] [lb/min] [% o.r.] 500 : 1 8200 1.323 100 : 1 41 000 6.615 23 : 1 175000 28.23 10 : 1 410 000 66.15...
  • Page 105 Proline Promass 84 Technical data 11.1.7 Operating conditions: Installation ä 14 Installation instructions Inlet and outlet runs There are no installation requirements regarding inlet and outlet runs. Connection cable length, max. 20 meters (max. 65 feet) remote version ä 15 System pressure 11.1.8...
  • Page 106 Technical data Proline Promass 84 11.1.9 Operating conditions: Process Medium temperature range Sensor • Promass F, A: –50 to +200 °C (–58 to +392 °F) • Promass F (high temperature version): –50 to +350 °C (–58 to +662 °F) • Promass O: –40 to +200 °C (–40 to +392 °F) •...
  • Page 107 Proline Promass 84 Technical data Pressure loss (SI units) Pressure loss depends on the properties of the fluid and on its flow. The following formulas can be used to approximately calculate the pressure loss: Pressure loss formulas for Promass F 2 ·...
  • Page 108 Technical data Proline Promass 84 Pressure loss coefficient for Promass F d[m] 5.35  10 5.70  10 9.60 10 1.90  10 –3 8.30  10 5.80  10 1.90  10 10.60  10 –3 12.00  10 1.90 ...
  • Page 109 Proline Promass 84 Technical data Pressure loss coefficient for Promass A d[m] 1.8  10 1.6  10 2.4  10 –3 3.5  10 9.4  10 2.3  10 –3 High pressure version 1.4  10 5.4  10 6.6 ...
  • Page 110 Pressure loss diagram for water Pressure loss (US units) Pressure loss is dependent on the fluid properties and nominal diameter. Consult Endress+Hauser for Applicator PC software to determine pressure loss in US units. All important instrument data is contained in the Applicator software program in order to optimize the design of the measuring system.
  • Page 111 Proline Promass 84 Technical data 11.1.10 Mechanical construction Design / dimensions The dimensions and lengths of the sensor and transmitter are provided in the separate "Technical Information" document on the measuring instrument in question. This can be downloaded as a PDF file from www.endress.com.
  • Page 112 Technical data Proline Promass 84 Promass O / DN 3" 4" 6" Compact version Remote version with Cl 900 flanges according to ASME B16.5 Promass X / DN 14" Compact version 1224 Remote version 1219 with 12" according to ASME B16.5 Cl 150 flanges...
  • Page 113 Proline Promass 84 Technical data Process connections Process connections, Promass F Material Flanges according to EN 1092-1 (DIN 2501)/  Alloy C-22 2.4602/N 06022, stainless steel 1.4404/316L according to ASME B16.5/JIS 2220 DIN 11864–2 Form A (flat flange with groove) Stainless steel 1.4404/316L...
  • Page 114 Ex approval Information about currently available Ex versions (ATEX, FM, CSA, IECEx, NEPSI) can be supplied by your Endress+Hauser Sales Center on request. All explosion protection data are given in a separate documentation which is also available upon request. Endress+Hauser...
  • Page 115 Proline Promass 84 Technical data Suitability for custody transfer MID approval, Annex MI-002 (gas meter) measurement The device is qualified to OIML R137/D11. Promass OIML R137/MID Evaluation Certificate (Europe) [mm] [inch] Mass Volume Density 8 to 250 3/8 to 10...
  • Page 116 PED is required, this must be ordered explicitly. For devices with nominal diameters less than or equal to DN 25 (1"), this is neither possible nor necessary. • With the identification PED/G1/III on the sensor nameplate, Endress+Hauser confirms conformity with the "Basic safety requirements" of Appendix I of the Pressure Equipment Directive 97/23/EC.

  • Page 117: Ordering Information

    Your Endress +Hauser representative can provide detailed ordering information and information on the order codes on request. 11.1.14 Accessories Various accessories, which can be ordered separately from Endress+Hauser, are available for the transmitter and the sensor ä 72. Note! Your Endress+Hauser representative can provide detailed information on the order codes of your choice.

  • Page 118: Index

    Proline Promass 84 Index Index Documentation....... . 117 Accessories........72 Ambient class .
  • Page 119 Proline Promass 84 Index Vibrations ........19 Power consumption.
  • Page 120 Proline Promass 84 Index Supplementary Ex documentation ....5 Supply voltage (power supply) ..... . 95 System error Definition .
  • Page 121 Erklärung zur Kontamination und Reinigung Please reference the Return Authorization Number (RA#), obtained from Endress+Hauser, on all paperwork and mark the RA# clearly on the outside of the box. If this procedure is not followed, it may result in the refusal of the package at our facility.
