3. Hardware Installations

Adapter connector for 10/100 LAN: CN7

This connector is for the LAN adapter that has LED indicate the 10/100Mbps transfer rate / Link / Act
status of Ethernet capability of this product. The follow table shows the pin assignments of this
connector.

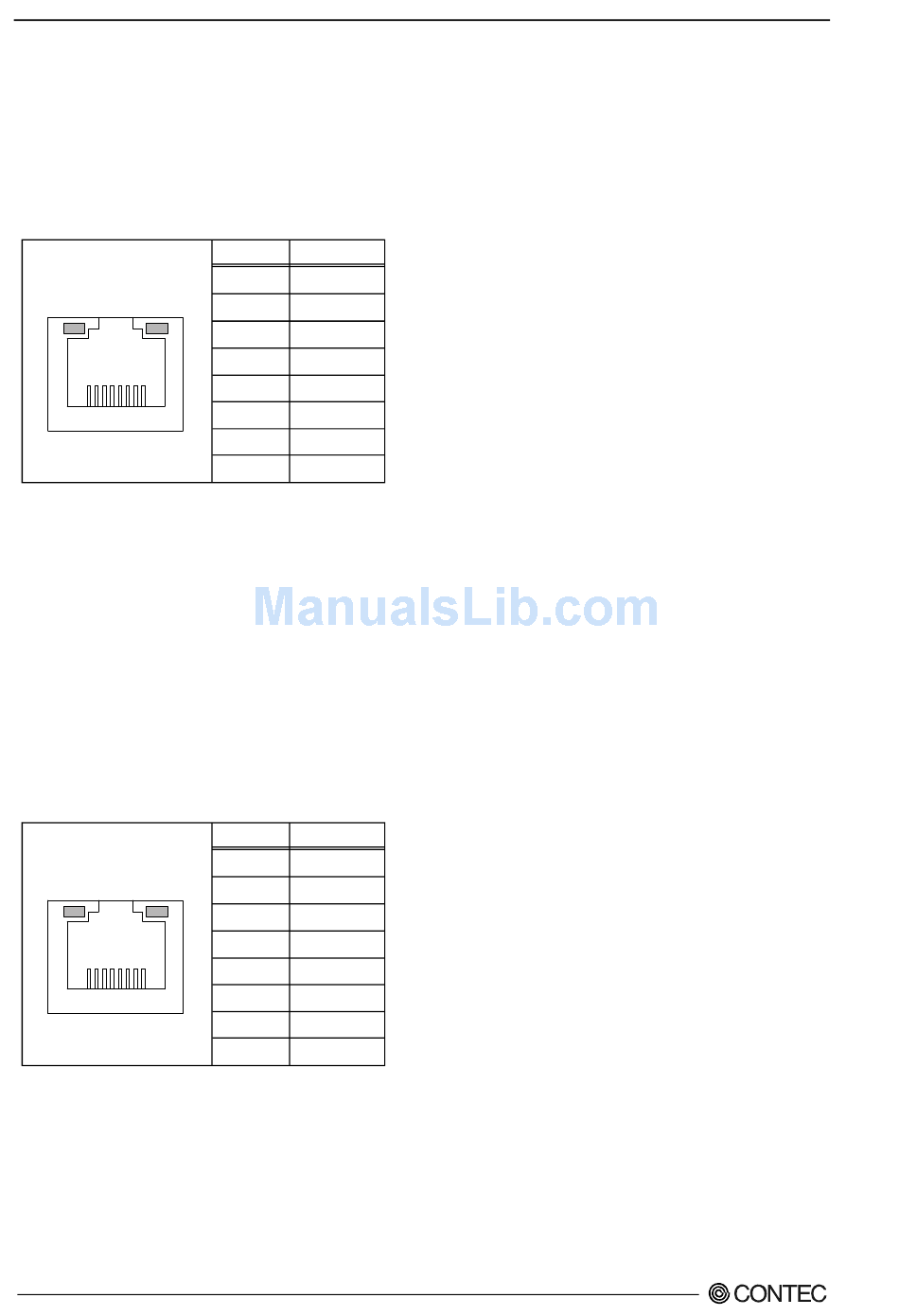

Table 3.5. 10/100 LAN
CN7
Transmit Link
LED LED
8 1
Right LED: Link LED
Link: Green, Active: Blink
Left LED: Transmit LED
10M: Off, 100M: Yellow

Adapter connector for GIGA LAN: CN8

This connector is for the GIGA LAN adapter that 10/100/1000 Base-TX RJ45 single port (1X1) tab-UP
with LEDs integrated magnetics connector. The follow table shows the pin assignments of this
connector.
Table 3.6. GIGA LAN
CN8
Transmit
Link
LED
LED
8 1
Right LED: Link LED
Link: Green, Active: Blink
Left LED: Transmit LED
10M: Off, 100M: Green, 1000M: Orange
18
Pin No. Function
1 Tx+
2 Tx-
3 Rx+
4 N.C.
5 N.C.
6 Rx-
7 N.C.
8 N.C.
Pin No. Function
1 Tx+
2 Tx-
3 Rx+
4 N.C.
5 N.C.
6 Rx-
7 N.C.
8 N.C.
SPI-8550-LLVAS
