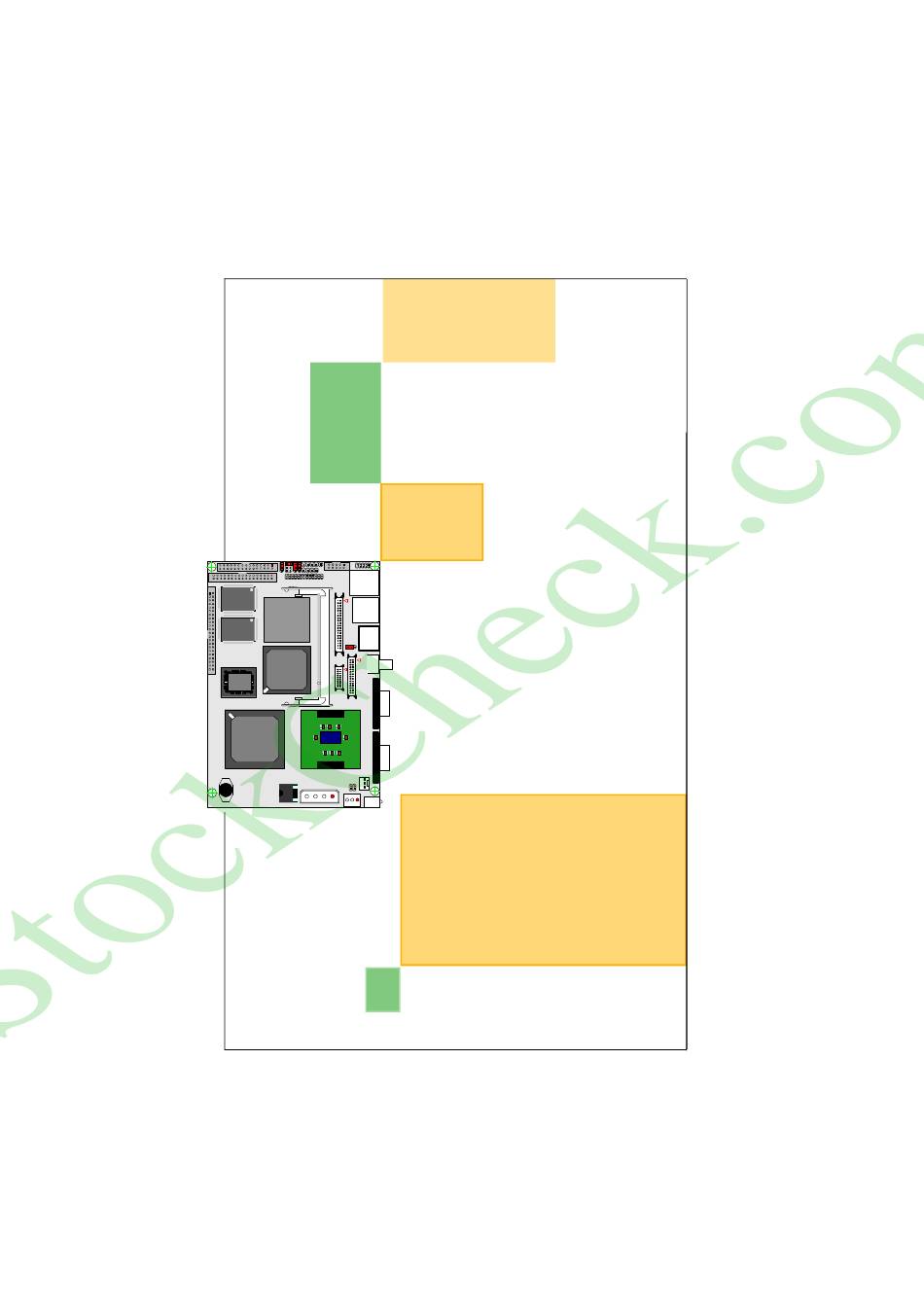

- Page 1 EmCORE-i612VLS/C400 User's Manual Intel 7214A692 SL66D RJ80530KZ800512 intel intel 815 Intel '01 3.5" Intel Ultra-low Voltage Celeron or Low Voltage PIII Embeded Single Board Computer with CRT/ LCD, 4 serial ports , single Intel 82562ET Fast Ethernet, AC97 3D Audio, Mini space PCI , Compact...
- Page 2 INo part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD. CONTEC CO., LTD. makes no commitment to update or keep current the information contained in this document. The information in this document is subject to change without notice.
-
Page 3: Table Of Contents
Compact Flash Disk ..............15 LVDS Panel Voltage Selection ..........16 CDIN Connector ................ 16 Flat Panel Configuration ............17 Audio Interface ................. 18 Flat Panel VGA ................. 19 USB Connector ................. 20 Infrared (IR) ................21 EmCORE-i612VLS/C400 User's Manual... - Page 4 Standard CMOS Setup ..................35 BIOS Features Setup ................... 37 Chipset Features Setup ..................40 Integrated Peripherals ..................43 Power Management Setup .................. 46 PnP/PCI Configuration ..................48 PC Health Status ....................50 Frequency/Voltage Control ................. 51 POST Codes ................52 EmCORE-i612VLS/C400 User's Manual...
-
Page 5: Specifications
N o n e Weight 175 g Windows XP Professional Operating System Support Windows 2000 Professional * 1 Capable of two screen display with one of the combination, analog RGB & LVDS and analog RGB & LCD. EmCORE-i612VLS/C400 User's Manual... -
Page 6: Board Layout Fornt Side
Board Layout Fornt Side JRS2 JBAT1 CDIN1 COM2_4 USB2 AUDIO1 USB1 FDD1 LPT1 LCD1 LAN1 IDE1 KBM1 JVLCD1 Intel TV1/ RES1 LVDS1 MPCI1 7214A692 SL66D RJ80530KZ800512 VGA1 intel intel 815 Intel '01 COM1 RES2 CPUF1 PSON PWR1 EATX1 LED1 EmCORE-i612VLS/C400 User's Manual... -
Page 7: Board Layout Rear Side
Board Layout Rear Side COM1 SODIM1 VGA1 JTLCD1 TV1/ RES1 intel 815 CFD1 EmCORE-i612VLS/C400 User's Manual... -
Page 8: Board Dimension
Board Dimension AUDIO1 SODIM1 Unit: mm EmCORE-i612VLS/C400 User's Manual... -
Page 9: Jumper/Connector Quick Reference
Jumper/Connector Quick Reference Jumpers Label Function JBAT1 Clear CMOS JRS2 COM2 RS-232C / 422A / 485 Selection JV3~4 COM2 Power Source Special Support JVLCD1 LVDS Voltage selection EmCORE-i612VLS/C400 User's Manual... -
Page 10: Jumper/Connector Quick Reference
Reset push button(same position as TV1, EmCORE-i612VLS including) RES2 Reset Connector Infrared (IR) Connector SODIMM1 SDRAM Socket 1/2 144-pin (rear side) JTLCD1 LCD Panel Type Selection TV-OUT Connector USB1 USB Port 0,1 USB2 USB Port 2,3 VGA1 CRT SVGA Connector EmCORE-i612VLS/C400 User's Manual... -
Page 11: Cmos Jumper Settings
CMOS Jumper Settings CMOS Operation (JBAT1) Type : JBAT1: onboard 3-pin header If the EmCORE-i612VLS/C400 refuses to boot due to inappropriate CMOS settings here is how to proceed to clear (reset) the CMOS to its default values. CMOS Setup (JBAT1) -
Page 12: Serial Port Selection (Rs232C/422A/485)
485 modes. RS-422A modes differ in the way RX/TX is being handled. Jumper JRS2 switches between RS-232C or RS-422A/485 mode. All of the RS-232C/422A/485 modes are available on COM2. COM2 Pin: RS-232C RS-422A RS-485 data+ data- JRS2: 3-4 COM2 - 4 JRS2: 5-6 RTS# EmCORE-i612VLS/C400 User's Manual... - Page 13 JRS2 Intel 7214A692 SL66D RJ80530KZ800512 intel intel 815 Intel '01 EmCORE-i612VLS/C400 User's Manual...
-
Page 14: Com2 Power Source Special Support
It could be selected by JV3 and JV4 for that system provides power source +5V and +12V from COM2 . Mode Standard 12V on Pin9 5V on Pin1 5V on Pin1 ,12V on Pin9 default setting Standard Intel 7214A692 SL66D RJ80530KZ800512 intel intel 815 Intel '01 EmCORE-i612VLS/C400 User's Manual... -
Page 15: Compact Flash Disk
1. Make sure the Single Board Computer is powered OFF. 2. Plug the Compact Flash TypeI/II device into its socket. Verify the direction is correct on Secondary IDE which is located in the back of SBC. 3. Powre up the system EmCORE-i612VLS/C400 User's Manual... -
Page 16: Lvds Panel Voltage Selection
LVDS Panel Voltage Selection Jumper : JVLCD1 Type : onboard 4-port mini switch The EmCORE-i612VLS/C400 panel could be selected by JLCD1 in 5V or 3.3V. JLCD1 Mode +3.3V Default setting +3.3V CDIN 4 3 2 1 3 2 1 Intel... -
Page 17: Flat Panel Configuration
Flat Panel Configuration Flat Panel Type Switch (JTLCD1) The EmCORE-i612VLS/C400 provides a hardware switch to configure your onboard VGA controller for usage with a variety of flat panel types. Switch : JTLCD1 Type : onboard 4-port mini switch Panel Type... -
Page 18: Audio Interface
Audio Interface Connector : Audio1 Type : Onboard 10-pin header Description Description LINE IN LEFT LINE IN RIGHT SPEAKER LEFT SPEAKER RIGHT A u d i o 1 Intel 7214A692 SL66D RJ80530KZ800512 intel intel 815 Intel '01 EmCORE-i612VLS/C400 User's Manual... -
Page 19: Flat Panel Vga
+3.3V FPD0(B0) FPD1(B1) FPD2(B2) FPD3(B3) FPD4(B4) FPD5(B5) FPD6(B6) FPD7(B7) FPD8(G0) FPD9(G1) FPD10(G2) FPD11(G3) FPD12(G4) FPD13(G5) FPD14(G6) FPD15(G7) FPD16(R0) FPD17(R1) FPD18(R2) FPD19(R3) FPD20(R4) FPD21(R5) FPD22(R6) FPD23(R7) SHFCLK M/DE ENABLK Intel 7214A692 SL66D RJ80530KZ800512 intel intel 815 Intel '01 EmCORE-i612VLS/C400 User's Manual... -
Page 20: Usb Connector
USB Connector Connector : USB2 Type:onboard Two 10-pin pin headers Description Description USBD0- USBD1- USBD0+ 6 USBD1+ USB2 Intel 7214A692 SL66D RJ80530KZ800512 intel intel 815 Intel '01 EmCORE-i612VLS/C400 User's Manual... -
Page 21: Infrared (Ir)
Infrared (IR) Connector : IR1 Type : onboard 5-pin header Description Description IRRX IRTX 5 4 3 2 1 Intel 7214A692 SL66D RJ80530KZ800512 intel intel 815 Intel '01 EmCORE-i612VLS/C400 User's Manual... -
Page 22: Power Connector
Description Description +12V Intel 7214A692 SL66D RJ80530KZ800512 intel intel 815 CPUF1 Intel '01 4 3 2 1 PWR1 CPU Fan CPU Fan Connector : CPUF1 Connector : CPUF1 Type : CPUF1: onboard 3-pin connector Description Description FAN_DEC EmCORE-i612VLS/C400 User's Manual... -
Page 23: Atx Soft Power Switch
Type : PSON: Power button connector for ATX Description Description 5VSB PWR_BTN Reset Connector Connector : RES2 Type : RES2: reset switch connector for reboot Description Description Reset Intel 7214A692 SL66D RJ80530KZ800512 intel intel 815 Intel '01 RES2 PSON1 EmCORE-i612VLS/C400 User's Manual... -
Page 24: Atx Feature Connector
ATX Feature Connector ATX Feature Connector : EATX1 Connector :EATX1 Type : EATX1: onboard 3-pin connector Description Description PS_ON +5VSB Intel 7214A692 SL66D RJ80530KZ800512 intel intel 815 Intel '01 3 2 1 EmCORE-i612VLS/C400 User's Manual... -
Page 25: Com2/Com3/Com4 Connector
CTS2 RTS2 (RS-422A RXD+) N.C. (RS-422A RXD-) COM3 DCD3 RXD3 TXD3 DTR3 DSR3 RTS3 CTS3 N.C. COM4 DCD4 RXD4 TXD4 DTR4 DSR4 RTS4 CTS4 N.C. COM4 COM3 COM2 Intel 7214A692 SL66D RJ80530KZ800512 intel intel 815 Intel '01 EmCORE-i612VLS/C400 User's Manual... -
Page 26: Led Indicator
Power Power On/Standby Green Hard Disk Yellow LED status description Power Type AT Power ATX Power Power On Power Suspend Fast Glittering Fast Glittering Power Off Slow Glittering Intel 7214A692 SL66D RJ80530KZ800512 intel intel 815 Intel '01 EmCORE-i612VLS/C400 User's Manual... -
Page 27: Lan Connector
Indicator : LED Type : 2 LED Mode LED Description Active Transfer Yellow LED ON (flash) 10 MB mode Green LED OFF 100MB mode Green LED ON LAN 1 Intel 7214A692 SL66D RJ80530KZ800512 intel intel 815 Intel '01 EmCORE-i612VLS/C400 User's Manual... -
Page 28: Ide Connector
Type : One onboard 44-pin box headers, primary IDE Description Description #RESET #IOW #IOR #IORDY IDESEL #DACK NC (-IOCS16) ADDR1 CBLID ADDR0 ADDR2 #CS0 #CS1(#HD SELET1) #ACT Intel 7214A692 SL66D RJ80530KZ800512 intel intel 815 Intel '01 43 44 EmCORE-i612VLS/C400 User's Manual... -
Page 29: Interface Connectors Hdd, Fdd
#MOTOR ENABLE A #DRIVER SELECT B #DRIVER SELECT A #MOTOR ENABLE B #DIRECTION #STEP #WRITE DATA #WRITE GATE #TRACK 0 #WRITE PROTECT #READ DATA #HEAD SELECT #DISK CHANGE Intel 7214A692 SL66D RJ80530KZ800512 intel intel 815 Intel '01 EmCORE-i612VLS/C400 User's Manual... -
Page 30: System Resources
Primary Ultra ATA Controller Intel(R) 82801BA Ultra ATA Storage Controller - 244B Secondary Ultra ATA Controller Intel(R) 82801BA Ultra ATA Storage Controller - 244B Direct Memory Access (DMA) Description Standard Floppy Disk Controller Direct memory access controller EmCORE-i612VLS/C400 User's Manual... - Page 31 Communications Port (COM1) 0400 - 04BF PCI bus 04D0 - 04D1 PCI bus 0500 - 050F Intel(R) 82801BA/BAM SMBus Controller 0778 - 077B Printer Port (LPT1) 0CF8 -0CFF PCI bus C000 - C03F Intel(R) PRO/100 VE Network Connection EmCORE-i612VLS/C400 User's Manual...
- Page 32 DC00 - DCFF Realtek AC 97 Audio E000 - E03F Realtek AC 97 Audio F000 - F00F Intel(R) 82801BA Ultra ATA Storage Controller F000 - F007 Primary Ultra ATA Controller F008 - F00F Secondary Ultra ATA Controller EmCORE-i612VLS/C400 User's Manual...
-
Page 33: Award Bios Setup
The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to accept and enter the sub-menu. EmCORE-i612VLS/C400 User's Manual... -
Page 34: Setup Items
Set Password Use this menu to set User and Supervisor Passwords. Save & Exit Setup Save CMOS value changes to CMOS and exit setup. Exit Without Save Abandon all CMOS value changes and exit setup. EmCORE-i612VLS/C400 User's Manual... -
Page 35: Standard Cmos Setup
360K ; 5.25 in 5-1/4 inch PC-type standard drive 1.2M ; 5.25 in 5-1/4 inch AT-type high-density drive 720K ; 3.5 in 3-1/2 inch double-sided drive 1.44M ; 3.5 in 3-1/2 inch double-sided drive 2.88M ; 3.5 in 3-1/2 inch double-sided drive EmCORE-i612VLS/C400 User's Manual... - Page 36 All, But Diskette POST does not stop for diskette drive errors, but stops for all other errors. All, But Disk/Key POST does not stop for a keyboard or disk error, but stops for all other errors. EmCORE-i612VLS/C400 User's Manual...
-
Page 37: Bios Features Setup
Enabled Activates automatically when the system boots up causing a warning message to appear when anything attempts to access the boot sector or hard disk partition table. Disabled No warning message will appear when anything attempts to access the boot sector or hard disk partition table. EmCORE-i612VLS/C400 User's Manual... - Page 38 Select whether the password is required every time the system boots or only when you enter setup. System The system will not boot and access to Setup will be denied if the correct password is not entered at the prompt. EmCORE-i612VLS/C400 User's Manual...
- Page 39 'Memory'. This will tell you what segments (if any) are being shadowed For DOS you can use MSD.EXE to see what segments are claimed. CC000-CFFFF - D0000-D3FFF - D4000-D7FFF - D8000-DBFFF and DC000-DFFFF - Same as above. EmCORE-i612VLS/C400 User's Manual...
-
Page 40: Chipset Features Setup
This field let's you insert a timing delay between the CAS and RAS strobe signals, used when DRAM is written to, read from, or refreshed. Fast gives faster performance; and Slow gives more stable performance. This field applies only when synchronous DRAM is installed in the system. EmCORE-i612VLS/C400 User's Manual... - Page 41 If it is not updated then a default value will select an aperture of maximum size. Display Cache Frequency You can use this item to select the frequency of the display cache. System Memory Frequency You can use this item to select the operating frequency for the main system. EmCORE-i612VLS/C400 User's Manual...
- Page 42 Select the display cache clock periods control RAS# Timing This item controls RAS# active to Protegra, and refresh to RAS# active delay ( in local memory clocks). RAS# Precharge Timing This item controls RAS# precharge ( in local memory clocks). EmCORE-i612VLS/C400 User's Manual...
-
Page 43: Integrated Peripherals
These four PIO fields let you set a PIO mode (0-4) for each of four IDE devices. W hen under "Auto" mode, the system automatically set the best mode for each device Primary & Secondary Master/Slave UDMA When set to "Auto" mode, the system will detect if the hard drive supports EmCORE-i612VLS/C400 User's Manual... - Page 44 You may set the time interval in 10s, 20s, 30s, 40s, 1 Min, 2 Min, 4 Min or Disabled. EmCORE-i612VLS/C400 User's Manual...
- Page 45 IR2 Duplex Mode This item allows you to select the IR half/full duplex function. Use IR Pins This item allows you to select IR transmission routes, IR-Rx2Tx2, RxD2 and TxD2. EmCORE-i612VLS/C400 User's Manual...
-
Page 46: Power Management Setup
Suspend Mode = 1 min. User Defined Allows you to set each mode individually. When not disabled, each of the ranges are from 1 min. to 1 hr. Video Off Method This determines the manner in which the monitor is blanked. EmCORE-i612VLS/C400 User's Manual... - Page 47 Name the interrupt request (IRQ) assigned to the modem (if any) on your system. Activity of the selected IRQ always awakens the system. Suspend Mode When the suspend mode has been enabled after the selected period of system inactivity, all devices except CPU will be shut down. EmCORE-i612VLS/C400 User's Manual...
-
Page 48: Pnp/Pci Configuration
Resource Controlled By The Award Play and Play BIOS can automatically configure all the boot and Plug-and-Play compatible devices. If you select Auto, all the interrupt request (IRQ) and DMA assignment fields disappear, as the BIOS automatically assigns them. EmCORE-i612VLS/C400 User's Manual... - Page 49 Setting Enabled should correct this problem. If this field set Enabled, any I/O access on the ISA bus to the VGA card's palette registers will be reflected on the PCI bus. This will allow overlay cards to adapt to the changing palette colors. PCI IRQ Actived by [Level] EmCORE-i612VLS/C400 User's Manual...
-
Page 50: Pc Health Status
PC Health Status This section describes CPU tempeare for the system. Shutdown Temperature This item allows you to set up the CPU shutdowm Temperature. This item only effective under Windows 98 ACPI mode. EmCORE-i612VLS/C400 User's Manual... -
Page 51: Frequency/Voltage Control
DIMM and PCI devices. When disabled, it will send the clock signal to all DIMM and PCI socket. Spread Spectrum This item allows you to enable/disable the spread spectrum modulate. EmCORE-i612VLS/C400 User's Manual... -
Page 52: Post Codes
2. Enable keyboard interface. Reserved 1. Disable PS/2 mouse interface (optional). 2. Auto detect ports for keyboard & mouse followed by a port & interface swap (optional). 3. Reset keyboard for Winbond 977 series Super I/O chips. Reserved Reserved EmCORE-i612VLS/C400 User's Manual... - Page 53 RTC minute. 2. Load CMOS settings into BIOS stack. If CMOS checksum fails, use default value instead. Prepare BIOS resource map for PCI & PnP use. If ESCD is valid, take into consideration of the ESCD's legacy information. EmCORE-i612VLS/C400 User's Manual...
- Page 54 Reserved Reserved Reserved Reset keyboard if Early_Reset_KB is defined e.g. Winbond 977 series Super I/O chips. See also POST 63h. Reserved Test DMA Channel 0 Reserved Test DMA Channel 1. Reserved Test DMA page registers. Reserved Reserved EmCORE-i612VLS/C400 User's Manual...
- Page 55 CPU are not identical. Reserved Initialize USB Keyboard & Mouse. Reserved Test all memory (clear all extended memory to 0) Clear password according to H/W jumper (Optional) Reserved Display number of processors (multi-processor platform) Reserved EmCORE-i612VLS/C400 User's Manual...
- Page 56 1. Assign resources to all ISA PnP devices. 2. Auto assign ports to onboard COM ports if the corresponding item in Setup is set to "AUTO". Reserved 1. Initialize floppy controller 2. Set up floppy related fields in 40:hardware. Reserved EmCORE-i612VLS/C400 User's Manual...
- Page 57 3. If password is set, ask for password. Save all data in stack back to CMOS Initialize ISA PnP boot devices 1. USB final Initialization 2. Switch screen back to text mode Reserved NET PC: Build SYSID Structure. Reserved EmCORE-i612VLS/C400 User's Manual...
