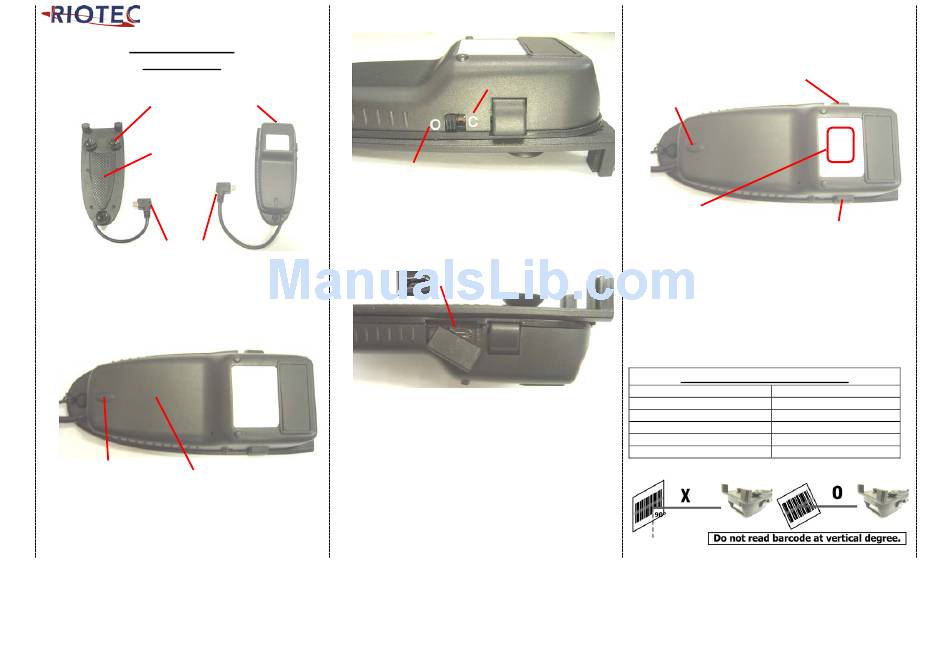

RIOTEC iDC9277A Quick Manual

Quick Guide
- iDC9277A
1
Suction Cup Exit Window
PU Glue
(Can be used
repeatedly)
Micro USB
cable (OTG)
Connect to micro USB port of
Smartphone
2
Li- Ion Battery inside
Indicator (LED)
3
C=Charge mode
O=Operation mode
Before you use scanner, please switch to "C- Charge
*
mode" and charge inside battery for 3~4 hours first.
Under "C- Charge mode", you can raise/lower
*
soft-keyboard easily. (For HID profile only)
4
Charge port
iDC9277A is with Li-Ion battery inside. When in charging,
please use the original USB power adaptor of Smartphone
(recommended). Through it, it charges both smartphone
& iDC9277A batteries at the same time.
When in low battery (Orange LED flashing), please charge
it immediately.
Attention: Please don't charge iDC9277A when in Operation
mode. Otherwise, the smartphone's battery will charge back
to iDC9277A's battery.
1
5
Left Button
Under BT HID Profile, press Left button to raise/lower
soft-Keyboard; press the left button for 4 seconds to
un-pair. Then, scanner can be connected with other
BT devices (Please check page #2, left column)
Indicator
(LED)
Touch Trigger Area
SCAN/ Power ON
Right Button
Press 1 second to wake it
Power Saving button:
up from power saving
Press the button for 2~3 second
mode
then enter power saving mode
** When pressing Left button + Right button for 8~9 seconds,
iDC9277A will enter deep sleeping mode.
** Please press Left button + Right button + Touch trigger for
8~9 seconds to activate iDC9277A.
** The touch sensor area is around the central area.
Please check the above drawing for your reference.
LED Indicator Information
Orange LED ON Full charged
Orange and Red LED Flashing Charging
Orange LED Flashing Low battery
Red LED ON Off line / out of service
Green LED ON Good read
Orange LED ON Good read (Batch mode)
