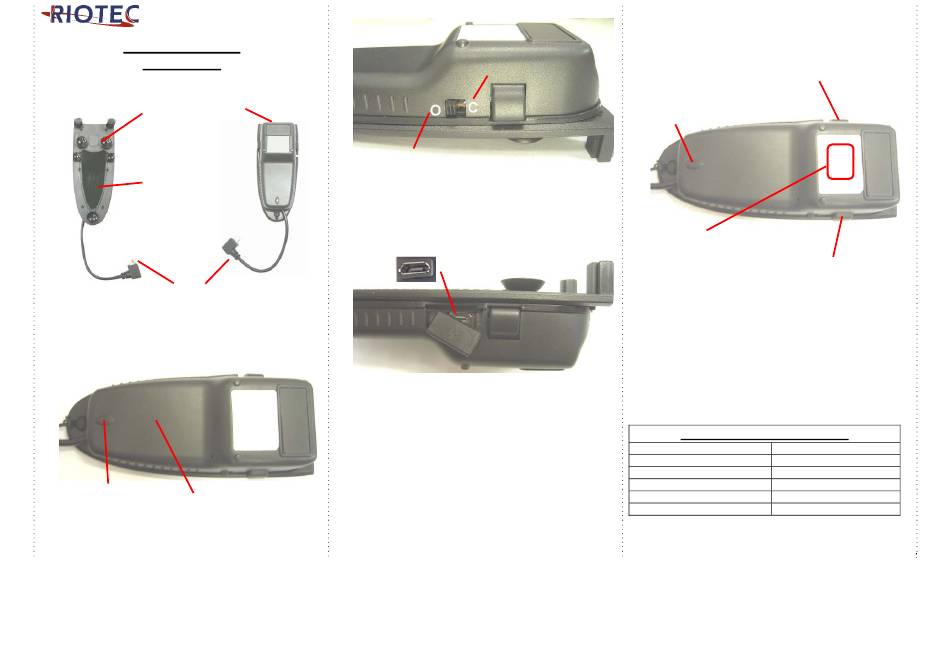

RIOTEC iDC9278K Quick Manual

Quick GuKide
- iDC9278K
1
Suction Cup Exit Window
PU Glue
(Can be used
repeatedly)
Micro USB
cable (OTG)
Connect to micro USB port of
Smartphone
2
Li- Ion Battery inside
Indicator (LED)
3
C=Charge mode
O=Operation mode
Before you use scanner, please switch to "C- Charge
*
mode" and charge inside battery for 3~4 hours first.
Under "C- Charge mode", you can raise/lower
*
soft-keyboard easily. (For HID profile only)
4
Charge port
iDC9278K is with Li-Ion battery inside. When in charging,
please use the original USB power adaptor of Smartphone
(recommended). Through it, it charges both smartphone
& iDC9278K batteries at the same time.
When in low battery (Orange LED flashing, beep once /per
4 seconds), please charge it immediately.
In case the power consumed out totally; the RTC (Real
Time Clock) will back to original setting 01012000.
Attention: Please don't charge iDC9278K when in Operation
mode. Otherwise, the smartphone's battery will charge back
to iDC9278K's battery.
1
5
Left Button
Under BT HID Profile, press Left button to raise/lower
soft-Keyboard; press the left button for 4 seconds to
un-pair. Then, scanner can be connected with other
BT devices (Please check page #2, left column)
Indicator
(LED)
Touch Trigger Area
SCAN/ Power ON
Press 1 second to wake it
up from power saving
mode
** When pressing Left button + Right button for 8~9 seconds,
iDC9278k will enter deep sleeping mode.
** Please press Left button + Right button + Touch trigger for
8~9 seconds to activate iDC9278K.
** The touch sensor area is around the central area.
Please check the above drawing for your reference.
LED Indicator Information
Orange LED ON
Orange and Red LED Flashing
Orange LED Flashing
Red LED ON
Green LED ON
Orange LED ON
Right Button
Power Saving button:
Press the button for 4 second
then enter power saving mode
Full charged
Charging
Low battery
Off line / out of service
Good read
Good read (Batch mode)
