RIOTEC iDC9602N Quick Manual

B l u e t o o t h 2 D
P o c k e t b a r c o d e s c a n n e r
Quick Guide
M o d e l n o . : i D C 9 6 0 2 N

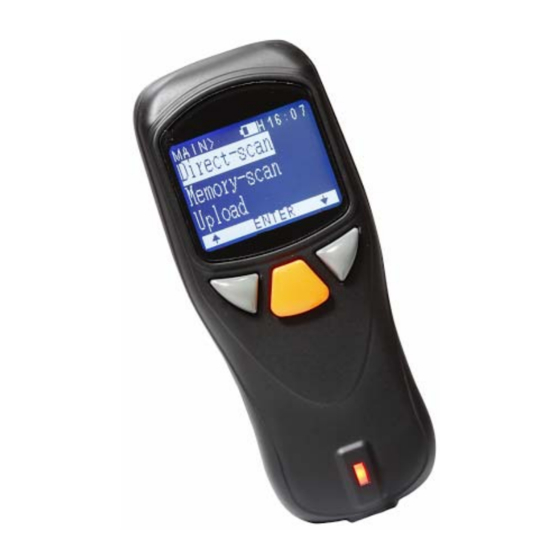

Introduction
Designed primarily for P.O.S. retail environments, the
iDC9602N is a Bluetooth pocket barcode scanner that
allows you to scan various barcoded items.
Its in-built Motorola SE2707 engine allows you to reliably
read 2D barcodes on various shapes and is a great
space-saver for busy or limited workspaces.
It supports iOS, Android, and Windows devices through
Bluetooth HID or SPP communication.
Delivery content
* Pocket Barcode scanner x 1 * Quick instructions x 1
(for * Strap x 1
* Mini USB cable x 1
charging only)
Limited Warranty
Riotec provides one-year limited warranty.
Riotec will not warranty any product which has been subjected
to improper usage, neglect or unauthorized repair or
installation.
Besides, warranty does not cover the faulty usages or
consumable parts.
(Cable & battery are consumable.)
Safety instructions
Read the operating instructions carefully and especially
observe the safety information. If you do not follow the safety
instructions and information on proper handling in this
manual, we assume no liability for any resulting personal
injury or damage to property.
* Don't put scanner in places excessively high temperatures,
such as expose under direct sunlight
* Don't use scanner in extremely humid area or drastic
temperature change
* The rechargeable battery is permanently built into the
product and cannot be replaced.
Never damage the rechargeable battery. Damaging the casing
of the rechargeable battery might cause an explosion or a fire!
1
Operating elements
** Please switch ON and charge scanner for 3~4 hours at first time
before use.
Exit
Window
The button to
raise/lower ON-Screen
Keyboard (refer to left
column of page #6)
SCAN/ENTER/Power ON
Button
Mini USB port
with protective cover
charge scanner via mini USB host cable
* In the beginning, you must press the orange trigger button
for 8 seconds to turn on the pocket barcode scanner.
Then, press it for scanning barcodes & waking up from
sleeping mode.
* If you won't use pocket scanner for quite a long time, you
can press 2 grey buttons to enter "Deep Sleep Mode" (like
turn-off).
Power Saving button:
Press the button for 2~3
seconds then enter
power saving mode
Indicator (LED)
