RIOTEC iDC9277L Quick Manual

Quick Guide
- iDC9277L
1

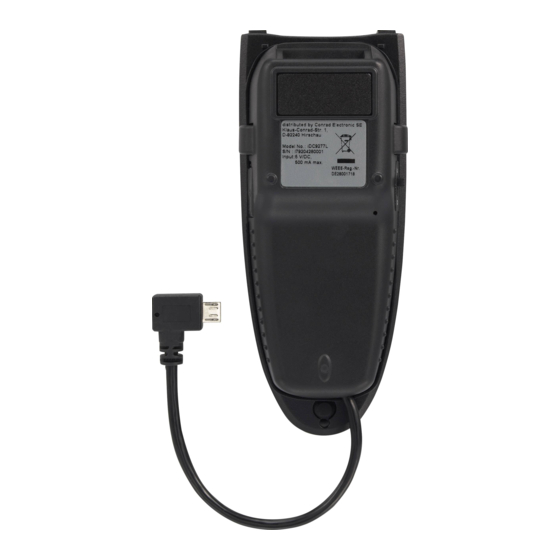

Suction Cup Exit Window
PU Glue
(Can be used
repeatedly)
Micro USB
cable (OTG)
Connect to micro USB port of
Smartphone
2
Li- Ion Battery inside
Indicator (LED)
3
C=Charge mode
O=Operation mode
Before you use scanner, please switch to "C- Charge
*
mode" and charge inside battery for 3~4 hours first.
Under "C- Charge mode", you can raise/lower soft-
*
keyboard easily. (For HID profile only)
4
Charge port
iDC9277L is with Li-Ion battery inside. When in charging,
please use the original USB power adaptor of
Smartphone (recommended). Through it, it charges both
smartphone & iDC9277L batteries at the same time.
When in low battery (Orange LED flashing), please
charge it immediately.
In case the power consumed out totally; the RTC (Real
Time Clock) will back to original setting 01012000.
Attention: Please don't charge iDC9277L when in Operation
mode. Otherwise, the smartphone's battery will charge back
to iDC9277L's battery.
1
5
Left Button
Under BT HID Profile, press Left button to
raise/lower soft-Keyboard; press the left button for 4
seconds to un-pair. Then, scanner can be connected
with other BT devices (Please check page #2, left
column)
Indicator
(LED)
Touch Trigger Area
SCAN/ Power ON
Press 1 second to wake it
Right Button
up from power saving
Power Saving button:
mode
Press the button for 4 second
then enter power saving mode
** When pressing Left button + Right button for 8~9
seconds, iDC9277L will enter deep sleeping mode.
** Please press Left button + Right button + Touch trigger
for 8~9 seconds to activate iDC9277L.
** The touch sensor area is around the central area.

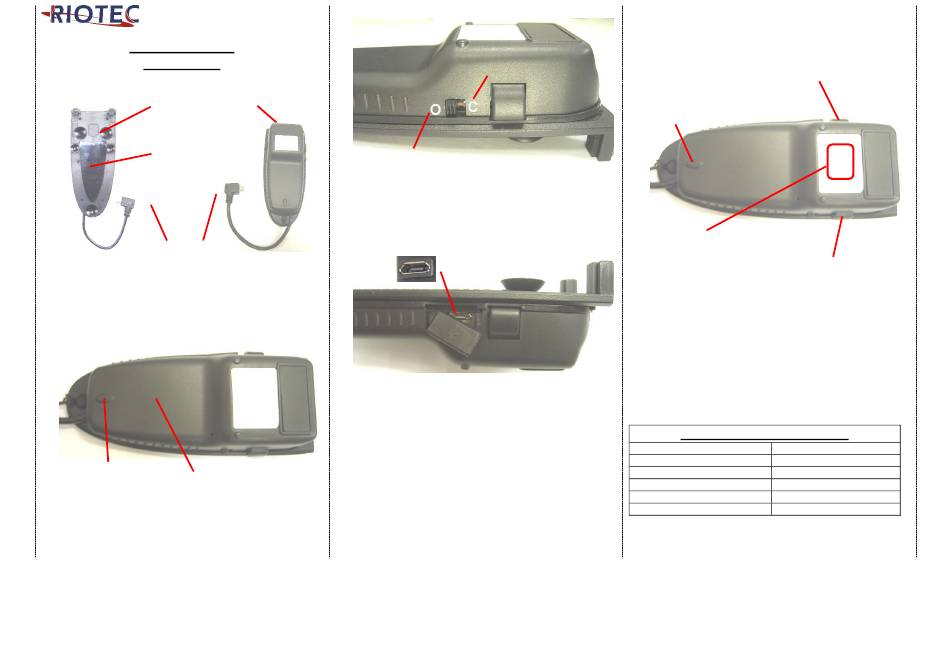

Please check the above drawing for your reference.
LED Indicator Information
Orange LED ON Full charged
Orange and Red LED Flashing Charging
Orange LED Flashing Low battery
Red LED ON Off line / out of service
Green LED ON Good read
Orange LED ON Good read (Batch mode)
