RIOTEC iDC9602NW Quick Manual

B l u e t o o t h 2 D
P o c k e t b a r c o d e s c a n n e r
Quick Guide
M o d e l n o . : i D C 9 6 0 2 N W
Introduction
Designed primarily for P.O.S. retail environments, the
iDC9602NW is a Bluetooth pocket barcode scanner that
allows you to scan various barcoded items.
Its in-built Motorola SE2707 engine allows you to reliably
read 2D barcodes on various shapes and is a great
space-saver for busy or limited workspaces.
It supports iOS, Android, and Windows devices through
Bluetooth HID or SPP communication.
Delivery content
* Pocket Barcode scanner x 1
* Mini USB cable x 1 (charged by USB power adapter of
smartphone only)
* Quick instructions x 1

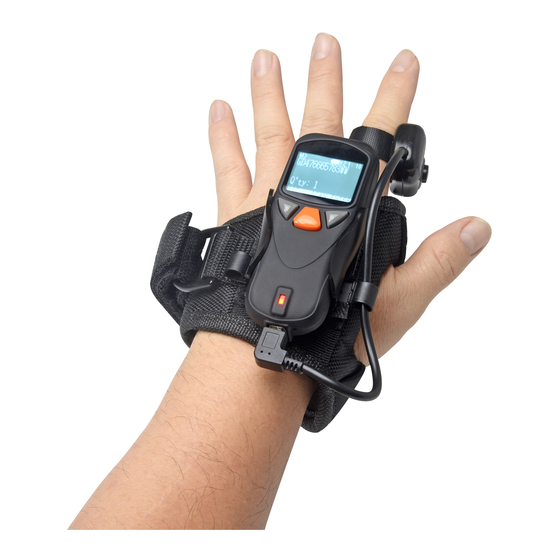

Glove set (Glove + Holder + Ring Trigger Cable) x 1set
*
Limited Warranty
Riotec provide one-year limited warranty.
Riotec will not warranty any product which has been subjected
to improper usage, neglect or unauthorized repair or
installation.
Besides, warranty does not cover the faulty usages or
consumable parts.
(Cable & battery are consumable.)
Safety instructions
Read the operating instructions carefully and especially
observe the safety information.
If you do not follow the safety instructions and information on
proper handling in this manual, we assume no liability for any
resulting personal injury or damage to property.
* Don't put scanner in places excessively high temperatures,
such as expose under direct sunlight
* Don't use scanner in extremely humid area or drastic
temperature change
* The rechargeable battery is permanently built into the
product and cannot be replaced.
Never damage the rechargeable battery. Damaging the
*
casing of the rechargeable battery might cause an explosion
or a fire!
1
Operating elements
** Please switch ON and charge scanner for 3~4 hours at first time
before use.
Exit
Window
The button to raise/lower
ON-Screen Keyboard
(refer to left column of
page #3)
SCAN/ENTER/Power ON
Button
Mini USB port, with protective cover
Pocket scanner is charged by USB power adapter
only via mini USB cable
** In the beginning, you must press the orange trigger button for
8 seconds to turn on the pocket barcode scanner. Then, press
it for scanning barcodes & waking up from sleeping mode.
** If you won't use pocket scanner for quite a long time, you
can press 2 grey buttons to enter "Deep Sleep Mode" (like
turn-off).
Power Saving button:
Press the button for 2~3
seconds then enter power
saving mode
Indicator (LED)
