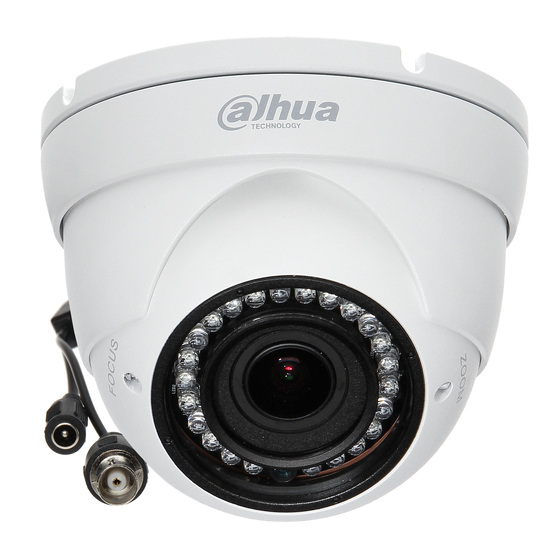

- Page 1 1 Megapixel HDCVI IR Vari-focal Dome Camera User’s Manual Version 1.0.0...
-
Page 2: Table Of Contents
Table of Contents General Introduction ............Błąd! Nie zdefiniowano zakładki. Overview ..............Błąd! Nie zdefiniowano zakładki. Features ..............Błąd! Nie zdefiniowano zakładki. Functions ..............Błąd! Nie zdefiniowano zakładki. Specifications ............Błąd! Nie zdefiniowano zakładki. Framework and Dimensions ..................... 1 Dimensions ............. Błąd! Nie zdefiniowano zakładki. Structure .............. - Page 3 Welcome Thank you for purchasing our HDCVI camera! This user’s manual is designed to be a reference tool for your system. Please read the following safeguard and warnings carefully before you use this series product! Please keep this user’s manual well for future reference!
-
Page 4: Important Safeguards And Warnings
Important Safeguards and Warnings 1．Electrical safety All installation and operation here should conform to your local electrical safety codes. The power shall conform to the requirement in the SELV (Safety Extra Low Voltage) and the Limited power source is rated 12V DC （24V AC）in the IEC60950-1. We assume no liability or responsibility for all the fires or electrical shock caused by improper handling or installation. - Page 5 Please shut down the device and then unplug the power cable before you begin daily maintenance work. Use the dry soft cloth to clean the device. If there is too much dust, please use the water to dilute the mild detergent first and then use it to clean the device. Finally use the dry cloth to clean the device. Please put the dustproof cap to protect the CMOS component when you do not use the camera.
-
Page 6: General Introduction
1 General Introduction 1.1 Overview This series megapixel HD camera conforms to the HDCVI standard. It supports video signal high-speed long distance transmission without any delay. It can be controlled by the DVR conforming to the HDCVI. 1.2 Features High-performance CMOS image sensor, megapixel definition. -
Page 7: Specifications
Auto electronic shutter The system can automatically adjust the electronic shutter when the environment light changes. 1.4 Specifications Model 1 Megapixel HDCVI IR Vari-focal Dome Camera Series Parameter HAC-HDW1100RP/N-VF Video Processor 1/2.9" 1.0 Mega Pixels CMOS Video Format PAL/NTSC Effective Pixel 1280（H）* 720（V）... - Page 8 Dimension(mm) Φ119×97.4 Weight 550g Angle Adjustment Pan: 0°～360°: Tilt: 0°～73°: Flip: 0°～360° Installation Mode Wall mount/In-ceiling mount...
-
Page 9: Framework And Dimensions
2 Framework and Dimensions Please refer to the following figures for dimension information. The unit is mm. See Figure 2-1 and Figure 2-2. Figure 2-1 Figure 2-2... -
Page 10: Installation
3 Installation Important Before the installation, please make sure the installation surface can sustain at least 3X weight of the bracket and the camera. Figure 3-1 Step1 Take the installation position map from the accessories bag, and stick it on the ceiling or wall according to the cable exit, dig four holes according to the instruction on the installation position map, then take out four expansion bolts from accessories bag and put them into the installation holes and fix them. - Page 11 Figure 3-1 for the details. Step 4 Aim the decoration ring together with enclosure and dome body up to the pedestal, pull the cable through the cable exit on the installation surface (Please skip this step if you want to use side exit mode), screw the decoration ring and fix the enclosure and dome body on the pedestal.
-
Page 12: Note
Appendix Toxic or Hazardous Materials or Elements Toxic or Hazardous Materials or Elements Component Name Cr VI PBDE Circuit Board ○ ○ ○ ○ ○ ○ Component Device ○ ○ ○ ○ ○ ○ Construction Material ○ ○ ○ ○ ○...
