PHOTOELECTRIC
DUAL BEAM DETECTOR
Owners Manual
R4222
The GTO Access Systems Photoelectric Dual Beam Detector uses dual beam and through-beam technology
to reduce false detections when detecting obstructions. When the beams detect the presence of a moving
object, the detection will cause the gate(s) to stop and reverse to the fully open position. As long as the
beam is obstructed the gate(s) will remain open. Not compatible with solar powered gate operators.
For use with all GTO Access Systems and Mighty Mule AC and DC powered gate operators.

PARTS DESCRIPTION

For more information on GTO's full line of automatic gate openers and access controls visit our website at www.gtoaccess.com
GTO • 3121 Hartsfield Road • Tallahassee, Florida 32303 • (800) 543-4283 • www.gtoaccess.com
R4222
Rev. 08/02/10
Printed in China for Gates That Open, LLC

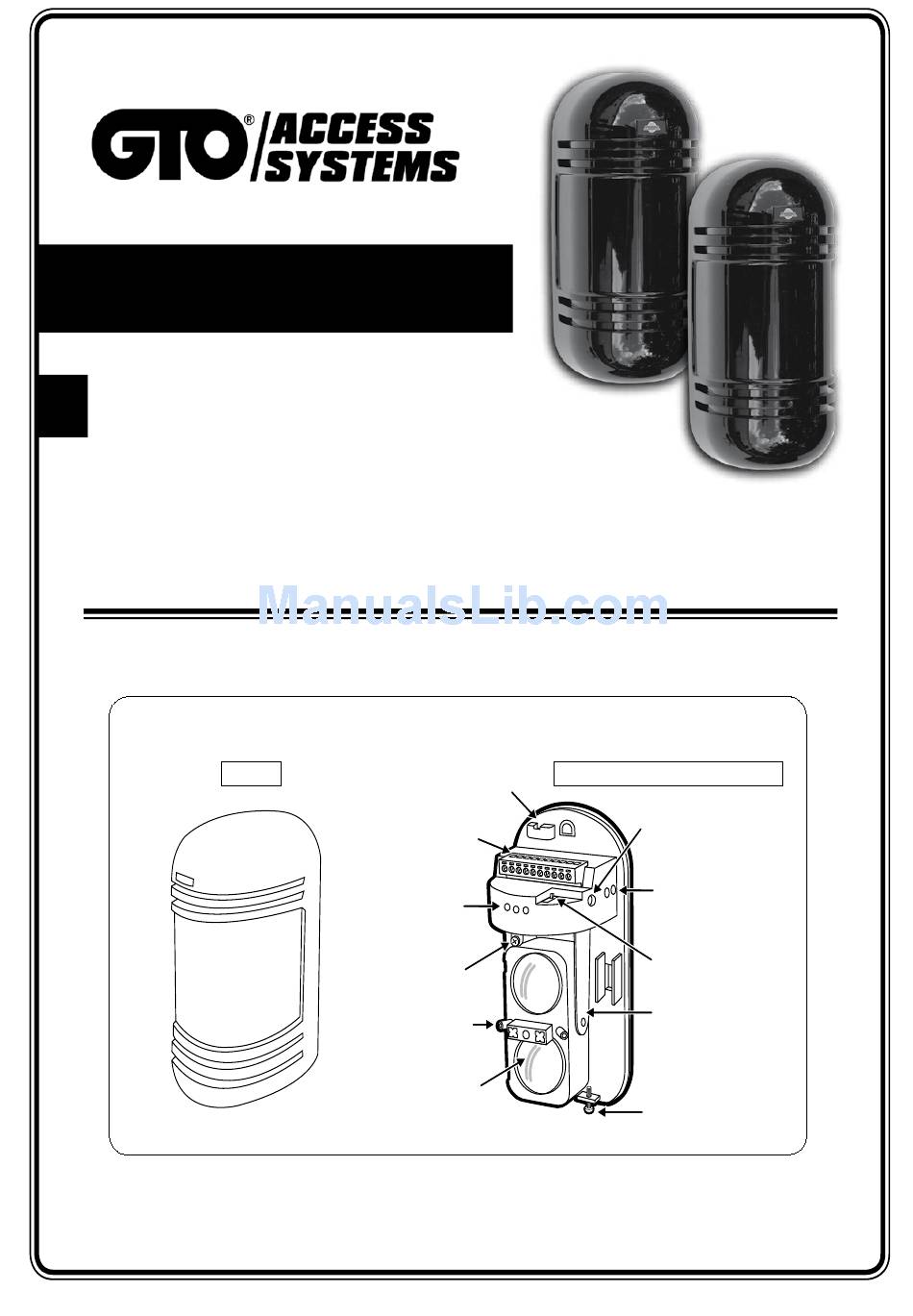

COVER
Technical Service (800) 543-1236
INTERNAL VIEW OF RECEIVER
Wiring Hole
Connection
Terminals
Indicator
Lights
Vertical
Alignment
Screw
Sight Hole
Lens
Response Time
Adjustment Screw
(receiver only)
Signal Level
Test Points
Tamper Switch
Horizontal Angle
Adjustment Bracket
Cover Locking
Screw
©2009 Gates That Open, LLC
