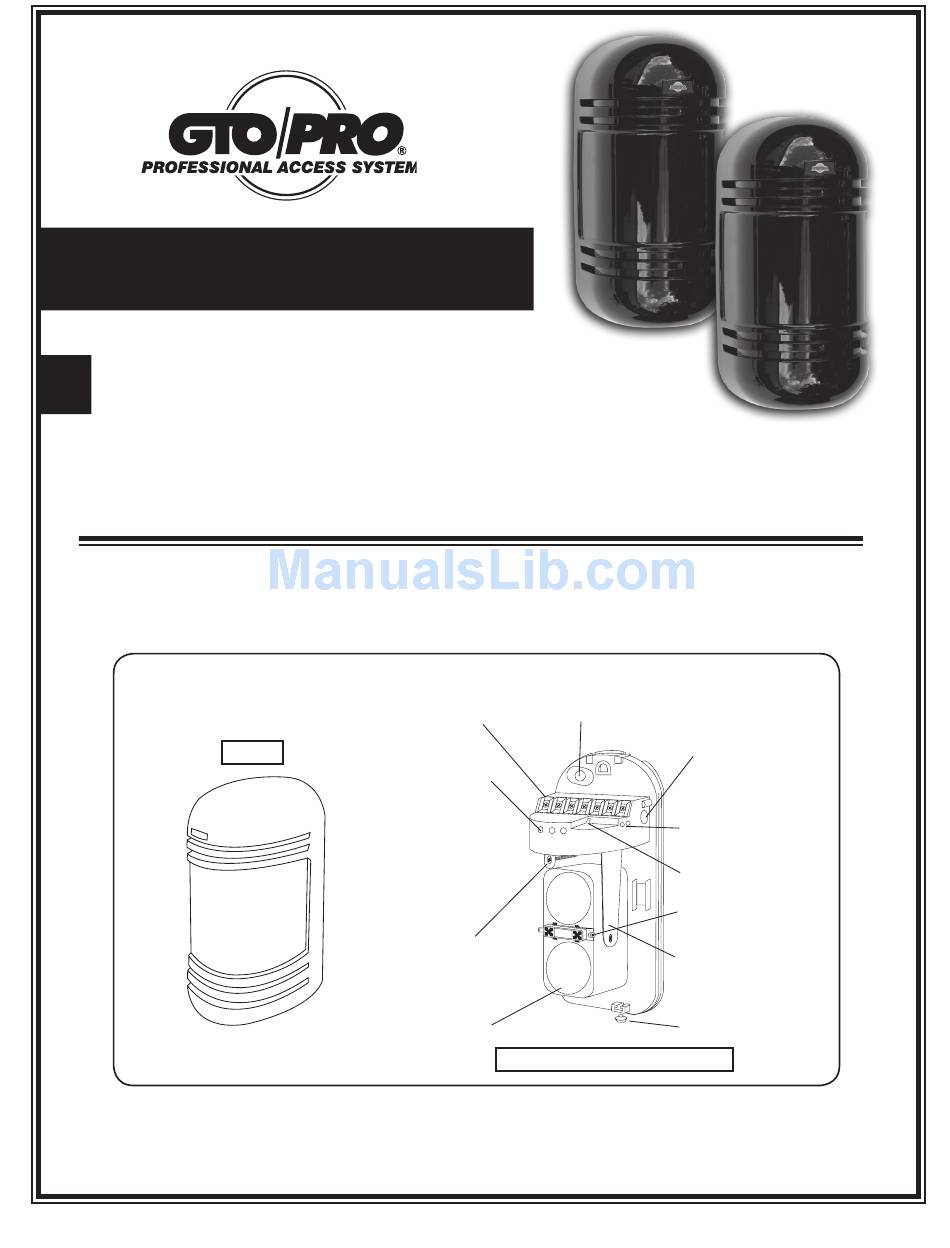

PHOTOELECTRIC
DUAL BEAM DETECTOR
Owners Manual
R4222
The GTO/PRO Photoelectric Dual Beam Detector uses dual beam and through beam technology to reduce
false detections when detecting obstructions. When the beams detect the presence of a moving object,
the detection will cause the gate(s) to stop and reverse to the fully open position. As long as the beam is
obstructed the gate(s) will remain open. Not compatible with solar powered gate operators.
For use with use with all GTO/PRO and Mighty Mule AC and DC powered gate operators.
PARTS DESCRIPTION
For more information on GTO's full line of automatic gate openers and access controls visit our website at www.gtoinc.com
GTO • 3121 Hartsfield Road • Tallahassee, Florida 32303 • (800) 543-4283 • www.gtoinc.com
R4222
Rev. 11/6/07
Printed in China for GTO, Inc.
Connection Terminals
COVER
Technical Service (800) 543-1236
Wiring Knockout
Indicators
Re cei ver
Vertical
Alignment
Screw
Lens
INTERNAL VIEW OF RECEIVER
Response Time
Adjustment
(only for receiver)
Signal Level Test
Points
Tamper Switch
Sight Hole
Horizon-
tal Angle
Adjusting
Bracket
Cover
Locking Screw
©2007 GTO, Inc.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for GTO R4222
Summary of Contents for GTO R4222
- Page 1 For use with use with all GTO/PRO and Mighty Mule AC and DC powered gate operators. PARTS DESCRIPTION COVER For more information on GTO’s full line of automatic gate openers and access controls visit our website at www.gtoinc.com GTO • 3121 Hartsfield Road • Tallahassee, Florida 32303 • (800) 543-4283 • www.gtoinc.com R4222 Rev.
-
Page 2: Installation Overview
Installation Overview Mounting Cautions Do not mount the detector in the following conditions: Where obstructions (plants, fences, etc.) are between the receiver and the sender. Sensing Area Diagram illustrates correct placement of photo beams in relation to the gate. Exterior placement of Photo Beams (placed outside of path of gate) Vehicular Gate... -
Page 3: Wall Mounting
1. Loosen the cover- holding screw but DO NOT REMOVE (NOTE: BE CAREFUL NOT TO DROP THE NUT THAT ACCOMPANIES SCREW). Now remove the outer cover slowly so nut doesn’t fall. 3. Remove the rubber knock-out and pull the wire through. BACK OF COVER 1. - Page 4 Connecting Photo Beams to GTO/PRO and Mighty Mule Control Boards NOTE: DO NOT use with solar panels. Make sure the power switch to the opener is turned off before connecting safety device wiring to the terminal blocks. Unplug- ging the transformer does not turn power to the opener OFF.
-
Page 5: Control Boards
Wiring the Photo Beams to GTO/PRO and Mighty Mule Gen 3 (blue) or green Gate Opener Control Boards. INTERIOR TOP OF TRANSMITTER FREE POWER Transmitter/Receiver Connections CONTROL INPUTS Wires from Photo Beams (models listed below) INTERIOR TOP OF RECEIVER POWER... - Page 6 Wiring the Photo Beams to Mighty Mule FM-350 Gate Opener Control Board. INTERIOR TOP OF TRANSMITTER FREE POWER Transmitter/Receiver Connections CHARGING POWER LINK 18VAC SOLAR PANEL INTERIOR TOP OF RECEIVER POWER RECR Wires from Photo Beams To+ Pos Terminal of Battery To - Neg Terminal of Battery 12 Volt Battery with Dual Spade Connectors...
- Page 7 Wiring the Photo Beams to GTO/PRO GP-SL100 and GP-SW100 Gate Opener Control Boards. INTERIOR TOP OF TRANSMITTER FREE POWER Transmitter/Receiver Connections Wires from Photo Beams To+ Pos Terminal of Battery To - Neg Terminal of Battery INTERIOR TOP OF RECEIVER...
- Page 8 Wiring the Photo Beams to GTO/PRO, FM700/702 PRO-SL1000/2000 and PRO-SW1000/2000 Gate Opener Control Boards. INTERIOR TOP OF TRANSMITTER FREE POWER Transmitter/Receiver Connections SEQ1 SEQ2 ALARM ACCESSORY Wires from Photo Beams To+ Pos Terminal of Battery To - Neg Terminal of Battery...
-
Page 9: Beam Alignment
Beam Alignment Adjusting Optical Axis with the Viewfinder 1. Remove the RECEIVER and TRANSMITTER covers (Be careful not to drop screw and nut) and make sure power is connected. 2. Adjust the horizontal pivot, and the vertical adjustment screw using the built-in viewer. Look through the viewfinder on either side and adjust to put the oppposite sensor in the middle of the cross-hairs in the view finder. -
Page 10: Troubleshooting
4. The receiver or transmitter is unstable. 5. Blocked by other moving objects. 6. Beam interruption time out of adjustment. SPECIFICATIONS MODEL R4222 Outdoor Indoor N.O. contact is open when cover is removed (transmitter and reciever) Mounting...
