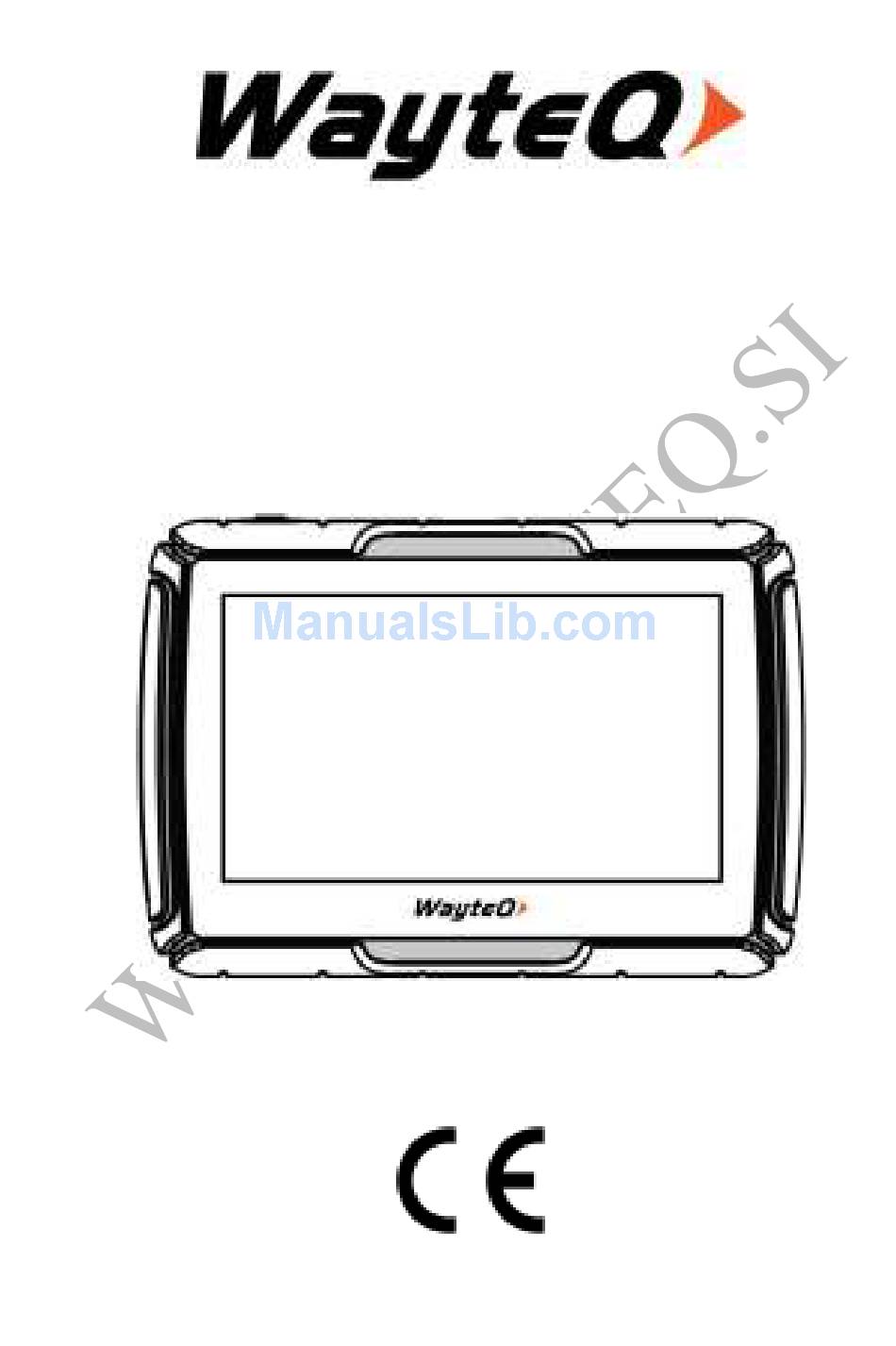

xRIDER GPS Navigation
User's manual
1

Advertisement

Table of Contents
loading

Related Manuals for WayteQ xRIDER

Summary of Contents for WayteQ xRIDER

  • Page 1 GPS Navigation User’s manual...

  • Page 2: Product Introduction

    Product introduction Welcome to use the WayteQ GPS navigator, which is mainly used for navigating and also has the optional function of video playing, audio playing, Bluetooth, photo viewing, and E-Book etc. 1. Package The packing box contains the following accessories, please confirm: 1.
  • Page 3 For the items listed above, please confirm the actual products. If any damage, please contact with the distributor or the agent as soon as possible. Please read this user’s manual carefully to be familiar with all the operation details and to make the GPS navigator performs well.

  • Page 4: Specification

    8. Reset hole Reset *The method of installation of the TF card Insert the TF card face upward 3. Specification MSB 2531 800MHz Memory 128MB DDRⅡ, 4GB/8GB Flash 4.3” TFT LCD display, LCD display Resolution :480RGB(H)x272(V)
  • Page 5 Touch-screen High-accuracy, endurable touch-screen USB Client 2.0, MINI USB port TF slot, Support TF card up to 8GB. A: Built-in high fidelity speaker B: High Audio fidelity stereo earphone Cold start<42s; Hot start<3s(in the open area); Warm start<36s Battery Built-in rechargeable Li-battery Battery DC 5V port Charging port...

  • Page 6: Manual Instruction

    EBook Viewer [Screen adjustment] [Default set] System setting [Volume] [Power] [Backlight] [Time and Date] [Language] [Sys Info] Operating Temperature ： 0℃ to 60℃ Temperature Storage Temperature ：-20℃ to 60℃ Working 45% to 80%RH humidity range Storage 30% to 90%RH humidity range Atmospheric 86KPa to 106KPa pressure...
  • Page 7 There are three types of supplying power: battery, adaptor, USB cable. GPS navigator uses the Li-battery to supply power when it is not connected with adaptor. The mark [ ] on the up right of interface indicate the current electric volume. ◆...

  • Page 8: Power On/Off

    do not poke, bump or take it apart or throw it into fire or water. 1.3 Use the car charger to supply power ◆ Connect the DC part with the motorcycle, the red line is connected with ignition switch and the black line is connected with the negative pole, when you turn on the motorcycle, the GPS navigator will turn on automatically.

  • Page 9: Reset System

    mainframe short circuited. 2.2 Power off Press the button on the top of the unit to turn off, the unit will enter the power saving mode and maintain the last operation status when boot next time. 3. Reset system ◆ If the system cannot work, you can reset the system by the following way: ◆...
  • Page 10 【Note】The unsaved data will be lost as you reset the system when the system has no response. Please copy the data every other time. 4. Use bracket to fix navigator When use GPS in the motorcycle, you should fix the device to the part of the motorcycle besides the panel by using the bracket.

  • Page 11: Connect With Computer

    5. Stylus The stylus is the tool for you to use your navigator. Please keep it carefully. 1. Single click: Singly click the screen with the stylus point. 2. Double click: Double click the screen with the stylus point. 3. Drawing: Click one point and hold to move on the screen.
  • Page 12 navigator to computer so as to recover the data in GPS when you are in need of them. 1. Please confirm the GPS navigator is power on; 2. Connect the MINI end [ ] of USB cable with the USB port on the left part of GPS device and the normal end [ ] with the Host port on computer.
  • Page 13 storage device every time before you update your system data. Our company takes no responsibility to any loss of data. The GPS navigator will stop the operation when it is connected with computer. In the process of communication, the following operations will break off the connection with computer;...

  • Page 14: Primary Function

    Primary function 1. The main interface and the function 1.1 Main menu： Click the top left corner of the interface to hide calendar, show in Figure 1-2...
  • Page 15 Click the date icon enter the date setting interface， show in Figure 1-3...
  • Page 16 Click the top left corner of the interface change the desktop display background，show in Figure 1-4 Navigation Provide navigation service This device can connect with the Bluetooth Bluetooth earphone Support AVI / WMV /MP4/ASF format. Video player Support progress adjust, pause and full screen play Support JPG /BMP format.

  • Page 17: Navigation Functions And Features

    pictures, automatic play and so on E-book Text format: txt. Support page selection Audio playing format: WMA, MP3. Support random playing, sequential Audio player playing, repeat playing, pause, previous/next, volume Game Support game Brightness, Volume, Languages, Power, Setting Time, System, Default, Info, Navipath.
  • Page 18 2.1 Map information It is probably that the electronic navigation data is not consistent with the real traffic instructions because of the traffic construction development. Please do comply with the highway condition and the actual traffic rules. 2.2 Navigation The navigator offers the route for the reference; determine the route by yourself, the driver may be more familiar with the route than GPS navigator.
  • Page 19 3.1 Music player operation interface Click to enter Multimedia interface, show in Figure 3-1 3.2 Functions and features The audio player supports MP3 and WAV format, you could set the playing sequence as you wish. Before using the audio player, please copy the files to any folder.
  • Page 20 To play and pause, click to Play/pause pause, click again to play continuously Stop Single click to stop playing; Next song Play the next song; Volume Increase/ decreased volume; Single click to close the Close audio player; Support sequential playing, Set the playing loop playing, repeat playing mode...
  • Page 21 4. Video operation Interface 4.1 Functions and features Support AVI / WMV /MP4/ASF format Support full-screen playing, progress choosing and file selection; ◆ Before using the Video player, please copy your video file to any folder 4.2 Operation Single click the Video button to enter the video file list as the picture 4-1&...
  • Page 22 Close Click to close the video list; It shows stop playing. Single Play click will continue to play. Next Play next video. Single click and shift to video File list file list, and then choose your favorite video. Single click volume Volume increase/...

  • Page 23: Photo Viewer Operation Interface

    volume Adjust brightness with stylus Brightness while moving toward left and adjust right. Play Full screen play. Double click interface to return normal play status. 5. Photo viewer operation interface 5.1 Function and features 1. Supports JPG、BMP and PNG 2. Support picture rotate, picture enlarge/shrink and automatic play.
  • Page 24 Close Click to close the viewer...
  • Page 25 Shrink Shrink current picture in proportion Enlarge current picture Enlarge proportion Previous Show the previous picture Next Show the next picture Single click and shift to video file File list list, then choose your favorite picture Click to rotate the picture by 90 Rotate degree Automatic...
  • Page 26 Single click to close current Close interface Open Open the Bluetooth Searching Search for Bluetooth devices After successful connecting, it will show the picture 6-2:...
  • Page 27 E-book reader interface operation 7.1 Function Support TXT Support turning over page, page browse, and file choosing. ◆ Before using e-book function, please copy your TXT file and save it to any folder. 7.2 Operation...
  • Page 28 Single click button to enter EBook list as 7-1 &...
  • Page 29 Single click and close e-book Close reader Last page Read last page Next page Read next page Single click to enter EBook list File to choose favorite book Font set Color set It needs open e-book and Add book mark choose TXT.
  • Page 30 Set font as normal Decrease font size Font size indicator Increase font size 8. Game Single click o choose different games as 8-1:...
  • Page 31 9. Tool Single click into Tool interface as shown 9-1: 10. Setting Clink to enter setting interface as shown 10-1...
  • Page 32 10-1 10.1 Volume adjust Single click into the volume adjust interface as shown 10-2:...
  • Page 33 10-2 “Volume adjustment” includes: Speaker volume adjustment Screen click tone setting. Exit “volume setting” Close interface; Single click to decrease the Volume - volume gradually; Single click to increase the Volume + volume gradually; By clicking the left/right shift Click button to set the on/off key screen tone tone, with loud, soft, and off...
  • Page 34 10-3 Exit backlight setting Close interface; Click decrease Brightness backlight gradually to the decrease lowest level; Click to increase backlight Brightness gradually to the highest increase level System backlight will be Time interval closed automatically when no operation for a period...
  • Page 35 time to save power. 10.3 Navigation path Click to set the interface into navigation path, set the default navigation paths as shown in 10-4: 10-4 10.4 Date and time setting Single click into the date time interface as shown 10-5”...
  • Page 36 Date and time include: System time set; System date set; System time zone set. 10-5 1. Single click number button to set time and date. 2. Single to choose time area. Click to exit current interface after setting...
  • Page 37 10.5 Screen calibration Click to enter the screen calibration as 10-6: 10-6 Click it will move from in the sequence of the center as 10-7, left up, left down, right down and right up till the calibration succeed, then click any where on the screen to save the calibration and exit to the main interface automatically.
  • Page 38 10-7 10.6 Language setting Single click into the language settings interface as shown 10-8, Language setting including: System prompt language selection;...
  • Page 39 10-8 10.7 Restore set Single click to enter the default setting: Single click to restore the default settings, single click to exit the default settings. 10.8 GPS information...
  • Page 40 Click the button and enter GPS information interface as 10-9; 10-9 10.9 System information Click to enter the System information.
  • Page 41 10-10 System information includes: Firmware version； APP version; System ID. 10.10 Auto start Click to enter the Auto start as 10-11:...
  • Page 42 10-11 Simple Problem shooting maintenance IF your GPS navigator cannot work normally, please check it as follows. If you cannot solve the problem, please contact our service center. Reason Reason Solution Can not turn on the Lack of power Charge the battery navigator The device turn off Low battery...
  • Page 43 The back light is Adjust the backlight not bright enough display Click the LCD; the clearly The back light has screen will turn been turned off bright again. No response when The touch-screen Calibrate clicking the button is not calibrated touch-screen The volume is at lowest...
  • Page 44 minutes to receive the signal Maintenance of GPS navigator GPS navigator will be a reliable navigation and entertainment companion if protected by right methods. Please follow the instructions below to ensure your GPS run smoothly for a long time. Protect screen: Don’t press the screen with strength or you will destroy it.
  • Page 45 √ Don’t use it under such environment: Temperature change abruptly (high temperature above 60°, low temperature under-10°), high voltage, dusty, electrostatic interference, avoid any corrosive liquid and dip into any liquid. √ Avoid radiated interference: The radiated interference from other electronic products will affect the display and it will be normal after suppressing the interference source.
