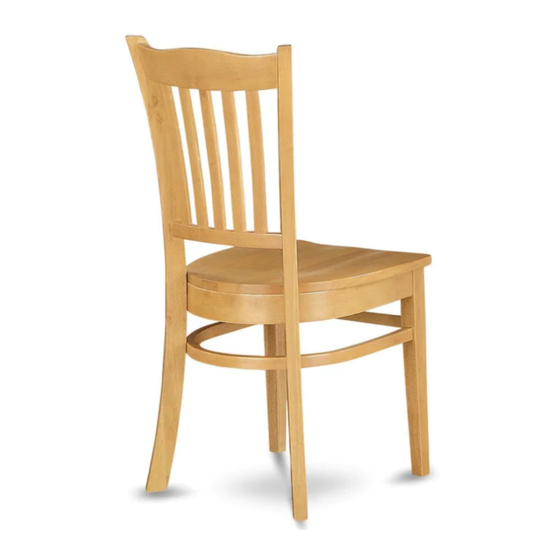

- Page 1 ASSEMBLY INSTRUCTIONS Description : GROTON DINING CHAIR WITH WOOD SEAT Dimension : W. 17" 3/4 x D.19" 1/2 x H. 37" Cube Size : 39.3”x19.4”x10” NW: 30.8 LBS GW: 36.3 LBS GROTON DINING CHAIR WITH WOOD SEAT - 1 -...
- Page 2 When unpacking, please be careful not to discard any parts with the packaging. Before continuing, please make sure you have the following parts: Description Sketch Description Sketch Chair back Seat Frame U Stretcher Front Leg Front Stretcher GROTON DINING CHAIR WITH WOOD SEAT - 2 -...
- Page 3 Place front stretcher (E), U stretchers (D) between front legs, use the screw driver to tighten the screws (6) as shown below. Note: DO NOT tighten any of the bolts, until Place front stretcher (E) between front legs the chair is assembled, then tighten the bolts and the screws. GROTON DINING CHAIR WITH WOOD SEAT - 3 -...
- Page 4 Note: DO NOT tighten any of the bolts, until the chair is assembled, then put on a flat level surface to make sure the chair is level and then tighten the bolts. GROTON DINING CHAIR WITH WOOD SEAT - 4 -...
