ASSEMBLY INSTRUCTIONS
SKU: AVT
Description
Dimension
Cube Size
Cube Size
(Pedestal)

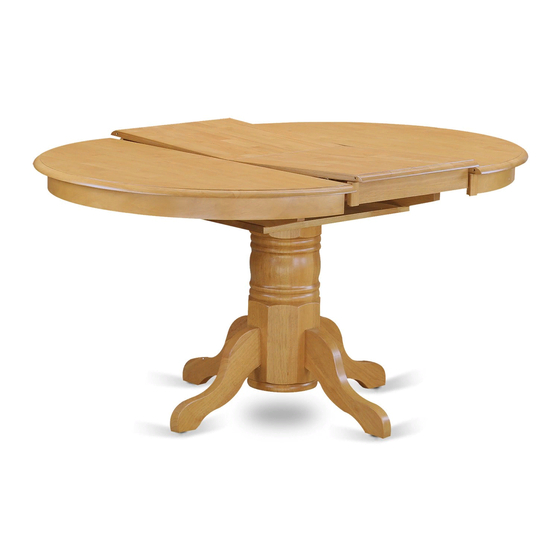

AVON TABLE
: AVON TABLE
:
W.42"xD.(42"/60")xH.30"
: 44.4"x44.4" x8"
(Top)
: 24.4"x10.5" x9"
- 1 -
175 Southbelt Industrial
Dr
Houston, TX 77047
Email:
info@eastwestfurniture.net
NW: 74.8 LBS
GW: 83.6 LBS
NW: 17.6 LBS
GW: 19.8 LBS
Advertisement
Related Manuals for East West Furniture AVT
Summary of Contents for East West Furniture AVT
- Page 1 ASSEMBLY INSTRUCTIONS SKU: AVT 175 Southbelt Industrial Houston, TX 77047 Email: info@eastwestfurniture.net Description : AVON TABLE Dimension W.42”xD.(42”/60”)xH.30” Cube Size : 44.4”x44.4” x8” NW: 74.8 LBS (Top) GW: 83.6 LBS Cube Size : 24.4”x10.5” x9” NW: 17.6 LBS (Pedestal) GW: 19.8 LBS...
-
Page 2: Before Assembly
BEFORE ASSEMBLY Thank you for purchasing this quality product. This product has been designed for easy assembly and constructed for durability. Please take the time to read and follow the assembly instructions carefully. Be sure to check all packing material carefully for small parts which may have come loose inside the carton during shipment. Please separate, identify, and count all parts and metal hardware. - Page 3 STEP 1 Attach Legs (C) to column (B) by using Nuts (3), and Washers (2) and (1). Tighten with Wrench (4) as shown below. STEP 2 Use the Allen key (5) to loosen the bolts, and take off the plate underneath of the table top. REMOVED UNSCREW AVON TABLE...
- Page 4 STEP 3 Place the plate on top of the column (B), attach with washers (1), (2) and nuts (3). Tighten with the Wrench (4) as shown below. STEP 4 Carefully put the pedestal block on the bottom side of the table top, attach the top to plate with bolts (from step 2) and tighten with the Allen key (5) AVON TABLE - 4 -...
- Page 5 STEP 5 Unlatch 2 end pieces of table top by the latches underneath table top. Pull the 2 ends of the table top apart. STEP 6 Unfold the butterfly leaf with the apron at both ends straightened up as shown on the Step 6. Place flattened butterfly leaf at the center of the table.
