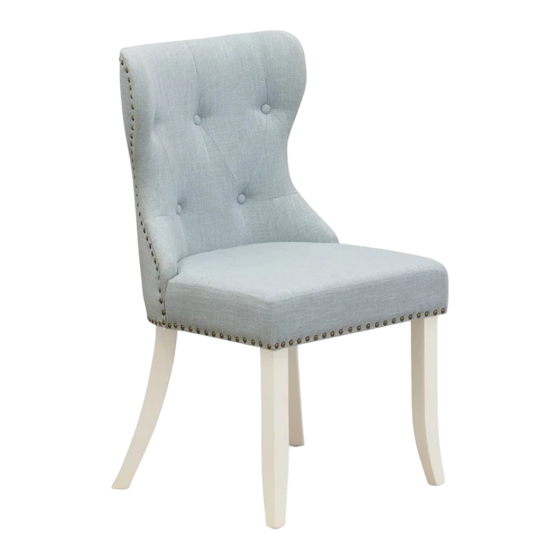

- Page 1 ASSEMBLY INSTRUCTIONS SKU: SIP 175 Southbelt Industrial Dr, Houston, TX 77047 Email:sales@eastwestfurniture.net Description : SION PARSON CHAIR Product Dimension : 19.5”Wx21.5"Dx35.5"H Cube Size : 45.4”x21.6”x10.2” NW : 33 LBS GW: 39.6 LBS SION PARSON CHAIR - 1 -...
- Page 2 BEFORE ASSEMBLY Thank you for purchasing our product. This product has been designed for easy assembly and long- lasting use. Please take the time to read and follow the assembly instructions carefully Be sure to check all packing material carefully for small parts that may have come loose inside the carton during shipment. Please separate, identify, and count all parts and metal hardware.
- Page 3 STEP 1 Remove the bottom cover out of the seat frame (B), as shown below, then attaching Dowel (7) to seat frame (B). STEP 2 Attach front legs (C) to the seat frame (B). Use bolts (1), washers (4), and (5). Tighten with Allen Key (6). SION PARSON CHAIR - 3 -...
- Page 4 STEP 3 Attach Back Legs (D) to the chair back (A) by using bolts (2) and washers (4) and (5). Tighten with Allen Key (6). Note: DO NOT tighten any of the bolts until the chair assembled with all parts. STEP 4 Attach seat frame (B) to the chair back (A) by using bolts (3) and washers (4) and (5).
- Page 5 STEP 5 Place the chair on a flat level surface to make sure the chair is level and then tighten all bolts. STEP 6 Attach the bottom cover (removed on step 1) back on the seat frame and finish the assembly. SION PARSON CHAIR - 5 -...
