ASSEMBLY INSTRUCTIONS
SKU: DSP
Description
Product Dimension
Cube Size
(Chair back)
Cube Size
(Legs)

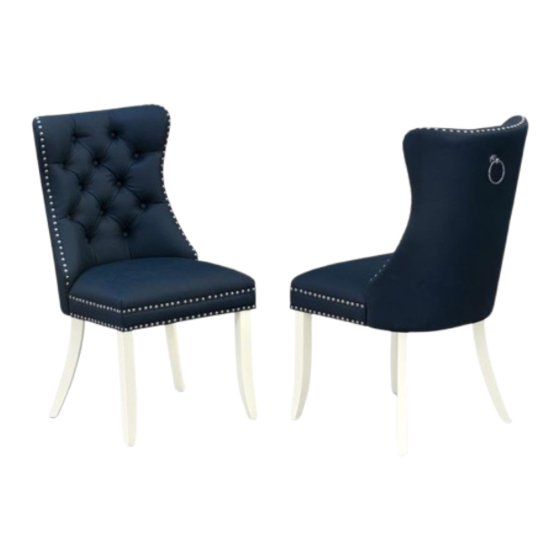

DALLAS PARSON CHAIR
: DALLAS PARSON CHAIR
: 19.5"Wx23.8"Dx37.7"H
: 52"x 22.2"x14.6"
: 19"x 15.7"x 3"
- 1 -
175 Southbelt Industrial Dr,
Houston, TX 77047
Email:sales@eastwestfurniture.net
NW: 39.6 LBS
GW: 48.4 LBS
NW: 5.5 LBS
GW: 6.6 LBS
Advertisement
Related Manuals for East West Furniture DALLAS DSP
Summary of Contents for East West Furniture DALLAS DSP
- Page 1 ASSEMBLY INSTRUCTIONS SKU: DSP 175 Southbelt Industrial Dr, Houston, TX 77047 Email:sales@eastwestfurniture.net Description : DALLAS PARSON CHAIR Product Dimension : 19.5”Wx23.8"Dx37.7"H Cube Size : 52”x 22.2”x14.6” NW: 39.6 LBS (Chair back) GW: 48.4 LBS Cube Size : 19”x 15.7”x 3” NW: 5.5 LBS (Legs) GW: 6.6 LBS...
- Page 2 BEFORE ASSEMBLY Thank you for purchasing our product. This product has been designed for easy assembly and long- lasting use. Please take the time to read and follow the assembly instructions carefully Be sure to check all packing material carefully for small parts that may have come loose inside the carton during shipment. Please separate, identify, and count all parts and metal hardware.
- Page 3 STEP 1 Remove the bottom cover out of the seat frame (B) as shown below, then attach dowel (7) to seat frame (B). STEP 2 Attach the front legs (C) to the seat frame (B) by using bolts (1), lock washers (4) and flat washers (5), then tighten with Allen Key (6).
- Page 4 STEP 3 Attach the back legs (D) to the chair back (A) by using bolts (2), lock washers (4) and flat washers (5), then tighten with Allen Key (6). Note: DO NOT fully tighten any of the bolts until the chair assembled with all parts. STEP 4 Attach the seat frame (B) to the chair back (A) by using bolts (3), lock washers (4) and flat washers (5), then tighten with Allen Key (6).
- Page 5 STEP 5 Place the chair on a flat level surface to make sure the chair is level and then tighten all bolts. STEP 6 Attach the bottom cover (removed on step 1) back on the seat frame and finish the assembly. DALLAS PARSON CHAIR - 5 -...
