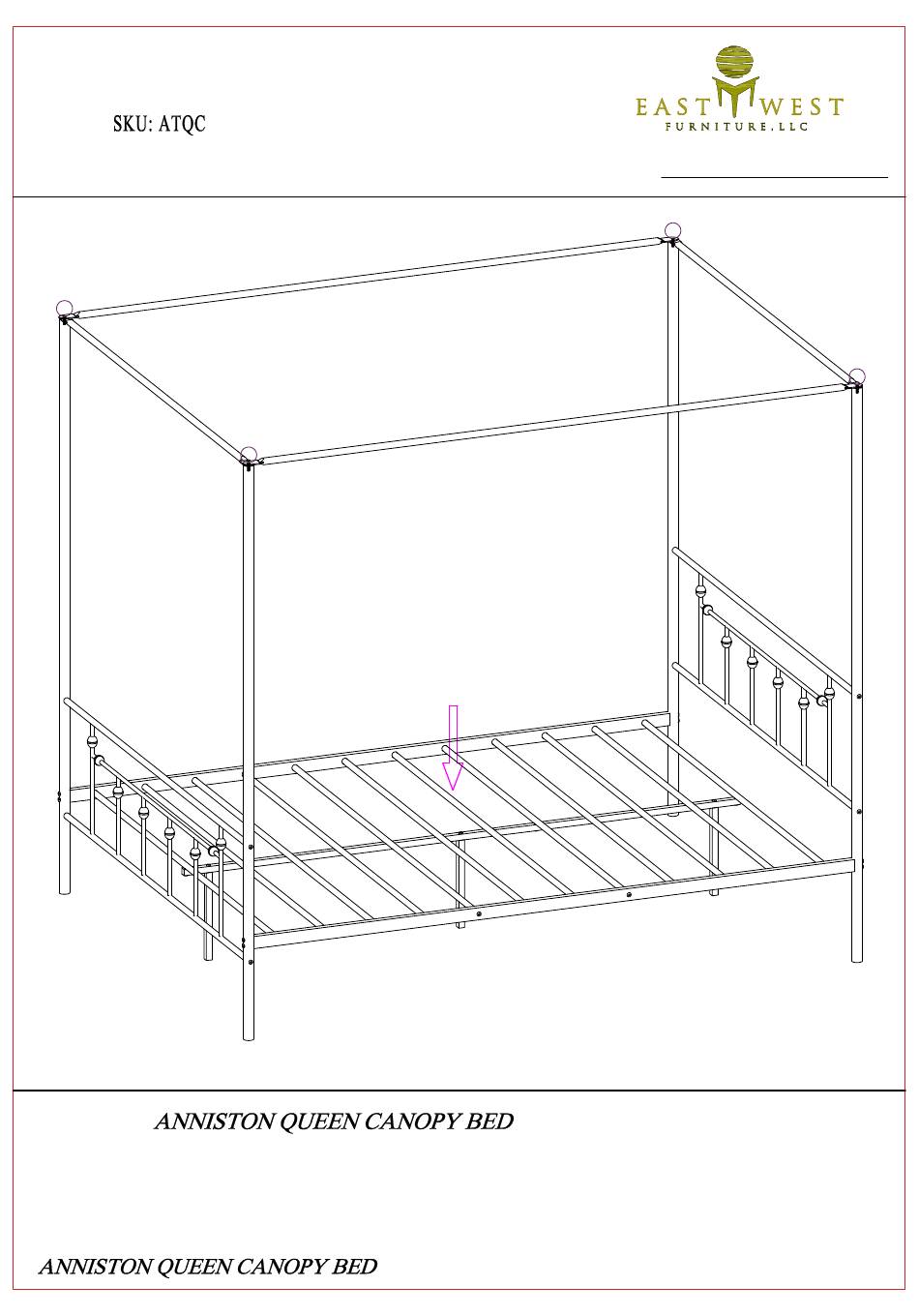

ASSEMBLY INSTRUCTIONS
Description :
Dimension : 82.3''Lx62.3"Wx77"H
Cube Size : 83.5"x17.3"x4.3"
WEIGHT LIMIT
620 LBS
- 1 -
175 Southbelt Industrial Drive,
Houston, TX 77047
E m a i l : i n f o @ e a s t w e s t f u r n i t u r e . n e t
NW: 52.8 LBS
GW: 61.2 LBS
Advertisement
Related Manuals for East West Furniture ATQC
Summary of Contents for East West Furniture ATQC
- Page 1 ASSEMBLY INSTRUCTIONS 175 Southbelt Industrial Drive, Houston, TX 77047 E m a i l : i n f o @ e a s t w e s t f u r n i t u r e . n e t WEIGHT LIMIT 620 LBS Description :...
- Page 2 PART LIST horizontal bar - 2pcs vertical bar - 2pcs vertical bar - 2pcs headboard & footboard - 2pcs horizontal bar - 2pcs slat - 9pcs horizontal bar - 2pcs slat - 3pcs ornament ball - 4pcs vertical bar - 3pcs horizontal bar - 1pc - 2 -...
- Page 3 HARDWARE LIST Ø1/4"*55mm Ø1/4"*40mm Ø1/4"*35mm Ø1/4"*15mm Ø33x10mm 20*20*10mm 4*58mm Bolts - 16pcs Bolts - 3pcs Bolts - 3pcs Bolts - 6pcs Pipe plug - 4pcs Pipe plug - 3pcs Allen key - 1pc IMPORTANT SAFETY NOTICE: READ CAREFULLY BEFORE BEGINNING ASSEMBLY! Hardware packs and small components should be away from the children ，...
- Page 4 STEP 2 Ø1/4"*15mm - 6pcs STEP 3 Ø1/4"*55mm - 8pcs - 4 -...
- Page 5 STEP 4 Ø1/4"*40mm - 3pcs 20*20*10mm - 3pcs STEP 5. Ø1/4"*35mm - 3pcs - 5 -...
