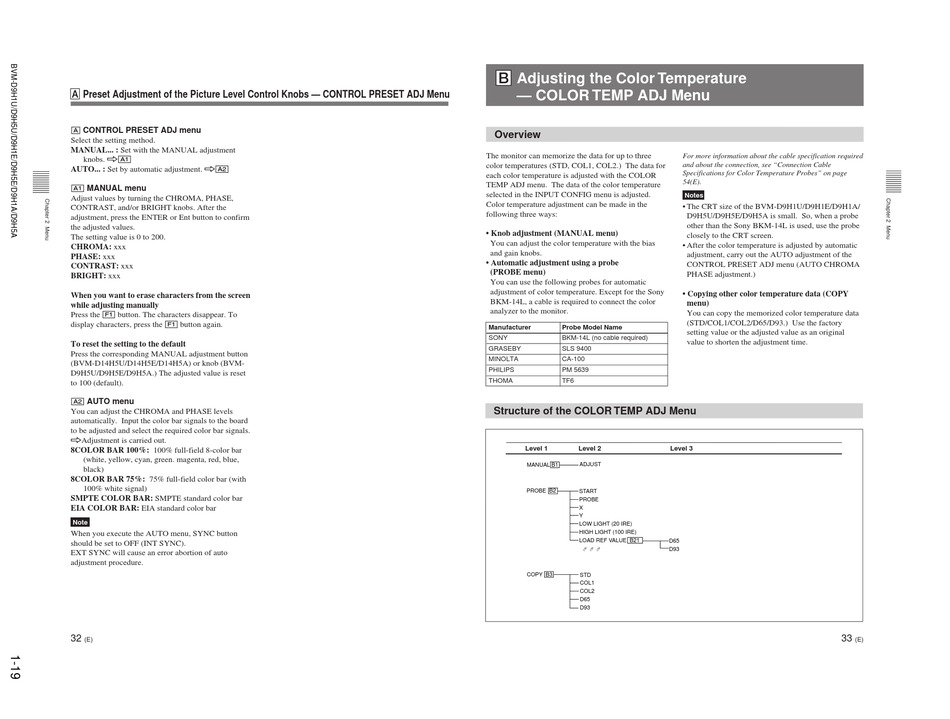

A Preset Adjustment of the Picture Level Control Knobs — CONTROL PRESET ADJ Menu
[A] CONTROL PRESET ADJ menu
Select the setting method.
MANUAL... : Set with the MANUAL adjustment
knobs. ÷[A1]
AUTO... : Set by automatic adjustment. ÷[A2]
[A1] MANUAL menu
Adjust values by turning the CHROMA, PHASE,
CONTRAST, and/or BRIGHT knobs. After the
adjustment, press the ENTER or Ent button to confirm
the adjusted values.
The setting value is 0 to 200.
CHROMA: xxx
PHASE: xxx
CONTRAST: xxx
BRIGHT: xxx
When you want to erase characters from the screen
while adjusting manually
Press the [F1] button. The characters disappear. To
display characters, press the [F1] button again.
To reset the setting to the default
Press the corresponding MANUAL adjustment button
(BVM-D14H5U/D14H5E/D14H5A) or knob (BVM-
D9H5U/D9H5E/D9H5A.) The adjusted value is reset
to 100 (default).
[A2] AUTO menu
You can adjust the CHROMA and PHASE levels
automatically. Input the color bar signals to the board
to be adjusted and select the required color bar signals.
÷Adjustment is carried out.
8COLOR BAR 100%: 100% full-field 8-color bar
(white, yellow, cyan, green. magenta, red, blue,
black)
8COLOR BAR 75%: 75% full-field color bar (with
100% white signal)
SMPTE COLOR BAR: SMPTE standard color bar
EIA COLOR BAR: EIA standard color bar
Note
When you execute the AUTO menu, SYNC button
should be set to OFF (INT SYNC).
EXT SYNC will cause an error abortion of auto
adjustment procedure.
32
(E)
B
Adjusting the Color Temperature
— COLOR TEMP ADJ Menu

Overview

The monitor can memorize the data for up to three
color temperatures (STD, COL1, COL2.) The data for
each color temperature is adjusted with the COLOR
TEMP ADJ menu. The data of the color temperature
selected in the INPUT CONFIG menu is adjusted.
Color temperature adjustment can be made in the
following three ways:
• Knob adjustment (MANUAL menu)
You can adjust the color temperature with the bias
and gain knobs.
• Automatic adjustment using a probe
(PROBE menu)
You can use the following probes for automatic
adjustment of color temperature. Except for the Sony
BKM-14L, a cable is required to connect the color
analyzer to the monitor.
Manufacturer
Probe Model Name
SONY
BKM-14L (no cable required)
GRASEBY
SLS 9400
MINOLTA
CA-100
PHILIPS
PM 5639
THOMA
TF6

Structure of the COLOR TEMP ADJ Menu

Level 1
Level 2
ADJUST
MANUAL B1
PROBE B2
START
PROBE
X
Y
LOW LIGHT (20 IRE)
HIGH LIGHT (100 IRE)
LOAD REF VALUE B21
@ @ @
COPY B3
STD
COL1
COL2
D65
D93
For more information about the cable specification required
and about the connection, see "Connection Cable
Specifications for Color Temperature Probes" on page
54(E).
Notes
• The CRT size of the BVM-D9H1U/D9H1E/D9H1A/
D9H5U/D9H5E/D9H5A is small. So, when a probe
other than the Sony BKM-14L is used, use the probe
closely to the CRT screen.
• After the color temperature is adjusted by automatic
adjustment, carry out the AUTO adjustment of the
CONTROL PRESET ADJ menu (AUTO CHROMA
PHASE adjustment.)
• Copying other color temperature data (COPY
menu)
You can copy the memorized color temperature data
(STD/COL1/COL2/D65/D93.) Use the factory
setting value or the adjusted value as an original
value to shorten the adjustment time.
Level 3
D65
D93
33
(E)
