Hardware Installation

You may position the Sagemcom Router at any convenient location in your office or home. No special
wiring or cooling requirements are needed; however, you shall comply with the safety guidelines specified
in the General Safety Guidelines

Basic Installation Procedure

1. Optionally, wall mount Router.
2. Install line filters if necessary.
3. Connect the cables.
4. Configure the Router via the Web-based management interface.

Wall Mounting Router (Optional)

While many users place their F@st™2864 Router on their desk, it can be optionally wall mounted.
1. The unit is wall mounted with the top of the unit (has USB2 connector) facing up.
2. Ensure that the wall you use is smooth, flat, dry, and sturdy.
3. The unit is mounted using two M3x20 screws (20mm length and 3mm in diameter).

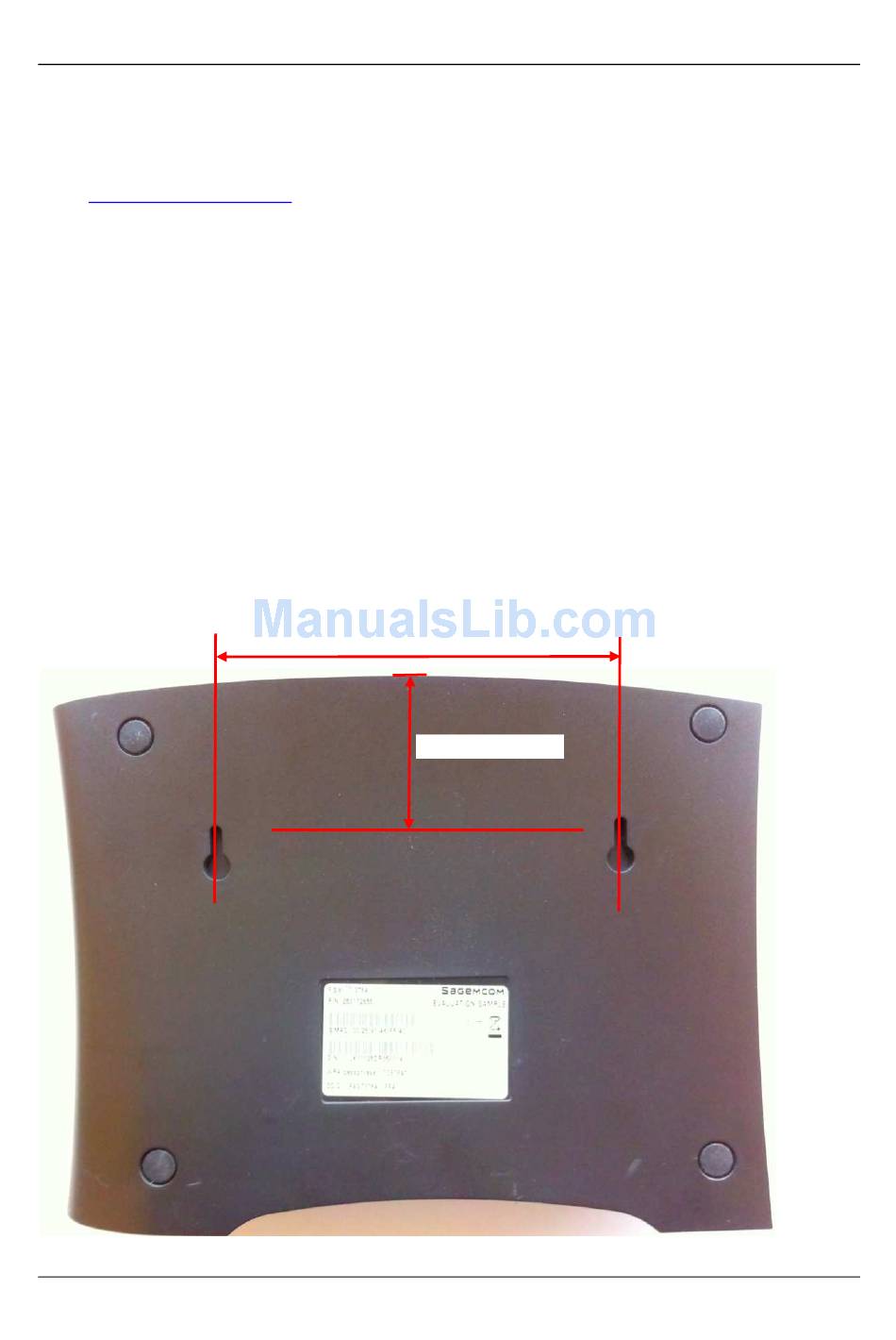

4. Install the two screws 140 mm (5.5 inches) apart approximately 50 mm (2.0 inches) below the desired
top of the Router per the following figure.
5. Screw the screws into the wall leaving their heads extending approximately 3.5 to 4.0 mm (0.15 inch)
from the wall surface.
6. Carefully align the screw heads in the keyholes on the back of the Router and gently push the unit
onto the wall moving it downward to secure it in the narrow portion of the keyhole slots.
section.
140 mm (5.5 inches)
50 mm (2 inches)
7
Physical Installation
