Summary of Contents for AEMC MN261

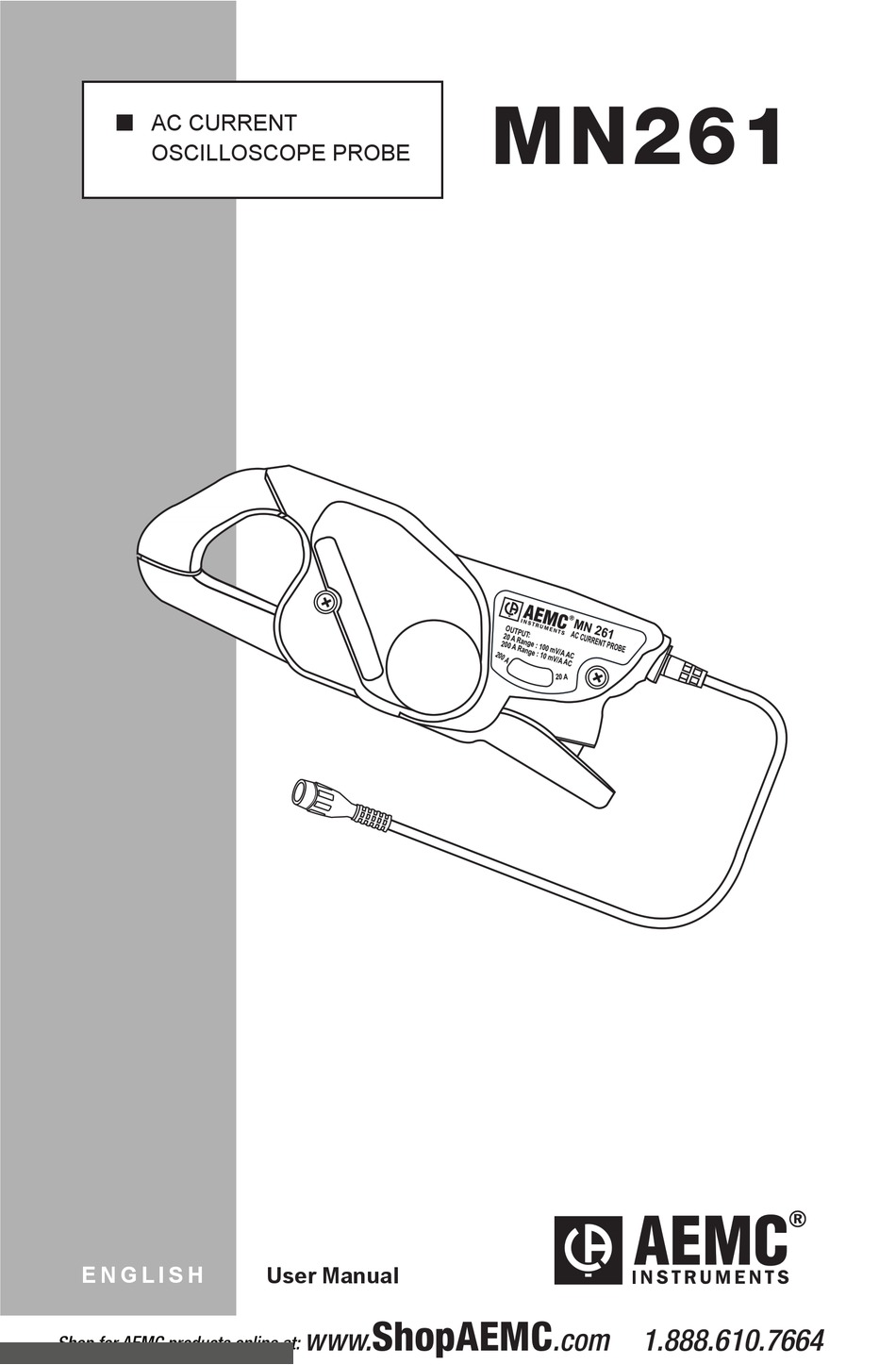

- Page 1 MN261 AC CURRENT OSCILLOSCOPE PROBE E N G L I S H User Manual ShopAEMC www. .com 1.888.610.7664 Shop for AEMC products online at:...
- Page 2 Catalog #: 2115.82 Model #: MN261 Please fill in the appropriate date as indicated: Date Received: _________________________________ _______________________ Date Calibration Due: Chauvin Arnoux , Inc. ® d.b.a AEMC Instruments ® ShopAEMC www. .com 1.888.610.7664 Shop for AEMC products online at:...
-
Page 3: Table Of Contents
3.4 Safety Specifications ..............7 3.5 Typical Response Curves ............8 4. OPERATION .................. 10 4.1 Current Measurement .............10 5. MAINTENANCE ................11 5.1 Maintenance ................11 5.2 Cleaning .................. 11 Limited Warranty ...................13 Warranty Repairs ...................13 ShopAEMC www. .com 1.888.610.7664 Shop for AEMC products online at:... -
Page 4: Introduction
This symbol on the instrument indicates a WARNING and that the operator must refer to the user manual for instructions before operat- ing the instrument. In this manual, the symbol preceding instructions indicates that if the instructions are not followed, bodily injury, instal- lation/sample and product damage may result. Risk of electric shock. The voltage at the parts marked with this symbol may be dangerous. This is a type A current sensor. This symbol signifies that application around and removal from HAZARDOUS LIVE conductors is permitted. AC Current Oscilloscope Probe Model MN261 ShopAEMC www. .com 1.888.610.7664 Shop for AEMC products online at:... -
Page 5: Definition Of Measurement Categories
(<1000V) such as on primary overcurrent protection devices, ripple control units, or meters. Receiving Your Shipment Upon receiving your shipment, make sure that the contents are consistent with the packing list. Notify your distributor of any missing items. If the equip- ment appears to be damaged, file a claim immediately with the carrier and notify your distributor at once, giving a detailed description of any damage. Save the damaged packing container to substantiate your claim. Ordering Information AC Current Oscilloscope Probe Model MN261 ....Cat. #2115.82 1.4.1 Accessories and Replacement Parts Male Banana - Female BNC Adaptor (XF-SS) ....Cat. #2111.32 AC Current Oscilloscope Probe Model MN261 ShopAEMC www. .com 1.888.610.7664 Shop for AEMC products online at:... -
Page 6: Product Features

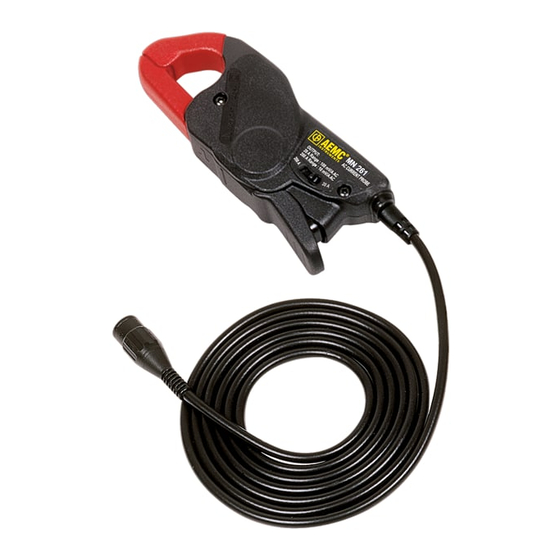

CHAPTER 2 PRODUCT FEATURES Description The AC Current Oscilloscope Probe Model MN261 expands oscilloscope applications in industrial or power environments, and is ideal for analysis and measurement of distorted current waveforms and harmonics. The Model MN261 permits accurate display and measurement of currents from 0.1 to 240Arms, 40Hz to 10kHz (with current derating) without break- ing into the circuit. A passive filter eliminates noise, ring on rapid rising (di/ dt) waveforms, and ensures accurate screen displays. The probe connects directly to an oscilloscope through an insulated coax- ial cable with an insulated BNC. Compatibility The Model MN261 is compatible with any analog or digital oscilloscope or other voltage-measuring instrument which has the following features: • BNC input connector • Range capable of displaying 0.2 to 0.5V per division, or 2V range • Minimum input impedance of 1MΩ AC Current Oscilloscope Probe Model MN261 ShopAEMC www. .com 1.888.610.7664 Shop for AEMC products online at:... -
Page 7: Control Features
(18.5 mm) 2.01" (51 mm) .1.18" (30 mm) 1. Jaw Opening: 0.83" (21mm) 2. Maximum dimension of conductor: 0.78" (20mm) 3. Two position switch 4. 6.5 ft (2m) output cable 5. Arrow indicates direction of current flow. Current flows in a positive direction when it travels from supply to load. AC Current Oscilloscope Probe Model MN261 ShopAEMC www. .com 1.888.610.7664 Shop for AEMC products online at:... -
Page 8: Specifications
Load Impedance: 100kΩ min Working Voltage: 600V Cat. III Common Mode Voltage: 600V Cat. III Influence of Adjacent Conductor: <15mA/A @ 50Hz Influence of Conductor Position in Jaw Opening: 0.5% of Reading @ 50/60Hz Influence of Frequency: Range 20A: 40Hz to 1kHz: 10% of mV output 1 to 10kHz: 15% of mV output Range 200A: 40Hz to 1kHz: 3% of mV output 1 to 10kHz: 12% of mV output AC Current Oscilloscope Probe Model MN261 ShopAEMC www. .com 1.888.610.7664 Shop for AEMC products online at:... -
Page 9: Mechanical Specifications
Dielectric Strength: 5550V, 50/60Hz between primary, secondary, and the outer case of the handle Electromagnetic Compatibility: EN 50081-1 Class B EN 50082-2 Electrostatic discharge IEC 1000-4-2 Radiated field IEC 1000-4-3 Fast transients IEC 1000-4-4 Magnetic field at 50/60 Hz IEC 1000-4-8 *Specifications are subject to change without notice AC Current Oscilloscope Probe Model MN261 ShopAEMC www. .com 1.888.610.7664 Shop for AEMC products online at:... -
Page 10: Typical Response Curves
100000.00 Frequency in Hz Phase Shift vs. Frequency 15.00 100 A 10.00 200 A 5.00 0.00 -5.00 -10.00 -15.00 -20.00 -25.00 10.00 100.00 1000.00 10000.00 100000.00 Frequency in Hz AC Current Oscilloscope Probe Model MN261 ShopAEMC www. .com 1.888.610.7664 Shop for AEMC products online at:... - Page 11 100000.00 Frequency in Hz Phase Shift vs. Frequency 40.00 10 A 30.00 20 A 20.00 10.00 0.00 -10.00 -20.00 -30.00 -40.00 10.00 100.00 1000.00 10000.00 100000.00 Frequency in Hz AC Current Oscilloscope Probe Model MN261 ShopAEMC www. .com 1.888.610.7664 Shop for AEMC products online at:...
-
Page 12: Operation
(Remember to unclamp the probe from the conductor before disconnect- ing it from your meter or instrument.) You may also use your oscilloscope to amplify the signal while using the 1mV/A probe range (which offers the best accuracy and least phase shift). NOTE: It is possible to change the range on the current probe with- out removing the probe from the current carrying conductor, but it is important to remember not to exceed the permissible peak ratings of 340mV peak or 680mV peak to peak maximum. The peak ratings by range are: 34A peak @ 100mV/A and 340A peak @ 10mV/A. AC Current Oscilloscope Probe Model MN261 ShopAEMC www. .com 1.888.610.7664 Shop for AEMC products online at:... -
Page 13: Maintenance
• To avoid electrical shock and/or damage to the instrument, do not allow water or other foreign substances into the case. • Disconnect the unit from all circuits and test cables before open- ing the case. • Use caution with metallic tools that may short battery packs, power supplies, etc. Cleaning • To clean the probe body, use a soft cloth dampened in a solution of mild detergent and water. To clean the core, open the jaw and clean the exposed core surfaces with a cotton swab dampened with isopropyl alcohol or ethyl alcohol. Lubricate the jaws mating surfaces with a light oil. • Do not use chemicals containing benzine, benzene, toluene, xylene, acetone, or similar solvents. • Do not immerse the probe in liquids or use abrasive cleaners. AC Current Oscilloscope Probe Model MN261 ShopAEMC www. .com 1.888.610.7664 Shop for AEMC products online at:... - Page 14 ShopAEMC www. .com 1.888.610.7664 Shop for AEMC products online at:...
-
Page 15: Limited Warranty
CSA Form. Please write the CSA# on the outside of the shipping container. Return the instrument, postage or shipment pre-paid to: Ship To: Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® 15 Faraday Drive • Dover, NH 03820 USA Phone: (800) 945-2362 (Ext. 360) (603) 749-6434 (Ext. 360) Fax: (603) 742-2346 or (603) 749-6309 E-mail: repair@aemc.com Caution: To protect yourself against in-transit loss, we recommend you insure your returned material. NOTE: You must obtain a CSA# before returning any instrument. AC Current Oscilloscope Probe Model MN261 ShopAEMC www. .com 1.888.610.7664 Shop for AEMC products online at:... - Page 16 08/13 99-MAN 100144 v6 Chauvin Arnoux , Inc. d.b.a. AEMC Instruments ® ® ShopAEMC www. .com 1.888.610.7664 Shop for AEMC products online at:...
