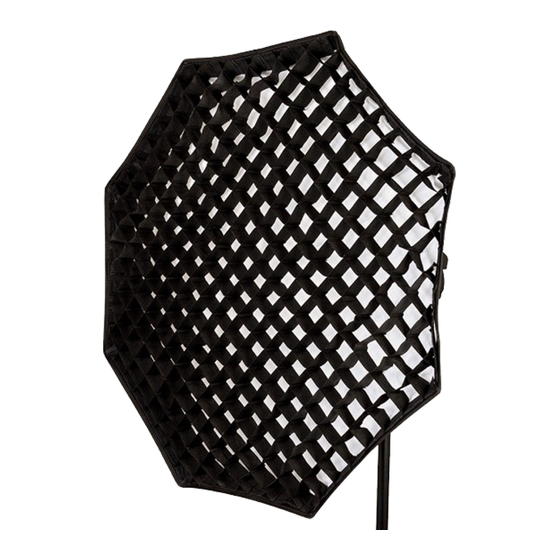

- Page 1 ® www.essentialphoto.co.uk PiXAPRO Recessed Octagonal Softbox ASSEMBLY INSTRUCTIONS...
- Page 2 ASSEMBLY INSTRUCTIONS Softbox Parts. Rods Inner Diffuser Outer Diffuser Backing Material Outer Ring Inner Ring The Speedring Inner Rings Are Available in The Following Fittings: Elinchrom Hensel Broncolor Bowens S-Type Multiblitz V Multiblitz P Profoto The Speedring is made up of two parts. The Outer Ring (which is where the rods which form the basic structure of the softbox go into), and the Inner Ring,...
- Page 3 ASSEMBLY INSTRUCTIONS Step 1. Step 3. Lay the softbox backing material on the Now insert the larger tipped end of the rod floor, and place the speedring in the center into hole in the speed ring (please refer to as shown in the image above. Key on the previous page for which holes to use).
- Page 4 ASSEMBLY INSTRUCTIONS Step 5. Step 7. Now that the first two rods are in place, in- Now attach the back panel of the softbox sert the second and third rods at a 90° angle using the Velcro strips, to prevent light leak- from the first two, to make it a little easier to age from the back of the softbox.
- Page 5 This type of softbox cannot be used with a grid. Step 10. Octagonal Softbox Video PIXAPRO ® 50 Popes Lane, Oldbury, West Midlands, B69 4PA Now all that is left is to attach the honey- Tel: 0121 552 3113 comb grid (if you have one).
