  • Page 1 Tellus 5...
  • Page 2 This document is a translation of the original Dutch user manual. Version: 2015 10 09...

  • Page 3: Table Of Contents

    Tellus 5 Content Introduction 1 Copyright ....................6 2 Introduction .
  • Page 4 Tellus 5 5 Viewing the power status................. 18 6 Control options .
  • Page 5 Tellus 5 Settings Tellus 1 Setting the side buttons ................. . 26 2 Switching the speakers on or off .
  • Page 6 Tellus 5 17 Shutting down the Tellus menu ................32 18 Activating the Tellus menu .

  • Page 7: A Introduction

    Tellus 5 Introduction...

  • Page 8: Copyright

    Mind Express program. The Tellus 5 has a bright 13.3 inch display with high resolution and a capacitive touch screen. Switches can be connected directly, and the JabblaIR IR remote control is an option.

  • Page 9: B Technical Specifications

    Tellus 5 Technical specifications...

  • Page 10: Technical Specifications

    Tellus 5 Technical specifications Specification Explanation Processor Intel® Core™ i5-4300U Operating system Microsoft Windows® 7 Pro 32 bit Hard drive 240 GB SSD Internal memory 4 GB DDR3 Screen Bright 13.3 inch WXGA LED touch screen display • 1280 x 800 pixels 3 x USB 2.0...

  • Page 11: C Safety Regulations

    Tellus 5 Safety regulations...

  • Page 12: Safety Regulations

    The Tellus 5 is equipped with WLAN and Bluetooth. Please observe the follo- wing safety precautions: Do not use the device on a plane. Switch off the device.

  • Page 13: D Getting Started

    Tellus 5 Getting started...

  • Page 14: What's In The Tellus Box

    Tellus 5 What's in the Tellus box? The Tellus is supplied with the following parts:  carry case  power supply with plug and cable  USB keyboard  USB mouse  USB stick  user guide Tellus  Mind Express (2 software licenses + Quick Start Guide)
  • Page 15 Tellus 5 Getting started What's in the Tellus box?

  • Page 16: Introducing The Tellus

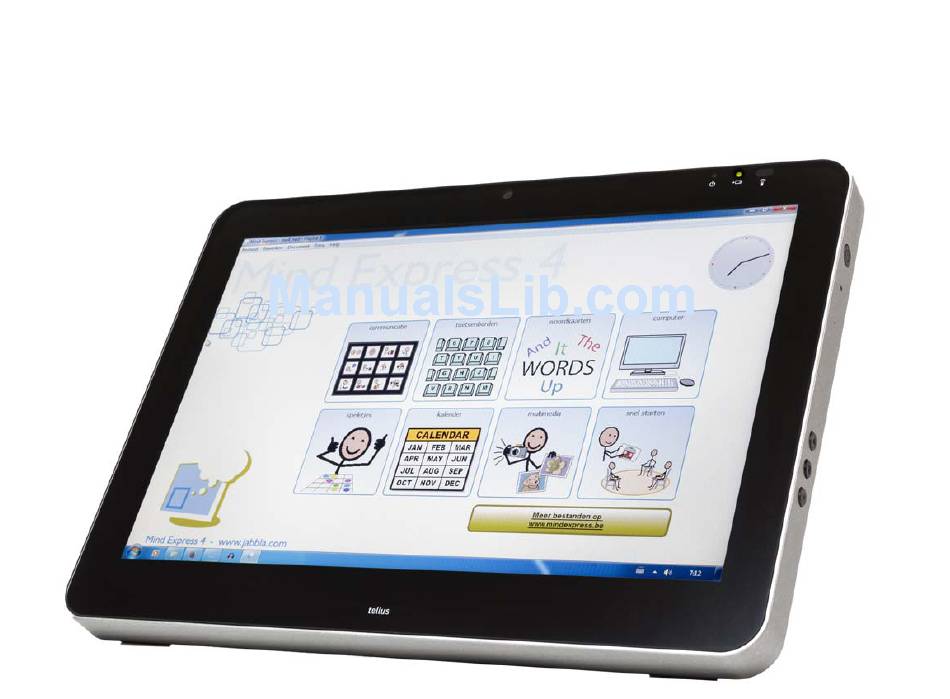

    Tellus 5 Introducing the Tellus Figure 1: Tellus 5 front view Getting started Introducing the Tellus...
  • Page 17 This button is programmable. By default, the Windows Master Volume Up function is programmed. Microphone opening This is the microphone opening which is used for sound to reach the device's internal microphone when recording. The Tellus 5 has 1 integrated microphone.
  • Page 18 Tellus 5 Figure 2: Tellus 5 rear view Getting started Introducing the Tellus...
  • Page 19 This input is for connecting switch 2. Tray stand The Tellus 5 has a folding stand. The stand is designed so that the device can be ergonomically supported on a tray. In its folded configuration, the stand is securely held in place by a magnet.

  • Page 20: Switching On The Tellus

    Tellus 5 Switching on the Tellus Viewing the power status Press the on/off button (6) of the Tellus. View the on/off indicator (9) on the device. If the Tellus was in sleep mode, it can be used immediately. If the Tellus was switched off, then Windows must be loaded first.

  • Page 21: Control Options

    Tellus 5 Control options EE ALSO "Mouse control" on page 19 "Scan control" on page 19 Touch-screen control "Keyboard control" on page 20 "Using the on-screen keyboard" on page 20 The way to make a selection on the screen can be customized by the user. See the Mind Express Help function.

  • Page 22: Keyboard Control

    Tap on On-screen keyboard in the task bar. Select Tellus 5 iwrap from the Model drop-down list. From the title bar, drag the on-screen keyboard into the desired position. If required, change the bluetooth name of the Tellus in the Bluetooth name field.

  • Page 23: Connecting The Phone To The Tellus

    Tellus (see "Setting up the Tellus telephone options" on page 20) The telephone options must be set correctly, see "Setting up the Tellus and install the Jabbla BT app on your smartphone (see "Downloa- telephone options" on page 20.

  • Page 24: Downloading And Installing The Jabbla Bt App

    The Jabbla BT app must be installed on the smartphone. Tap on INSTALL. Open the me4_eng start document. Select the computer category. The JABBLA BT app is a free app. There is no need to set any payment options. Choose one of the following apps: Explanation Tap on ACCEPT.

  • Page 25: Linking The Eddy To The Tellus

    Tellus 5 Linking the Eddy to the Tellus 12 Waking the Tellus from sleep mode The Eddy can be linked to the Tellus using bluetooth. See "Enabling Bluetooth" on page 30. If the display of the Tellus is switched off, and the on/off indicator (9) is swit- On how to use the Eddy and its settings, please refer to the Mind Express user ched on, then the Tellus is in sleep mode.

  • Page 26: Shutting Down The Tellus

    Tellus 5 14 Shutting down the Tellus Click Start Click Shut down. The on/off indicator (9) switches off. EE ALSO "Switching on the Tellus" on page 18 "Resetting the Tellus" on page 23 Getting started Shutting down the Tellus...

  • Page 27: E Settings Tellus

    Tellus 5 Settings Tellus...

  • Page 28: Setting The Side Buttons

    Play audio file This allows you to play a Wave file. Only WAV files. Rightclick Tellus5 in the system tray and select Tellus 5 options from Run application This allows you to run applications. For example: the shortcut menu.
  • Page 29 Tellus 5 From the Middle drop-down list, select one of the following options: In the Side buttons options group. From the Down drop-down list, select one of the following options: Option Explanation Option Explanation Short=rightclick, Long=Escape • Briefly press this button and then select an item on the display.

  • Page 30: Switching The Speakers On Or Off

    Mind Express. Rightclick Tellus5 in the system tray and select Tellus 5 options from Adjust the volume using Tellus 5 options instead of using the the shortcut menu. Windows volume. Click on one of the following buttons next to Microphone: •...

  • Page 31: Setting The Microphone Volume

    Immediately, the device starts up immediately after pressing switch Express or when using an application such as Skype. Rightclick Tellus5 in the system tray and select Tellus 5 options from • After 1 sec, the device starts up after holding and pressing switch 1 the shortcut menu.

  • Page 32: Putting The Device Into Flight Mode

    Mind Express. • Leftclick, the switch performs a leftclick action. Rightclick Tellus5 in the system tray and select Tellus 5 options from the shortcut menu. • Rightclick, the switch performs a rightclick action. Select the WLAN option.

  • Page 33: Enabling A Mobile Phone

    EE ALSO Rightclick Tellus5 in the system tray and select Tellus 5 options from "Putting the Tellus in sleep mode" on page 23 the shortcut menu. "Waking the Tellus from sleep mode" on page 23 Select the Mobile phone option.

  • Page 34: Setting The Language Of The Tellus Menu

    If operating correctly, the light in the right circle will be green. To be able to use the Tellus functions, the Tellus menu must be activated. Click OK. Open Explorer. Go to C:\Program files\Tellus 5. EE ALSO Doubleclick the Tellus5 file. "Starting up the Tellus using a switch" on page 29 dialog appears and the Tellus5 "Setting up the switches"...

  • Page 35: The Battery Alarm Settings

    21 Inserting a SIM card (optional) Tellus 5 allows you to send text messages when the optional SMS module is EE ALSO installed. To use this function, a SIM card must be inserted into the device.
  • Page 36 Tellus 5 Loosen the 4 screws (24) and remove the cover (25). Replace the battery (26). Replace the cover (25) and tighten it firmly with the 4 screws (24). As required, re-attach the Tellus to the mounting. Remove the battery (26) from the device.

  • Page 37: F Maintenance And Troubleshooting

    Tellus 5 Maintenance and troubleshooting...

  • Page 38: Maintenance

    Repairs In the event of damage to the device please contact the distributor of the device, or contact Jabbla's support department. Do not attempt to carry out any repairs yourself. This could damage the device and invalidate your warranty.

  • Page 39: Troubleshooting

    EE ALSO the shortcut menu. "Charging the Tellus" on page 18 In the bottom-left, next to Version Tellus 5 you can find the version num- "Viewing the power status" on page 18 ber of the Tellus menu. "The battery alarm settings" on page 33 2.5.0.45...

  • Page 40: Troubleshooting

    Tellus 5 Rightclick in the system tray and select Battery info from the shortcut menu. The Tellus5 dialog is displayed with all the battery information. EE ALSO "Charging the Tellus" on page 18 "Viewing the power status" on page 18 "The battery alarm settings"...

  • Page 41: Index
