Summary of Contents for Jabbla Vibe

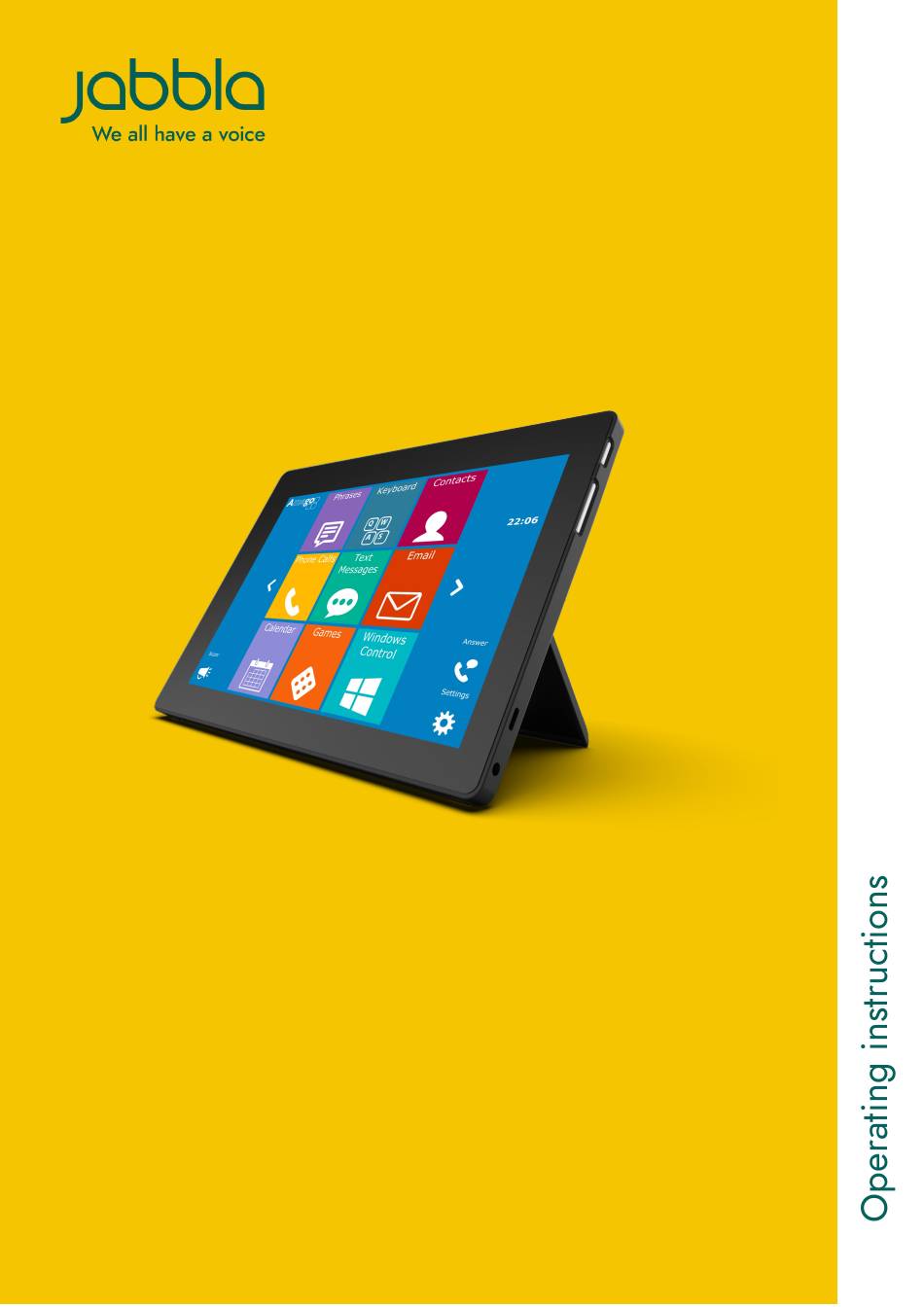

- Page 1 Vibe...
- Page 2 Jabbla. This document is a translation of the original Dutch user manual.
-
Page 3: Table Of Contents
Introduction 1 Introduction..........................3 2 Intended use..........................3 3 Prohibited use.......................... 3 4 Service life..........................3 5 The type plate of the Vibe......................3 6 Technical data........................... 3 Description and operation 1 Introducing the Vibe......................... 5 2 Options............................ 6 3 Operation..........................6 4 Screen............................7... - Page 4 Maintenance and troubleshooting 1 Maintenance........................... 20 Repairs..................................20 Cleaning the device............................... 20 2 Troubleshooting........................20 Finding the serial number of the Vibe..........................20 Checking the version and serial number of Mind Express....................20 Troubleshooting................................21 Decommissioning and disposal 1 Decommissioning........................22 2 Disposal..........................22 ...
-
Page 5: A Introduction
CAUTION Read this user manual carefully and retain it for later use. The Vibe is a versatile, symbol supported communication tool based on the Mind Express graphic communication program. The Vibe runs on the Windows 10 operating system. If you are not familiar with Windows 10, we advise that you only perform the actions described in this user guide and in the user guide of the Mind Express program. - Page 6 Vibe Specification Explanation Screen (front) • 10.1 inch capacitative touch screen • 10-point multi-touch • Resolution: 1920 x 1200 (Full HD) • Aspect ratio 16:10 Display (rear) • 3.12 inch • mono green PMOLED • Resolution: 256 x 64 1 x USB C...
-
Page 7: B Description And Operation
Vibe Description and operation Introducing the Vibe Figure 2: Vibe front view Identification Explanation Front camera The device has a front camera for taking photos and videos. Touch screen The device has a 10.1 inch capacitive touch screen. See Screen page 7. -
Page 8: Options
The Vibe can be supplied with an optional REHADAPT mounting system or a DAESSY mounting system. Operation The Vibe is a versatile communication tool based on the Mind Express communication program. Thanks to the Mind Express, voice messages can be created by selecting images and/or symbols. Selection is done by: •... -
Page 9: Screen
Vibe If you are not familiar with Windows 10, we advise that you only perform the actions described in this user guide and in the user guide of the Mind Express program. Screen The capacitative touch screen can be controlled in the following ways: •... -
Page 10: C Safety
Do not use the tray stand as a handle for carrying the device! By using the tray stand as a carrying handle, it may detach from the device, causing the device to fall and possibly sustain damage. The Vibe is equipped with Wi-Fi and Bluetooth. Please observe the following safety precautions: CAUTION Do not use the device on a plane. -
Page 11: D Getting Started
• Mind Express (2 software licenses) First use In principle, the Vibe is fully charged on delivery. A charge status between 40 % and 90 % increases the service life of the battery (see Viewing the power status on page 11 and Charging the Vibe on page 10). -
Page 12: E Control
Vibe Control Switching on the Vibe Figure 4: On/o button Press and hold the on/off button (6) for several seconds. If the device was in sleep mode, it can be used immediately. If the device was switched off, then Windows 10 must be started first. -
Page 13: Viewing The Power Status
If the battery icon on the task bar is hidden, first select the display hidden icons icon and then select the battery icon You can also display and read the battery status in Mind Express. See the Mind Express Help function. See also Charging the Vibe on page 10 Control options Control... -
Page 14: Mouse Control
Vibe Touch-screen control The way to make a selection on the screen can be customized by the user. See the Mind Express Help function. Figure 6: Touch-screen control CAUTION Do not use sharp tools, to prevent scratching the touch screen. -
Page 15: Joystick Control
Vibe Figure 7: USB C port To activate the mouse control, select Mind Express Edit > Mouse. To change the mouse control settings, select Mind Express Tools > Mouse selection..For more information on activating and setting up the mouse control in Mind Express, see the Mind Express Help function. -
Page 16: Scan Control
Vibe Scan control The device can be operated in Mind Express by scanning. In Mind Express, you can specify how you want to scan. No switches can be connected to the device. You can however use the scanning control with a connected keyboard, mouse or joystick. -
Page 17: Putting The Vibe In Sleep Mode
19 Waking the Vibe from sleep mode If the display of the Vibe is switched off, and the LED indicator of the on/off button (6) lights now and then, the Vibe is in sleep mode. Figure 11: On/o button Carry out one of the following actions to wake Vibe from sleep mode: ▪... -
Page 18: Resetting The Rear Display And Loudspeakers
Vibe Resetting the rear display and loudspeakers NOTE It is also possible to completely reset the Vibe (see Completely resetting the Vibe on page 16). CAUTION Resetting is only permitted if the display and/or the loudspeakers are completely unresponsive. Figure 12: Reset button Press the tip of a ball pen into the reset opening (11). -
Page 19: Shutting Down The Vibe
Vibe Shutting down the Vibe Choose > > Exit. The LED indicator of the on/off button (6) goes out. Figure 14: On/o button See also Switching on the Vibe on page 10 Completely resetting the Vibe on page 16 Control... -
Page 20: F Settings
Vibe Settings Setting the volume When starting the Vibe, the volume is at the lowest setting set just before switching off the device. The loudspeakers are set to the lowest possible volume. NOTE Headphones or external loudspeakers can be connected to the USB C port (see Introducing the Vibe on page 5). -
Page 21: Windows 10-Settings Via The Windows 10 Icon
Windows 10-settings for sleep mode • Putting the device into sleep mode, see Putting the Vibe in sleep mode on page 15. • Waking the device from sleep mode, see Waking the Vibe from sleep mode on page 15. -
Page 22: G Maintenance And Troubleshooting
Troubleshooting Finding the serial number of the Vibe In your dealings with the support department, you will be asked to supply the serial number of your device. You will find the label with the serial number of the device on the rear panel. -
Page 23: Troubleshooting
Vibe See also Finding the serial number of the Vibe on page 20 Troubleshooting Problem Solution The touch screen is slow or is not working properly. • Restart the device to correct any software errors. • Clean the touch screen. See Cleaning the device on page 20. -
Page 24: H Decommissioning And Disposal
Decommissioning Shut down the Vibe. See Shutting down the Vibe on page 17 Remove the Vibe from the mounting (if applicable). Take the Vibe out of the carry case (if applicable). Remove the charger. See also Disposal Disposal Do not dispose of the appliance with the household waste! Use specific collection systems to reduce the ecological impact. -
Page 25: Index
Vibe Index Accessories Escape button Accessory Eye tracking Airplane mode setting in Windows 10 Audio First use Function device Battery charging prohibited disposal status technical data Battery status view in Windows 10 Getting started Bluetooth setting in Windows 10 Button... - Page 26 Vibe setting in Windows 10 figure switching off keyboard technical data Serial number device label Mind Express Maintenance QR code cleaning Service life repair Settings Malfunction loudspeakers/volume Memory Windows 10 Microphone Shutting down setting in Windows 10 device Mind Express...
- Page 27 Vibe switch off Webcam figure setting in Windows 10 Weight Wi-Fi setting in Windows 10 Windows 10 problems resetting settings...
