- Page 1 Mobi Tellus mobi user manual ver. 1.0...
- Page 2 Tellus mobi user manual ver. 1.0...
-
Page 3: Table Of Contents
User Manual Tellus mobi Content Introduction………………………………….. 5 General characteristics……………………... 7 How to switch on the Tellus mobi …………. 5 Connectors and buttons ……………………. 9 Touch screen calibration …………………… 13 Battery and charging ……………………….. 15 Infra Red Remote control …………………. .17 Programming IR codes …………………. - Page 4 Tellus mobi user manual ver. 1.0...
-
Page 5: Introduction

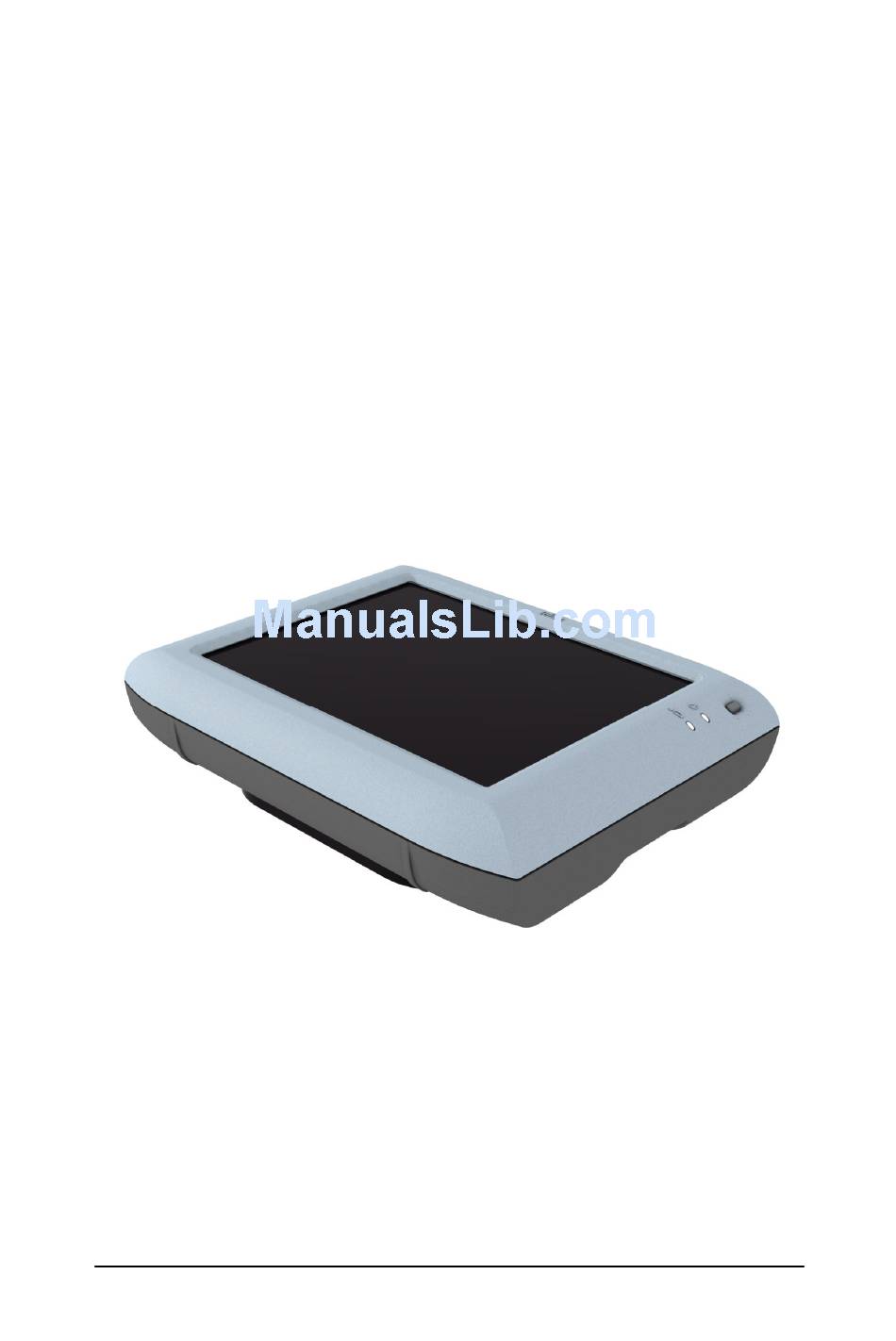

Introduction The Tellus mobi is a portable dynamic display solution for augmentative and alternative communication. The Tellus mobi is an XP based computer platform with additional features such as high quality stereo speakers, an alternative access interface for switches or joystick, a... -
Page 6: General Characteristics
Two mini-jack connectors for switches • Internal replaceable Li-on battery • Mounting plate for DaeSSy quick release mount • Weight : 2,675 kg • Dimensions in mm: 327 x 245 x 40 – 60 • Tellus mobi user manual ver. 1.0... -
Page 7: How To Switch On The Tellus Mobi
Windows XP Home edition and load Mind Express with the necessary data. To turn off the Tellus mobi, click on the Windows Start button and choose Shut Down. In case the Tellus mobi would not react press the Rst button on the back of the device. - Page 8 Tellus mobi user manual ver. 1.0...
-
Page 9: Connectors And Buttons
Use this input to connect the Tellus mobi with the adapter/charger that is delivered with the device. Do not use another adapter. Using another adapter might damage the Tellus mobi. Avoid charging the Tellus mobi when the unit is operating in its carry case. - Page 10 Press the Esc button shortly to switch to the right mouse click the next time you tap the touch screen. Press this button shortly in case the Tellus mobi would need a reset. The Tellus mobi will turn off. Battery lock Tellus mobi user manual ver.
- Page 11 Tellus mobi has one USB master port 2.0. If you want to connect more then one USB peripheral you can use a USB Hub. Headphone The headphone output will not automatically switch off the speakers. Both speakers and headphone are controlled by software (see Mobi Tool p 20).
- Page 12 The battery has a groove to avoid wrong polarisation when replacing. Replacing the battery should not need any force but at the end when the battery has to click in its connector. Tellus mobi user manual ver. 1.0...
-
Page 13: Touch Screen Calibration
Touch screen calibration Tellus mobi has a touch screen that can be operated by using a finger or stylus. Avoid using sharp items to touch the screen. In case you would need to recalibrate the touch screen double click the calibration icon in the Control Panel. - Page 14 The calibration has now been finished. It is not necessary to use the Button swapping because this function can be executed by the System button Esc on the back of the Tellus. Tellus mobi user manual ver. 1.0...
-
Page 15: Battery And Charging
In that case charging will take longer. It is recommended not to charge the Tellus mobi while it is operating in its carry case. If you wish to do so, first switch off the Tellus mobi. - Page 16 Use a pencil to press the battery lock and slide the battery sleeve away from the Tellus mobi. The battery now becomes visible and you can take it out of the device: The battery has a groove to avoid wrong polarisation when replacing.
-
Page 17: Infra Red Remote Control
Red Remote control The Tellus mobi can be (optionally) equipped with a programmable infrared remote control unit (GewaLinked). This unit can learn and transmit Infrared codes of for instance your television, CD player… Programming IR codes Mind Express has a specific user interface to easily program the Infrared module. - Page 18 On the Tellus mobi screen: Press the Learn button to start the IR record procedure. The status line in the Gewa window on the Tellus mobi will display in red: Press remote control. At the same time a red light in the IR window will turn on. The IR module now waits for the IR code that has to be learned.
- Page 19 Press the button on your remote control of the code you want the Tellus mobi to learn (in this case the IR code for television volume up). Keep the button pressed until the red light in the IR window of the Tellus goes out or the status line in the Gewa window will displays in green Release.
- Page 20 The red light will blink shortly to confirm that the record procedure has been finished successfully. In the status line an OK will appear. Repeat this procedure for all IR codes you want the Tellus mobi to learn. Tellus mobi user manual ver. 1.0...
-
Page 21: Transmitting Ir Codes
Express grid you need to go into edit mode and choose the command: Send to Gewa. Choose Select command and press the Select button. Press the down arrow to get the list of available IR codes. Tellus mobi user manual ver. 1.0... - Page 22 IR code. If you are familiar with the Gewa command structure you can also use the Gewa commands in the Type command window. Tellus mobi user manual ver. 1.0...
-
Page 23: Mobi Tool
Mobi Tool Tellus mobi system settings like screen brightness, speaker volume…, can be controlled with the Mobi Tool. Double click the icon to open the Mobi Tool. The following window appears on your screen: Speaker Volume button turns on or off the speakers. - Page 24 Tellus mobi battery. Higher brightness will use more power. The Tellus mobi can be switched on or off with and external switch (switch 1). You can adjust timing for switching on or off the device.
