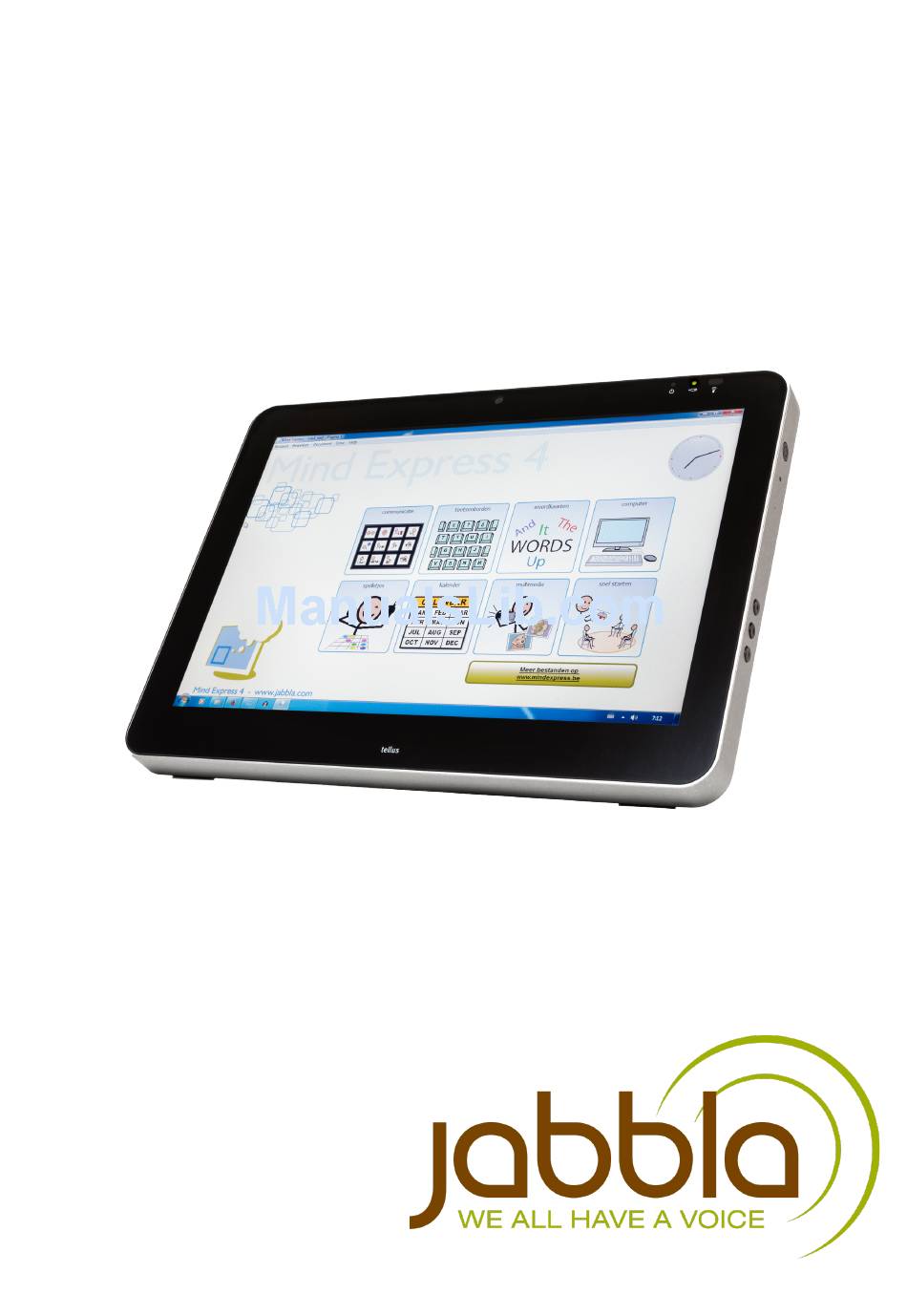

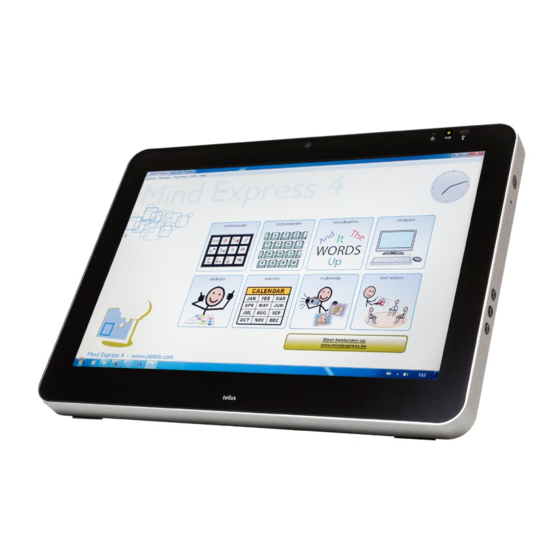

- Page 1 Tellus 5...
- Page 2 All rights reserved. No part of this publication may be reproduced, transmitted, transcribed, stored in an automated retrieval system or translated into any language or computer language in any form or by any means, either electronically, mechanically, optically, chemically, manually or in any other way without the prior written consent from Jabbla. This document is a translation of the original Dutch user manual.
-
Page 3: Table Of Contents
Making a call with the Tellus 5........................................19 Sending and receiving text messages with the Tellus 5............................... 19 Making calls / sending text messages with the Tellus 5 via an external telephone....................19 Making calls with the Tellus 5 via the internal telephone..............................19 Sending text messages with the Tellus 5 via the internal telephone.......................... - Page 4 Tellus 5 9 Waking the Tellus 5 from sleep mode........................ 25 10 Resetting the Tellus 5............................25 11 Shutting down the Tellus 5..........................26 Settings 1 Setting the side buttons............................28 2 Switching the speakers on or off........................28 3 Setting the speaker volume..........................28 4 Switching the headphones on or off........................
-
Page 5: A Introduction
Tellus 5 Introduction... -
Page 6: Introduction
The Tellus 5 has a bright 13.3 inch display with high resolution and a capacitive touch screen. Switches can be connected directly, and the JabblaIR IR remote control is an option. During the development of the Tellus 5, a lot of attention was paid to the casing. Not only is the screen area waterproof, but the design guarantees optimum acoustics and robust protection of the internal computer platform. - Page 7 Tellus 5 Specication Explanation Audio • 1 integrated microphone • 2 integrated speakers Switches 2 (programmable) Introduction Technical data...
-
Page 8: B Description And Operation
Tellus 5 Description and operation... -
Page 9: Introducing The Tellus 5
Short press and hold: the Windows function Master Volume Microphone opening This is the microphone opening which is used for sound to reach the device's internal microphone when recording. The Tellus 5 has 1 integrated microphone. Reset This button is used to reset the device. - Page 10 This input is for connecting switch 2. Tray stand The Tellus 5 has a folding stand. The stand is designed so that the device can be ergonomically supported on a tray. In its folded configuration, the stand is securely held in place by a magnet.
-
Page 11: Operation
Tellus 5 N° Identication Explanation Fan vent This opening is for additional cooling to the Tellus 5. Be sure to keep this opening unobstructed! Infrared transmitter This transmits infrared signals to other devices. Operation The Tellus i5 is a versatile, symbol supported communication tool based on the Mind Express graphic communication program. Thanks to the Mind Express, voice messages can be created by selecting images and/or symbols. -
Page 12: C Safety
Tellus 5 Safety... -
Page 13: Safety
Do not use the tray stand as a handle for carrying the device! By using the tray stand as a carrying handle, it may detach from the device, causing the device to fall and possibly sustain damage. The Tellus 5 is equipped with WLAN and Bluetooth. Please observe the following safety precautions: CAUTION Do not use the device on a plane. -
Page 14: D Getting Started
Tellus 5 Getting started... -
Page 15: What's In The Box
Tellus 5 What's in the box? The device is supplied with the following parts: • carry case • power supply with plug and cable • USB input panel • USB mouse • USB stick • operating instructions • Mind Express (2 software licenses + Quick Start Guide) First use Connect the supplied power adapter between the device (12) and the power supply. - Page 16 Tellus 5 Fully charge the device. Place the device in the carry case. Store the device with carry case in a dry place at room temperature (20 °C / 68 °F). Fully charge the battery every 6 months. If you allow the battery to get empty, the device will no longer start.
-
Page 17: E Control
Tellus 5 Control... -
Page 18: Starting Up The Device
Press the on/off button (6) of the device. If the device was in sleep mode, it can be used immediately. If the device was switched off, then Windows must be started first. See also Shutting down the Tellus 5 on page 26 Resetting the Tellus 5... -
Page 19: Control Options
Tellus 5 Viewing the power status View the on/off indicator (9) on the device. The on/off indicator may show the following colors: Color of indicator Explanation Battery capacity is higher or equal to 50% Green Battery capacity between 20% and 50%... -
Page 20: Mouse Control
Scan control The Tellus 5 can be operated in Mind Express by scanning. In Mind Express, you can specify how you want to scan. For scanning, 1 or 2 switches that are directly connected to the Tellus 5 (13) (14) can be used. -
Page 21: Eye Control
Making calls / sending text messages with the Tellus 5 via an external telephone The first time, you must complete the following steps. After that the Jabbla BT app will connect automatically provided that Bluetooth is enabled on your telephone. -
Page 22: Sending Text Messages With The Tellus 5 Via The Internal Telephone
Finding the device serial number on page 37. NOTE For serial numbers lower or equal to T5 1285, please contact your dealer for an upgrade of your Tellus 5. Insert the SIM card. See Inserting a SIM card (optional) on page 33. -
Page 23: Using The Sample Le For Sms Messages
Click the button to end the call. See also Making calls / sending text messages with the Tellus 5 via an external telephone on page 19 Using the sample le for SMS messages Open the me4_eng start document. -
Page 24: Setting The Tellus 5 Phone Options (External Telephone)
Setting the Tellus 5 phone options (external telephone) You can change the Bluetooth name of the Tellus 5 and you can automatically enable Bluetooth when starting up the Tellus 5. You can also visualize events. For example, when to enable bluetooth, or when you are being called, ... -
Page 25: Setting The Tellus 5 Phone Options (Internal Telephone)
Setting the Tellus 5 phone options (internal telephone) You can change the Bluetooth name of the Tellus 5 and you can automatically enable Bluetooth when starting up the Tellus 5. You can also visualize events. For example, when to enable bluetooth, or when you are being called, ... -
Page 26: Linking The Eddy To The Tellus 5
Putting the Tellus 5 in sleep mode Sleep mode is an energy-saving mode that allows you to quickly wake up your computer again. By default, after 3 minutes the Tellus 5 automatically switches to sleep mode. The Tellus 5 can also be put to sleep manually. -
Page 27: Waking The Tellus 5 From Sleep Mode
Waking the Tellus 5 from sleep mode If the display of the Tellus 5 is switched off, and the on/off indicator (9) is switched on, then the Tellus 5 is in sleep mode. Carry out one of the following actions to wake the device from sleep mode: ▪... -
Page 28: Shutting Down The Tellus 5
The device will restart and can be used again. See also Starting up the device on page 16 Shutting down the Tellus 5 on page 26 11 Shutting down the Tellus 5 Click Start Click Exit. The on/off indicator (9) switches off. See also Starting up the device... -
Page 29: F Settings
Tellus 5 Settings... -
Page 30: Setting The Side Buttons
Tellus 5 Setting the side buttons There is the option to assign certain functions to the top and bottom side buttons. With a short or long press and click on one of these buttons a program can be launched, a macro run, a key stroke transmitted, the Windows system volume increased or decreased, a Wave file played and commands can be sent to DocReader or to Skippy. -
Page 31: Switching The Headphones On Or Off
Click OK. Starting up the device using a switch The Tellus 5 can be started up using switch 1. You can specify how long to hold and press switch 1 before Tellus 5 starts up. Right-click Tellus5 in the system tray and select Options from the shortcut menu. -
Page 32: Setting Up The Switches
Tellus 5 See also Setting up the switches on page 30 Testing the switches on page 31 Setting up the switches You can link an action to the switches. The action is then performed by pressing the switch. For example: left click, right click, send letter or number, ... -
Page 33: Automatically Disabling The Usb Ports In Sleep Mode
Tellus 5 12 Enabling a mobile phone The Tellus 5 can be supplied with an optional data module with SIM card for sending text messages. To send text messages, the mobile phone function must be enabled. Right-click Tellus5 in the system tray and select Options from the shortcut menu. -
Page 34: 16 Setting The Language Of The Tellus Menu
Right-click on the date and time in the system tray and select Customize Notification Icons ▪ ▪ Click in the system tray and choose Customize. From the Device tool for Tellus 5 drop-down list, select one of the following options: Option Explanation Show icon and notications The icon is visible in the system tray. -
Page 35: 20 The Battery Alarm Settings
38 21 Inserting a SIM card (optional) With the Tellus 5 it is possible to make calls and send text messages via an external telephone. To use this function, you need to insert a SIM card into the device. - Page 36 Tellus 5 Remove the battery (26) from the device. Place the SIM card (28) in the SIM card slot (27) of the device. Replace the battery (26). Replace the cover (25) and tighten it firmly with the 4 screws (24).
-
Page 37: G Maintenance And Troubleshooting
Tellus 5 Maintenance and troubleshooting... -
Page 38: Maintenance
It is best to clean the carry case with a dry or slightly damp cloth. The carry case can also be cleaned with a soft brush. Replacing the battery Shut down the device. See Shutting down the Tellus 5 on page 26 As required, remove the device from its mounting. -
Page 39: Troubleshooting
Tellus 5 Replace the cover (25) and tighten it firmly with the 4 screws (24). As required, re-attach the device to the mounting. Start the device. See also Charging the device on page 16 Viewing the power status on page 16... -
Page 40: Showing The Battery Info
Cleaning the device on page 36. The device is not responding. Reset the device. See Resetting the Tellus 5 on page 25. The device is becoming hot. During long and intensive use of the device, it can become hot. This is normal and has no effect on the life or performance of the device. -
Page 41: H Decommissioning And Disposal
Tellus 5 Decommissioning and disposal... -
Page 42: Decommissioning
Tellus 5 Decommissioning Shut down the device. Remove the device from its mounting. Remove the device from the carry case. If required according to the applicable local regulations, proceed as follows: ▪ Remove the battery. ▪ Remove the SIM card. -
Page 43: Index
Tellus 5 Index Escape Eye control Alea Accessory Edge Alarm Eyetech battery MyGaze Alea Tobii Android determine version on smartphone Eyetech Jabbla BT Audio Fan vent Find Tellus menu version First use Battery Flight mode charge indicator when charging replace... - Page 44 Tellus 5 Label Language settings Repair Launch the program 28, Reset Linking the Eddy Reset button Loudspeaker Resolving faults set volume Right-click switch on or off Run macro Maintenance Safety regulations clean Sample le Making a call phone via an external telephone...
- Page 45 Tellus 5 disable in sleep mode Version checking VESA 75 Webcam 4, Weight Wi-Fi disable enabling WLAN disable enabling...
- Page 46 Tellus 5...
